Spacecraft propulsion is any method used to accelerate spacecraft and artificial satellites. There are many different methods. Each method has drawbacks and advantages, and spacecraft propulsion is an active area of research. However, most spacecraft today are propelled by exhausting a gas from the back/rear of the vehicle at very high speed through a supersonic de Laval nozzle. This sort of engine is called a rocket engine.
All current spacecraft use chemical rockets (bipropellant or solid-fuel) for launch, though some (such as the Pegasus rocket and SpaceShipOne) have used air-breathing engines on their first stage. Most satellites have simple reliable chemical thrusters (often monopropellant rockets) or resistojet rockets for orbital station-keeping and some use momentum wheels for attitude control. Soviet bloc satellites have used electric propulsion for decades, and newer Western geo-orbiting spacecraft are starting to use them for north-south stationkeeping. Interplanetary vehicles mostly use chemical rockets as well, although a few have experimentally used ion thrusters (a form of electric propulsion) to great success.
The necessity for a propulsion system
Artificial satellites must be launched into orbit, and once there they must be placed in their nominal orbit. Once in the desired orbit, they often need some form of altitude control so that they are correctly pointed with respect to the Earth, the Sun, and possibly some astronomical object of interest. They are also subject to drag from the thin atmosphere, so that to stay in orbit for a long period of time some form of propulsion is occasionally necessary to make small corrections (orbital stationkeeping). Many satellites need to be moved from one orbit to another from time to time, and this also requires propulsion. A satellite's useful life is over once it has exhausted its ability to adjust its orbit.
Spacecraft designed to travel further also need propulsion methods. They need to be launched out of the Earth's atmosphere just as satellites do. Once there, they need to leave orbit and move around.
For interplanetary travel, a spacecraft must use its engines to leave Earth orbit. Once it has done so, it must somehow make its way to its destination. Current interplanetary spacecraft do this with a series of short-term trajectory adjustments. In between these adjustments, the spacecraft simply falls freely along its orbit. The simplest fuel-efficient means to move from one circular orbit to another is with a Hohmann transfer orbit: the spacecraft begins in a roughly circular orbit around the Sun. A short period of thrust in the direction of motion accelerates or decelerates the spacecraft into an elliptical orbit around the Sun which is tangential to its previous orbit and also to the orbit of its destination. The spacecraft falls freely along this elliptical orbit until it reaches its destination, where another short period of thrust accelerates or decelerates it to match the orbit of its destination. Special methods such as aerobraking are sometimes used for this final orbital adjustment.
Some spacecraft propulsion methods such as solar sails provide very low but inexhaustible thrust; an interplanetary vehicle using one of these methods would follow a rather different trajectory, either constantly thrusting against its direction of motion in order to decrease its distance from the Sun or constantly thrusting along its direction of motion to increase its distance from the Sun.
Spacecraft for interstellar travel also need propulsion methods. No such spacecraft has yet been built, but many designs have been discussed. Since interstellar distances are very great, a tremendous velocity is needed to get a spacecraft to its destination in a reasonable amount of time. Acquiring such a velocity on launch and getting rid of it on arrival will be a formidable challenge for spacecraft designers.
Effectiveness of propulsion systems
When in space, the purpose of a propulsion system is to change the velocity, or v, of a spacecraft. Since this is more difficult for more massive spacecraft, designers generally discuss momentum, mv. The amount of change in momentum is called impulse. So the goal of a propulsion method in space is to create an impulse.
When launching a spacecraft from the Earth, a propulsion method must overcome a higher gravitational pull to provide a net positive acceleration. In orbit, any additional impulse, even very tiny, will result in a change in the orbit path.
The rate of change of velocity is called acceleration, and the rate of change of momentum is called force. To reach a given velocity, one can apply a small acceleration over a long period of time, or one can apply a large acceleration over a short time. Similarly, one can achieve a given impulse with a large force over a short time or a small force over a long time. This means that for maneuvering in space, a propulsion method that produces tiny accelerations but runs for a long time can produce the same impulse as a propulsion method that produces large accelerations for a short time. When launching from a planet, tiny accelerations cannot overcome the planet's gravitational pull and so cannot be used.
The Earth's surface is situated fairly deep in a gravity well and it takes a velocity of 11.2 kilometers/second (escape velocity) or more to escape from it. As human beings evolved in a gravitational field of 1g (9.8 m/s²), an ideal propulsion system would be one that provides a continuous acceleration of 1g (though human bodies can tolerate much larger accelerations over short periods). The occupants of a rocket or spaceship having such a propulsion system would be free from all the ill effects of free fall, such as nausea, muscular weakness, reduced sense of taste, or leaching of calcium from their bones.
The law of conservation of momentum means that in order for a propulsion method to change the momentum of a space craft it must change the momentum of something else as well. A few designs take advantage of things like magnetic fields or light pressure in order to change the spacecraft's momentum, but in free space the rocket must bring along some mass to accelerate away in order to push itself forward. Such mass is called reaction mass.
In order for a rocket to work, it needs two things: reaction mass and energy. The impulse provided by launching a particle of reaction mass having mass m at velocity v is mv. But this particle has kinetic energy mv²/2, which must come from somewhere. In a conventional solid, liquid, or hybrid rocket, the fuel is burned, providing the energy, and the reaction products are allowed to flow out the back, providing the reaction mass. In an ion thruster, electricity is used to accelerate ions out the back. Here some other source must provide the electrical energy (perhaps a solar panel or a nuclear reactor), while the ions provide the reaction mass.
When discussing the efficiency of a propulsion system, designers often focus on effectively using the reaction mass. Reaction mass must be carried along with the rocket and is irretrievably consumed when used. One way of measuring the amount of impulse that can be obtained from a fixed amount of reaction mass is the specific impulse, the impulse per unit weight-on-Earth (typically designated by Isp). The unit for this value is seconds. Since the weight on Earth of the reaction mass is often unimportant when discussing vehicles in space, specific impulse can also be discussed in terms of impulse per unit mass. This alternate form of specific impulse uses the same units as velocity (e.g. m/s), and in fact it is equal to the effective exhaust velocity of the engine (typically designated ve). Confusingly, both values are sometimes called specific impulse. The two values differ by a factor of gn, the standard acceleration due to gravity 9.80665 m/s² (Ispgn = ve).
A rocket with a high exhaust velocity can achieve the same impulse with less reaction mass. However, the energy required for that impulse is proportional to the exhaust velocity, so that more mass-efficient engines require much more energy, and are typically less energy efficient. This is a problem if the engine is to provide a large amount of thrust. To generate a large amount of impulse per second, it must use a large amount of energy per second. So highly (mass) efficient engines require enormous amounts of energy per second to produce high thrusts. As a result, most high-efficiency engine designs also provide very low thrust.
Space propulsion methods
Propulsion methods can be classified based on their means of accelerating the reaction mass. There are also some special methods for launches, planetary arrivals, and landings.
A reaction engine is an engine which provides propulsion by expelling reaction mass, in accordance with Newton's third law of motion. This law of motion is most commonly paraphrased as: "For every action force there is an equal, but opposite, reaction force".
Examples include both duct engines and rocket engines, and more uncommon variations such as Hall effect thrusters, ion drives and mass drivers. Duct engines are obviously not used for space propulsion due to the lack of air; however some proposed spacecraft have these kinds of engines to assist takeoff and landing.
Delta-v and propellant use
Burning the entire usable propellant of a spacecraft through the engines in a straight line in free space would produce a net velocity change to the vehicle; this number is termed 'delta-v' (Δv).

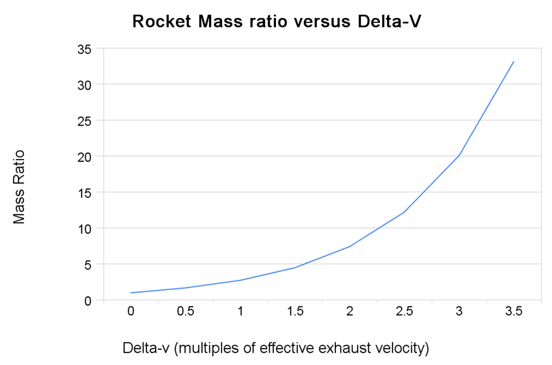

If the exhaust velocity is constant then the total Δv of a vehicle can be calculated using the rocket equation, where M is the mass of propellant, P is the mass of the payload (including the rocket structure), and ve is the velocity of the rocket exhaust. This is known as the Tsiolkovsky rocket equation:
For historical reasons, as discussed above, ve is sometimes written as
where Isp is the specific impulse of the rocket, measured in seconds, and go is the gravitational acceleration at sea level.
For a high delta-v mission, the majority of the spacecraft's mass needs to be reaction mass. Since a rocket must carry all of its reaction mass, most of the initially-expended reaction mass goes towards accelerating reaction mass rather than payload. If the rocket has a payload of mass P, the spacecraft needs to change its velocity by Δv, and the rocket engine has exhaust velocity ve, then the mass M of reaction mass which is needed can be calculated using the rocket equation and the formula for Isp:

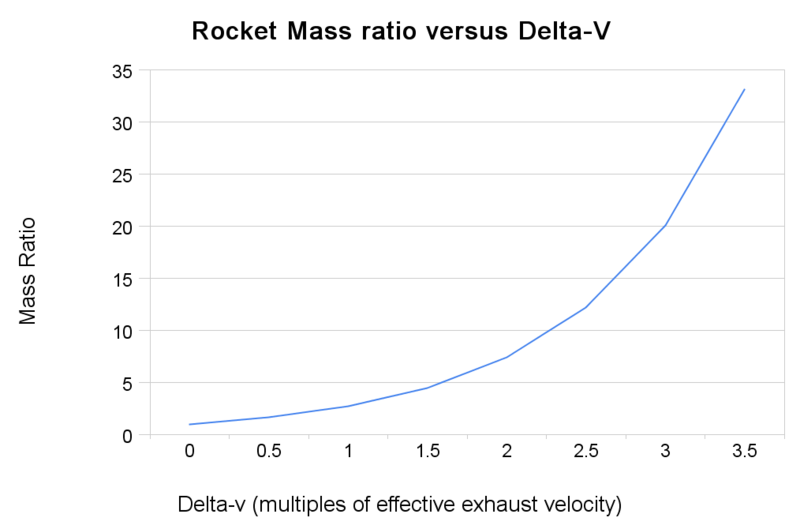

For Δv much smaller than ve, this equation is roughly linear, and little reaction mass is needed. If Δv is comparable to ve, then there needs to be about twice as much fuel as combined payload and structure (which includes engines, fuel tanks, and so on). Beyond this, the growth is exponential; speeds much higher than the exhaust velocity require very high ratios of fuel mass to payload and structural mass.
For a mission, for example, when launching from or landing on a planet, the effects of gravitational attraction and any atmospheric drag must be overcome by using fuel. It is typical to combine the effects of these and other effects into an effective mission delta-v. For example a launch mission to low Earth orbit requires about 9.3-10 km/s delta-v. These mission delta-vs are typically numerically integrated on a computer.
Delta-v's are often considerably lower for high thrust engines than low, some effects such as Oberth effect can only be significantly utilised by high thrust engines such as rockets.
Power use and propulsive efficiency
Although solar power and nuclear power are virtually unlimited sources of energy, the maximum power they can supply is substantially proportional to the mass of the powerplant. For fixed power, with a large ve which is desirable to save propellant mass, it turns out that the maximum acceleration is inversely proportional to ve. Hence the time to reach a required delta-v is proportional to ve. Thus the latter should not be too large. It might be thought that adding power generation is helpful, this tend to increase the weight of the powerplant exponentially. For all reaction engines (such as rockets and ion drives) some energy must go into accelerating the reaction mass. Every engine will waste some energy, but even assuming 100% efficiency, to accelerate an exhaust the engine will need energy amounting to
This energy is not necessarily lost- some of it usually ends up as kinetic energy of the vehicle, and the rest is wasted in residual motion of the exhaust.
Comparing the rocket equation (which shows how much energy ends up in the final vehicle) and the above equation (which shows the total energy required) shows that even with 100% engine efficiency, certainly not all energy supplied ends up in the vehicle - some of it, indeed usually most of it, ends up as kinetic energy of the exhaust.
The exact amount depends on the design of the vehicle, and the mission. However there are some useful fixed points:
Some drives (such as VASIMR or Electrodeless plasma thruster ) actually can significantly vary their exhaust velocity. This can help reduce propellant usage or improve acceleration at different stages of the flight. However the best energetic performance and acceleration is still obtained when the exhaust velocity is close to the vehicle speed. Proposed ion and plasma drives usually have exhaust velocities enormously higher than that ideal (in the case of VASIMR the lowest quoted speed is around 15000 m/s compared to a mission delta-v from high Earth orbit to Mars of about 4000m/s).
Power to thrust ratio
The power to thrust ratio is simply:
Thus for any vehicle power P, the thrust that may be provided is:
Suppose we want to send a 10,000 kg space probe to Mars. The required Δv from LEO is approximately 3000 m/s, using a Hohmann transfer orbit. (A manned craft would need to take a faster route and use more fuel). For the sake of argument, let us say that the following thrusters may be used:
* - assumes a specific power of 1kW/kg
Observe that the more fuel-efficient engines can use far less fuel; its mass is almost negligible (relative to the mass of the payload and the engine itself) for some of the engines. However, note also that these require a large total amount of energy. For Earth launch, engines require a thrust to weight ratio of more than one. To do this with the ion or more theoretical electrical drives, the engine would have to be supplied with one to several gigawatts of power — equivalent to a major metropolitan generating station. From the table it can be seen that this is clearly impractical with current power sources.
Instead, a much smaller, less powerful generator may be included which will take much longer to generate the total energy needed. This lower power is only sufficient to accelerate a tiny amount of fuel per second, and would be insufficient for launching from the Earth. However, over long periods in orbit where there is no friction, the velocity will be finally achieved. For example. it took the Smart 1 more than a year to reach the Moon, while with a chemical rocket it takes a few days. Because the ion drive needs much less fuel, the total launched mass is usually lower, which typically results in a lower overall cost, but takes longer.
Mission planning therefore frequently involves adjusting and choosing the propulsion system so as to minimise the total cost of the project, and can involve trading off launch costs and mission duration against payload fraction.

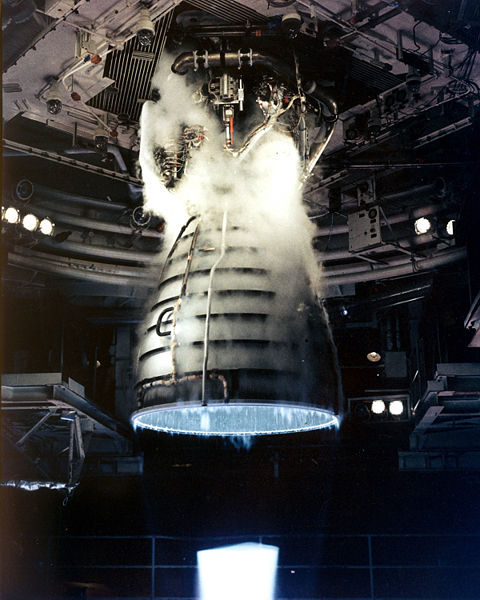

Most rocket engines are internal combustion heat engines (although non combusting forms exist). Rocket engines generally produce a high temperature reaction mass, as a hot gas. This is achieved by combusting a solid, liquid or gaseous fuel with an oxidiser within a combustion chamber. The extremely hot gas is then allowed to escape through a high-expansion ratio nozzle. This bell-shaped nozzle is what gives a rocket engine its characteristic shape. The effect of the nozzle is to dramatically accelerate the mass, converting most of the thermal energy into kinetic energy. Exhaust speed reaching as high as 10 times the speed of sound at sea level are common.
Rocket engines provide essentially the highest specific powers and high specific thrusts of any engine used for spacecraft propulsion.
Ion propulsion rockets can heat a plasma or charged gas inside a magnetic bottle and release it via a magnetic nozzle, so that no solid matter need come in contact with the plasma. Of course, the machinery to do this is complex, but research into nuclear fusion has developed methods, some of which have been proposed to be used in propulsion systems, and some have been tested in a lab.
See rocket engine for a listing of various kinds of rocket engines using different heating methods, including chemical, electrical, solar, and nuclear.
Electromagnetic acceleration of reaction mass

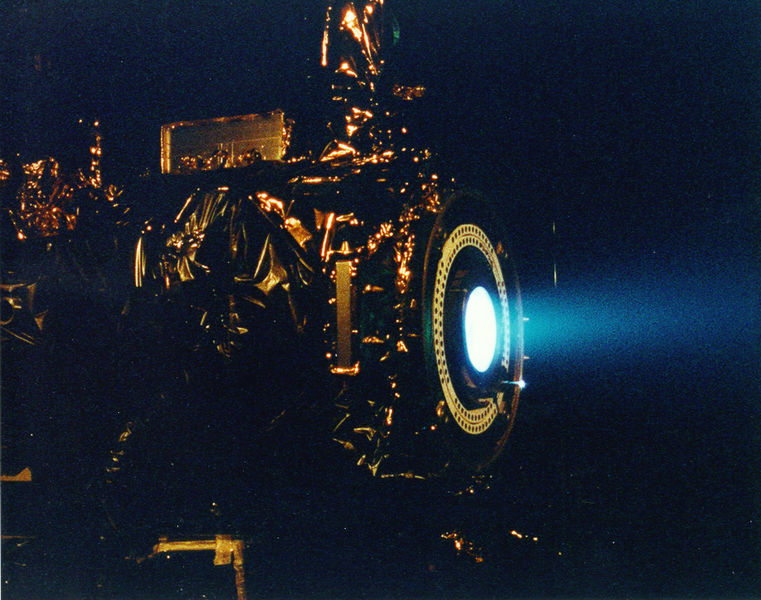

Rather than relying on high temperature and fluid dynamics to accelerate the reaction mass to high speeds, there are a variety of methods that use electrostatic or electromagnetic forces to accelerate the reaction mass directly. Usually the reaction mass is a stream of ions. Such an engine typically uses electric power, first to ionize atoms, and then to create a voltage gradient to accelerate the ions to high exhaust velocities.
For these drives, at the highest exhaust speeds, energetic efficiency and thrust are all inversely proportional to exhaust velocity. Their very high exhaust velocity means they require huge amounts of energy and thus with practical power sources provide low thrust, but use hardly any fuel.
For some missions, particularly reasonably close to the Sun, solar energy may be sufficient, and has very often been used, but for others further out or at higher power, nuclear energy is necessary; engines drawing their power from a nuclear source are called nuclear electric rockets.
With any current source of electrical power, chemical, nuclear or solar, the maximum amount of power that can be generated limits the amount of thrust that can be produced to a small value. Power generation adds significant mass to the spacecraft, and ultimately the weight of the power source limits the performance of the vehicle.
Current nuclear power generators are approximately half the weight of solar panels per watt of energy supplied, at terrestrial distances from the Sun. Chemical power generators are not used due to the far lower total available energy. Beamed power to the spacecraft shows some potential. However, the dissipation of waste heat from any power plant may make any propulsion system requiring a separate power source infeasible for interstellar travel.
Some electromagnetic methods:
In electrothermal and electromagnetic thrusters, both ions and electrons are accelerated simultaneously, no neutralizer is required.
Systems without reaction mass carried within the spacecraft
The law of conservation of momentum states that any engine which uses no reaction mass cannot accelerate the center of mass of a spaceship (changing orientation, on the other hand, is possible). But space is not empty, especially space inside the Solar System; there are gravitation fields, magnetic fields, solar wind and solar radiation. Various propulsion methods try to take advantage of these. However, since these phenomena are diffuse in nature, corresponding propulsion structures need to be proportionately large.

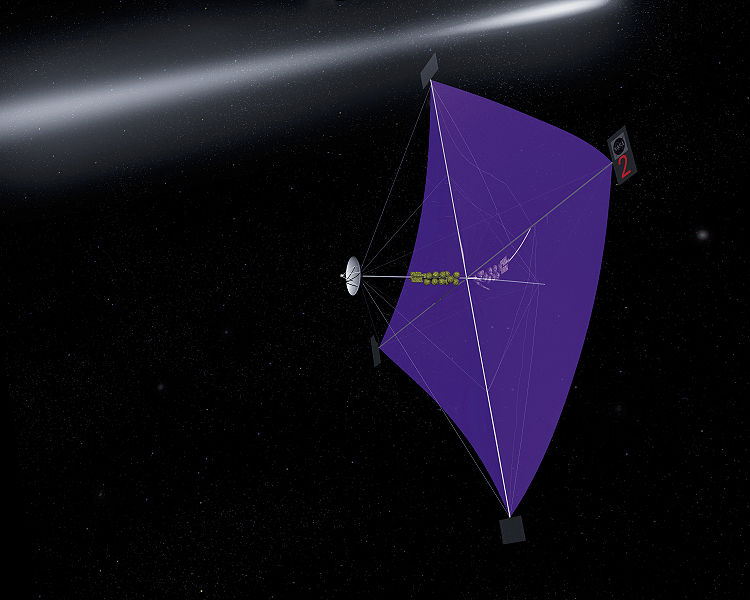

There are several different space drives that need little or no reaction mass to function. A tether propulsion system employs a long cable with a high tensile strength to change a spacecraft's orbit, such as by interaction with a planet's magnetic field or through momentum exchange with another object. Solar sails rely on radiation pressure from electromagnetic energy, but they require a large collection surface to function effectively. The magnetic sail deflects charged particles from the solar wind with a magnetic field, thereby imparting momentum to the spacecraft. A variant is the mini-magnetospheric plasma propulsion system, which uses a small cloud of plasma held in a magnetic field to deflect the Sun's charged particles.
For changing the orientation of a satellite or other space vehicle, conservation of angular momentum does not pose a similar constraint. Thus many satellites use momentum wheels to control their orientations. These cannot be the only system for controlling satellite orientation, as the angular momentum built up due to torques from external forces such as solar, magnetic, or tidal forces eventually needs to be "bled off" using a secondary system.
Gravitational slingshots can also be used to carry a probe onward to other destinations.
Planetary and atmospheric spacecraft propulsion
High thrust is of vital importance for Earth launch, thrust has to be greater than weight (see also gravity drag). Many of the propulsion methods above give a thrust/weight ratio of much less than 1, and so cannot be used for launch.
All current spacecraft use chemical rocket engines (bipropellant or solid-fuel) for launch. Other power sources such as nuclear have been proposed, and tested, but safety, environmental and political considerations have so far curtailed their use.

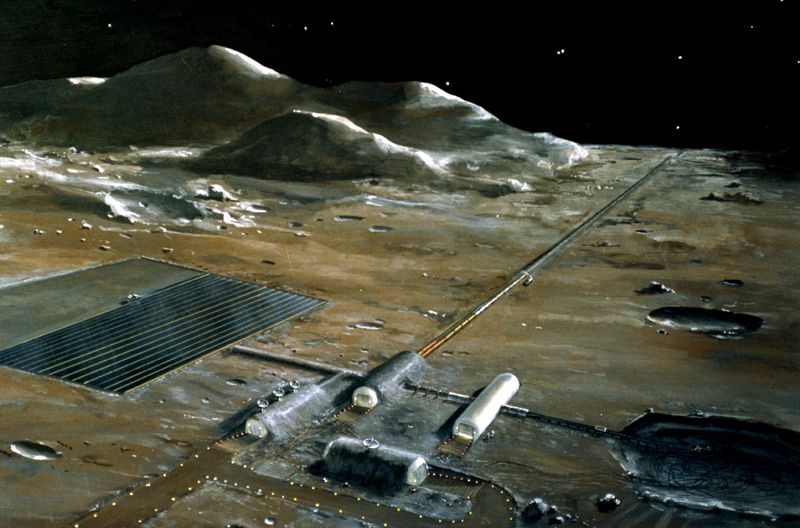

One advantage that spacecraft have in launch is the availability of infrastructure on the ground to assist them. Proposed non-rocket spacelaunch ground-assisted launch mechanisms include:
Airbreathing engines for orbital launch
Studies generally show that conventional air-breathing engines, such as ramjets or turbojets are basically too heavy (have too low a thrust/weight ratio) to give any significant performance improvement when installed on a launch vehicle itself. However, launch vehicles can be air launched from separate lift vehicles (e.g. B-29, Pegasus Rocket and White Knight) which do use such propulsion systems.
On the other hand, very lightweight or very high speed engines have been proposed that take advantage of the air during ascent:
Normal rocket launch vehicles fly almost vertically before rolling over at an altitude of some tens of kilometers before burning sideways for orbit; this initial vertical climb wastes propellant but is optimal as it greatly reduces airdrag. Airbreathing engines burn propellant much more efficiently and this would permit a far flatter launch trajectory, the vehicles would typically fly approximately tangentially to the earth surface until leaving the atmosphere then perform a rocket burn to bridge the final delta-v to orbital velocity.
Planetary arrival and landing

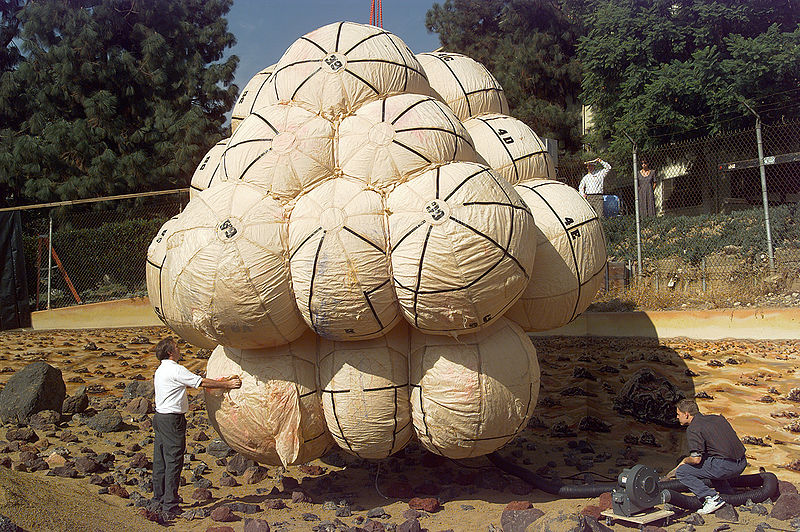

When a vehicle is to enter orbit around its destination planet, or when it is to land, it must adjust its velocity. This can be done using all the methods listed above (provided they can generate a high enough thrust), but there are a few methods that can take advantage of planetary atmospheres and/or surfaces.
Proposed spacecraft methods that may violate the laws of physics
In addition, a variety of hypothetical propulsion techniques have been considered that would require entirely new principles of physics to realize and that may not actually be possible. To date, such methods are highly speculative and include:
A NASA assessment is found at Marc G Millis Assessing potential propulsion breakthroughs (2005)
Table of methods
Below is a summary of some of the more popular, proven technologies, followed by increasingly speculative methods.
Four numbers are shown. The first is the effective exhaust velocity: the equivalent speed that the propellant leaves the vehicle. This is not necessarily the most important characteristic of the propulsion method, thrust and power consumption and other factors can be, however:
The second and third are the typical amounts of thrust and the typical burn times of the method. Outside a gravitational potential small amounts of thrust applied over a long period will give the same effect as large amounts of thrust over a short period. (This result does not apply when the object is significantly influenced by gravity.)
The fourth is the maximum delta-v this technique can give (without staging). For rocket-like propulsion systems this is a function of mass fraction and exhaust velocity. Mass fraction for rocket-like systems is usually limited by propulsion system weight and tankage weight. For a system to achieve this limit, typically the payload may need to be a negligible percentage of the vehicle, and so the practical limit on some systems can be much lower.
Testing spacecraft propulsion

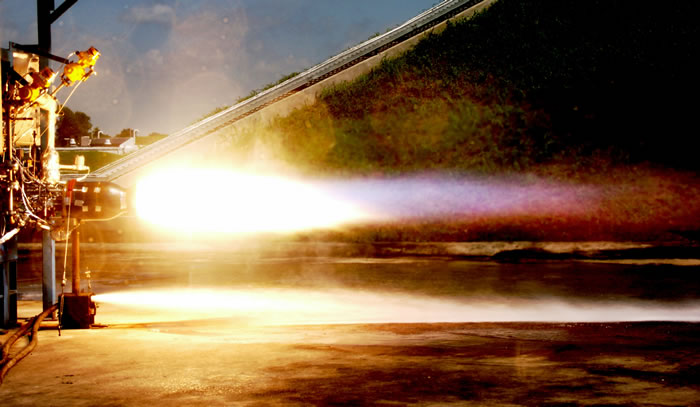

Spacecraft propulsion systems are often first statically tested on the Earth's surface, within the atmosphere but many systems require a vacuum chamber to test fully. Rockets are usually tested at a rocket engine test facility well away from habitation and other buildings for safety reasons. Ion drives are far less dangerous and require much less stringent safety, usually only a large-ish vacuum chamber is needed.
Famous static test locations can be found at Rocket Ground Test Facilities
Some systems cannot be adequately tested on the ground and test launches may be employed at a Rocket Launch Site.
