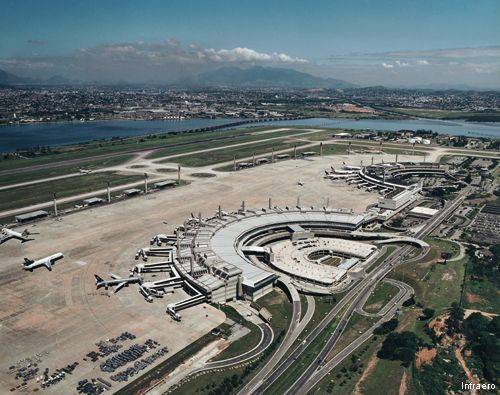

An airport is a location where aircraft such as aeroplanes, helicopters, and blimps take off and land. Aircraft may also be stored or maintained at an airport. An airport consists of at least one surface such as a runway, a helipad, or water for takeoffs and landings, and can often includes buildings such as hangars and terminal buildings.
Larger airports may have fixed base operator services, seaplane docks and ramps, air traffic control, passenger facilities such as restaurants and lounges, and emergency services. A military airport is known as an airbase or air station. The terms airfield, airstrip, and aerodrome may also be used to refer to airports, and the terms heliport, seaplane base, and STOLport refer to airports dedicated exclusively to helicopters, seaplanes, or short takeoff and landing aircraft. In some jurisdictions, the term airport is used where the facility is licensed as such by the relevant government organization (e.g. the US Federal Aviation Administration (FAA), Transport Canada). Elsewhere the distinction is merely one of general appearance. Yet other areas define an airport by its having the necessary customs offices etc expected of a port, though the more general term is airport of entry.

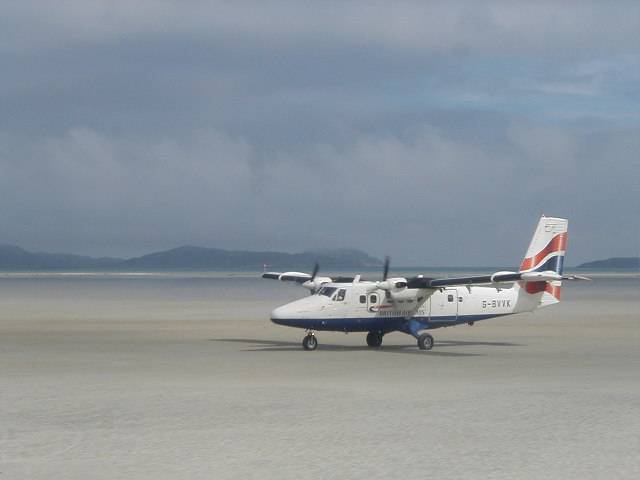

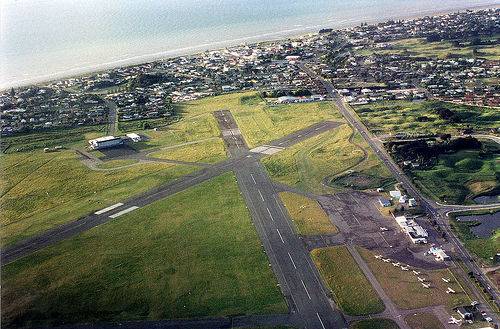

Smaller or less-developed airports — which represent the vast majority — often have a single runway shorter than 1,000 m (3,300 ft). Larger airports for airline flights generally have paved runways 2,000 m (6,600 ft) or longer. Many small airports have dirt, grass, or gravel runways, rather than asphalt or concrete.
In the United States, the minimum dimensions for dry, hard landing fields are defined by the FAR Landing And Takeoff Field Lengths. These include considerations for safety margins during landing and takeoff. Heavier aircraft require longer runways.
The longest public-use runway in the world is at Qamdo Bangda Airport in China. It has a length of 5,500 m (18,045 ft). The world's widest paved runway is at Ulyanovsk Vostochny Airport in Russia and is 105 m (344 ft) wide.
As of 2006, there were approximately 49,000 airports around the world, including 14,858 in the US., the U.S. having the most in the world
Airport ownership and operation
Most of the world's airports are owned by local, regional, or national government bodies who then lease the airport to private corporations who oversee the airport's operation. For example, BAA Limited (BAA) operates seven of the commercial airports in the United Kingdom, as well as several other airports outside of the UK. Germany's Frankfurt Airport is managed by the quasi-private firm Fraport.
In the United States and Canada, commercial airports are generally operated directly by government entities or government-created airport authorities (also known as port authorities).
Many US airports still lease part or all of their facilities to outside firms, who operate functions such as retail management and parking. In the US, all commercial airport runways are certified by the FAA, but maintained by the local airport under the regulatory authority of the FAA.
Despite the reluctance to privatize airports in the US (despite the FAA sponsoring a privatization program since 1996), the government-owned, contractor-operated (GOCO) arrangement is the standard for the operation of commercial airports in the rest of the world

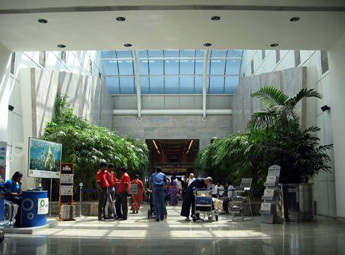

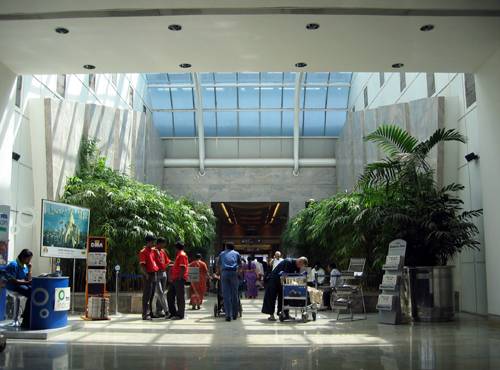

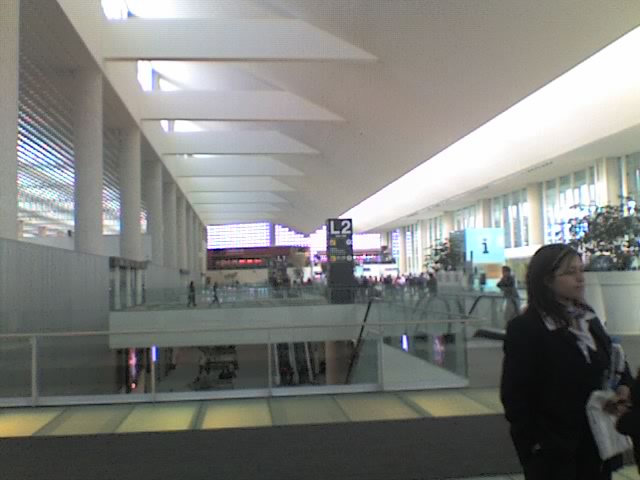

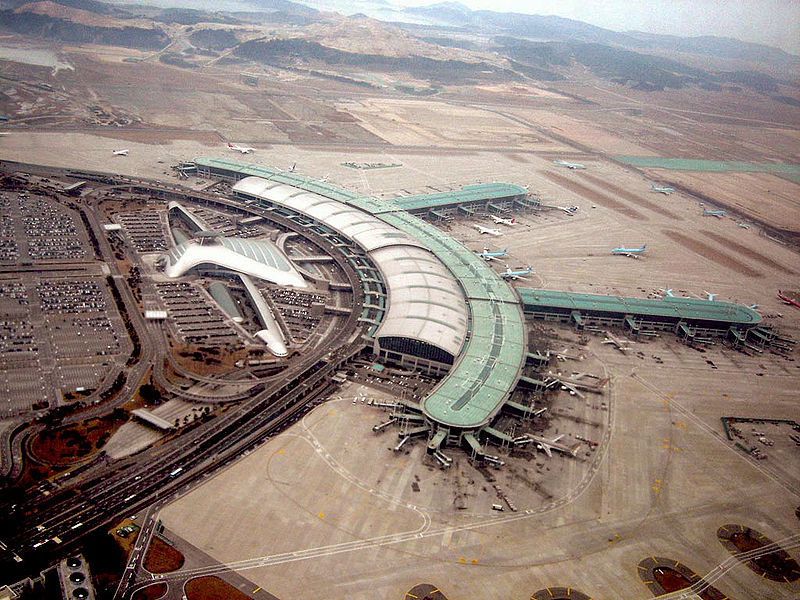

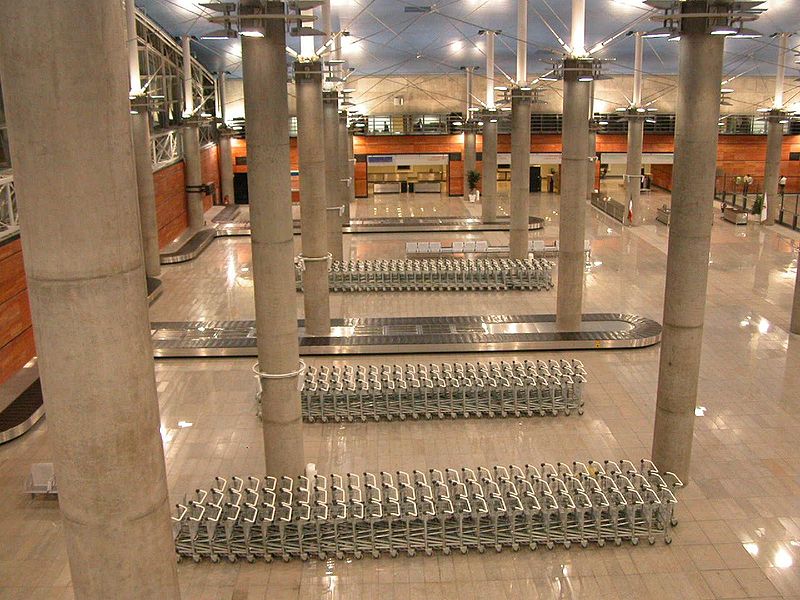

Airports are divided into landside and airside areas. Landside areas include parking lots, public transportation train stations, tank farms and access roads. Airside areas include all areas accessible to aircraft, including runways, taxiways, ramps and tank farms. Access from landside areas to airside areas is tightly controlled at most airports. Passengers on commercial flights access airside areas through terminals, where they can purchase tickets, clear security, check or claim luggage and board aircraft through gates. The waiting areas which provide passenger access to aircraft are typically called concourses, although this term is often used interchangeably with terminal.

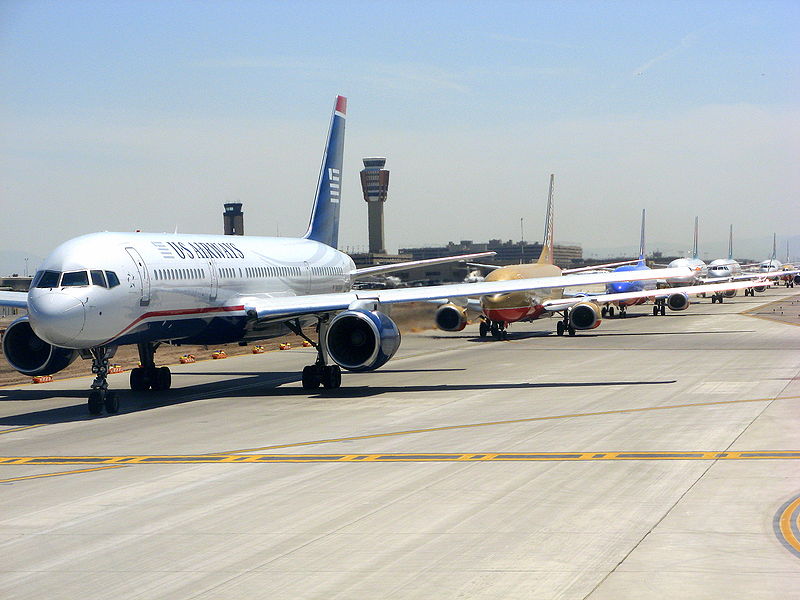

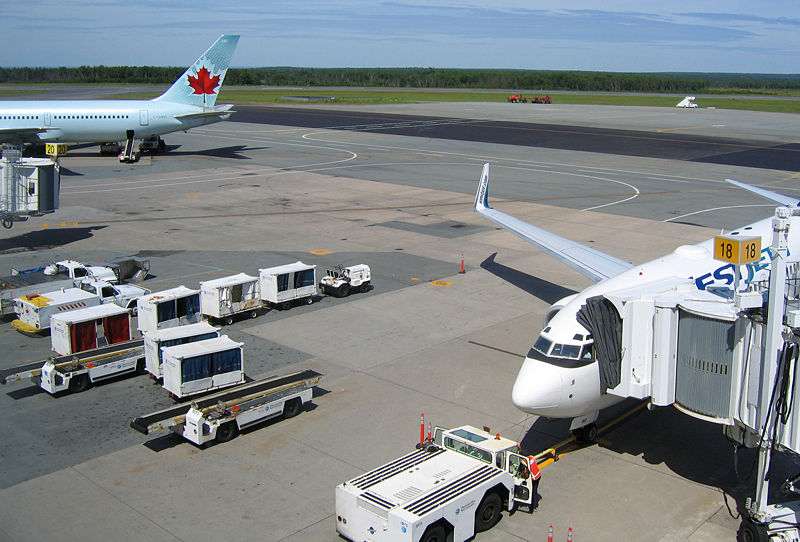

The area where aircraft park next to a terminal to load passengers and baggage is known as a ramp (or "the tarmac"). Parking areas for aircraft away from terminals are called aprons.

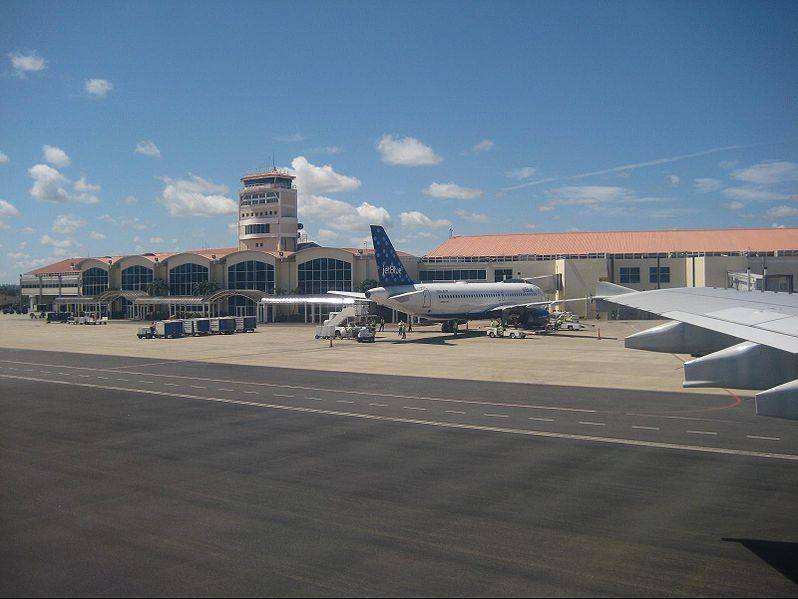

Airports can be towered or non-towered, depending on air traffic density and available funds. Due to their high capacity and busy airspace, many international airports have air traffic control located on site.
Airports with international flights have customs and immigration facilities. However, as some countries have agreements that allow travel between them without customs and immigrations, such facilities are not a definitive need for an international airport. International flights often require a higher level of physical security, although in recent years, many countries have adopted the same level of security for international and domestic travel.

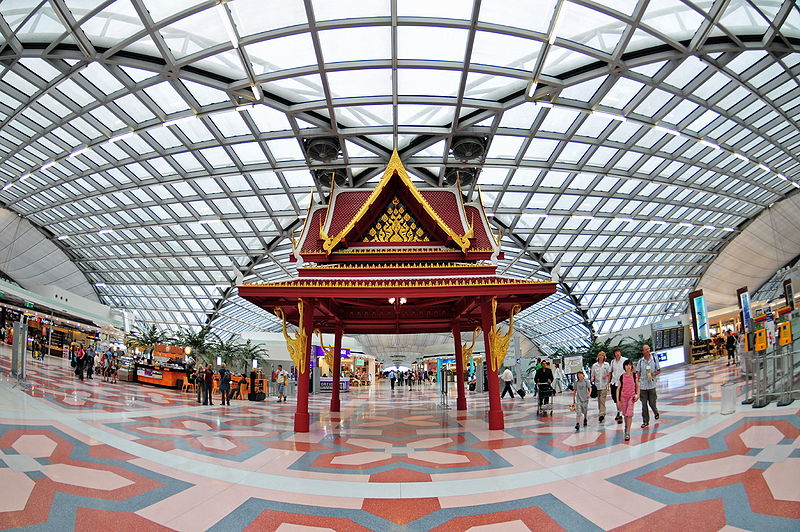

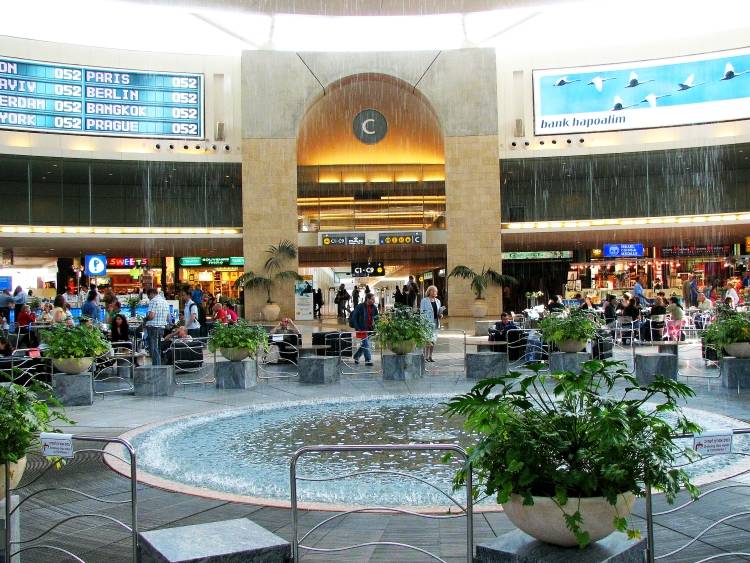

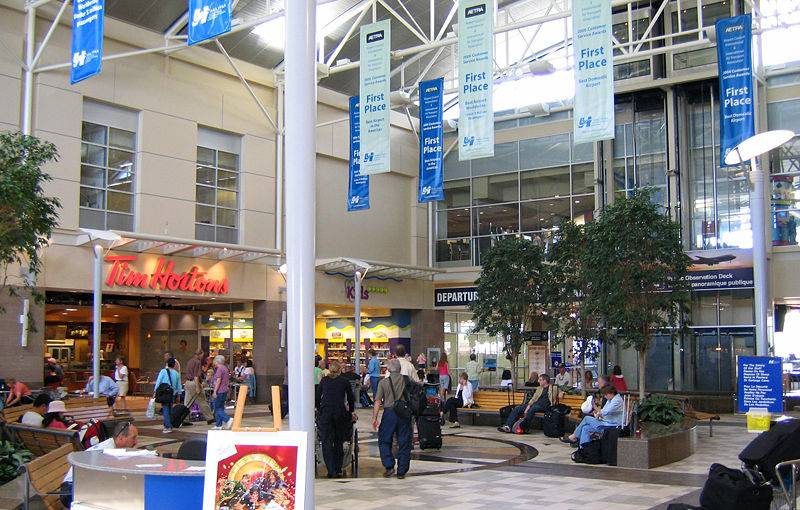

Shops and food services
The prices charged for food are generally higher than prices found outside the airport. Airport fees are fees paid for use of services of airports, such as in the Subic Bay International Airport. However, some airports now regulate food costs to keep them comparable to "street prices". This term is misleading as prices often match the manufacturer's suggested retail price (MSRP) but are almost never discounted.
Some airport restaurants offer regional cuisine specialties for those in transit so that they may sample local food or culture without leaving the airport.
Premium and VIP services
Airports may also contain premium and VIP services. The premium and VIP services may include express check in, dedicated check in counters, separate departures and/or arrivals lounge, priority boarding, separate air bridges, and priority baggage handling.
These services are usually reserved for First and Business class passengers, premium frequent flyers, and members of the airline's clubs. Each airline, however, has its own set of rules as to what constitutes a premium passenger and what additional services and benefits are offered.
Premium services may sometimes be open to passengers who are members of a different airline's frequent flyer program. This can sometimes be part of a reciprocal deal, as when multiple airlines are part of the same alliance, or as a ploy to attract premium customers away from rival airlines.
Sometimes these premium services will be offered to a non-premium passenger if the airline has made a mistake in handling of the passenger, such as unreasonable delays or mishandling of checked baggage. The availability of such services, however, are determined by the operating airline.
Airline lounges frequently offer free or reduced cost food, as well as alcoholic and non-alcoholic beverages. Lounges themselves typically have better seating, showers, quiet areas, televisions, computer, wi-fi and Internet access, and power outlets that passengers may use for their electronic equipment. Some airline lounges employ baristas, bartenders and gourmet chefs.
A lounge may restrict the services it provides depending on the time of day; alcoholic beverages, for example, may be available only after a certain time, or breakfast cereals may be available only in the morning.
Airlines sometimes operate multiple lounges within the one airport terminal allowing ultra premium customers, such as first class customers, additional services, which are not available to other premium customers. Multiple lounges may also prevent overcrowding of the lounge facilities.
Cargo and freight services
In addition to people, airports are responsible for moving large volumes of cargo around the clock. Cargo airlines often have their own on-site and adjacent infrastructure to rapidly transfer parcels between ground and air modes of transportation.
Aircraft maintenance, pilot services, aircraft rental, and hangar rental are most often performed by a fixed base operator (FBO). At major airports, particularly those used as hubs, airlines may operate their own support facilities.
Some airports, typically military airbases, have long runways used as emergency landing sites. Many airbases have arresting equipment for fast aircraft, known as arresting gear – a strong cable suspended just above the runway and attached to a hydraulic reduction gear mechanism. Together with the landing aircraft's arresting hook, it is used in situations where the brakes would have little or no effect.

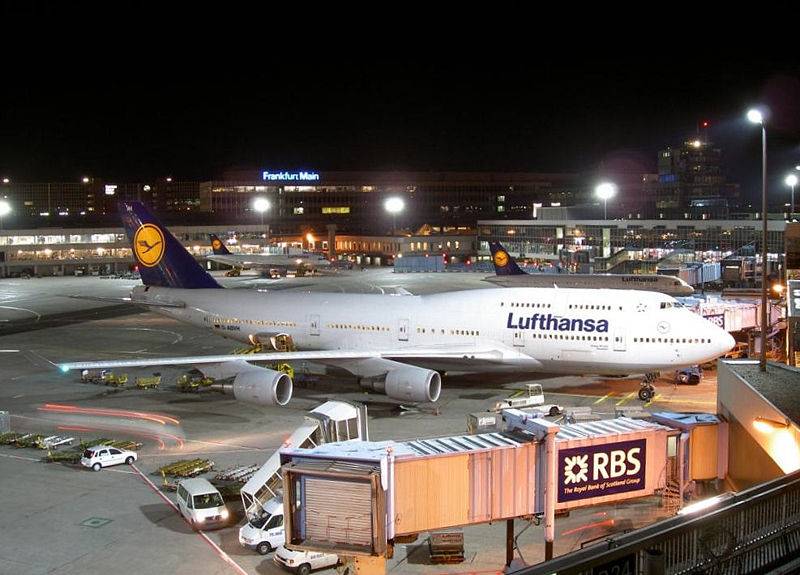

Many large airports are located next to or even above railway trunk routes, for instance Frankfurt Airport, Amsterdam Airport Schiphol, London Heathrow Airport, London Gatwick Airport and London Stansted Airport. For local access, many airports have local train lines, rapid transit, light rail lines or other public transport systems, for instance the AirTrain JFK at John F. Kennedy International Airport in New York and the Silver Line T at Boston's Logan International Airport by the Massachusetts Bay Transportation Authority (MBTA). These systems are usually directly connected to the main terminals. Large airports usually have access also through freeways from which cars fed into two access roads, designed as loops, one sitting on top of the other. One level is for departing passengers and the other is for arrivals. This road concept was pioneered at Los Angeles International Airport.
The distances passengers need to move within a large airport can be substantial. It is common for airports to provide moving walkways and buses. The Hartsfield-Jackson Atlanta International Airport has a tram that takes people through the concourses and baggage claim. Major airports with more than one terminal offer inter-terminal transportation, such as Mexico City International Airport, where Domestic Building of Terminal 1 is connected by an aerotren to Terminal 2, at the other side of the airport.
History and development
The first usage of the term "airport" appeared in a New York Times article in 1902, where Santos-Dumont stated that he expected New York to be the principal "airport" of the world in less than a score of years.

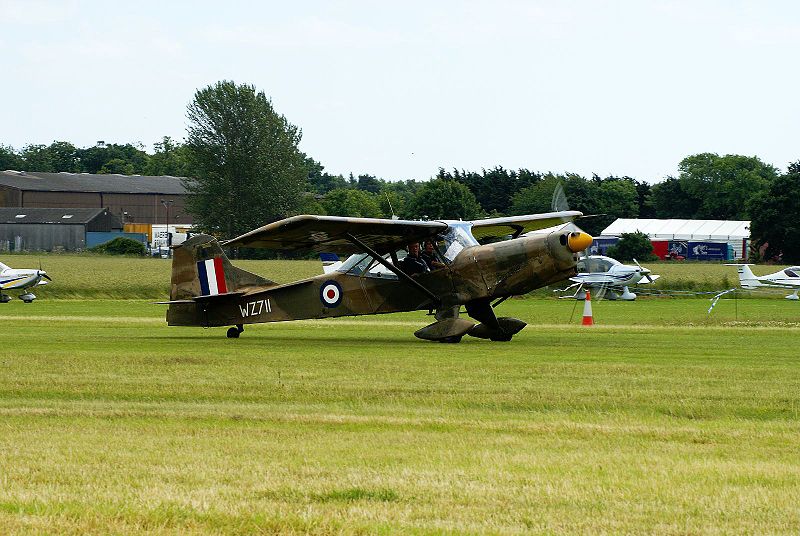

The earliest airplane takeoff and landing sites were grassy fields. The plane could approach at any angle that provided a favorable wind direction. A slight improvement was the dirt-only field, which eliminated the drag from grass. However, these only functioned well in dry conditions. They would eventually be replaced by concrete surfaces that allowed all-weather landings in daylight and at night.
The title of "world's oldest airport" is disputed, but College Park Airport in Maryland, US, established in 1909 by Wilbur Wright, is generally agreed to be the world's oldest continually operating airfield, although it serves only general aviation traffic.
Albany International Airport is the oldest municipal airport in the United States. Bremen Airport opened in 1913 and remains in use, although it served as an American military field between 1945 and 1949. Amsterdam Airport Schiphol opened on September 16, 1916 as a military airfield, but only accepted civil aircraft from December 17, 1920, allowing Sydney Airport in Sydney, Australia—which started operations in January 1920—to claim to be one of the world's oldest continually operating commercial airport.. Rome Ciampino Airport, opened 1916, is also a contender, although it has at times been restricted to non-scheduled traffic.
Increased aircraft traffic during World War I led to the construction of landing fields. Airplanes had to approach these from certain directions and this led to the development of aids for directing the approach and landing slope.
Following the war, some of these military airfields added commercial facilities for handling passenger traffic. One of the earliest such fields was Paris - Le Bourget Airport at Le Bourget, near Paris. The first international airport to open was the Croydon Airport, in South London, although an airport at Hounslow had been temporarily operating as such for nine months. In 1922, the first permanent airport and commercial terminal solely for commercial aviation was built at Königsberg, Germany. The airports of this era used a paved "apron", which permitted night flying as well as landing heavier airplanes.
The first lighting used on an airport was during the later part of the 1920s; in the 1930s approach lighting came into use. These indicated the proper direction and angle of descent. The colors and flash intervals of these lights became standardized under the International Civil Aviation Organization (ICAO). In the 1940s, the slope-line approach system was introduced. This consisted of two rows of lights that formed a funnel indicating an aircraft's position on the glideslope. Additional lights indicated incorrect altitude and direction.
Following World War II, airport design became more sophisticated. Passenger buildings were being grouped together in an island, with runways arranged in groups about the terminal. This arrangement permitted expansion of the facilities. But it also meant that passengers had to travel further to reach their plane.

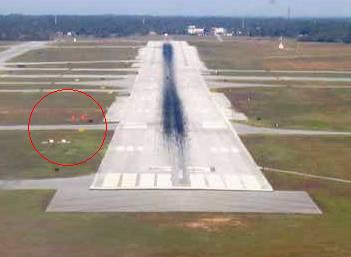

An improvement in the landing field was the introduction of grooves in the concrete surface. These ran perpendicular to the direction of the landing aircraft and served to draw off excess water in rainy conditions that could build up in front of the plane's wheels.
Airport construction boomed during the 1960s with the increase in jet aircraft traffic. Runways were extended out to 3 km (9,800 ft). The fields were constructed out of reinforced concrete using a slip-form machine that produces a continual slab with no disruptions along the length. The early 1960s also saw the introduction of jet bridge systems to modern airport terminals, an innovation which eliminated outdoor passenger boarding. These systems became commonplace in the United States by the 1970s.
Modern runways are thickest in the area where airplanes move slowly and are expected to have maximum load, i.e. runway ends. A common myth is that airplanes produce their greatest load during landing due to the "impact" of landing. This is untrue as much of the aircraft weight remains on the wings due to lift. Runways are constructed as smooth and level as possible.
Airport designation and naming
Airports are uniquely represented by their International Air Transport Association airport code and ICAO airport code. International Air Transport Association (IATA) airport codes are often abbreviated forms of the common name of the airport, such as PHL for Philadelphia International Airport. Airports sometimes retain their previous IATA code when an airport's name is changed. Rafik Hariri International Airport in Beirut retains the IATA code BEY, from its former name of Beirut International Airport (BEY is from its French name, Aéroport International de Beyrouth).
The name of the airport itself can be its location, such as Hong Kong International Airport. It can be the name of a celebrity, commonly a politician, e.g. Jinnah International Airport, Atatürk International Airport, Toronto Pearson International Airport or Paris-Charles de Gaulle Airport. Airports may also be named after a person associated with the region it serves or prominent figures in aviation history, such as Will Rogers World Airport, Liverpool John Lennon Airport, Imam Khomeini International Airport, or more recently Belfast City Airport was renamed George Best Belfast City Airport in memory of the football star who was born in Northern Ireland.
Airport names may include the word "International", reflecting their ability to handle international aviation traffic, although the airport may not actually operate any such flights; an example is Texel International Airport. Some airports with international immigration facilities may also choose to drop the word from their airport names (eg. Perth Airport, Singapore Changi Airport).

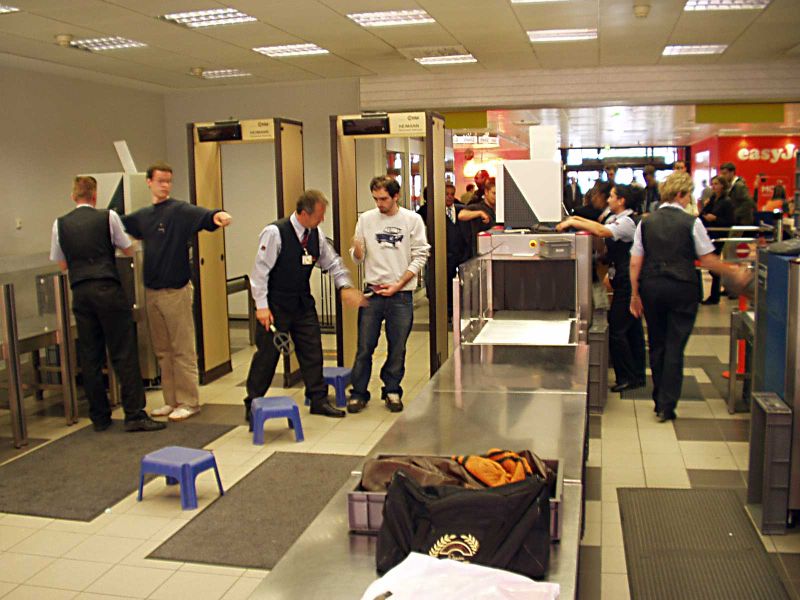

Airport security normally requires baggage checks, metal screenings of individual persons, and rules against any object that could be used as a weapon. Since the September 11, 2001 attacks, airport security has been dramatically increased.
Air traffic control
The majority of the world's airports are non-towered, with no air traffic control presence. However, at particularly busy airports, or airports with other special requirements, there is an air traffic control (ATC) system whereby controllers (usually ground-based) direct aircraft movements via radio or other communications links. This coordinated oversight facilitates safety and speed in complex operations where traffic moves in all three dimensions. Air traffic control responsibilities at airports are usually divided into at least two main areas: ground and tower, though a single controller may work both stations. The busiest airports also have clearance delivery, apron control, and other specialized ATC stations.
Ground Control is responsible for directing all ground traffic in designated "movement areas", except the traffic on runways. This includes planes, baggage trains, snowplows, grass cutters, fuel trucks, and a wide array of other vehicles. Ground Control will instruct these vehicles on which taxiways to use, which runway they will use (in the case of planes), where they will park, and when it is safe to cross runways. When a plane is ready to take off it will stop short of the runway, at which point it will be turned over to Tower Control. After a plane has landed, it will depart the runway and be returned to Ground Control.

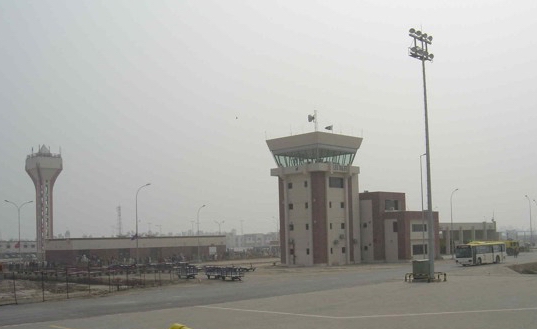

Tower Control controls aircraft on the runway and in the controlled airspace immediately surrounding the airport. Tower controllers may use radar to locate an aircraft's position in three-dimensional space, or they may rely on pilot position reports and visual observation. They coordinate the sequencing of aircraft in the traffic pattern and direct aircraft on how to safely join and leave the circuit. Aircraft which are only passing through the airspace must also contact Tower Control in order to be sure that they remain clear of other traffic.
All airports use a traffic pattern (often called a traffic circuit outside the U.S.) to assure smooth traffic flow between departing and arriving aircraft. Generally, this pattern is a circuit consisting of five "legs" that form a rectangle (two legs and the runway form one side, with the remaining legs forming three more sides). Each leg is named (see diagram), and ATC directs pilots on how to join and leave the circuit. Traffic patterns are flown at one specific altitude, usually 800 or 1,000 ft (244 m or 305 m) above ground level (AGL). Standard traffic patterns are left-handed, meaning all turns are made to the left. Right-handed patterns do exist, usually because of obstacles such as a mountain, or to reduce noise for local residents. The predetermined circuit helps traffic flow smoothly because all pilots know what to expect, and helps reduce the chance of a mid-air collision.
At extremely large airports, a circuit is in place but not usually used. Rather, aircraft (usually only commercial with long routes) request approach clearance while they are still hours away from the airport, often before they even take off from their departure point. Large airports have a frequency called Clearance Delivery which is used by departing aircraft specifically for this purpose. This then allows airplanes to take the most direct approach path to the runway and land without worrying about interference from other aircraft. While this system keeps the airspace free and is simpler for pilots, it requires detailed knowledge of how aircraft are planning to use the airport ahead of time and is therefore only possible with large commercial airliners on pre-scheduled flights. The system has recently become so advanced that controllers can predict whether an aircraft will be delayed on landing before it even takes off; that aircraft can then be delayed on the ground, rather than wasting expensive fuel waiting in the air.
There are a number of aids available to pilots, though not all airports are equipped with them. A Visual Approach Slope Indicator (VASI) helps pilots fly the approach for landing. Some airports are equipped with a VHF omnidirectional range (VOR) to help pilots find the direction to the airport. VORs are often accompanied by a distance measuring equipment (DME) to determine the distance to the VOR. VORs are also located off airports, where they serve to provide airways for aircraft to navigate upon. In poor weather, pilots will use an instrument landing system (ILS) to find the runway and fly the correct approach, even if they cannot see the ground. The number of instrument approaches based on the use of the Global Positioning System (GPS) is rapidly increasing and may eventually be the primary means for instrument landings.
Larger airports sometimes offer precision approach radar (PAR), but these systems are more common at military air bases than civilian airports. The aircraft's horizontal and vertical movement is tracked via radar, and the controller tells the pilot his position relative to the approach slope. Once the pilots can see the runway lights, they may continue with a visual landing.
Airport guidance signs provide direction and information to taxiing aircraft and airport vehicles. Smaller airports may have few or no signs, relying instead on airport diagrams and charts.
There are two classes of signage at airports, with several types of each:
Operational guidance signs
Mandatory instruction signs
Mandatory instruction signs are white on red. They show entrances to runways or critical areas. Vehicles and aircraft are required to stop at these signs until the control tower gives clearance to proceed.
On runways, green lights indicate the beginning of the runway for landing, while red lights indicate the end of the runway. Runway edge lighting consists of white lights spaced out on both sides of the runway, indicating the edge. Some airports have more complicated lighting on the runways including lights that run down the centerline of the runway and lights that help indicate the approach (an Approach Lighting System, or ALS). Low-traffic airports may use Pilot Controlled Lighting to save electricity and staffing costs.
Along taxiways, blue lights indicate the taxiway's edge, and some airports have embedded green lights that indicate the centerline.
o Used to mark hazards
o Gives pilots a visual aid (usually creates a lane)
o Meant to visible to pilots and not a disturbance to people on ground The “cast” of light is approximately 150 feet in diameter
Weather observations at the airport are crucial to safe take-offs and landings. In the US and Canada, the vast majority of airports, large and small, have some form of automated airport weather station, whether an AWOS, ASOS, or AWSS. Most larger airports also have human observers to provide additional observations to supplement the automated station. These weather observations are available over the radio, through Automatic Terminal Information Service (ATIS) or via the ATC.
Planes take-off and land into the wind in order to achieve maximum performance. Because pilots need instantaneous information during landing, a windsock is also kept in view of the runway.
Air safety is an important concern in the operation of an airport, and almost every airfield includes equipment and procedures for handling emergency situations. Commercial airfields include one or more emergency vehicles and their crew that are specially equipped for dealing with airfield accidents, crew and passenger extractions, and the hazards of highly flammable aviation fuel. The crews are also trained to deal with situations such as bomb threats, hijacking, and terrorist activities.
Hazards to aircraft include debris, nesting birds, and reduced friction levels due to environmental conditions such as ice, snow, or rain. Part of runway maintenance is airfield rubber removal which helps maintain friction levels. The fields must be kept clear of debris using cleaning equipment so that loose material does not become a projectile and enter an engine duct (see foreign object damage). In adverse weather conditions, ice and snow clearing equipment can be used to improve traction on the landing strip. For waiting aircraft, equipment is used to spray special deicing fluids on the wings.
Many airports are built near open fields or wetlands. These tend to attract bird populations, which can pose a hazard to aircraft in the form of bird strikes. Airport crews often need to discourage birds from taking up residence.
Some airports are located next to parks, golf courses, or other low-density uses of land. Other airports are located near densely-populated urban or suburban areas. In the 1980s, a conflict arose in San Jose, California, when a plane attempting to land at Reid-Hillview Airport (built in the 1930s) collided with a Macy's department store at the Eastridge Center. Many local residents tried to get the airport shut down, even though it had been there for fifty years: their neighborhoods (and the mall) were about a decade old.
An airport can have areas where collisions between airplanes on the ground tend to occur. Records are kept of any incursions where airplanes or vehicles are in an inappropriate location, allowing these "hot spots" to be identified. These locations then undergo special attention by transportation authorities (such as the FAA in the US) and airport administrators.
During the 1980s, a phenomenon known as microburst became a growing concern due to accidents caused by microburst wind shear. (For example, see Delta Air Lines Flight 191.) Microburst radar was developed as an aid to safety during landing, giving two to five minutes warning to aircraft in the vicinity of the field of a microburst event.
Some airfields now have a special surface known as soft concrete at the end of the runway (stopway) that behaves somewhat like styrofoam, bringing the plane to a relatively rapid halt as the material disintegrates. These surfaces are useful when the runway is located next to a body of water or other hazard, and prevent the planes from overrunning the end of the field.
Airport ground crew

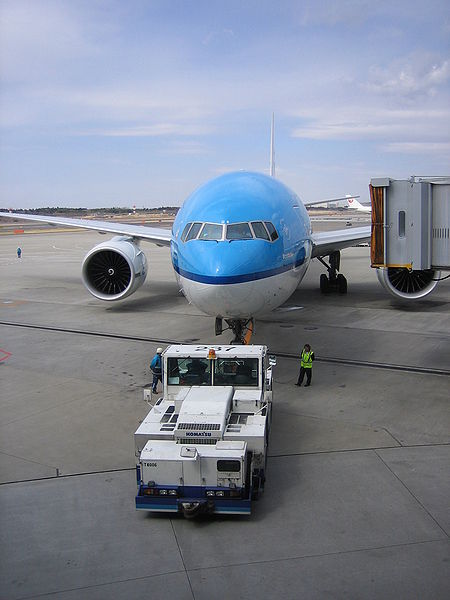

Most airports have ground crew handling the loading and unloading of passengers, crew, baggage and other services. Some ground crew are linked to specific airlines operating at the airport.
Aircraft noise is major cause of noise disturbance to residents living near airports. Sleep can be affected if the airports operate night and early morning flights. Aircraft noise not only occurs from take-off and landings, but ground operations including maintenance and testing of aircraft. Noise can have other noise health effects. Other noise and environmental concern are vehicle traffic causing noise and pollution on road leading the airport.
The construction of new airports, or addition of runways to existing airports, is often resisted by local residents because of the effect on the countryside, historical sites, local flora and fauna. Due to the risk of collision between birds and airplanes, large airports undertake population control programs where they frighten or shoot birds.
The construction of airports has been known to change local weather patterns. For example, because they often flatten out large areas, they can be susceptible to fog in areas where fog rarely forms. In addition, because they generally replace trees and grass with pavement, they often change drainage patterns in agricultural areas, leading to more flooding, run-off and erosion in the surrounding land.
Some of the airport administrations prepare and publish annual environmental reports in order to show how they consider these environmental concerns in airport management issues and how they protect environment from airport operations. These reports contains all environmental protection measures performed by airport administration in terms of water, air, soil and noise pollution, resource conservation and protection of natural life around the airport.
An airbase, sometimes referred to as a military airport or airfield, provides basing and support of military aircraft. Some airbases provide facilities similar to their civilian counterparts. For example, RAF Brize Norton in Oxfordshire, England has a terminal which caters to passengers for the Royal Air Force's scheduled Tristar flights to the Falkland Islands. Military airbases may also be co-located with civilian airports, sharing the same tower/air traffic control facilities, runways, taxiways and emergency services, but with separate terminals, parking areas, hangars and shelter areas. Examples of this are Bardufoss Airport/Bardufoss Air Station and Gardermoen Airport/Gardermoen Air Station, both in Norway. A special variant of a military airfield is the aircraft carrier.
An aircraft carrier is a warship that functions as a floating airport for military aircraft. Aircraft carriers allow a naval force to project air power great distances without having to depend on local bases for land-based aircraft. After their development in World War I, aircraft carriers replaced the battleship as the centrepiece of a modern fleet during World War II. Unescorted carriers are considered vulnerable to missile or submarine attacks and therefore travel as part of a carrier battle group that includes a wide array of other ships with specific functions.
Airports in entertainment
Airports have played major roles in motion pictures and television programs due to being transportation hubs, but also because of their characteristics. One such example of this is the movie The Terminal, a film about a man who becomes permanently grounded in an airport terminal and must survive only on the food and shelter provided by the airport. Movies such as Airplane!, Airport, Die Hard 2, Soul Plane, Jackie Brown, Get Shorty, Home Alone, Liar Liar, Passenger 57, Final Destination, Unaccompanied Minors, Catch Me if You Can, Rendition and The Langoliers. They have also played important parts in television series like Lost, America's Next Top Model Cycle 10 also have significant parts of their story set within airports.
Several computer simulation games put the player in charge of an airport. These include Airport Tycoon and the sequels; Airport Tycoon 2 and Airport Tycoon 3. There is also a Japanese series of games called Air Traffic Controller.

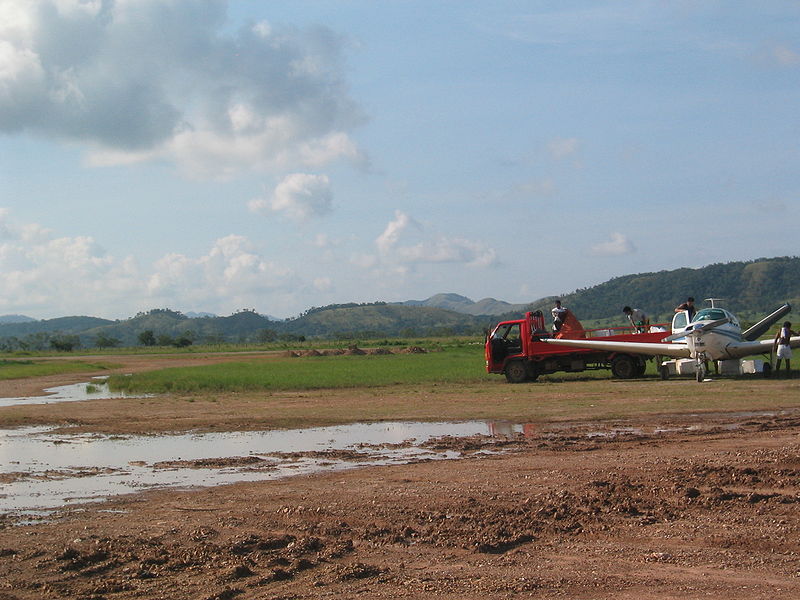

An airstrip or airfield is a kind of airport that consists only of a runway with perhaps fueling equipment. They are generally in remote locations. Many airstrips (now mostly abandoned) were built on the hundreds of islands in the Pacific Ocean during World War II. Sometimes a few airstrips become full fledged airbases as strategic or economic importance of a region increases over time.
Each national aviation authority has a source of information about airports in their country. This will contain information on airport height, airport lighting, runway information, communications facilities and frequencies, hours of operation, nearby NAVAIDs and contact information where prior arrangement for landing is necessary.
Airport Planning and Design
Probably the most significant trends in Airport Planning and Design are related with the long-term growth, commercialization, globalization and technical changes. In the near future, dynamic strategic planning will be the key for future airport developments. Companies operating many airports in different countries and the rise of business management instead of government ownership will be the rule in the airport planning. The design of airports will be adapted to the surge in cargo traffic due to the increasing of electronic commerce and more efficient airplanes creating a strong demand for cargo. Therefore from design perspective, airports, cargo is not longer a peripheral activity secondary to passenger traffic and will be a primary driven of airport design.
Published - July 2009
