de Havilland Canada DHC-6 Twin Otter

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/De_Havilland_Canada_DHC-6_Twin_Otter

DHC-6 Twin Otter

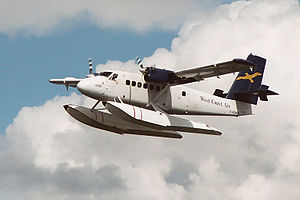

A West Coast Air Twin Otter floatplane
Role utility aircraft
Manufacturer de Havilland Canada
Viking Air - (400 series)
First flight May 20, 1965
Introduced 1966
Produced 1965–1988
2008–present
Number built 844

The DHC-6 Twin Otter is a 20-passenger STOL (Short Takeoff and Landing) utility aircraft developed by de Havilland Canada. The aircraft's fixed tricycle undercarriage, STOL abilities and high rate of climb have made it a successful cargo, regional passenger airliner and MEDEVAC aircraft. In addition, the Twin Otter has been popular with commercial skydiving operations.

Design and development

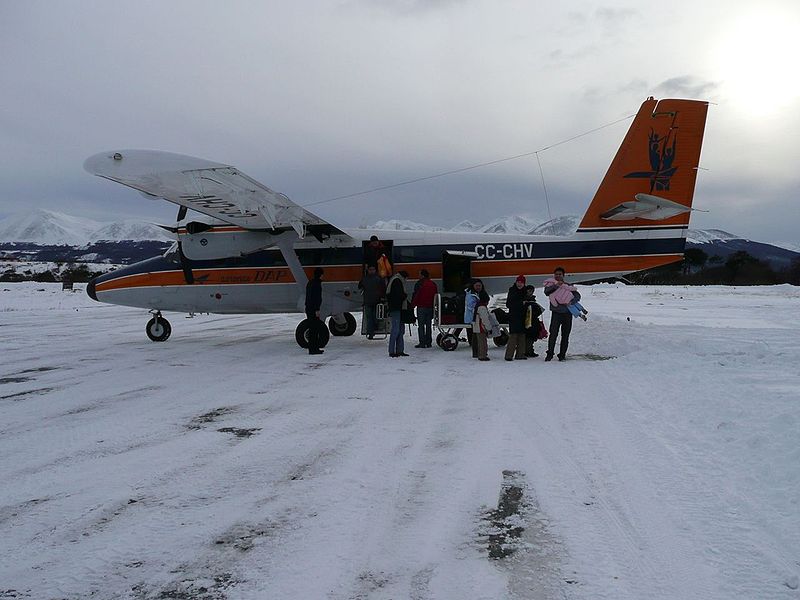

Aerovias DAP DHC-6 Series 300 at Puerto Williams
Aerovias DAP DHC-6 Series 300 at Puerto Williams

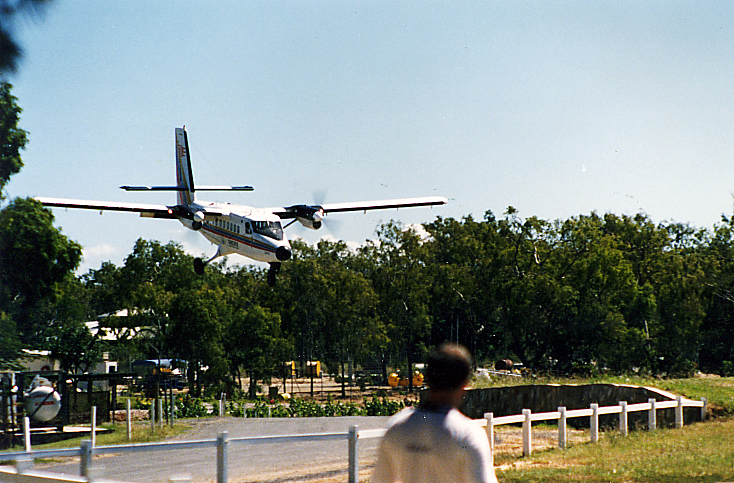

A Twin Otter making a normal landing approach in Queensland.
A Twin Otter making a normal landing approach in Queensland.

Development of the aircraft began in 1964, with the first flight on May 20, 1965. A twin-engined replacement for the single-engined Otter had been planned by de Havilland Canada. Twin engines not only provided improved safety but also allowed for an increase in payload while retaining the renowned STOL qualities. Design features included double slotted trailing edge flaps and ailerons that work in unison with the flaps to boost STOL performance. The availability of the 550 shp (410 kW) Pratt and Whitney Canada PT6A-20 propeller turbine engine in the early 1960s made the concept of a twin more feasible. To bush operators, the enhanced reliability of turboprop power and the enhanced performance of a twin-engined configuration made it an immediately popular alternative to the single engine, piston-powered Otter which had been flying since 1951.

The first six aircraft produced were designated Series 1, indicating that they were prototype aircraft. The initial production run consisted of Series 100 aircraft, serial number seven to 115 inclusive. In 1968, Series 200 production began with serial number 116. Changes made at the beginning of Series 200 production included improving the STOL performance, adding a longer nose that was equipped with a larger baggage compartment (except to aircraft fitted with floats) and fitting a larger door to the rear baggage compartment. All Series 1, 100 and 200 aircraft and their variants (110, 210) were fitted with the 550 shaft horsepower PT6A-20 engines.

In 1969, the 300 series was introduced, beginning with serial number 231. Both aircraft performance and payload were improved by fitting more powerful PT6A-27 engines. This was a 680 hp (510 kW) engine that was flat-rated to 620 hp (460 kW) for use in the Series 300 Twin Otter. The Series 300 proved to be the most successful variant by far, with 614 Series 300 aircraft and their sub-variants (Series 310 for United Kingdom operators, Series 320 for Australian operators, etc.) sold before production ended in 1988.

New production

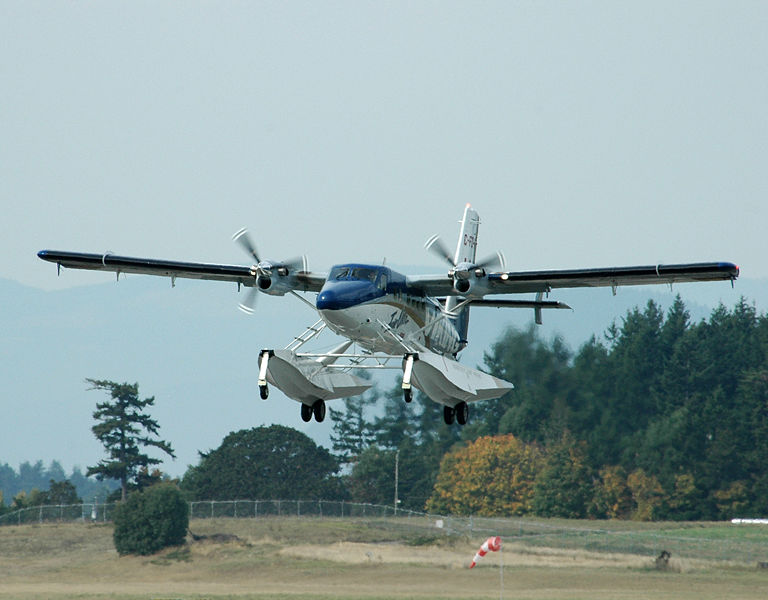

First flight of the Series 400 technical demonstrator by Viking Air, October 1, 2008
First flight of the Series 400 technical demonstrator by Viking Air, October 1, 2008

After series production ended, the remaining tooling was purchased by Viking Air of Victoria, British Columbia, which manufacture replacement parts for all of the out of production de Havilland Canada aircraft. On February 24, 2006 Viking purchased the type certificates from Bombardier Aerospace for all the out of production de Havilland DHC-1 through DHC-7 aircraft. The ownership of the certificates gives Viking the exclusive right to manufacture new aircraft.

On July 17, 2006, at the Farnborough Air Show, Viking Air announced its intention to offer a "Series 400" Twin Otter. On April 2, 2007 Viking announced that with 27 orders and options in hand, it was restarting production of the Twin Otter with a more powerful Pratt & Whitney Canada PT6A-34/35 engine. As of November 2007, 40 firm orders and 10 options have been taken and a new assembly plant has been established in Calgary, Alberta with customer deliveries commencing summer 2009. Zimex Aviation of Switzerland will receive the first aircraft.

On September 25, 2008, the Series 400 Technology Demonstrator achieved "power on" status in advance of an official rollout. First flight of the Series 400 technical demonstrator, C-FDHT, took place October 1, 2008 at Victoria Airport. Two days later, the aircraft departed Victoria for a ferry flight to Orlando, Florida, site of the 2008 National Business Aviation Association (NBAA) Conference and exhibition.

Major changes introduced with the Series 400 include Honeywell Primus Apex fully integrated avionics, deletion of the AC electrical system, deletion of the beta backup system, modernization of the electrical and lighting system, and use of composites for non-load-bearing structures such as doors.

Announced orders

Operational history

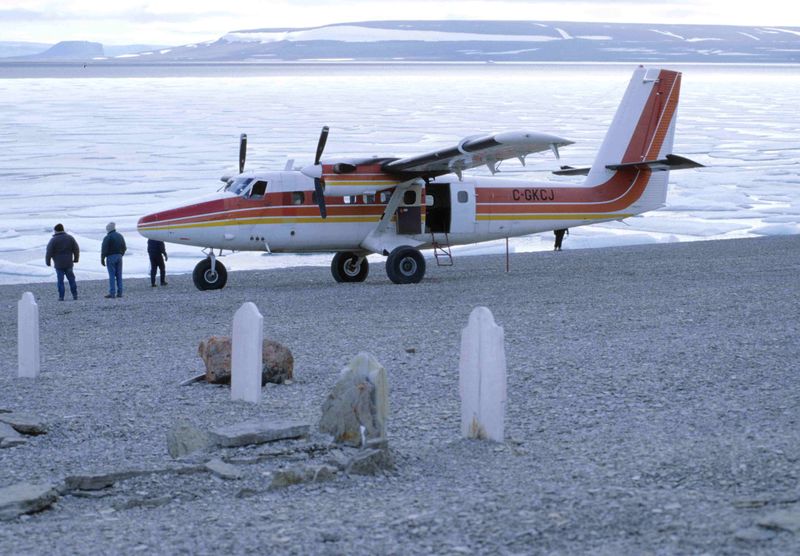

de Havilland Canada DHC-6 Twin Otter on Beechey Island at seamen graves of John Franklin expedition (Nunavut, Canada) c. 1997. Note the
de Havilland Canada DHC-6 Twin Otter on Beechey Island at seamen graves of John Franklin expedition (Nunavut, Canada) c. 1997. Note the "tundra tires."

Twin Otters could be delivered directly from the factory with floats, skis or tricycle landing gear fittings, making them adaptable bush planes for remote and northern areas including Canada and the United States, specifically Alaska. Many Twin Otters still serve in the far north, but they can also be found in Africa, Australia, Antarctica and other regions where bush planes are the optimum means of travel. Their versatility and maneuverability have made them popular in areas with difficult flying environments, including Papua New Guinea. In Norway, the Twin Otter paved the way for the network of short-field airports, connecting the rural areas with the larger towns with outstanding reliability, and remained in service until 2000 on certain routes. Widerøe of Norway was, at one time, the world's largest operator of Twin Otters. During one period of its tenure in Norway, the Twin Otter fleet achieved over 96,000 cycles (takeoff, flight and landing) per year.

Twin Otters are a staple of Antarctic transportation. Four Twin Otters are employed by the British Antarctic Survey on research and supply flights, and several are employed by the United States Antarctic Program via contract with Kenn Borek Air. On 24–25 April 2001, two Twin Otters performed the only winter flight to Amundsen-Scott South Pole Station to perform a medical evacuation.

As of August 2006, a total of 584 Twin Otter aircraft (all variants) remain in service worldwide. Major operators include: Libyan Arab Airlines (16), Maldivian Air Taxi (17), Trans Maldivian Airways (15), Kenn Borek Air (33) and Scenic Airlines (11). Some 115 airlines operate smaller numbers of the aircraft including Yeti Airlines in Nepal and in the United Kingdom the FlyBe francise operator Loganair which uses the aircraft to service the island of Barra in the Hebrides islands. This scheduled service is unique as the aircraft lands on the beach and the schedule is partly influenced by the tide tables.

Ontario's Ministry of Natural Resources is also a long-time operator of the Otter.

Transport Canada still owns three DHC-6 Twin Otters, but they now see very limited flying time, as their role in Coastal Surveillance has been replaced by a fleet of DHC-8 aircraft.

The Twin Otter has been popular with commercial skydiving operations. It is able to carry up to 22 skydivers to over 13,500 ft (a large load compared to most other aircraft in the industry); presently, the Twin Otter is used in skydiving operations in many countries. The United States Air Force operates three Twin Otters for the United States Air Force Academy's skydiving team.

Variants

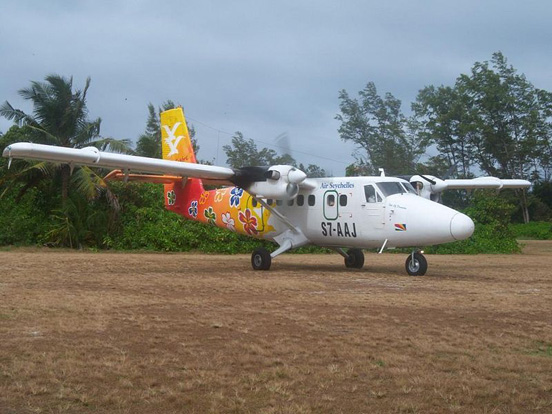

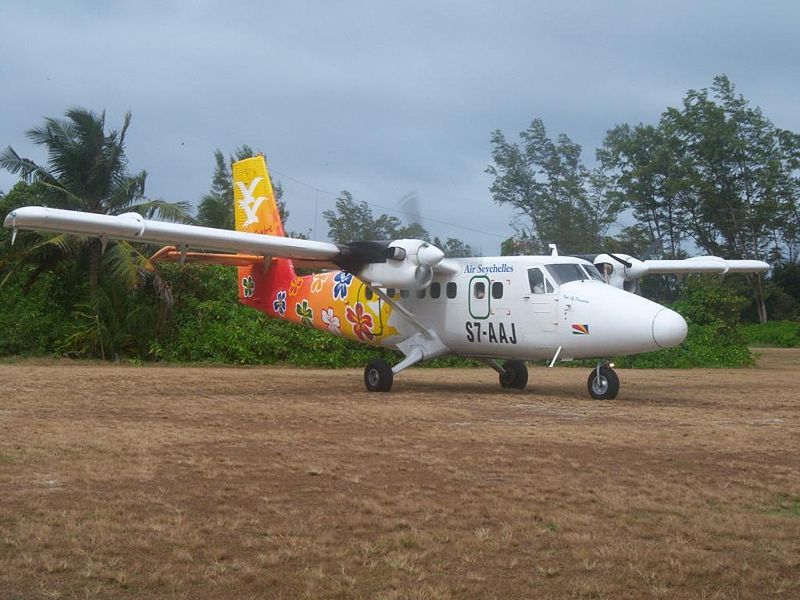

de Havilland Canada DHC-300 Twin Otter on Bird Island, Seychelles.
de Havilland Canada DHC-300 Twin Otter on Bird Island, Seychelles.
DHC-6 Series 100
Twin-engined STOL utility transport aircraft, powered by two 550 shp (432 kW) Pratt & Whitney Canada PT6A20 turboprop engines.
DHC-6 Series 110
Variant of the Series 100 built to conform to BCAR (British Civil Air Regulations)
DHC-6 Series 200
Improved version.
DHC-6 Series 300
Twin-engined STOL utility transport aircraft, powered by two 620 shp (462 kW) Pratt & Whitney Canada PT6A-27 turboprop engines.
DHC-6 Series 300M
Multi-role military transport aircraft. Two of these were produced as 'proof of concept' demonstrators
DHC-6 Series 310
Variant of the Series 300 built to conform to BCAR (British Civil Air Regulations)
DHC-6 Series 320
Variant of the Series 300 built to conform to Australian Civil Air Regulations
DHC-6 Series 300M
Military version.
DHC-6 Series 300S
Six demonstrator aircraft fitted with 11 seats, wing spoilers and an anti-skid braking system.
DHC-6 Series 400
Scheduled for customer deliveries mid-2009, powered by two Pratt & Whitney Canada PT6A-34 or optional PT6A-35 Hot & High Performance engines, and available on standard landing gear, straight floats, amphibious floats, skis, wheel skis, or intermediate flotation (Tundra) landing gear.
CC-138
Twin-engined STOL utility transport, search and rescue aircraft for the Canadian Forces.
UV-18A
Twin-engined STOL utility transport aircraft for the U.S. Army Alaska National Guard. Six built. It has been replaced by the C-23 Sherpa in US Army service.
UV-18B
Parachute training aircraft for the United States Air Force Academy. The United States Air Force Academy's 94th Flying Training Squadron maintains three UV-18s in its inventory as freefall parachuting training aircraft, and by the Academy Parachute Team, the Wings of Blue, for year-round parachuting operations.

Operators/Former Operators

Civil operators

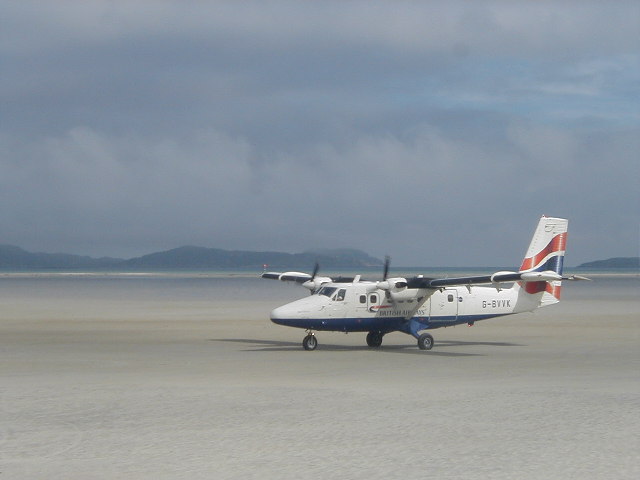

Loganair Twin Otter in British Airways Livery at Barra Airport
Loganair Twin Otter in British Airways Livery at Barra Airport
 Canada

Military operators


Twin Otter taking off from a gravel airstrip near Sila Lodge at Wager Bay (Ukkusiksalik National Park, Nunavut, Canada)
Twin Otter taking off from a gravel airstrip near Sila Lodge at Wager Bay (Ukkusiksalik National Park, Nunavut, Canada)
 Afghanistan
 Argentina
 Australia
 Benin
 Canada
 Chile
 Colombia
 Dominican Republic
 Ecuador
 Ethiopia
 France
 Haiti
 Jamaica
 Malaysia
 Nepal
 Netherlands Antilles (Sint Maarten)
 Norway (Retired from active service)
 Panama
 Paraguay
  • Paraguayan Air Force
 Peru
 Sudan
 Switzerland
 Peru
 Uganda
 United States

Notable accidents and incidents

Specifications (300 series)

General characteristics

  • Crew: Minimum one, commonly two. (A flight attendant must be on board if there are more than 19 passengers)
  • Capacity: 19 or 20 passengers
  • Length: 51 ft 9 in (15.77 m)
  • Wingspan: 65 ft (19.8 m)
  • Height: 19 ft 6 in (5.9 m)
  • Wing area: 420 ft² (39 m²)
  • Empty weight: between 7,000 lb (3,363 kg) and 8,000 lb (3,628 kg)
  • Max takeoff weight: 12,500 lb (5,670 kg)
  • Powerplant:Pratt & Whitney PT6A-27 turboprop engines, 620 hp - 680 hp (460 kW - 507 kW) each

Performance

See also

Related development

Comparable aircraft

Notes
Bibliography

External links




Text from Wikipedia is available under the Creative Commons Attribution/Share-Alike License; additional terms may apply.


Published in July 2009.
