Antonov An-28

Antonov An-28

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Antonov_An-28

An-28

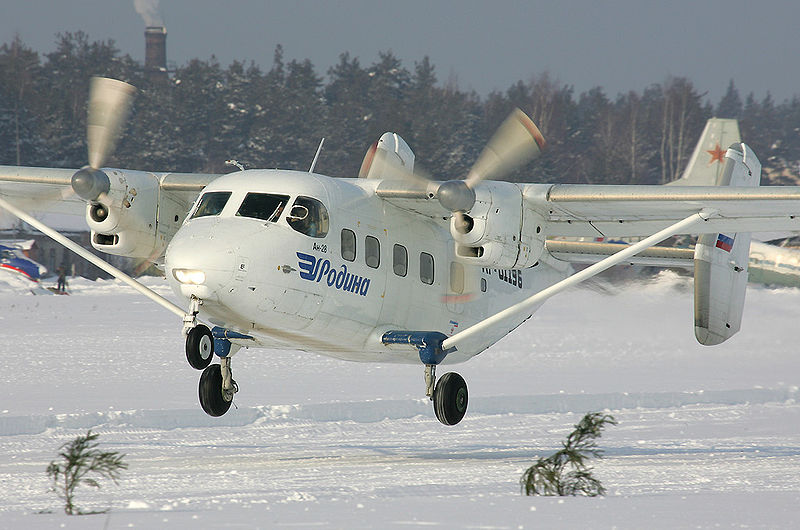

Antonov An-28 of Rodina
Role	Short-range airliner
Manufacturer	Antonov
First flight	September 1969
Introduced	1986
Status	Operational
Primary user	Aeroflot
Produced	1975-1993
Number built	191
Developed from	Antonov An-14
Variants	PZL M-28 Antonov An-38

The Antonov An-28 (NATO reporting name Cash) is a 2-engined light prop transport aircraft, developed from the Antonov An-14M. It was the winner of a competition against the Beriev Be-30 for use by Aeroflot as a short-range airliner. It first flew in 1969.

A total of 191 were built and 68 remain in airline service at August 2006.

After a short pre-production series built by Antonov, it was licence-built in Poland by PZL-Mielec-Mielec. In 1993, PZL-Mielec developed its own improved variant, the PZL M-28 Skytruck.

Development

The An-28 is similar to the An-14 in many of its aspects, including its wing structure and twin rudders, but features an expanded fuselage and turboprop engines, in place of the An-14's piston engines. The An-28 first flew as a modified An-14 in 1969. The next pre-production model did not fly until 1975. In passenger carrying configuration, accommodation was provided for up to 15 people, in addition to the two-man crew. Production was transferred to PZL-Mielec in 1978. The first Polish-built aircraft did not fly until 1984. The An-28 finally received its Soviet type certificate in 1986.

Variants

An-14A: The original Antonov designation for an enlarged, twin-turboprop version of the An-14.
An-14M: Prototype.
An-28: Twin-engined short-range utility transport aircraft, three built.
An-28RM Bryza 1RM: Search and rescue, air ambulance aircraft.
An-28TD Bryza 1TD: Transport version.

Operators

Civil Operators

Major operators of the 68 Antonov An-28 aircraft remaining in airline service include:

Avluga-Trans (11)

Kyrgyzstan

Kyrgyzstan Airlines (5)

Moldova

Tepavia Trans (4)

Russia

Vostok Airlines (5)

Suriname

Blue Wing Airlines (4 - one crashed on April 3, 2008)

Tajikistan

Tajik Air (8)
Some 21 other airlines operate smaller numbers of the type.

Military Operators

Djibouti

Djibouti Air Force (1)

Peru

Peruvian Army (2)

Poland

Polish Air Force (12 in PZL M28 variant)

Former Operators

Soviet Union

Aeroflot.

Notable accidents and incidents

May 25, 2005: A chartered Maniema Union Antonov An-28 aircraft, owned by Victoria Air, crashed into a mountain near Walungu in the Democratic Republic of the Congo, about 30 minutes after takeoff. All of the 22 passengers and 5 crew members were killed.
April 3, 2008: An Antonov An-28 operated by Blue Wing Airlines crashes upon landing near Benzdorp in Suriname. All 19 on board are killed.
March 31, 2009: A Polish Air Force PZL M28 (An-28TD Bryza 1TD) crashes upon landing in Gdynia, Poland. All 4 on board are killed. It was a training flight simulating landing without one engine.

Specifications (An-28)

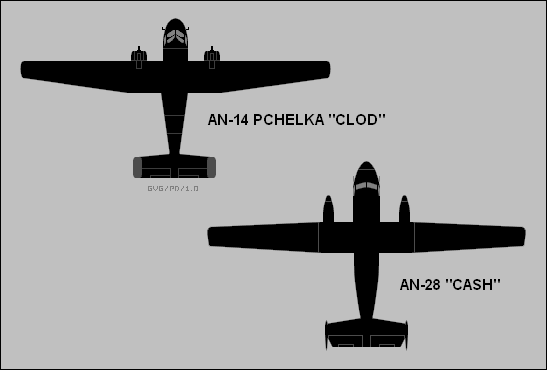

Comparison of the An-14 and the An-28

Data from Airliners.net

General characteristics

Crew: 1-2
Capacity: 18 passengers
Length: 12.98 m (42.57 ft)
Wingspan: 22.00 m (72.18 ft)
Height: 4.6 m (15.08 ft)
Wing area: 39.7 m² (427 ft²)
Empty weight: 3,900 kg (8,600 lb)
Loaded weight: 5,800 kg (13,000 lb)
Max takeoff weight: 6,100 kg (13,450 lb)
Powerplant: 2× Glushenkov TVD-10B or Pratt & Whitney Canada PT6A-65B turboprops, 960 shp (720 kW) each

Performance

Maximum speed: 355 km/h (190 knots, 220 mph)
Range: 510 km (270 nm, 320 mi)
Service ceiling: m (ft)
Rate of climb: 12.0 m/s (2,360 ft/min)
Wing loading: 146 kg/m² (29.9 lb/ft²)
Power/mass: 250 W/kg (0.15 hp/lb)
