By Wikipedia,
the free encyclopedia,

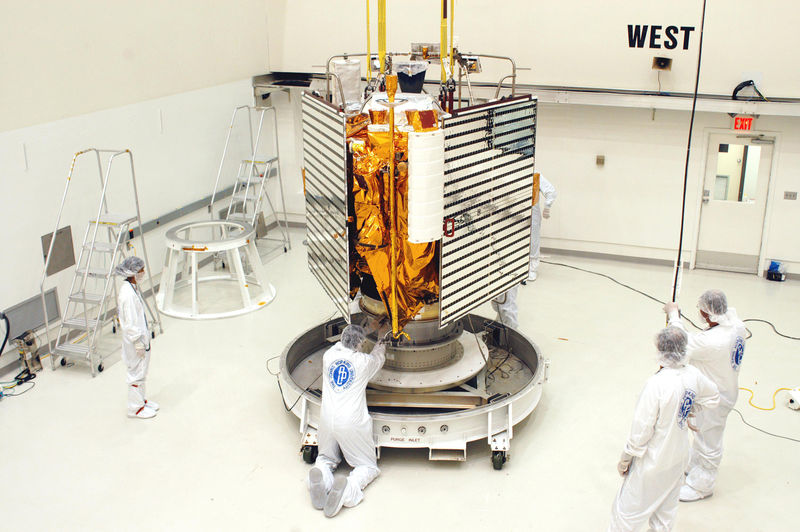

Technicians prepare MESSENGER for transfer to a hazardous processing facility prior to loading the spacecraft's complement of hypergolic propellants.
Organization NASA
Major contractors Johns Hopkins University Applied Physics Laboratory (JHUAPL)
Mission type Fly-by(s)/orbit
Flyby of Earth, Venus, Mercury
Satellite of Mercury
Orbital insertion date 2011-03-18 02:14:00 UTC eta
Launch date 2004-08-03 06:15:56 UTC
Launch vehicle Delta II 7925H-9.5
Launch site Launch Complex 17-A
Cape Canaveral Air Force Station
Mission duration elapsed: 4 years, 10 months, and 26 days
COSPAR ID 2004-030A
Home page
Mass 1,093 kg (2,410 lb)
Power 450 W (Mercury orbit nominal)

The MErcury Surface, Space ENvironment, GEochemistry and Ranging (MESSENGER) probe is a NASA spacecraft, launched August 3, 2004 to study the characteristics and environment of Mercury from orbit. Specifically, the mission is to characterize the chemical composition of Mercury's surface, the geologic history, the nature of the magnetic field, the size and state of the core, the volatile inventory at the poles, and the nature of Mercury's exosphere and magnetosphere over a nominal orbital mission of one Earth year.

The mission is the first to visit Mercury in over 30 years; the only previous probe to visit Mercury was Mariner 10, which completed its mission in March 1975. The MESSENGER has vastly improved scanning capability, with cameras capable of resolving surface features to 18 m (59 ft) across compared to the 1.6 km (0.99 mi) resolution of the Mariner 10. MESSENGER is an orbital mission, and will spend over a year imaging the entire planet; Mariner 10 was a flyby mission and was only able to observe the one hemisphere that was lit during its flybys.

The contrived acronym MESSENGER was chosen because Mercury was the messenger of the gods according to Roman mythology.

Travel to Mercury

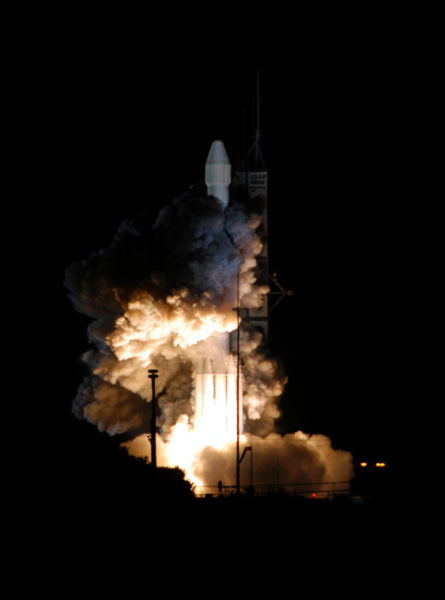

The Boeing Delta II rocket carrying MESSENGER lifted off from Cape Canaveral Air Force Station, Florida at 02:15:56 EDT on August 3, 2004. An hour later, NASA confirmed that MESSENGER had successfully separated from the third stage booster and commenced its roundabout route to Mercury.

Travel to Mercury requires an extremely large velocity change, or delta-v, because Mercury lies deeper in the Sun's gravity well; a spacecraft traveling to Mercury is greatly accelerated as it falls toward the Sun, so there must be a mechanism to slow it. Mercury does not have an atmosphere thick enough to aerobrake on arrival. To make the trip feasible, MESSENGER makes extensive use of gravity assist maneuvers. These reduce the amount of rocket fuel needed to slow down, but greatly prolong the trip. For additional fuel savings, the thrust used for insertion into orbit about Mercury will be minimized, resulting in a notably elliptical orbit. Besides the advantage of saving fuel, such an orbit allows the spacecraft to measure solar wind and magnetic fields at a variety of distances from the planet, yet still get close-up measurements and photographs of the surface.

MESSENGER performed a successful Earth swing-by a year after launch, on 2 August 2005, with the closest approach at 19:13 UTC at an altitude of 2,347 kilometers (1,458 statute miles) over central Mongolia. On December 12, 2005, a 524 second long burn ('Deep-Space Maneuver' or 'DSM-1') of the large thruster adjusted the trajectory for the upcoming Venus swing-by.

MESSENGER's trajectory
MESSENGER's trajectory

A view of Earth from MESSENGER during its Earth swing-by.
A view of Earth from MESSENGER during its Earth swing-by.

MESSENGER made its first flyby of Venus at 08:34 UTC on October 24, 2006 at an altitude of 2,992 kilometers (1,859 mi). A second flyby of Venus was made at 23:08 UTC on June 5, 2007 at an altitude of 338 kilometers (210 mi). On October 17, 2007, 'Deep-Space Maneuver-2' or 'DSM-2' was executed successfully, putting MESSENGER on target for its first flyby of Mercury. MESSENGER made a flyby of Mercury on 14 January 2008 (closest approach 200 km above surface of Mercury at 19:04:39 UTC), followed by a second flyby on October 6, 2008. MESSENGER will execute one last flyby on September 29, 2009, to further slow down the spacecraft. Mercury orbit insertion will be on March 18, 2011, beginning a year-long orbital mission.

During the Earth flyby, MESSENGER imaged the Earth and Moon and used its atmospheric and surface composition spectrometer to look at the Moon. The particle and magnetic field instruments investigated the Earth's magnetosphere.

The spacecraft was originally scheduled to launch during a 12-day window that opened May 11, 2004, but on March 26, 2004, NASA announced that a later launch window starting at July 30, 2004 with a length of 15 days would be used. This was to allow more time for testing and spacecraft processing. This change significantly altered the trajectory of the mission and delayed the arrival at Mercury by two years. The original plan called for three fly-by maneuvers past Venus, with Mercury orbit insertion scheduled for 2009. The new trajectory features one Earth flyby, two Venus flybys, and three Mercury flybys before orbit insertion on March 18, 2011.

The navigation team is led by KinetX, Inc. of Tempe, AZ. KinetX is the first private company to be responsible for navigation of a NASA deep space mission. In that role, they are responsible for determining all trajectory adjustments throughout the probe's flight through the inner solar system ensuring that MESSENGER arrives at Mercury with the proper velocity for orbit insertion.

Mercury observation plan

MESSENGER's first image of the side of Mercury which was never seen by Mariner 10, from a distance of about 17,000 miles (27,000 km)
MESSENGER's first image of the side of Mercury which was never seen by Mariner 10, from a distance of about 17,000 miles (27,000 km)

The nominal orbit has a periapsis of 200 km (120 mi) at 60 degrees N latitude, and an apoapsis of 15,193 km (9,440 mi), a period of 12 hours and an inclination of 80 degrees. The periapsis will slowly rise due to solar perturbations to over 400 km (250 mi) at the end of 88 days (one Mercury year) at which point it will be readjusted to a 200 km (120 mi), 12 hour orbit via a two burn sequence. Data will be collected from orbit for one Earth year, the nominal end of the primary mission. Global stereo image coverage at 250 meters/pixel resolution is expected. The mission should also yield global composition maps, a 3-D model of Mercury's magnetosphere, topographic profiles of the northern hemisphere, gravity field to degree and order 16, altitude profiles of elemental species, and a characterization of the volatiles in permanently shadowed craters at the poles.

Once there, scientists hope to test a theory that the planet is shrinking, contracting on itself as its core slowly freezes. The probe will look for signs of surface buckling on Mercury's unobserved hemisphere, as well as collect surface composition data on material that may have once spewed out of the planet's interior. The idea that Mercury's surface was somehow shrinking arose when Mariner 10 returned images of great scarps biting deep into the planet's surface. One such scarp, Discovery Rupes, cuts 1.6 km (1 mi) into Mercury's crust.

Spacecraft and subsystems

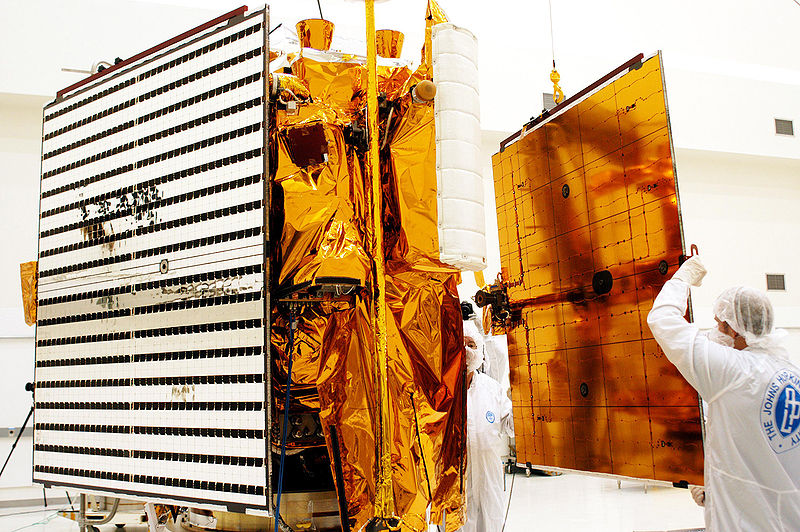

MESSENGER assembly installation of solar panels Astrotech
MESSENGER assembly installation of solar panels Astrotech

MESSENGER was designed and built by the Johns Hopkins University Applied Physics Laboratory (JHU/APL). It is a squat box (1.27 m × 1.42 m × 1.85 m) with a semi-cylindrical thermal shade for protection from the Sun and two solar panel wings extending radially. A 3.6 m (12 ft) magnetometer boom also extends from the craft. The total mass of the spacecraft is 1,093 kg (2,410 lb); 607.8 kg (1,340 lb) of this is propellant (hydrazine and nitrogen tetroxide) and helium. The structure is primarily graphite cyanate ester (GrCE) composite and consists of two vertical panels which support two large fuel tanks and two vertical panels which support the oxidizer tank and plumbing panel. The four vertical panels make up the center column and are bolted at their aft ends to an aluminum adapter. A single top deck panel mounts the LVA (large velocity adjust) thruster, small thrusters, helium and auxiliary fuel tanks, star trackers and battery.

Main propulsion is via the 645 N (145 lbf), 317 s bipropellant LVA thruster. Four 22 N (4.9 lbf) monopropellant thrusters provide spacecraft steering during main thruster burns, and ten 4 N (0.9 lbf) monopropellant thrusters are used for attitude control. There is also a reaction wheel attitude control system. Information for attitude control is provided by star tracking cameras, an inertial measurement unit, and six solar sensors. Power is provided by solar panels which extend beyond the sunshade. They are rotatable to balance panel temperature and power generation and provide a nominal 450 watts in Mercury orbit. The panels are 70 percent optical solar reflectors and 30 percent GaAs/Ge cells. The power is stored in a common-pressure-vessel, 23-ampere-hour nickel-hydrogen battery, with 11 vessels and two cells per vessel.

Communications are in X-band with downlink through two fixed phased array antenna clusters and uplink and downlink through medium- and low-gain antennas on the forward and aft sides of the spacecraft. Passive thermal control, primarily a fixed opaque ceramic cloth sunshade, is utilized to maintain operating temperatures near the Sun. Radiators are built into the structure and the orbit is optimized to minimize infrared and visible light heating of the spacecraft from the surface of Mercury. Multilayer insulation, low conductivity couplings, and heaters are also used to maintain temperatures within operating limits.

Five science instruments are mounted externally on the bottom deck of the main body: the Mercury Dual Imaging System (MDIS), Gamma-Ray and Neutron Spectrometer (GRNS), X-ray Spectrometer (XRS), Mercury Laser Altimeter (MLA), and Atmospheric and Surface Composition Spectrometer (MASCS). The Energetic Particle and Plasma Spectrometer (EPPS) is mounted on the side and top deck and the magnetometer (MAG) is at the end of the 3.6 meter boom. Radio Science (RS) experiments will use the existing communications system (see:Radio Science Subsystem).

MESSENGER's onboard computer system is based on the Integrated Electronics Module (IEM), a device that combines core avionics in a single box. The spacecraft carries a pair of identical IEMs for backup purposes; both house a 25 megahertz main processor and 10 MHz fault protection processor. All four are radiation-hardened IBM RAD6000 processors, based on the IBM POWER1 CPU architecture (similar to that of older Macintoshes). The RAD computers, slow by current personal computer standards, are state of the art for the radiation tolerance required on the MESSENGER mission. For data storage, the spacecraft carries two solid-state recorders (one backup) able to store up to one gigabyte each. Its main processor collects, compresses, and stores on the recorder images and other data from MESSENGER's instruments, which can then be sent back to Earth.


An image of part of the previously unseen side of the planet
An image of part of the previously unseen side of the planet

MESSENGER performed its first Mercury flyby successfully on 14 January 2008, and its second flyby on 6 October 2008, taking pictures with both the wide angle and narrow angle cameras as well as using some of its other sensors. Preliminary image results from this first pass can be viewed at JHUAPL's MESSENGER Science Photos page.

On July 3, 2008, MESSENGER team member Thomas Zurbuchen announced that the probe discovered large amounts of water present in Mercury's exosphere. "Nobody expected that. I don't know a single person that did. We were astonished, just astonished," Zurbuchen stated.

MESSENGER also provided visual evidence of volcanic activity on the surface of Mercury as well as evidence for a liquid planetary core.
