By Wikipedia,
the free encyclopedia,

Artist's impression of the SMART-1 mission ESA199399.jpg

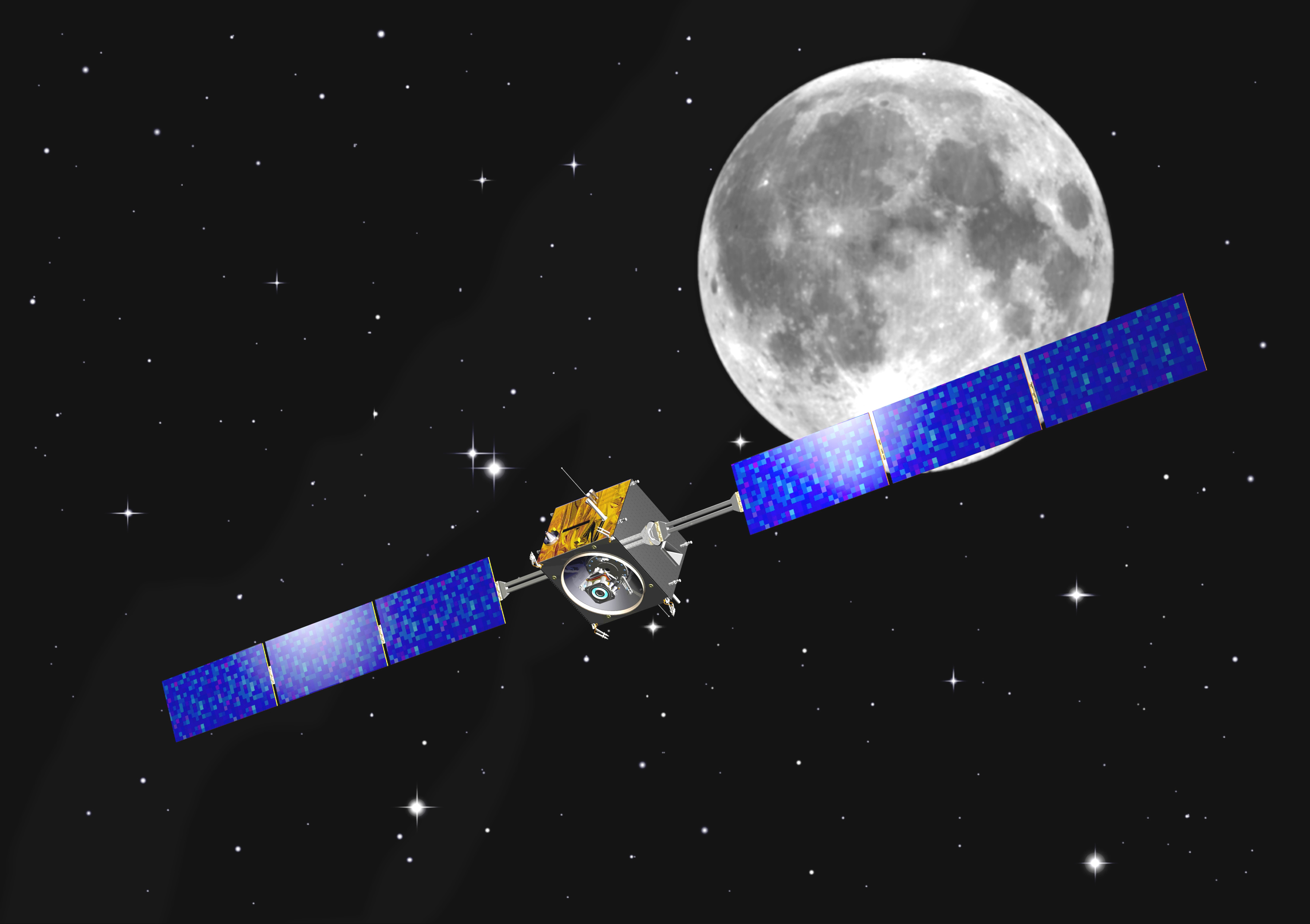

Artist’s impression of SMART-1
Mission type Technology
Lunar orbiter
Operator ESA
COSPAR ID 2003-043C
SATCAT no. 27949
Website SMART-1
Mission duration 2 years, 11 months, 6 days, 6 hours, 27 minutes, 36 seconds
Spacecraft properties
Manufacturer Swedish Space Corporation
Launch mass 367 kilograms (809 lb)
Dry mass 287 kilograms (633 lb)
Start of mission
Launch date 27 September 2003, 23:14:46 UTC
Rocket Ariane 5G
Launch site Kourou ELA-3
Contractor Arianespace
End of mission
Decay date 3 September 2006, 05:42:22 UTC
Orbital parameters
Reference system Selenocentric
Eccentricity 0.352054
Periselene 2,205 kilometres (1,370 mi)
Aposelene 4,600 kilometres (2,900 mi)
Inclination 90.26 degrees
Period 4.95 hours
Epoch 18 July 2005, 11:14:28 UTC
Lunar orbiter
Orbital insertion 15 November 2004
Impact site 34.262°S 46.193°W
ISO legacy mission insignia
Legacy ESA insignia for the SMART-1 mission

SMART-1 was a Swedish-designed European Space Agency satellite that orbited around the Moon. It was launched on September 27, 2003 at 23:14 UTC from the Guiana Space Centre in Kourou, French Guiana. "SMART" stands for Small Missions for Advanced Research in Technology. On September 3, 2006 (05:42 UTC), SMART-1 was deliberately crashed into the Moon's surface, ending its mission.

Spacecraft design

SMART-1 was about one metre (approximately 100 centimeters) across, and lightweight in comparison to other probes. Its launch mass was 367 kg or 809 pounds, of which 287 kg (633 lb) was non-propellant.

It was propelled by a solar-powered Hall effect thruster (Snecma PPS-1350-G) using xenon propellant, of which there was 82 kg (50 litres by volume at a pressure of 150 bar) at launch. The thrusters used an electrostatic field to ionize the xenon and accelerate the ions to a high speed. This ion engine setup achieved a specific impulse of 16.1 kN·s/kg (1,640 seconds), more than three times the maximum for chemical rockets. Therefore 1 kg of propellant (1/350 to 1/300 of the total mass of the spacecraft) produced a delta-v of about 45 m/s. The thruster had a weight of 29 kg with a peak power consumption of 1,200 watts.

The solar arrays made 1,190 W available for powering the thruster, giving a nominal thrust of 68 mN, hence an acceleration of 0.2 mm/s² or 0.7 m/s per hour (i.e., just under 0.00002 g of acceleration). As for all ion-engine powered craft, orbital maneuvers were not carried out in short bursts but very gradually. The particular trajectory taken by SMART-1 to the Moon required thrusting for about one third to one half of every orbit. When spiralling away from the Earth thrusting was done on the perigee part of the orbit. The total delta-v expected over the thrusting lifetime of 5,000 hours is about 4 km/s, corresponding to a total impulse of 1.5 MN·s.

As part of the European Space Agency's strategy to build very inexpensive and relatively small spaceships, the total cost of SMART-1 was a relatively small 110 million euros (about 170 million U.S. dollars).

SMART-1 was designed and developed by the Swedish Space Corporation on behalf of ESA. Assembly of the spacecraft was carried out by Saab Space in Linköping. Tests of the spacecraft were directed by Swedish Space Corporation and executed by Saab Space.

The project manager at ESA was Giuseppe Racca and the project manager at the Swedish Space Corporation was Peter Rathsman.


As a part of Small Missions for Advanced Research in Technology, SMART-1 tested new spacecraft technologies. The primary objective of SMART-1 was to test the solar-powered ion thruster. A secondary objective was to gather more information about the Moon, such as how it was created. SMART-1 mapped the lunar surface by way of X-ray and infrared imaging, taking images from several different angles so that the Moon's surface can be mapped in three dimensions. It also determined the Moon's chemical composition using X-ray spectroscopy. A specific goal was to use infrared light to search for frozen water at the Moon's south pole, where some areas of the surface are never exposed to direct sunlight. SMART-1 also mapped the Moon's Peaks of Eternal Light (PELs), mountaintops which are permanently bathed in sunlight and surrounded by craters shaded in eternal darkness. SMART-1 also tested the use of miniaturized scientific instruments, which are considered more efficient.

SMART-1 ended its mission by being deliberately crashed onto the Moon's surface at 34°14′S 46°07′W / 34.24°S 46.12°W / -34.24; -46.12. Scientists hope that the impact will have kicked up a large enough quantity of fresh lunar "soil" so that they may study its composition.



The Advanced Moon micro-Imager Experiment was a miniature colour camera for lunar imaging. The CCD camera with three filters of 750, 900 and 950 nm was able to take images with an average pixel resolution of 80 m (about 260 ft). The camera weighed 2.1 kg (about 4.5 lb) and had a power consumption of 9 watts.


The Demonstration of a Compact X-ray Spectrometer was an X-ray telescope for the identification of chemical elements on the lunar surface. It detected the x-ray fluorescence (XRF) of crystal compounds created through the interaction of the electron shell with the solar wind particles to measure the abundance of the three main components: magnesium, silicon and aluminium. The detection of iron, calcium and titanium depended on the solar activity. The detection range for x-rays was 0.5 to 10 keV. The spectrometer and XSM (described below) together weighed 5.2 kg and had a power consumption of 18 watts.


The X-ray solar monitor studied the solar variability to complement D-CIXS measurements.


The Smart-1 Infrared Spectrometer was an infrared spectrometer for the identification of mineral spectra of olivine and pyroxene. It detected wave lengths from 0.93 to 2.4 µm with 256 channels. The package weighed 2.3 kg and had a power consumption of 4.1 watts.


The Electric Propulsion Diagnostic Package was to acquire data on the new propulsion system on SMART-1. The package weighed 0.8 kg and had a power consumption of 1.8 watts.


The Spacecraft Potential, Electron and Dust Experiment. The experiment weighed 0.8 kg and had a power consumption of 1.8 watts. Its name was intentionally chosen so that its acronym is the same as the first name of Spede Pasanen, famous Finnish movie actor, movie producer, inventor etc.


Ka band TT&C (telemetry, tracking and control) Experiment. The experiment weighed 6.2 kg and had a power consumption of 26 watts.


SMART-1 was launched September 27, 2003 together with Insat 3E and eBird 1, by an Ariane 5 rocket from the Guiana Space Centre in French Guiana. After 42 minutes it was released into a geostationary transfer orbit of 7,035 × 42,223 km. From there it used its Solar Electric Primary Propulsion (SEPP) to gradually spiral out during thirteen months.

The orbit can be seen up to October 26, 2004 at, when the orbit was 179,718 × 305,214 km. On that date, after the 289th engine pulse, the SEPP had accumulated a total on-time of nearly 3,648 hours out of a total flight time of 8,000 hours, hence a little less than half of its total mission. It consumed about 58.8 kg of xenon and produced a delta-v of 2,737 m/s (46.5 m/s per kg xenon, 0.75 m/s per hour on-time). It was powered on again on November 15 for a planned burn of 4.5 days to enter fully into lunar orbit. It took until February 2005 using the electric thruster to decelerate into the final orbit 300-3,000 km above the Moon's surface.

Summary of osculating geocentric orbital elements
Epoch (UTC) Perigee (km) Apogee (km) Eccentricity Inclination (deg)
(to Earth equator)
Period (h)
September 27, 2003 ~7,035 ~42,223 ~0.714 ~6.9 ~10.6833
October 26, 2003, 21:20:00.0 8,687.994 44,178.401 0.671323 6.914596 11.880450
November 19, 2003, 04:29:48.4 10,843.910 46,582.165 0.622335 6.861354 13.450152
December 19, 2003, 06:41:47.6 13,390.351 49,369.049 0.573280 6.825455 15.366738
December 29, 2003, 05:21:47.8 17,235.509 54,102.642 0.516794 6.847919 18.622855
February 19, 2004, 22:46:08.6 20,690.564 65,869.222 0.521936 6.906311 24.890737
March 19, 2004, 00:40:52.7 20,683.545 66,915.919 0.527770 6.979793 25.340528
August 25, 2004, 00:00:00 37,791.261 240,824.363 0.728721 6.939815 143.738051
October 19, 2004, 21:30:45.9 69,959.278 292,632.424 0.614115 12.477919 213.397970
October 26, 2004, 06:12:40.9 179,717.894 305,214.126 0.258791 20.591807 330.053834

After its last perigee on November 2, on November 11, 2004 it passed through the L1 Lagrangian Point and into the area dominated by the Moon's gravitational influence, and at 1748 UT on November 15 passed the first periselene of its lunar orbit. The osculating orbit on that date was 6,704 × 53,208 km, with an orbital period of 129 hours, although the actual orbit was accomplished in only 89 hours. This illustrates the significant impact that the engine burns have on the orbit and marks the meaning of the osculating orbit, which is the orbit that would be travelled by the spacecraft if at that instant all perturbations, including thrust, would cease.

Summary of osculating selenocentric orbital elements
Epoch (UTC) Periselene (km) Aposelene (km) Eccentricity Inclination (deg)
(to Moon equator)
Period (h)
November 15, 2004, 17:47:12.1 6,700.720 53,215.151 0.776329 81.085 129.247777
December 4, 2004 10:37:47.3 5,454.925 20,713.095 0.583085 83.035 37.304959
January 9, 2005, 15:24:55.0 2,751.511 6,941.359 0.432261 87.892 8.409861
February 28, 2005, 05:18:39.9 2,208.659 4,618.220 0.352952 90.063603 4.970998
April 25, 2005, 08:19:05.4 2,283.738 4,523.111 0.328988 90.141407 4.949137
May 16, 2005, 09:08:52.9 2,291.250 4,515.857 0.326807 89.734929 4.949919
June 20, 2005, 10:21:37.1 2,256.090 4,549.196 0.336960 90.232619 4.947432
July 18, 2005, 11:14:28.0 2,204.645 4,600.376 0.352054 90.263741 4.947143

ESA announced on February 15, 2005, the endorsement of a proposal to extend the mission of SMART-1 by one year until August 2006. This date was later shifted to September 3, 2006, to enable scientific observations from Earth.

Lunar impact

SMART-1 impact flash
SMART-1 impact flash

SMART-1 impacted the Moon's surface as planned, on September 3, 2006 at 05:42:22 UTC, ending its mission. Moving at approximately 2,000 m/s (4,500 mph), SMART-1 created an impact visible with ground telescopes from Earth. It is hoped that not only will this provide some data simulating a meteor impact, but also that it might expose materials in the ground, like water ice, to spectroscopic analysis.

Location of the Smart 1 impact, in relation to other moon objects.

Location of the Smart 1 impact, in relation to other moon objects.

ESA estimated that impact occurred at 34°24′S 46°12′W / 34.4°S 46.2°W / -34.4; -46.2. These numbers can be entered into NASA's World Wind, to see where on the Moon it crashed. At the time of impact, the Moon was visible in North and South America, and places in the Pacific Ocean, but not Europe, Africa, or western Asia.

This project has generated data and know-how that will be used for other missions, such as the ESA's BepiColombo mission to Mercury.

The Committee on Space Research has established rules to protect planets and moons from possible contamination by spacecraft. In response to concerns of SMART-1 contaminating the Moon, ESA claims that "every chemical element present on SMART-1 and in its instruments exists naturally on the Moon".

Important events and discoveries

  • September 27, 2003: SMART-1 launched from the European Spaceport in Kourou by an Ariane 5 launcher.
  • June 17, 2004: SMART-1 took a test image of Earth with the camera that would later be used for Moon closeup pictures. It shows parts of Europe and Africa. It was taken on May 21 with the AMIE camera.
  • November 2, 2004: Last perigee of Earth orbit.
  • November 15, 2004: First perilune of lunar orbit.
  • January 15, 2005: Calcium detected in Mare Crisium.
  • January 26, 2005: First close up pictures of the lunar surface sent back.
  • February 27, 2005: Reached final orbit around the Moon with an orbital period of about 5 hours.
  • April 15, 2005: The search for PELs begins.
  • September 3, 2006: Mission ends with a planned crash into the Moon during orbit number 2,890.
