Mariner 4

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Mariner_4

Mariner 4
Organization NASA
Mission type Flyby
Flyby of Mars
Launch date November 28, 1964 at 14:22:01 UTC
Launch vehicle Atlas-Agena D launch vehicle
Mission duration November 28, 1964 to December 21, 1967
COSPAR ID 1964-077A
Mass 260.68 kg
Power 170 W
Orbital elements
Semimajor axis 199,591,220 km
Eccentricity 0.17024754
Inclination 2.51
Orbital period 562.888
Apoapsis 233,571,130 km
Periapsis 165,611,300 km

Mariner 4 (together with Mariner 3 known as Mariner-Mars 1964) was the fourth in a series of spacecraft, launched on November 28, 1964, intended for planetary exploration in a flyby mode and performed the first successful flyby of the planet Mars, returning the first pictures of the Martian surface. It captured the first images of another planet ever returned from deep space; their depiction of a cratered, seemingly dead world largely changed the view of the scientific community on life on Mars. Mariner 4 was designed to conduct closeup scientific observations of Mars and to transmit these observations to Earth. Other mission objectives were to perform field and particle measurements in interplanetary space in the vicinity of Mars and to provide experience in and knowledge of the engineering capabilities for interplanetary flights of long duration. On December 21, 1967 communications with Mariner 4 were terminated.

Spacecraft and subsystems

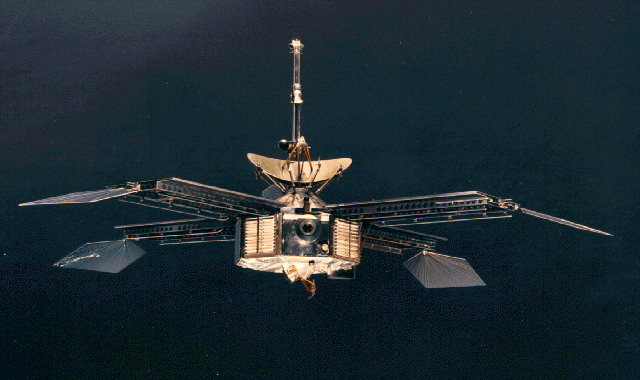

The Mariner 4 spacecraft consisted of an octagonal magnesium frame, 1270 mm across a diagonal and 457 mm high. Four solar panels were attached to the top of the frame with an end-to-end span of 6.88 m, including solar pressure vanes which extended from the ends. A 1,168 mm diameter high-gain parabolic antenna was mounted at the top of the frame as well. An omnidirectional low-gain antenna was mounted on a 7 ft 4 in (2235 mm) tall mast next to the high-gain antenna. The overall height of the spacecraft was 2.89 m. The octagonal frame housed the electronic equipment, cabling, midcourse propulsion system, and attitude control gas supplies and regulators.

Scientific instruments included:

  • A helium magnetometer, mounted on the waveguide leading to the omnidirectional antenna, to measure the magnitude and other characteristics of the interplanetary and planetary magnetic fields.
  • An ionization chamber/Geiger counter, mounted on the waveguide leading to the omnidirectional antenna nearer the body of the spacecraft, to measure the charged-particle intensity and distribution in interplanetary space and in the vicinity of Mars.
  • A trapped radiation detector, mounted on the body with counter-axes pointing 70° and 135° from the solar direction, to measure the intensity and direction of low-energy particles.
  • A cosmic ray telescope, mounted inside the body pointing in anti-solar direction, to measure the direction and energy spectrum of protons and alpha particles.
  • A solar plasma probe, mounted on the body pointing 10° from the solar direction, to measure the very low energy charged particle flux from the Sun.
  • A cosmic dust detector, mounted on the body with microphone plate approximately perpendicular to the plane of orbit, to measure the momentum, distribution, density, and direction of cosmic dust.
  • A television camera, mounted on a scan platform at the bottom center of the spacecraft, to obtain closeup pictures of the surface of Mars.

Power was supplied by 28,224 solar cells contained in the four 176 x 90 cm solar panels, which could provide 310 W at Mars. A rechargeable 1200 W·h silver-zinc battery was also used for maneuvers and backup. Monopropellant hydrazine was used for propulsion, via a 4 jet vane vector control motor, with 222-newton (50 lbf) thrust, installed on one of the sides of the octagonal structure. Attitude control was provided by 12 cold nitrogen gas jets mounted on the ends of the solar panels and three gyros. Solar pressure vanes, each with an area of 0.65 square meter (7 ft²), were attached to the tips of the solar panels. Positional information was provided by four Sun sensors, and an Earth, a Mars, and a Canopus sensor. Mariner 4 was the first spacecraft needing a star as a reference object, as earlier missions, remaining near Earth or Venus, had sighted on the home planet. During this flight Earth would be too dim to lock onto. An other bright source at a wide angle away from the Sun was needed and Canopus filled this requirement. Subsequently, Canopus was used as a reference point in many following missions.

Telecommunications equipment consisted of dual S-band transmitters (7 W triode cavity amplifier/10 W traveling-wave tube amplifier) and a single receiver which together could send and receive data via the low- and high-gain antennas at 8⅓ or 33⅓ bit/s. Data could also be stored on a tape recorder with a capacity of 5.24 million bits for later transmission. All operations were controlled by a command subsystem which could process any of 29 direct command words or 3 quantitative word commands for midcourse maneuvers. The central computer and sequencer operated stored time-sequence commands using a 38.4 kHz synchronization frequency as a time reference. Temperature control was achieved through the use of adjustable louvers mounted on six of the electronics assemblies, plus multilayer insulating blankets, polished aluminum shields, and surface treatments. Other instruments included:

Mission profile

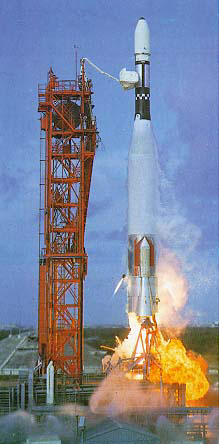

Launch of Mariner 4
Launch of Mariner 4

Launch

After launch from Cape Canaveral Air Force Station Launch Complex 12 the protective shroud covering Mariner 4 was jettisoned and the Agena D/Mariner 4 combination separated from the Atlas D booster at 14:27:23 UTC on November 28, 1964. The Agena D first burn from 14:28:14 to 14:30:38 put the spacecraft into an Earth parking orbit and the second burn from 15:02:53 to 15:04:28 injected the craft into a Mars transfer orbit. Mariner 4 separated from the Agena D at 15:07:09 and began cruise mode operations. The solar panels deployed and the scan platform was unlatched at 15:15:00 and Sun acquisition occurred 16 minutes later.

Lock on Canopus

After Sun acquisition, the Canopus star tracker went searching for Canopus. The star tracker was set to respond to any object more than one-eighth and less than eight times as bright as Canopus. Including Canopus, there were seven such objects visible to the sensor. It took more than a day of 'star-hopping' to find Canopus, as the sensor locked on to others instead: a stray light pattern from the near Earth, Alderamin, Regulus, Naos, and γ Velorum were acquired before Canopus.

During the early part of the mission, roll error signal transients occurred frequently, making the spacecraft lose its lock on Canopus. The lock was lost six times in less than three weeks, each time requiring radio commands to reacquire the lock. Analysis concluded that it was probably due to small dust particles that scattered sunlight at the same brightness as Canopus. If the brightness of the object exceeded the maximum limit of eight times the brightness of Canopus, the spacecraft would search for a new star. A radio command was sent on December 17, 1964 to remove this limit; the limit was initially implemented to prevent a lock on Earth, but no longer necessary. No further loss of the Canopus lock was experienced, although roll transients occurred 38 more times before the encounter with Mars.

Midcourse maneuver

The 7½ months of flight of Mariner 4 involved one midcourse maneuver on December 5, 1964. The maneuver was initially scheduled for December 4, but due to a loss of lock with Canopus, it was postponed. The maneuver was successfully completed on December 5; it consisted of a negative pitch turn of 39.16 degrees, a positive roll turn of 156.08 degrees, and a thrusting time of 20.07 seconds. The turns aimed the motor of the spacecraft back in the general direction of Earth, as the motor was initially pointed along the direction of flight. Both the pitch and roll changes were completed with better than 1% accuracy, the velocity change with about 2½% accuracy. After the maneuver, Mariner 4 was heading straight for Mars as planned.

Mars flyby

The spacecraft flew by Mars on July 14 and July 15, 1965. Planetary science mode was turned on at 15:41:49 UT on July 14. The camera sequence started at 00:18:36 UT on July 15 (7:18:49 p.m. EST on July 14) and 21 pictures using alternate red and green filters, plus 21 lines of a 22nd picture were taken. The images covered a discontinuous swath of Mars starting near 40° N, 170° E, down to about 35° S, 200° E, and then across to the terminator at 50° S, 255° E, representing about 1% of the planet's surface. The closest approach was 9,846 km from the Martian surface at 01:00:57 UT July 15, 1965 (8:00:57 p.m. EST July 14). The images taken during the flyby were stored in the on-board tape recorder. At 02:19:11 UT Mariner 4 passed behind Mars as seen from Earth and the radio signal ceased. The signal was reacquired at 03:13:04 UT when the spacecraft reappeared. Cruise mode was then re-established. Transmission of the taped images to Earth began about 8.5 hours after signal reacquisition and continued until August 3. All images were transmitted twice to ensure no data was missing or corrupt.

The spacecraft performed all programmed activities successfully and returned useful data from launch until 22:05:07 UT on October 1, 1965, when the distance from Earth (309.2 million km) and the antenna orientation temporarily halted signal acquisition.

Micrometeoroid hits and end of communications

Data acquisition resumed in late 1967. The cosmic dust detector registered 17 hits in a 15 minute span on September 15, part of an apparent micrometeoroid shower which temporarily changed the spacecraft attitude and probably slightly damaged the thermal shield. Later it was speculated that the probe passed through the debris of Comet D/Swift, and even made a close flyby of that comet's possibly shattered nucleus at only 20 million kilometers.

On December 7 the gas supply in the attitude control system was exhausted, and on December 10 and 11 a total of 83 micrometeoroid hits were recorded which caused perturbation of the attitude and degradation of the signal strength. On December 21, 1967 communications with Mariner 4 were terminated. The spacecraft is currently in an exterior heliocentric orbit.

Results

The total data returned by the mission was 5.2 million bits (about 634 kB). All instruments operated successfully with the exception of a part of the ionization chamber, namely the Geiger-Müller tube, which failed in February 1965. Also, the plasma probe had its performance degraded by a resistor failure on December 8, 1964, but by taking this failure into account, experimenters were able to recalibrate the instrument and still interpret the data. The images returned showed a Moon-like cratered terrain, which later missions showed was not typical for Mars, but only for the more ancient region imaged by Mariner 4. A surface atmospheric pressure of 4.1 to 7.0 mbar (410 to 700 pascal) and daytime temperatures of −100 degrees Celsius were estimated. No magnetic field or Martian radiation belts were detected.

Images of craters and measurements of a thin atmosphere, indicating a relatively inactive planet exposed to the harshness of space, generally dissipated hopes of finding intelligent life on Mars. Life on Mars had been the subject of speculation and science fiction for centuries. If there was life on Mars, after Mariner 4 most concluded it would probably be smaller, simpler forms. Others concluded that a search for life on Earth at kilometer resolution, using several thousand photographs, did not reveal a sign of life on the vast majority of these photographs; thus, based on the 22 photographs taken by Mariner 4, one could not conclude there was no intelligent life on Mars.

Mariner 4 may have concluded the gradual change, in science fiction, from describing intelligent aliens as dwellers on other planets in our Solar System, to describing them as living on planets circling distant stars.

The total cost of the Mariner 4 mission is estimated at $83.2 million. Total research, development, launch, and support costs for the Mariner series of spacecraft (Mariners 1 through 10) was approximately $554 million.
