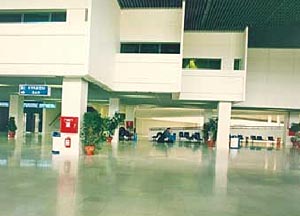

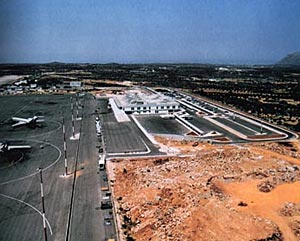

Chania International Airport

SOUDA - Chania International Airport

Chania International Airport

Distance and Direction from city: 6NM BRG 080° from Chania.

Reference point: 353156N 240906E
Elevation: 149,96m
Runway: Designation 112°/292° Dimensions 3350x45
Administrative authority: Hellenic Air Force

Chania International AirportPOSTAL ADDRESS: Chania "Daskalogiannis " Airport
73100 CHANIA
GREECE

TELEPHONE: +302821063245, 83800
TELEX: 291144 LGSA GR
FAX: +302821066100
e-mail: kaxntl at otenet gr
IATA code: CHQ

Phone Directory
Airport Manager: +302821063224

Air traffic statistics 2000
Flights: 5.449
Passengers: 901.452

WEB: http://www.hcaa-eleng.gr/hania.htm


Images and information placed above are from
http://www.hcaa-eleng.gr/hania.htm
http://www.alxd.gr/AirportQuide/xania/XaniaE.htm
We thank them for the data!


General Info
Country Greece
ICAO ID LGSA
Time UTC+2(+3DT)
Latitude 35.531747
35° 31' 54.29" N
Longitude 24.149678
024° 08' 58.84" E
Elevation 490 feet
149 meters
Type Military
Magnetic Variation 003° E (01/05)
Beacon Yes
Operating Agency HELLENIC AIR FORCE COMMAND
Alternate Name IOANNIS DASKALOGIANNIS
Near City Chania
Operating Hours 24 HOUR OPERATIONS
International Clearance Status Airport of Entry
Daylight Savings Time Last Sunday in March to last Sunday in October


Communications
TWR 121.1
122.1
257.8
BULL PEN
(DET 1, 95 RS)
358.525
PMSV METRO
Wx brief avbl fr Navy Wx Det.
359.4
BASE OPS 359.4
RANGER BASE
(EP-3 Det)
252.4
GND 121.7
APP 118.125
121.1
122.1
362.3
CHANIA RDO 5637
2989
(5637 Opr 0400-1700Z++) (2989 Opr 1700-0400Z++)


Runways
ID Dimensions Surface PCN ILS
11/29 10982 x 148 feet
3347 x 45 meters
ASPHALT 053FBXU NO


Navaids
Type ID Name Channel Freq Distance From Field Bearing From Navaid
TACAN SUD SOUDA 049X - 2.0 NM 111.6
VOR-DME SUD SOUDA 023X 108.6 1.3 NM 287.3
NDB SUD SOUDA - 409 At Field -


Supplies/Equipment
Fuel JP-4, Wide cut turbine fuel MIL Spec T-5624

JP-5, Keroscene MIL Spec T-5624

Jet A1, without icing nhibitor.

115/145 octane gasoline, leaded, MIL-L-5572F (PURPLE)

100/130 MIL Spec, low lead, aviation gasoline (BLUE)
Oil O-156, MIL L 23699 (Synthetic Base)Turboprop/Turboshaft Engine
Other Fluids HPOX, High pressure oxygen servicing

LOX, Liquid oxygen servicing

HPNIT, High pressure nitrogen servicing
JASU NC-10A/A1/B/C
DC: 750 amp constant, 1000 amp intermittent, 28v, AC: 90kva, 115/200v, 3 phase, 400hz

NC-8A/A1
DC: 500 amp constant, 750 amp intermittent, 28v, AC: 60kva at 0.8pf, 115/200v, 3 phase, 400hz

NCPP-105/RCPT
180 lbs/min at 75psi or 120lbs/min at 45psi 700 amp, 28vDC, 120/208v, 400hz AC, 30kva


Remarks
A-GEAR E-28 Rwy 29 USN certified, avbl with 20 min req, max engagement 180 KIAS. AAE-44B-2E not USN certified. Rwy barrier unsuitable for tran and hi-profile acft. Acft with hook down, use extreme ctn to insure ldg byd barrier (MA-1A). Engage withcanopy clsd. Req barrier down prior to tkof.
CAUTION Cntrline lgt for Rwy 29 ovrn raised 6 in to 4'. FOD haz. 2% grade on E end of N loop twy. A-G on both rwy, pilot of dep acft should line up 300' in front of net barriers. When back taxi Rwy 29, make rt turn and use low pwr to avoid FOD.
FLUID HPOX LOX HPNIT
FUEL J5 (MIL) A1(EKO Elda Abee, fone C30-21-07-725522) (NC-100LL, 115, J4)
JASU 1(GTC-85) 2(NCPP-105) 3(A/M32A-108A)
LGT ABn W/green coded SUD. Rwy dist remaining mkr not lgtd; twy not mrk. Portable OLS avbl, 30 min PN rqr.
MISC S parl twy, 11,001' x 90', mrk and lgt for use as Emerg Rwy 11R/29L. N Parl twy 9856' x 98'. USN controllers in Base OPS only. USN crash crew avbl. All billeting off base, transportation thru contractor, ctc SPA Tors, DSN 314-266-1291/C(30)282-102-1291.
OIL O-156
RSTD PPR 72 hr in advance exc AMS CHANNEL/AIREVAC msn to prk on NSA ramp. PPR ctc Base OPS/ATC, DSN 314-266-1269/fax DSN 314-266-1273. Diplomatic clnc rqr for ldg atSouda afld IAW FCG. Air Ops Office, DSN 314-266-1277/C(30)282-102-1277. Air Trml Mgr, DSN 314-266-1390/fax DSN 314-266-1297, Air Trml Ops Cntr (ATOC), DSN 314-266-1391/fax DSN 314-266-1273,NEMOD9Wx, DSN 314-266-1284/fax DSN 314-266-1315. Overnight parking not avbl for -5. All acft with VIP code 6 or abv notify Base Ops prior to arr RWY.
TFC PAT Lt tfc Rwy 29, rgt tfc Rwy 11. Do not ovft WEPS compound lctd 2 NM NE of afld.
TRAN ALERT Ltd svc avbl. No fleet servicing or maint avbl. Tran crews must be ready to provide tech drct/assistance in svc/maint/towing. Ltd manning 1800-0500Z++, exp dly.Inbd acft ctc Souda Base OPS with fuel, cargo, PAX and VIP requirements.

Runway 11/29

10982 x 148 feet
3347 x 45 meters

Runway 11
Surface ASPHALT
True Heading 111.0
Latitude 35.537078
35° 32' 13.48" N
Longitude 24.133994
024° 08' 02.38" E
Elevation 430.0 feet
131 meters
Slope 0.5°
Landing Distance 9802 feet
2988 meters
Takeoff Distance 11882 feet
3622 meters
Displaced Threshold Length 1180 feet
360 meters
Overrun Length 900 feet
274 meters
Overrun Surface ASPHALT
Lighting System HIRL
REIL
M
PAPI

Runway 29
Surface ASPHALT
True Heading 291.0
Latitude 35.526106
35° 31' 33.98" N
Longitude 24.168375
024° 10' 06.15" E
Elevation 490.0 feet
149 meters
Landing Distance 10982 feet
3347 meters
Takeoff Distance 10982 feet
3347 meters
Lighting System HIRL
REIL
J
PAPI
OLS

Navaids

SOUDA
Type ID Channel Freq Country State
TACAN SUD 049X - Greece -
Latitude Longitude Airport
35.544281
35° 32' 39.41" N
24.112392
024° 06' 44.61" E
LGSA

Navaids

SOUDA
Type ID Channel Freq Country State
VOR-DME SUD 023X 108.6 Greece -
Latitude Longitude Airport
35.523128
35° 31' 23.26" N
24.174964
024° 10' 29.87" E
LGSA

Navaids

SOUDA
Type ID Channel Freq Country State
NDB SUD - 409 Greece -
Latitude Longitude Airport
35.520833
35° 31' 15.00" N
24.152222
024° 09' 08.00" E
LGSA
