Survival radio

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Survival_radio

Survival radios are carried by ships and aircraft to facilitate rescue in an emergency. They are generally designed to transmit on international distress frequencies. Maritime systems have been standardized under the Global Maritime Distress Safety System.

History

The use of radio to aid in rescuing survivors of accidents at sea came to the forefront after the sinking of the HMS Titanic in 1912. Lifeboats were equipped with spark gap transmitters such as the Marconi Type 241, circa 1920. [1][2] These operated using Morse code on 500 kHz, the international distress frequency at the time. This frequency had the advantage of long range due to ground wave propagation and was constantly monitored by all large ships at sea after the Titanic sinking. However, due to the its wavelength of 600 meters, a long antenna, was required to achieve good range. Long wires on the order of 1/4 wave length held up by kites or balloons were often used. Spark-gap continued to be used in lifeboats, long after the technology was banned for general communication.

The Gibson Girl


BC-778
BC-778 "Gibson Girl" radio transmitter.

During World War II, Germany developed a hand-crank 500 kHz rescue radio, the "Notsender" (emergency transmitter) NS2. It used two vacuum tubes and was crystal controlled. The radio case curved inward in the middle so that a user seated in an inflatable life boat, could hold it stationary, between the legs and above the knees, while the generator handle was turned. The distress signal, in Morse code, was produced automatically as the crank handle was turned. An NS2 unit was captured by the British in 1941, who produced a copy, the Dinghy Transmitter T-1333. Britain gave a second captured unit to the United States, which produced its own copy, the SCR-578. United States Army Air Forces aircraft carried the SCR-578 on over-water operations. Named the Gibson Girl because of its 'hour-glass' shape, it was supplied with a fold-up metal frame box kite, and, or a balloon with a small Hydrogen generator, for which the flying line was the aerial wire. Power was provided by a hand cranked generator. The transmitter component was the BC-778. The frequency was 500 KHz at 4.8 watts, giving it a range of 200 miles. Keying could be automatic SOS, or manual. Crystals were a scarce item for the U.S. during the war and the SCR-578 was not crystal controlled.

A post-WW II version, the AN/CRT-3, which added a frequency in the 8 MHz range, was in use by ships and civil aircraft until the early 1970s.

VHF era

The use of aircraft for search and rescue in WW II brought line-of-sight VHF radios into use. The much shorter wavelengths of VHF allowed a simple dipole or whip antenna to be effective. Early devices included the British Walter, a compact single vacuum tube oscillator design operating at 177 MHz (1.7 meter wavelength), and the German Jäger (NS-4), a two-tube master oscillator power amplifier design at 58.5 and, later, 42 MHz. [3] These were small enough to include in life rafts used on single-seat fighter aircraft.

Post-war designs included the British Search And Rescue And Homing beacon (SARAH) beacon, the U.S. AN/URC-4 and the Soviet R 855U. These operated on the aircraft emergency frequencies of 121.5 and 243 MHz (2.5 and 1.2 meter wave lengths).

Automated beacon systems

After a light plane went down in Alaska in 1972 with two U.S. congressmen on board and could not be found, the U.S. began requiring all aircraft to carry an Emergency Locator Transmitter (ELT) that would turn on automatically in the event of a crash. Initially these units sent beacon signals on the 121.5 MHz aircraft emergency frequency. These are being phased out in favor of rescue beacons that use a 406.025 MHz signal, which can be picked up by the Cospas-Sarsat international satellite system for search and rescue. Each 406 MHz beacon has a unique digital ID code. Users are required to register the code with the Cospas-Sarsat, allowing inquiries to be made when a distress signal is picked up.

Maritime practice has shifted from rescue radios on 500 kHz distress frequency (which is no longer officially monitored) to the Global Maritime Distress Safety System, which includes use of the Cospas-Sarsat system and other measures, including radar transponders and hand held marine VHF radios.

U.S. Military survival radios

Military organizations still issue pilots and other combat personnel individual survival radios, which have become increasingly sophisticated, with built-in Distance Measuring Equipment (DME), Global Positioning Satellite receivers, and satellite communication. United States military survival radios include:

  • AN/CRC-7, WWII era set, 140.58 MHz [4]
  • AN/URC-4 and AN/PRC-17, 121.5 and 243 MHz [5]
  • AN/URC-11 (243 MHz) and AN/URC-14 (121.5 MHz), "A" versions replaced one audio tube with transistors. [6]
  • AN/URC-10, and its cousin, the RT-10 are subminiaturized, completely transistorized UHF radio sets. They consist of a crystal-controlled receiver-transmitter, a 16-v dry battery, and a power cable assembly. The unit operates on one channel in the 240-260 mc band, usually 243 MHz. RT-60 and RT-60B1 were two frequency versions of the RT-10[7][8]
  • AN/PRC-32, AN/PRC-49, Navy rescue sets, 243 MHz. [9]
  • AN/PRC-63, smallest set built. [10]

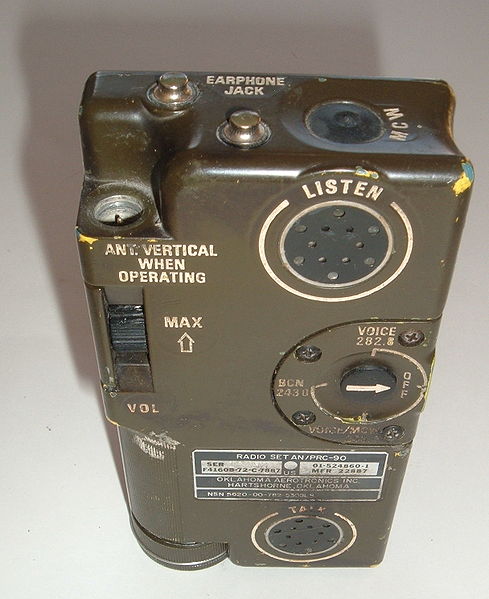

An AN/PRC-90 rescue radio.
An AN/PRC-90 rescue radio.
  • AN/PRC-90, Vietnam War era airman rescue set. AN/PRC-90-1 and AN/PRC-90-2 are improved, repairable versions. Operates on 243 and 282.8 MHz.[11][12]
  • AN/URC-64 (Air Force) and AN/URC-68 (Army) were 4 frequency rescue sets. [13]
  • AN/PRC-112, offers Synthesized radio in the VHF and UHF aircraft bands. A PRC-112 and a hand held GPS were used by Capt. Scott O'Grady when he was rescued after being shot down over Bosnia.[14] The AN/PRC-112B, initially known as the Hook 112, is a PRC-112 modified to include a Global Positioning System (GPS) receiver, allowing encrypted position information to be sent. Also has Cospas-Sarsat beacon. The latest model PRC-112G, built by General Dynamics can communicate with satellites as well.[15] Over 31,000 radios in the PRC-112 family have been produced.[16]
  • AN/PRC-125 (Navy) and AN/PRC-103 (Air Force) were Rescue Swimmer Radios.[17][18]
  • AN/PRC-149 Rescue Radio, replaces the PRC-90, PRC-112 and PRC-125 for non-combat use.[19] Includes GPS and Cospas-Sarsat beacon.[20] Operates on 121.5 MHz, 243.0 MHz, and 282.8 MHz and 406.025 MHz. Built by Tadiran, the PRC-149 uses standard D cell batteries, unlike other units that took special batteries.
  • AN/PRQ-7 Combat Survivor/Evader Locator (CSEL) combines selective availability GPS, UHF line of sight and UHF satellite communications along with a Sarsat beacon. It can send predefined messages digitally along with the user's location.[21] [22] As of 2008, the PYQ-7 cost $7000 each, "batteries not included." A rechargeable lithium-ion battery pack cost $1600, while a non-rechargeable lithium-manganese dioxide unit cost $1520.[23] Boeing had delivered 20,000 PYQ-7s, with 15,000 more on order.[24]
  1. ^ Wireless for the Warrior
