An airship or dirigible is a lighter-than-air aircraft that can be steered and propelled through the air using rudders and propellers or other thrust. Unlike other aerodynamic aircraft such as fixed-wing aircraft and helicopters, which produce lift by moving a wing, or airfoil, through the air, aerostatic aircraft, such as airships and hot air balloons, stay aloft by filling a large cavity, such as a balloon, with a lifting gas. A Zeppelin is a brand name for rigid airships historically built by either the Luftschiff Zeppelin company of Germany or the Goodyear Zeppelin company of the USA, and now of smaller semi-rigid airships built by Zeppelin Luftschifftechnik, also of Germany.

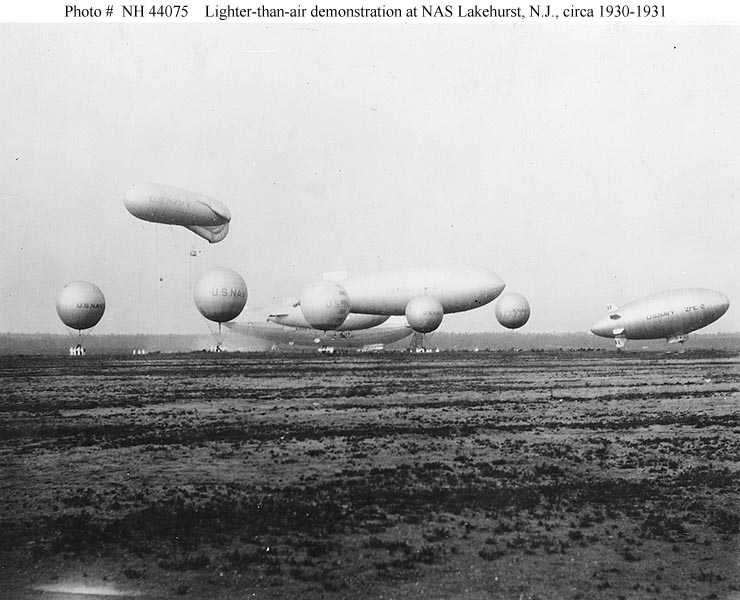

The main types of airship are non-rigid (or blimps), semi-rigid and rigid. Blimps are small airships without internal skeletons. Semi-rigid airships are slightly larger and have some form of internal support such as a fixed keel. Rigid airships with full skeletons, such as the massive Zeppelin transoceanic models, all but disappeared after several high-profile catastrophic accidents during the mid-20th century.
Airships were the first aircraft to make controlled, powered flight, and were widely used before the 1940s, but their use decreased over time as their capabilities were surpassed by those of airplanes. Their decline continued with a series of high-profile accidents, including the 1937 burning of the hydrogen-filled Hindenburg near Lakehurst, New Jersey, and the destruction of the USS Akron. Airships are still used today in certain niche applications, such as advertising, tourism, camera platforms for sporting events, and aerial observation and interdiction platforms, where the ability to hover in one place for an extended period outweighs the need for speed and maneuverability.
In some countries, airships are also known as dirigibles from the French (diriger to direct plus -ible), meaning "directable" or steerable. The first airships were called dirigible balloons. Over time, the word balloon was dropped from the phrase. In modern usage, balloon refers to any buoyant aircraft that generally relies on wind currents for horizontal movement, and usually has a mechanism to control vertical movement.
The term zeppelin is a genericised trademark that originally referred to airships manufactured by the German Zeppelin Company. The word Luftschiff, German for "airship", usually prefixed their crafts' names.
In modern common usage, the terms zeppelin, dirigible and airship are used interchangeably for any type of rigid airship, with the term blimp alone used to describe non-rigid airships. Although the blimp also qualifies as a "dirigible", the term is seldom used with blimps. In modern technical usage, airship is the term used for all aircraft of this type, with zeppelin referring only to aircraft of that manufacture, and blimp referring only to non-rigid airships.
There is often some confusion around the term aerostat with regard to airships. This confusion arises because aerostat has two different meanings. One meaning of aerostat refers to all craft that remain aloft using buoyancy: here, airships are a type of aerostat. The narrower and more technical meaning of aerostat refers only to tethered or moored balloons: here, airships are distinct from aerostats. This airship/aerostat confusion is often exacerbated by the fact that both airships and aerostats have roughly similar shapes and comparable tail fin configurations, although only airships have engines.

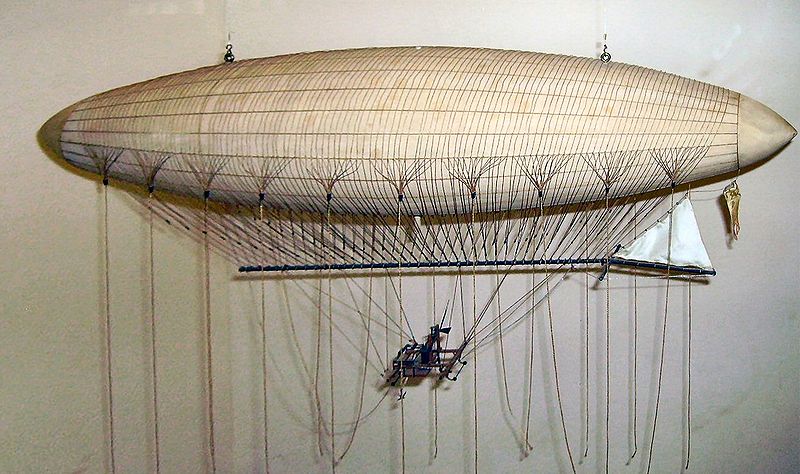

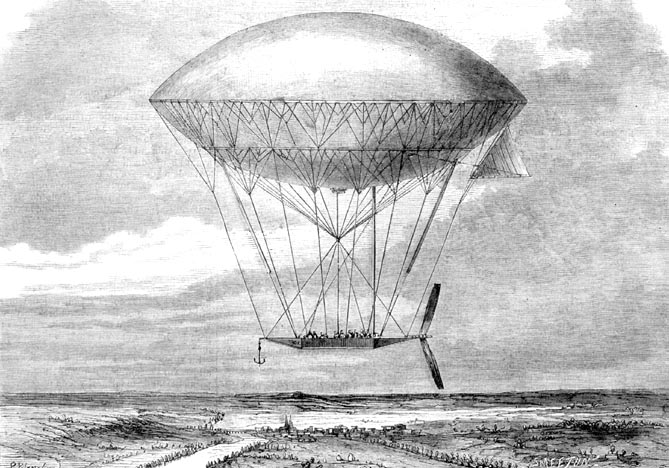

The father of the dirigible was Lieutenant Jean Baptiste Marie Meusnier (1754-93). On 3 December 1783, he presented an historic paper to the French Academy: "Memoire sur l’equilbre des Machines Aerostatique". The 16 water colour drawings published the following year depicted a 260 ft long envelope with internal ballonnets that could be used for regulating lift & this was attached to a long carriage that could be used as a boat if the vehicle was forced to land in water. The airship was designed to be propelled in air by three airscrew propellers and steered with a sail-like aft rudder. In 1784, Jean-Pierre Blanchard fitted a hand-powered propeller to a balloon, the first recorded means of propulsion carried aloft. In 1785, he crossed the English Channel with a balloon equipped with flapping wings for propulsion, and a bird-like tail for steerage.
The 19th century saw continued attempts at adding propulsion to balloons. The first aviation pioneer of Australia was Dr William Bland, a naval surgeon who was sentenced to seven years transportation in a Calcutta court after a duel in Bombay in 1813. In March 1851, Bland sent designs for his 'Atmotic Airship' to the Great Exhibition at the Crystal Palace in London where a model was displayed, this was the year before Henri Giffard flew the first steam-powered dirigible. His idea was to supply power to an elongated balloon with a steam engine installed in a car, Since the lift of the balloon was estimated at 5 tons and the car with the fuel weighed 3.5 tons, the payload was estimated at 1.5 tons. Bland believed that with two airscrews the machine could be driven at 80 kilometres per hour (50 mph) and could fly from Sydney to London in less than a week. The first person to make an engine-powered flight was Henri Giffard who, in 1852, flew 27 km (17 mi) in a steam-powered airship. Airships would develop considerably over the next two decades: In 1863, Dr. Solomon Andrews devised the first fully steerable airship, the Aereon, although it had no motor. In 1872, the French naval architect Dupuy de Lome launched a large limited navigable balloon, which was driven by a large propeller and the power of eight people. It was developed during the Franco-Prussian war, as an improvement to the balloons used for communications between Paris and the countryside during the Siege of Paris by German forces, but was only completed after the end of the war.
Paul Haenlein flew an airship with an internal combustion engine running on the coal gas used to inflate the envelope over Vienna, the first use of such an engine to power an aircraft in 1872. Charles F. Ritchel made a public demonstration flight in 1878 of his hand-powered one-man rigid airship and went on to build and sell five of his aircraft.
In the 1880s a Serb named Ogneslav Kostovic Stepanovic also designed and built an airship. However, the craft was destroyed by fire before it flew. In 1883, the first electric-powered flight was made by Gaston Tissandier who fitted a 1.5 hp (1.1 kW) Siemens electric motor to an airship. The first fully controllable free-flight was made in a French Army airship, La France, by Charles Renard and Arthur Constantin Krebs in 1884. The 170 ft (52 m) long, 66,000 cu ft (1,900 m) airship covered 8 km (5.0 mi) in 23 minutes with the aid of an 8.5 hp (6.3 kW) electric motor, and a 435 kilograms (960 lb) battery. In 1884 and 1885, it made seven flights.
In 1888, the Novelty Air Ship Company made the Air Ship for Professor Peter C. Campbell which was known as the Campbell Air Ship. The air ship was lost at sea in 1889 while being flown by Professor Hogan during an exhibition Flight. Scientific American - July 27, 1889</ref>
In 1888–97, Dr. Frederich Wölfert built three airships powered by Daimler Motor Company-built petrol engines, the last of which caught fire in flight and killed both occupants in 1897. The 1888 version used a 2 hp one cylinder Daimler engine and flew 10 km from Canstatt to Kornwestheim.
In 1896, a rigid airship created by Croatian engineer David Schwarz made its first flight at Tempelhof field in Berlin. After Schwarz’s death, his wife, Melanie Schwarz, was paid 15,000 marks by Count Ferdinand von Zeppelin for information about the airship.
The wealthy Santos-Dumont in France had a passion for flying. Santos-Dumont designed 18 examples of balloons and dirigibles, and created 18 different examples of the latter before turning his attention to fixed winged aircraft in 1907.

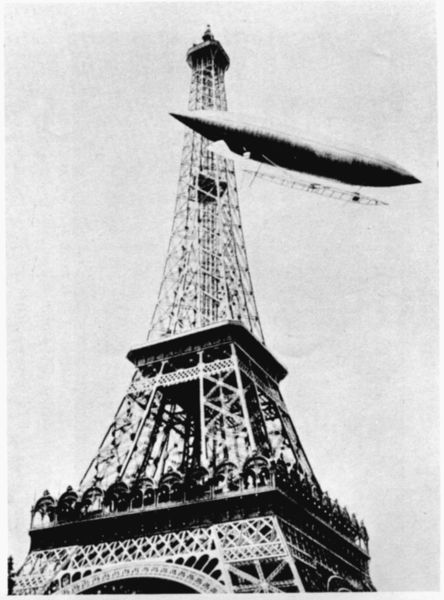

In 1901, Alberto Santos-Dumont, in his airship Number 6, a small blimp, won the Deutsch de la Meurthe prize of 100,000 francs for flying from the Parc Saint Cloud to the Eiffel Tower and back in under thirty minutes. Many inventors were inspired by Santos-Dumont’s small airships and a veritable airship craze began worldwide. Many airship pioneers, such as the American Thomas Scott Baldwin financed their activities through passenger flights and public demonstration flights. Others, such as Walter Wellman and Melvin Vaniman set their sights on loftier goals, attempting two polar flights in 1907 and 1909, and two trans-atlantic flights in 1910 and 1912.
"The Golden Age"
The "Golden Age of Airships" began in July 1900 with the launch of the Luftschiff Zeppelin LZ1. This led to the most successful airships of all time: the Zeppelins. These were named after Count von Zeppelin who began experimenting with rigid airship designs in the 1890s leading to the badly-flawed LZ1 (1900) and the more successful LZ2 (1906). At the beginning of World War I the Zeppelin airships had a framework composed of triangular lattice girders, covered with fabric and containing separate gas cells. Multi-plane, later cruciform, tail fins were used for control and stability, and two engine/crew cars hung beneath the hull driving propellers attached to the sides of the frame by means of long drive shafts. Additionally, there was a passenger compartment (later a bomb bay) located halfway between the two cars. Other airship builders were also active before the war: German firm Schütte-Lanz built the SL series from 1911; another German firm Luft-Fahrzeug-Gesellschaft built the Parseval-Luftschiff (PL) series from 1909, and Italian Enrico Forlanini's firm had built and flown the first two Forlanini airships.
World War I
The prospect of airships as bombers had been recognised in Europe well before the airships were up to the task. H. G. Wells' The War in the Air (1908) described the obliteration of entire fleets and cities by airship attack. On 5 March 1912, Italian forces became the first to use dirigibles for a military purpose during reconnaissance west of Tripoli behind Turkish lines. It was World War I, however, that marked the airship's real debut as a weapon.
Albert Caquot designed an Observation balloon for the French army in 1914. The tethered Type R Observation balloon was used by all the allied forces, including the British and United States Armies, at the end of the World War.
The Germans, French and Italians all operated airships in scouting and tactical bombing roles early in the war, and all learned that the airship was too vulnerable for operations over the front. The decision to end operations in direct support of armies was made by all in 1917.
Count Zeppelin and others in the German military believed they had found the ideal weapon with which to counteract British Naval superiority and strike at Britain itself. More realistic airship advocates believed the Zeppelin was a valuable long range scout/attack craft for naval operations. Raids began by the end of 1914, reached a first peak in 1915, and then were discontinued in August 1918. Zeppelins proved to be terrifying but inaccurate weapons. Navigation, target selection and bomb-aiming proved to be difficult under the best of conditions. The darkness, high altitudes and clouds that were frequently encountered by Zeppelin missions reduced accuracy even further. The physical damage done by the Zeppelins over the course of the war was trivial, and the deaths that they caused (though visible) amounted to a few hundred at most. The Zeppelins were initially immune to attack by aircraft and antiaircraft guns: as the pressure in their envelopes was only just higher than ambient, holes had little effect. But once incendiary bullets were developed and used against them, their flammable hydrogen lifting gas made them vulnerable at lower altitudes. Several were shot down in flames by British defenders, and others crashed en route. They then started flying higher and higher above the range of other aircraft, but this made their bombing accuracy and success even worse.
In retrospect, advocates of the naval scouting role of the airship proved to be correct, and the land bombing campaign proved to be disastrous in terms of morale, men and material. Many pioneers of the German airship service died in what was the first strategic bombing campaign in history.
Countermeasures by the British were sound detection, equipment, search lights and anti-aircraft artillery, followed by night fighters in 1915. One method used early in the war when short range meant the airships had to fly from forward bases, and when only Zeppelin production facilities were in Friedrichshafen, was bombing of airship sheds by the British Royal Naval Air Service. Late in the war, the development of the aircraft carrier led to the first successful carrier air strike in history. The morning of 19 July 1918, seven Sopwith 2F.1 Camels were launched from HMS Furious and struck the airship base at Tondern, destroying the Zeppelins L 54 and L 60.
Before the World War, the British Army was interested in blimps for scouting purposes. The Royal Navy recognizing the potential threat that scouting Zeppelins might pose, decided in 1908 to produce an example of rigid airship so that the threat might be evaluated in practice instead of theory. The Royal Navy was to continue development of rigid airships until the end of the war. The British Army abandoned airship development in favour of aeroplanes by the start of the war, but the Royal Navy had recognised the need for small airships to counteract the submarine and mine threat in coastal waters. Beginning in February 1915, they began to deploy the SS (Sea Scout) class of blimp. These had a small envelope of 1,699-1,982 m³ (60–70,000 ft³) and at first used standard single engined planes (BE2c, Maurice Farman, Armstrong FK) shorn of wing and tail surfaces as control cars, as an economy measure. Eventually more advanced blimps with purpose built cars, such as the C (Coastal), C* (Coastal Star), NS (North Sea), SSP (Sea Scout Pusher), SSZ (Sea Scout Zero), SSE (Sea Scout Experimental) and SST (Sea Scout Twin) classes were developed. The NS class, after initial teething problems, proved to be the largest and finest airships in British service. They had a gas capacity of 360,000 cu ft (10,000 m), a crew of 10 and an endurance of 24 hours. Six 230 lb (100 kg) bombs were carried, as well as three to five machine guns.

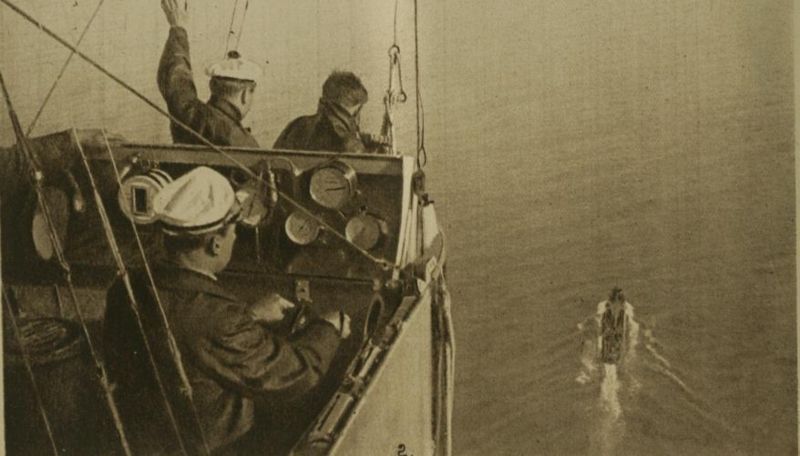

British blimps were used for scouting, mine clearance, and submarine attack duties. During the war, the British operated 226 airships, mostly non-rigid, most of which were of indigenous construction, though some non-rigid airships operated were purchased from France and even Germany (before the war). Of that number several were sold to Russia, France, the US and Italy. Britain, in turn, purchased one M-type semi-rigid from Italy whose delivery was delayed until 1918. Nine rigid airships had been completed by the armistice, although several more were in an advanced state of completion by the war's end. The large number of trained crews, low attrition rate and constant experimentation in handling techniques meant that at the war’s end Britain was the world leader in non-rigid airship technology.
Both France and Italy continued airships throughout the war. France preferred non-rigid types while Italy operated 49 semi-rigid airships in both the scouting and bombing roles.
Airplanes had essentially replaced airships as bombers by the end of the war, and Germany’s remaining zeppelins were scuttled by their crews, scrapped or handed over to the Allied powers as spoils of war. The British rigid airship program, meanwhile, had been largely a reaction to the potential threat of the German one and was largely, though not entirely, based on imitations of the German ships.
A number of nations operated airships between the two world wars. Many operated blimps. Britain, the United States and Germany were the main operators of rigid airships with Italy and France using them to a lesser extent. Italy, the Soviet Union, United States and Japan mainly concentrated on semi-rigid airships.
The British R33 and R34 were near-identical copies of the German L 33, which crashed virtually intact in Yorkshire on 24 September 1916. Despite being almost three years out of date by the time they were launched in 1919, they were two of the most successful in British service. The creation of the Royal Air Force (RAF) in early 1918 created a hybrid British airship program. The RAF was uninterested in airships and the Admiralty was, so a deal was made where the Admiralty would design any future military airships while the RAF would handle manpower, facilities and operations.
After the armistice, the airship program was rapidly wound down, and rigid airship operations were curtailed. On 2 July 1919, R34 began the first double crossing of the Atlantic by an aircraft. It landed at Mineola, Long Island on 6 July after 108 hours in the air. The return crossing commenced on July 8 because of concerns about mooring the ship in the open, and took 75 hours. Impressed, British leaders began to contemplate a fleet of airships to link Britain to its far-flung colonies. But post-war economic conditions led to scrapping most airships and dispersion of trained personnel, until starting construction of the R-100 and R-101 in 1929. The major consequence of Britain’s interest in establishing airship service to the empire was the effort to use the Allies' seizure of German airships and airship sheds to avoid competition from Germany. The US Navy contracted to buy the British built R-38, but before that airship was turned over to the US, it was lost to structural failure due to both improper design and operation.

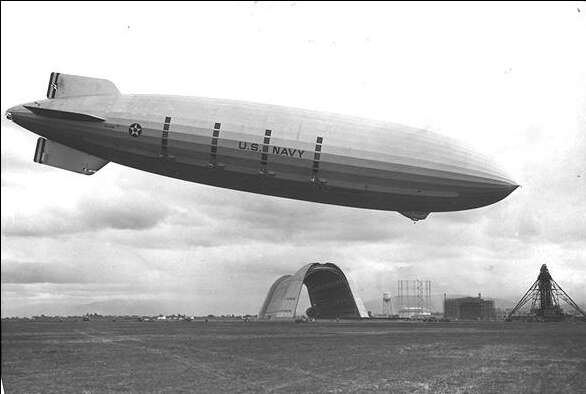

The first American-built rigid airship was USS Shenandoah, christened on 20 August in Lakehurst, New Jersey. It flew in 1923, while the Los Angeles was under construction. It was the first ship to be inflated with the noble gas helium, which was still so rare that the Shenandoah contained most of the world’s reserves. When the Los Angeles was delivered, the two airships had to share the limited supply of Helium, and thus alternated operating and overhauls.

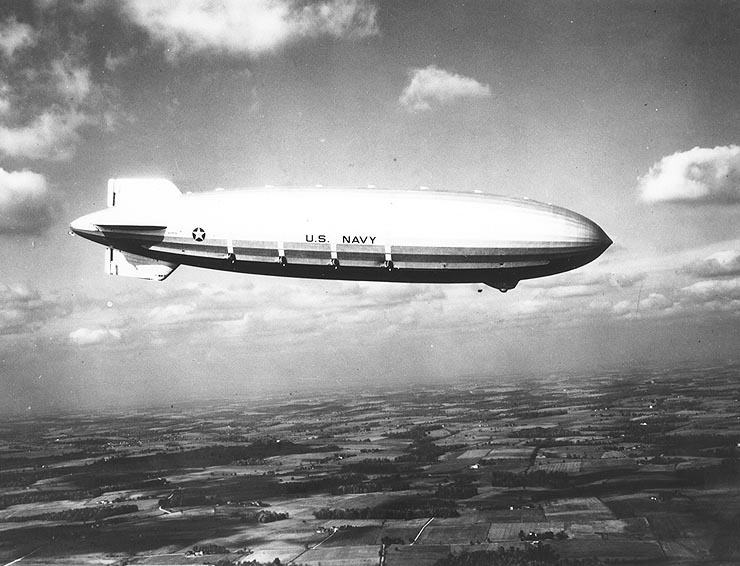

The United States Navy purchased what became the USS Los Angeles and paid with "war reparations" money, owed according to the Versailles Treaty, thus saving The Zeppelin works. The success of the Los Angeles encouraged the US Navy to invest in its own, larger airships. The Los Angeles flew successfully for 8 years.

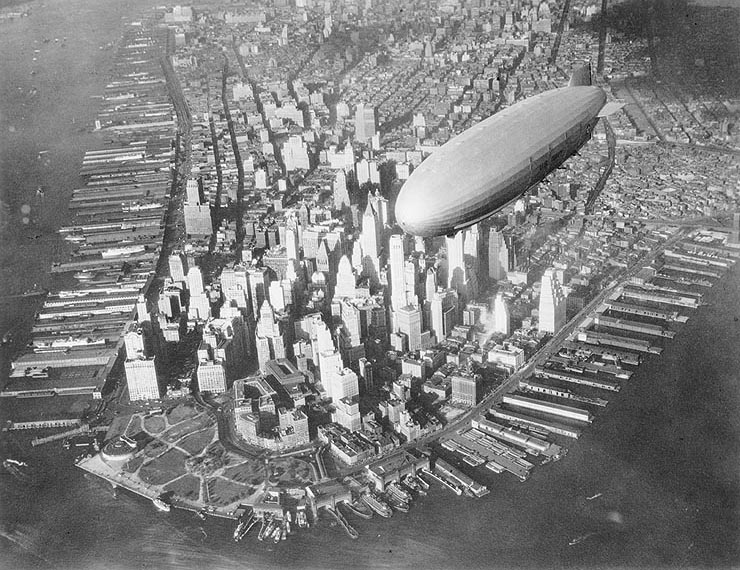

Meanwhile Germany was building the Graf Zeppelin (LZ 127), the largest airship that could be built in the company’s existing shed, and intended to stimulate interest in passenger airships. The Graf Zeppelin burned blau gas, similar to propane, stored in large gas bags below the hydrogen cells, as fuel. Since its density was similar to that of air, it avoided the weight change when fuel was used, and thus the need to valve hydrogen. The “Graf” was a great success and compiled an impressive safety record, flying over 1,600,000 km (990,000 mi) (including the first circumnavigation of the globe by air) without a single passenger injury.

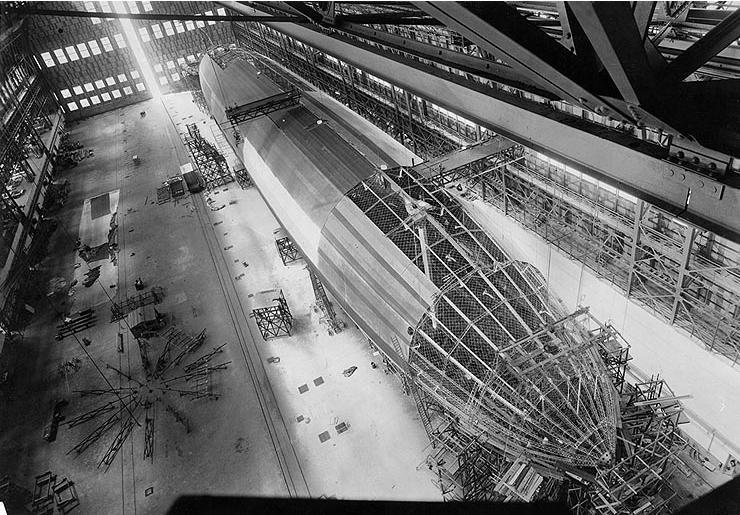

The US Navy developed the idea of using airships as airborne aircraft carriers. There were two airships, the world’s largest at the time, to test the principle—the USS Akron and Macon. Each carried four F9C Sparrowhawk fighters in its hangar, and could carry a fifth on the trapeze. The idea had mixed results. By the time the Navy started to develop a sound doctrine for using the ZRS-type airships, the last of the two built, USS Macon, was lost. The seaplane had become more mature, and was considered a better investment.

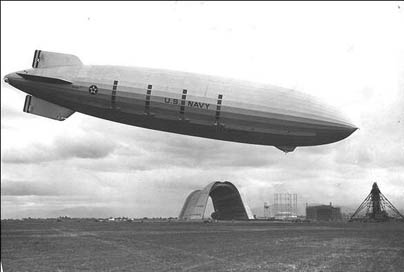

Eventually the US Navy lost all three American-built rigid airships to accidents. USS Shenandoah on a poorly planned publicity flight flew into a severe thunderstorm over Noble County, Ohio on 3 September 1925. It broke into pieces, killing 14 of its crew. USS Akron was caught in a severe storm and flown into the surface of the sea off the shore of New Jersey on 3 April 1933. It carried no life boats and few life vests, so 73 of its crew of 76 died from drowning or hypothermia. USS Macon was lost after suffering a structural failure off the shore of Point Sur, California on 12 February 1935. The failure caused a loss of gas, which was made much worse when the aircraft was driven over pressure height causing it to lose too much helium to maintain flight. Only 2 of its crew of 83 died in the crash thanks to the inclusion of life jackets and inflatable rafts after the Akron disaster.
Britain's Burney Scheme and decline in airships
In Britain during the 1920s, Sir Denistoun Burney suggested a plan for air service throughout the Empire by airships (the Burney Scheme). Following the election of Ramsay MacDonald, the Burney scheme was transformed into a government-controlled program which contracted for two airships, one to be developed by the Airship Guarantee Company, the other by the Royal Airship Works. The two designs were radically different. The "capitalist" ship, the R100, was conservative, while the "socialist" ship, the R101, was wildly innovative. Construction was delayed, and the airships did not fly until 1929. Neither airship was capable of the service intended, though the R100 did complete a proving flight to Canada and back in 1930.
In October 1930 there were rushed preparations to fly the R101, which had not been adequately tested and had serious deficiencies, on a flight to India carrying the Air Minister of the MacDonald government, Christopher Birdwell, Lord Thompson for an important Imperial conference. An air worthiness certificate was issued at the last moment. The R101 left on the flight on 5 October but hours later crashed in France killing 48 of the 54 people aboard. Because of the bad publicity surrounding the crash, the Air Ministry grounded the competing R100 in 1930 and sold it for scrap in 1931, ending the era of British rigid airships.
By the mid-1930s only Germany still pursued the airship. The Zeppelin company continued to operate the Graf Zeppelin on passenger service between Germany and Brazil. Even with the small Graf Zeppelin, the operation was almost profitable. In the mid-1930s work started to build an airship designed specifically to operate a passenger service across the Atlantic. The Hindenburg (LZ 129) completed a very successful 1936 season carrying passengers between Lakehurst, New Jersey and Germany. But 1937 started with the most spectacular and widely remembered airship accident. Approaching the mooring mast minutes before landing on 6 May 1937, the Hindenburg burst into flames and crashed. Of the 97 people aboard, 36 died: 13 passengers, 22 aircrew, and one American ground-crewman. The disaster happened before a large crowd, was filmed and a radio news reporter was cutting a recording of his coverage of the arrival. This was a disaster which theater goers could see and hear the next day. On that same next day, the Graf Zeppelin landed at the end of its flight from Brazil, ending intercontinental passenger airship travel.
Hindenburg's sister ship, the Graf Zeppelin II (LZ 130), could not fly without helium which the United States refused to sell. The Graf Zeppelin flew some test flights and conducted electronic espionage until 1939 when it was grounded due to the start of the war. The last two Zeppelins were scrapped in 1940.
Development of airships continued only in the United States, and in a small way, the Soviet Union.
World War II
While Germany determined that airships were obsolete for military purposes in the coming war and concentrated on the development of airplanes, the United States pursued a program of military airship construction even though it had not developed a clear military doctrine for airship use. At the Japanese attack on Pearl Harbor on 7 December 1941 that brought the United States into World War II, it had 10 non-rigid airships:

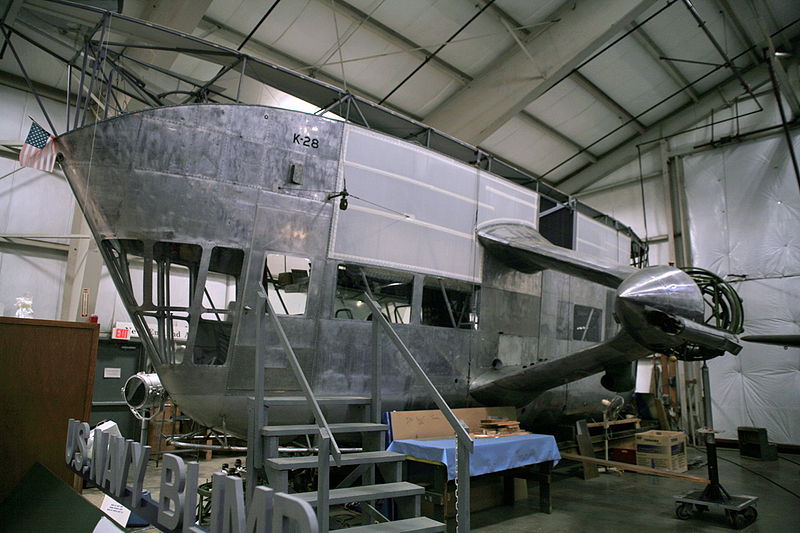

Only K- and TC-class airships were suitable for combat and they were quickly pressed into service against Japanese and German submarines which were then sinking US shipping within visual range of the US coast. US Navy command, remembering the airship anti-submarine success from World War I, immediately requested new modern anti-submarine airships and on 2 January 1942 formed the ZP-12 patrol unit based in Lakehurst from the four K airships. The ZP-32 patrol unit was formed from two TC and two L airships a month later, based at NAS Moffett Field in Sunnyvale, California. An airship training base was created there as well. In December 1941 and the first months of 1942, the Goodyear blimp Resolute was operated as an anti-submarine privateer based out of Los Angeles. As the only US craft to operate under a Letter of Marque since the War of 1812, the Resolute, armed with a rifle and flown by its civilian crew, patrolled the seas for submarines.
In the years 1942–44, approximately 1,400 airship pilots and 3,000 support crew members were trained in the military airship crew training program and the airship military personnel grew from 430 to 12,400. The US airships were produced by the Goodyear factory in Akron, Ohio. From 1942 till 1945, 154 airships were built for the US Navy (133 K-class, 10 L-class, seven G-class, four M-class) and five L-class for civilian customers (serial numbers L-4 to L-8).

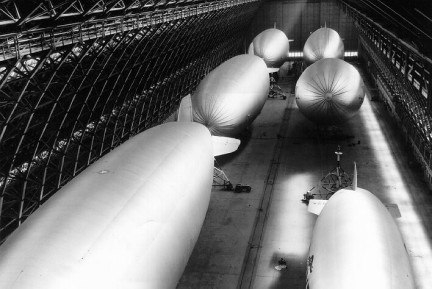

The primary airship tasks were patrol and convoy escort near the US coastline. They also served as an organisation center for the convoys to direct ship movements, and were used in naval search and rescue operations. Rarer duties of the airships included aerophoto reconnaissance, naval mine-laying and mine-sweeping, parachute unit transport and deployment, cargo and personnel transportation. They were deemed quite successful in their duties with the highest combat readiness factor in the entire US air force (87%).
During the war some 532 ships without airship escort were sunk near the US coast by enemy submarines. Only one ship, the tanker Persephone, of the 89,000 or so in convoys escorted by blimps was sunk by the enemy. Airships engaged submarines with depth charges and, less frequently, with other on-board weapons. They were excellent at driving submarines down, where their limited speed and range prevented them from attacking convoys. The weapons available to airships were so limited that until the advent of the homing torpedo they had little chance of sinking a submarine.
Only one airship was ever destroyed by U-boat: on the night of 18/19 July 1943, a K-class airship (K-74) from ZP-21 division was patrolling the coastline near Florida. Using radar, the airship located a surfaced German submarine. The K-74 made her attack run but the U-boat opened fire first. K-74's depth charges did not release as she crossed the U-boat and the K-74 received serious damage, losing gas pressure and an engine but landing in the water without loss of life. The crew was rescued by patrol boats in the morning, but one crewman, Aviation Machinist's Mate Second Class Isadore Stessel, died from a shark attack. The U-Boat, submarine U-134, was slightly damaged and the next day or so was attacked by aircraft sustaining damage that forced it to return to base. It was finally sunk on 24 August 1943 by a British Vickers Wellington near Vigo, Spain
Some US airships saw action in the European war theatre. The ZP-14 unit operating in the Mediterranean area from June 1944 completely denied the use of the Gibraltar Straits to Axis submarines. Airships from the ZP-12 unit took part in the sinking of the last U-Boat before German capitulation, sinking U-881 on 6 May 1945 together with destroyers Atherton and Mobery.
Other airships patrolled the Caribbean, Fleet Airship Wing Two, Headquartered at NAS Richmond, Florida, covered the Gulf of Mexico from Richmond and Key West, FL, Houma, Louisiana, as well as Hitchcock and Brownsville, Texas. FAW 2 also patrolled the northern Caribbean from San Julian, the Isle of Pines and Guantanamo Bay, Cuba as well as Vernam Field Jamaica.
Navy blimps of Fleet Airship Wing Five, (ZP-51) operated from bases in Trinidad, British Guiana and Parmaribo, Dutch Guiana. Fleet Airship Wing Four operated along the coast of Brazil. Two squadrons, VP-41 and VP-42 flew from bases at Amapá, Igarape Assu, Sao Luiz, Fortaleza, Fernando de Noronha, Recife, Maceió, Ipitanga (near Salvador, Bahia), Caravellas, Vitoria and the hangar built for the Graf Zeppelin at Santa Cruz, Rio de Janeiro.
Fleet Airship Wing Three operated squadrons, ZP-32 from Moffett Field, ZP-31 at NAS Santa Ana, and ZP-33 at NAS Tillamook, Oregon. Auxiliary fields were at Del Mar, Lompoc, Watsonville and Eureka, CA, North Bend and Astoria, Oregon, as well as Shelton and Quillayute in Washington.
From 2 January 1942 till the end of war airship operations in the Atlantic, the airships of the Atlantic fleet made 37,554 flights and flew 378,237 hours. Of the over 70,000 ships in convoys protected by blimps, only one was sunk by a submarine while under blimp escort.
The Soviet Union used a single airship during the war. The W-12, built in 1939, entered service in 1942 for paratrooper training and equipment transport. It made 1432 runs with 300 metric tons of cargo until 1945. On 1 February 1945, the Soviets constructed a second airship, a Pobieda-class (Victory-class) unit (used for mine-sweeping and wreckage clearing in the Black Sea) which crashed on 21 January 1947. Another W-class - W-12bis Patriot - was commissioned in 1947 and was mostly used for crew training, parades and propaganda.
The world’s largest thermal airship (300,000 cubic feet) was constructed by the Per Lindstrand company for French botanists in 1993. The AS-300 carried an underslung raft, which was positioned by the airship on top of tree canopies in the rain forest, allowing the botanists to carry out their treetop research without significant damage to the rainforest. When research was finished at a given location, the airship returned to pick up and relocate the raft.
In the spring of 2004, Lindstrand Technologies supplied the world’s first fully-functional unmanned airship to the Ministry of Defense in Spain. This airship carried a 42 kilograms (93 lb) classified payload and its surveillance mission was also classified. Four years later, this airship, which is designated GA-22, still flies on an almost daily basis.
In June 1987, the US Navy awarded a US$168.9 million contract to Westinghouse Electric and Airship Industries of the UK to demonstrate whether a blimp could be used as an airborne platform to detect the threat of sea-skimming missiles, such as the Exocet.
The CA-80 airship, which was launched in 2000 by Shanghai Vantage Airship Manufacture Co., Ltd., had a successful trial flight in September 2001. This model of airship was designed for the purpose of advertisement and propagation, air-photo, scientific test, tour and surveillance duties. It was certified as a grade 'A' Hi-Tech introduction program (No.20000186) in Shanghai, China. The CAAC authority granted a type design approval and certificate of airworthiness for the model CA-80 airship, which has been published in the Jane's All the World's Aircraft for five times (2003–2008).

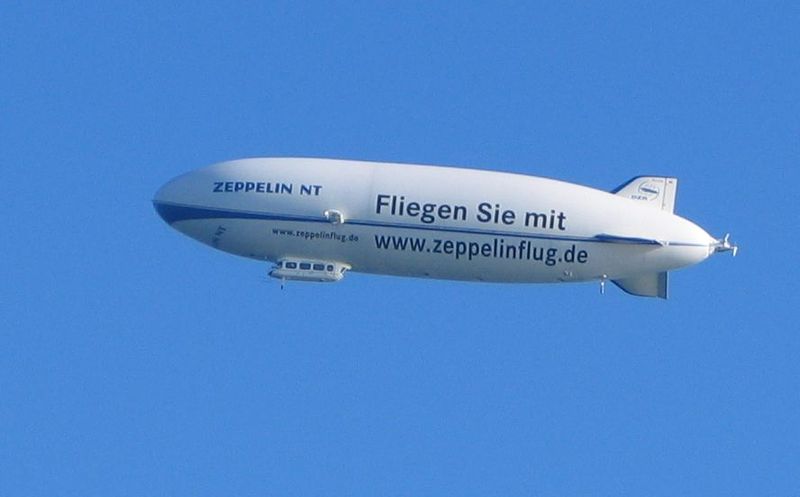

In recent years, the Zeppelin company has reentered the airship business. Their new model, designated the Zeppelin NT made its maiden flight on September 18, 1997. There are currently four NT aircraft flying, a fifth completed in March 2009 and an expanded NT-14 (14,000 cubic meters of helium, capable of carrying 19 passengers) also under construction. One was sold to a Japanese company, and was planned to be flown to Japan in the summer of 2004. But due to delays getting permission from the Russian government, the company decided to transport the airship to Japan by ship. One of the four NT craft is in South Africa carrying diamond detection equipment from De Beers, an application at which the very stable low vibration NT platform excels. Some adaptations to the design for high heat operation and desert climate were part of that project. A separate mooring mast and a very heavy truck to moor the vehicle is also part of the technology.

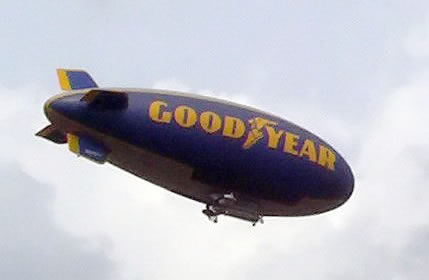

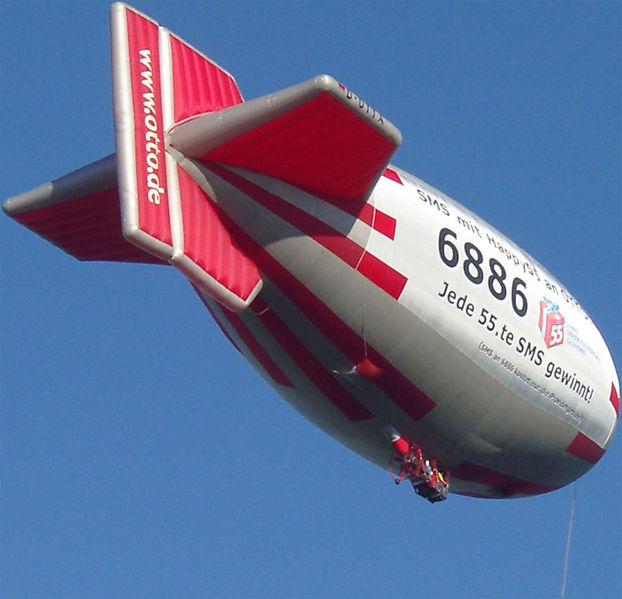

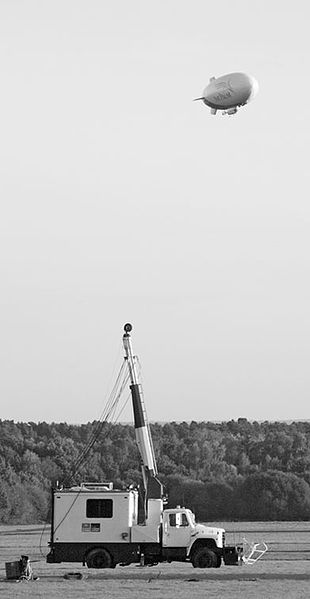

Blimps are used for advertising and as TV camera platforms at major sporting events. The most iconic of these are the Goodyear blimps. Goodyear operates three blimps in the United States, and the Lightship group operates up to 19 advertising blimps around the world. Airship Management Services owns and operates three Skyship 600 blimps. Two operate as advertising and security ships in the North America and the Caribbean.
The Switzerland-based Skyship 600 has also played other roles over the years. For example, it was flown over Athens during the 2004 Summer Olympics as a security measure. In November 2006, it carried advertising calling it "The Spirit of Dubai" as it began a publicity tour from London to Dubai, UAE on behalf of The Palm Islands, the world's largest man-made islands created as a residential complex.
In May 2006, the US Navy began to fly airships again after a hiatus of nearly 44 years. The program uses a single American Blimp Company A-170 non-rigid airship, with designation MZ-3A. Operations focus on crew training and research, and the platform integrator is Northrop Grumman. The program is directed by the Naval Air Systems Command and is being carried out at NAES Lakehurst, the original center of US Navy lighter-than-air operations in previous decades.
In November 2006, the US Army bought an A380+ airship from American Blimp Corporation through a Systems level contract with Northrop Grumman and Booz Allen Hamilton. The airship will start flight tests in late 2007 with a primary goal of carrying 2,500 lb (1,100 kg) of payload to an altitude of 15,000 ft (4,600 m) under remote control and autonomous waypoint navigation. The program will also demonstrate carrying 1,000 lb (450 kg) of payload to 20,000 ft (6,100 m) The platform could be used for Multi-Intelligence collections. Northrop Grumman (formerly Westinghouse) has responsibility for the overall program.
In 2008, the CA-150 airship launched by Vantage Airship, this is an improved modification of model CA-120 and completed manufacturing in 2008. With larger volume and increased passenger capacity, it is the largest Manned Non-rigid Airship in China at present.
Several companies, such as Cameron Balloons in Bristol, United Kingdom, build hot-air airships. These combine the structures of both hot-air balloons and small airships. The envelope is the normal 'cigar' shape, complete with tail fins, but is inflated with hot air (as in a balloon) to provide the lifting force, instead of helium. A small gondola, carrying the pilot and passengers, a small engine, and the burners to provide the hot air are suspended below the envelope, below an opening through which the burners protrude.
Hot-air airships typically cost less to buy and maintain than modern helium-based blimps, and can be quickly deflated after flights. This makes them easy to carry in trailers or trucks and inexpensive to store. They are usually very slow moving, with a typical top speed of 15–20 mph (24–32 km/h, 6.7–8.9 m/s). They are mainly used for advertising, but at least one has been used in rainforests for wildlife observation, as they can be easily transported to remote areas.
Remote controlled (RC) airships, a type of Unmanned Aerial System (UAS), are sometimes used for commercial purposes such as advertising and aerial video and photography as well as recreational purposes. They are particularly common as an advertising mechanism at indoor stadiums. While RC airships are sometimes flown outdoors, doing so for commercial purposes is illegal in the US. In particular, Docket FAA-2006-25714 states that: “The FAA recognizes that people and companies other than modelers might be flying UAS with the mistaken understanding that they are legally operating under the authority of AC 91-57. AC 91-57 only applies to modelers, and thus specifically excludes its use by persons or companies for business purposes.”
Economically, it was surprising that even in the 1930s, Zeppelins could compete with other means of transatlantic transport. Their advantage was the ability to carry significantly more passengers than other contemporary aircraft, while providing conveniences like the luxury of ship voyages. Less importantly, the technology was potentially more energy-efficient than heavier-than-air designs. On the other hand, operating the giants was quite involved, especially in terms of personnel. Often the crew would outnumber passengers on board, and on the ground large teams were necessary to assist starting and landing. Also, to accommodate Zeppelins like Hindenburg (which was more than five times as long as the height of the Statue of Liberty without the pedestal), very large hangars were required at airports.
Today, with large, fast, and more cost-efficient fixed-wing aircraft, it is unknown whether huge airships can operate profitably in regular passenger transport though, as energy costs rise, attention is once again returning to these lighter than air vessels as a viable alternative. At the very least, the idea of comparatively slow, "majestic" cruising at relatively low altitudes and in comfortable atmosphere certainly has retained some appeal. There have been some niches for airships in and after World War II, such as long-duration observations, antisubmarine patrol, platforms for TV camera crews, and advertising; these, however, generally require only small and flexible craft, and have thus generally been better fitted for cheaper blimps.
It has periodically been suggested Zeppelins could be employed for cargo transport, especially delivering extremely heavy loads to areas with poor infrastructure over great distances. This has also been called Roadless trucking. Also, airships could be used for heavy lifting over short distances (eg on construction sites, ...); this is described as heavy-lift, short-haul. In both cases, the airships are Heavy haulers. One recent enterprise of this sort was the Cargolifter project, in which a hybrid (thus not entirely Zeppelin-type) airship even larger than Hindenburg was projected. Around 2000, this idea was realized, when the CargoLifter AG constructed the world's largest cantilever shop hall measuring 360 m (1,200 ft) long, 210 m (690 ft) wide and 107 m (350 ft) high about 60 km (37 mi) south of Berlin. In May 2002, the project was stopped for financial reasons; the company had to file bankruptcy. Although no rigid airships are currently used for heavy lifting, hybrid airships are being developed for such purposes. John McPhee's The Deltoid Pumpkin Seed is the story of one company attempting this.
A small company in Germany is currently examining the possibility of building a cruise airship, for now known as the Zeppelin ET (for Euro Tour); it will be able to carry passengers on week-long cruises at comfort levels and prices comparable to those of luxury sea cruises of similar duration. However, although this airship bears the name "Zeppelin", it is not a rigid but a semi-rigid airship (even though "zeppelin" has come to be almost a synonym for rigid airship). The project is still in its early stages and nothing practical has resulted as of 2004.
In the 1990s, the successor of the original Zeppelin company in Friedrichshafen, the Zeppelin Luftschifftechnik GmbH, reengaged in airship construction. The first experimental craft (later christened Friedrichshafen) of the type Zeppelin NT flew in September 1997. Though larger than common blimps, the Neue Technologie (new technology) Zeppelins are much smaller than their giant ancestors and not actually Zeppelin-types in the classical sense; they are sophisticated semi-rigids. Apart from the greater payload, their main advantages compared to blimps are higher speed and excellent maneuverability. Meanwhile, several Zeppelin NT have been produced and operated profitably in joyrides, research flights and similar applications.
In June 2004, a Zeppelin NT was sold for the first time to a Japanese company, Nippon Airship Corporation, for tourism and advertising mainly around Tokyo. It was also given a role at the 2005 Expo in Aichi. The aircraft began a flight from Friedrichshafen to Japan, stopping at Geneva, Paris, Rotterdam, Munich, Berlin, Stockholm and other European cities to carry passengers on short legs of the flight. However, Russian authorities denied overflight permission so the airship had to be dismantled and shipped to Japan rather than following the historic Graf Zeppelin flight from Germany to Japan.
Use in exploration
In November 2005, De Beers, the diamond mining company, launched an airship exploration program over the remote Kalahari desert. A Zeppelin, loaded with high-tech equipment, is used to find potential diamond mines by scanning the local geography for low-density rock formations - so-called kimberlite pipes. On 21 September 2007, the airship was severely damaged by a whirlwind while in Botswana. One crew member, who was on watch aboard the moored craft, was slightly injured but released after overnight observation in hospital.
Prototypes and experimental models
Hybrid designs such as the Heli-Stat airship/helicopter, the Aereon aerostatic/aerodynamic craft, and the Cyclocrane (a hybrid aerostatic/rotorcraft), have struggled to take flight. The Cyclocrane was also interesting in that the airship’s envelope rotated along its longitudinal axis.
CL 160 was a very large semi-rigid airship to be built by the start-up Cargolifter, but funding ran out in 2002 after a massive hangar was built. The hangar, built just outside Berlin, has since been converted into a resort called Tropical Islands.
In 2005, a short-lived project of the US Defense Advanced Research Projects Agency (DARPA) was WALRUS HULA which explored the potential for using airships as long-distance, heavy lift craft. The primary goal of the research program was to determine the feasibility of building an airship capable of carrying 500 short tons (450 t) of payload a distance of 12,000 mi (19,000 km) and land on an unimproved location without the use of external ballast or ground equipment (such as masts). In 2005, two contractors, Lockheed Martin and US Aeros Airships were each awarded approximately $3 million to do feasibility studies of designs for WALRUS. In late March 2006, DARPA announced the termination of work on WALRUS after completion of the current Phase I contracts.
The US government is funding two major projects in the high altitude arena. The Composite Hull High Altitude Powered Platform (CHHAPP) is sponsored by US Army Space and Missile Defense Command. This aircraft is also sometimes called HiSentinel High-Altitude Airship. This prototype ship made a five-hour test flight in September 2005. The second project, the high-altitude airship (HAA), is sponsored by DARPA. In 2005, DARPA awarded a contract for nearly $150 million to Lockheed Martin for prototype development. First flight of the HAA is planned for 2008.
Many companies are working on high-altitude airships.
In 1999 Lindstrand Technologies, in partnership with Daimler Chrysler Aerospace of Germany, was awarded a design contract by the European Space Agency (ESA) to develop a High Altitude Long Endurance airship for possible use in the telecommunications market. As a result of this, Per Lindstrand was awarded the German-based Körber Prize for engineering excellence. These stratospheric long endurance platforms inhabit the calm upper atmosphere at usually 70,000 ft where airspace is uncontrolled, in a geo-synchronous position and remain in the same place by motoring into the prevailing wind. About 200 and 300 ft long, they are intended to stay up for a period of three to five years without maintenance. Applications include cellular phone (S-UMTS) base station, passenger information system, digital broadcast, remote monitoring, metropolitan area network and emergency response network.
Techsphere is developing a high-altitude version of their spherically-shaped airships. JP Aerospace has discussed its long-range plans that include not only high altitude communications and sensor applications but also an "orbital airship" capable of lifting cargo into low Earth orbit with a marginal transportation cost of $1 per short ton per mile of altitude (0.70 US$/t·km).
On January 31, 2006 LockheedMartin made the first flight of their secretly built hybrid airship designated the P-791. The design is very similar to the SkyCat, unsuccessfully promoted for many years by the now financially troubled British company Advanced Technology Group. Although Lockheed Martin is developing a design for the DARPA WALRUS HULA project, it claimed that the P-791 is unrelated to WALRUS. Nonetheless, the design represents an approach that may well be applicable to WALRUS. Some believe that Lockheed Martin had used the secret P-791 program as a way to get a "head start" on the other WALRUS competitor, US Aeros Airships.
The research and development company for airship technologies, 21st century Airships Inc., has developed a spherical-shaped airship, and airships for high altitude, environmental research, surveillance and military applications, heavy lift and sightseeing. Its airships have set numerous world records.
In Russia, AUGUR-RosAerosystems Group is manufacturing non-rigid multi-functional airships for up to ten passengers, as well as patrol airships including the Au-12 and Au-30. They are also working on developmental programs for heavy-lift cargo models and high-altitude stratospheric ships.
Airships in Planetary Exploration
Several proposals have been made for the use of airships in the robotic exploration of those planets (and one moon, Titan) which have atmosphere thick enough to provide buoyancy. Some of these applications are discussed under Aerobots.
Proposed designs and applications
The proposed Aeroscraft is Aeros Corporation’s continuation of the now canceled WALRUS project. The Aeroscraft is not an airship or hybrid airship; it is a new type of buoyancy assisted air vehicle. Unlike any other aircraft the Aeroscraft generates lift through a combination of aerodynamics, thrust vectoring and gas buoyancy generation and management, and for much of the time will fly heavier than air.
There is a case for the airship or zeppelin as a medium to long distance air 'cruise ship' using helium as a lifting agent. Airship passengers could have spacious decks inside the hull to give ample room for sitting, sleeping and recreation. There would be ample room for restaurants and similar facilities. The potential exists for a market in more leisurely journeys, such as cruises over scenic terrain.
Practical comparison with heavier-than-air aircraft
The advantage of airships over airplanes is that static lift sufficient for flight is generated by the lifting gas and requires no engine power. This was an immense advantage before the middle of World War I and remained an advantage for long distance, or long duration operations until World War II. Modern concepts for high altitude airships include photovoltaic cells to reduce the need to land to refuel, thus they can remain in the air until consumables expire.
The disadvantages are that an airship has a very large reference area and comparatively large drag coefficient, thus a larger drag force compared to that of airplanes and even helicopters. Given the large flat plate area and wetted surface of an airship, a practical limit is reached around 80–100 miles per hour (130–160 km/h). Thus airships are used where speed is not critical.
The altitude an airship can fly at largely depends on how much lifting gas it can lose due to expansion before stasis is reached. The ultimate altitude record for a rigid airship was set in 1917 by the L-55 under the command of Hans-Kurt Flemming when he forced the airship to 24,000 ft (7,300 m) attempting to cross France after the "Silent Raid" on London. The L-55 lost lift as the descent to lower altitudes over Germany compressed the gas left in the cells, and thus the weight of air displaced. L-55 crashed due to loss of lift. While such waste of gas was necessary for the survival of airships in the later years of WW I, it was impractical for commercial operations, or operations of helium-filled military airships. The highest flight made by a hydrogen filled passenger airship was 5,500 ft (1,700 m) on the Graf Zeppelin’s around the world flight. The practical limit for rigid airships was about 3,000 feet (900 m), and for pressure airships around 8,000 ft (2,400 m).
Modern airships use dynamic helium volume. At sea level altitude, helium only takes up a small part of the hull, while the rest is filled with air. As the airship ascends, the helium inflates with reduced outer pressure, and air is pushed out and released from the downward valve. This allows an airship to reach any altitude with balanced inner and outer pressure if the buoyancy is enough. Some civil aerostats could reach 100,000 ft (30,000 m) without explosion due to overloaded inner pressure.
The greatest disadvantage of the airship is size, which is essential to increasing performance. As size increases, the problems of ground handling increase geometrically. As the German Navy transitioned from the "p" class Zeppelins of 1915 with a volume of over 1,100,000 cu ft (31,000 m) to the larger "q" class of 1916, the "r" class of 1917, and finally the "w" class of 1918, at almost 2,200,000 cu ft (62,000 m) ground handling problems reduced the number of days the Zeppelins were able to make patrol flights. This availability declined from 34% in 1915, to 24.3% in 1916 and finally 17.5% in 1918.
So long as the power-to-weight ratios of aircraft engines remained low and specific fuel consumption high, the airship had an edge for long range or duration operations. As those figures changed, the balance shifted rapidly in the airplane’s favor. By mid-1917 the airship could no longer survive in a combat situation where the threat was airplanes. By the late 1930s, the airship barely had an advantage over the airplane on intercontinental over-water flights, and that advantage had vanished by the end of WW II.
This is in face-to-face tactical situation, current High Altitude Airship project is planned to survey hundreds of kilometers as their operation radius, often much farther than normal engage range of a military airplane. This provides better early warning, even farther than the Aegis system. The current Aegis system is often based on a sea vessel like Ticonderoga Class and Burke Class, which have restricted radio horizon and line of sight. For example, a radar mounted on a vessel platform 30 m (100 ft) high has radio horizon at 20 km (12 mi) range, while a radar at 18,000 m (59,000 ft) altitudehas radio horizon at 480 km (300 mi) range. This is significantly important for detecting low-flying cruise missiles or fighter-bombers.
The blimp remained a viable military system only until the conventional submarine was replaced by the nuclear submarine. Today, airships are used primarily for command, control and as a communication platform; to establish and maintain reliable and secure connectivity among all forces, provide transparent data across the echelons; precisely locate friendly and enemy forces; detect targets on an extended battlefield at a minimal exposure to enemy forces; real time targeting; navigation assistance; battle management; monitor radio conversations, etc.
The most commonly used lift gas, helium, is not merely inert but acts as a fire extinguisher, since it is non-flammable. Furthermore, one of the main factors of the Hindenburg's destruction lay beyond its hydrogen contents: the materials that made up its skin were flammable. Modern designs can use much less flammable materials. Modern airships have a natural buoyancy and special design that offers a virtually zero catastrophic failure mode. While on long-haul flights weather patterns would be flown to avoid bad weather, the hull’s mass largely dampens the effect of turbulence – just as a large tanker rides through rough seas. An airship is usually a poor lightning target, as it is constructed mainly from composite materials. If it is struck, built-in protection devices minimise the risk to the vehicle and its cargo.
A series of structural vulnerability tests were done by the UK Defence Evaluation and Research Agency DERA on a Skyship 600, an earlier airship built by the Munk team to a similar pressure-stabilised design. Several hundred high-velocity bullets were fired through the hull, and even two hours later the vehicle would have been able to return to base. The airship is virtually impervious to automatic rifle and mortar fire: ordnance passes through the envelope without causing critical helium loss. In all instances of light armament fire evaluated under both test and live conditions, the vehicle was able to complete its mission and return to base. The internal hull pressure is maintained at only 1–2% above surrounding air pressure, the vehicle is highly tolerant to physical damage or to attack by small arms fire or missiles.
Airships are widely used in fictional works; for example, the modern usage of zeppelins suggests a steampunk society that did not abandon them in favor of jet aircraft, while other types of airships may be actual sailing ships which use magic rather than gas to provide lift.
In video games and RPGs, airships may not be gas-filled zeppelins or dirigibles, but instead literal flying ships. Airships in games are notable because they featured as central plot-based craft in several seminal video games at the point when a mass consumer home-gaming market was forming, such as Super Mario Bros. 3, Final Fantasy, Crimson Skies, and Myst. They are also featured in anime, where they appeared earlier, such as in Laputa: Castle in the Sky.
They are sometimes kept aloft by helicopter-like rotors mounted on masts, but more frequently not even such a slender concession to the real laws of aerodynamics is made. Their main purpose is usually to allow the player to travel across the world, or world map, relatively unimpeded by random encounters with monsters. However, in games such as Skies of Arcadia, they may play a larger role in the storyline, or function as levels unto themselves.
