Friedrichshafen Airport

Friedrichshafen Airport

Lake Bodensee Constance borders on Germany, Switzerland and Austria.
Friedrichshafen is the southernmost airport in Germany, and due to its central position, Austria can be reached by road in about half an hour, Switzerland and Principality of Liechtenstein within one hour.

The Airport Friedrichshafen is usually open from 5 am to 11 pm.

ICAO Code EDNY
IATA Code FDH
Name FRIEDRICHSHAFEN
Land Deutschland
Bundesland Baden-Württemberg
Letzte Änderung 31. März 2005

Kategorie Verkehrsflughafen / Airport
Betreiber / Operator Flughafen Friedrichshafen GmbH

Lage / Location 2 NM NE Friedrichshafen
Nachtflug / NVFR NVFR
Instrumentenflug / IFR IFR
LFZ / ACFT Bis / up to 220000 kg, Flugzeuge über 14000 kg und Strahlflugzeuge jedoch nur, soweit sie den Bestimmungen des ICAO-Anhanges 16, Kapitel 3 entsprechen / ACFT over 14000 kg and jet acft however only as far as they comply with the regulations of ICAO Annex 16 Chapter 3
Helicopter Ja / Yes
Motorsegler / GLDP Ja / Yes
Segelflugzeuge / GLD Ja / Yes
UL PPR

Friedrichshafen Airport Summer 0400-2000, SAT, SUN, HOL 0700-SS+30/1800
Winter 0500-2100, SAT, SUN, HOL 0800-SS+30
O/T Am vorherigen Werktag/on preceding workday 1100 (1000) PPR
Luftaufsicht / OPS +49 (0)7541 / 284120, Fax 712217
AIS AIS-Centre EDDZ +49 (0)69 / 78072500
ACC LSZH +41 18163931
MET (0190) 077227
Gafor 71

Zoll / Customs Während der Betriebszeiten/During operating hours
Zoll / Customs Fon +49 (0)7541 / 284626, Fax 34364
Fuel 100 LL, Jet A1
Hangar Beschränkt / Restricted
Höhe / Elevation 1367 ft / 416 m
FIS München Information 126.950
VDF / QDM 124.350
Rufzeichen / Call sign Friedrichshafen Tower/Turm
Frequenz Tower 124350
NAV Aids ABN PAPI DME FHD 112.60 am Platz/at field ILS RWY 06 111.90 ILS RWY 24 111.90
Koordinaten 47 40, 21 N / 09 30, 70 E
Landebahnen / RWY 1
RWY 2356 x 45 m, ASPHALT / Antiskid
RWY 06 TKOF 2150 m; LDG 2086 m
RWY 24 TKOF 2086 m; LDG 2150 m
MTOW PCN 60 F/C/W/T
Bemerkungen / Remarks TMZ beachten/mind TMZ
Restaurant - yes

Flughafen Friedrichshafen GmbH

Postal Address
Postfach 1520
D-88005 Friedrichshafen
Germany

Delivery Address
Am Flugplatz 64
D-88046 Friedrichshafen
Germany

Telephone
0 (049) 7541-284-01

Fax
0 (049) 7541-284-207

E-mail: info at fly-away de

WWW: Friedrichshafen Airport

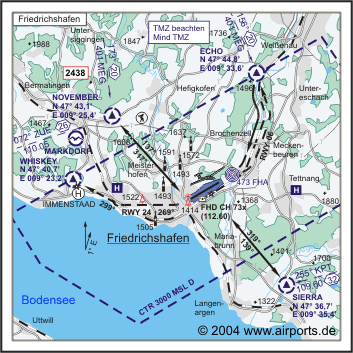

Images and information placed above are from
http://www.airports.de/airport.php?ICAO=EDNY


We thank them for the data!



General Info
Country Germany
ICAO ID EDNY
Time UTC+1(+2DT)
Latitude 47.671317
47° 40' 16.74" N
Longitude 9.511486
009° 30' 41.35" E
Elevation 1367 feet
417 meters
Type Civil
Magnetic Variation 001° E (01/05)
Beacon Yes
Operating Agency CIVIL GOVERNMENT, (LANDING FEES AND DIPLOMATIC CLEARANCE MAY BE REQUIRED)
Operating Hours SEE REMARKS FOR OPERATING HOURS OR COMMUNICATIONS FOR POSSIBLE HOURS
Daylight Savings Time Last Sunday in March to last Sunday in October


Communications
TWR 124.35
336.4
(124.35 Opr 0500-2200Z++)
INFO 122.5
ATIS
Opr 0500-2200Z++.
129.6
ZURICH ARR 119.925


Runways
ID
Dimensions Surface PCN ILS
06/24 7729 x 148 feet
2356 x 45 meters
ASPHALT 060FCWT YES


Navaids
Type ID Name Channel Freq Distance From Field Bearing From Navaid
NDB FHA FRIEDRICHSHAFEN - 473 1.2 NM 239.9
DME FHD FRIEDRICHSHAFEN 073X - At Field -


Supplies/Equipment
Fuel Jet A1+, Jet A1 with icing inhibitor.

100/130 MIL Spec, low lead, aviation gasoline (BLUE)


Remarks
CAUTION ALS Rwy 06 partly obsc.
FLUID De-Icing and Anti-Icing avbl.
FUEL (NC-100LL, A1)
LGT PAPI Rwy 06 GS 3.1 MEHT 49' , PAPI Rwy 24 MEHT 55'.
MISC PPR for acft AUW 26 to 44. (FA) FR Mil Liaison fone C07541-71058. Apch charges -Entry into the ctlz, as well as dep fr the ctlz, or an apch in connection with a ldg, are considered utilization. Charges start to count with the entry and/orldg.
NS ABTMT No tkof btn 1130-1330Z++ Sun and hol.
OPR HOURS Opr 0500-2100Z++ Mon-Fri; 0800Z++-SS+30 Sat, Sun, GM hol; OT PPR 1100Z++ wkd prior. Fone C07541-28401.

Runway 06/24

7729 x 148 feet
2356 x 45 meters

Runway 06
Surface ASPHALT
True Heading 060.0
Latitude 47.666036
47° 39' 57.73" N
Longitude 9.497889
009° 29' 52.40" E
Elevation 1334.0 feet
407 meters
Slope 0.4°
Landing Distance 6844 feet
2086 meters
Takeoff Distance 7729 feet
2356 meters
Displaced Threshold Length 885 feet
270 meters
Lighting System SF
CL
HIRL
REIL
A2
PAPI

Runway 24
Surface ASPHALT
True Heading 240.0
Latitude 47.676597
47° 40' 35.75" N
Longitude 9.525086
009° 31' 30.31" E
Elevation 1367.0 feet
417 meters
Slope -0.4°
Landing Distance 7054 feet
2150 meters
Takeoff Distance 7729 feet
2356 meters
Displaced Threshold Length 675 feet
206 meters
Lighting System SF
TDZL
CL
HIRL
REIL
A2
PAPI

Navaids

FRIEDRICHSHAFEN
Type ID Channel Freq Country State
NDB FHA - 473 Germany -
Latitude Longitude Airport
47.681217
47° 40' 52.38" N
9.537778
009° 32' 16.00" E
EDNY

Navaids

FRIEDRICHSHAFEN
Type ID Channel Freq Country State
DME FHD 073X - Germany -
Latitude Longitude Airport
47.666353
47° 39' 58.87" N
9.508858
009° 30' 31.89" E
EDNY


The content above was published at Airports-Worldwide.com in 2005.
We don't guarantee the information is fresh and accurate. The data may be wrong or outdated.
For more up-to-date information please refer to other sources.
