Harbin Y-12

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Harbin_Y-12

Harbin Y-12
Role Twin-engine turboprop utility aircraft
Manufacturer Harbin Aircraft Manufacturing Corporation
Designed by Harbin Aircraft Manufacturing Corporation
First flight 14 July, 1982
Status In production
Primary user China
Produced 1985 - present
Developed from Harbin Y-11

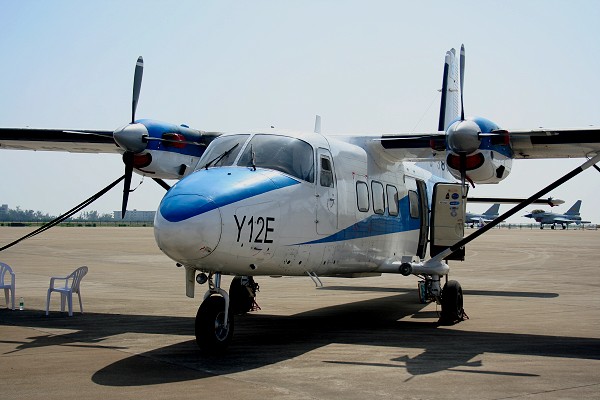

The Harbin Y-12 is a high wing twin-engine turboprop utility aircraft built by Harbin Aircraft Manufacturing Corporation (HAMC).

Design and development

The Y-12 started life as a development of the Harbin Y-11 airframe. The design featured numerous improvements including a redesigned wing with a supercritical aerofoil section, a larger fuselage and bonded rather than riveted construction.

The first prototype flew on 14 July 1982, followed by about 30 production T-12 I aircraft before a revised version was produced. This was designated the Y-12 II, which featured more powerful engines and removal of leading edge slats, first flying on 16 August 1984 and receiving Chinese certification in December of the following year. The powerplants are two Pratt & Whitney Canada PT6A-27 turboprops with Hartzell props. The Y-12 has a maximum payload of 5,700 kg (12,600 lb) with space for 17 passengers (2 crew). The aircraft is operated by China, several other countries in the region and in the South Pacific as a light commuter and transport aircraft.

Variants

  • Y-12 I : Twin-engined STOL utility transport aircraft, powered by two 500-shp (373-kW) Pratt & Whitney Canada PT6A-11 turboprop engines. First production version.
  • Y-12 II : Fitted with the more powerful engines.
  • Y-12 IV : Improved version. Revised wingtips (span increased to 19.2 m (63 ft) and increased take off weight. 19 passengers.
  • Twin Panda : Powered by two Pratt & Whitney Canada PT6A-34 turboprop engines.

Operators

Military operators

 Cambodia
 People's Republic of China
 Eritrea
 Guyana
 Iran
 Kenya
 Mauritania
 Mongolia
 Namibia
 Pakistan
 Peru
 Sri Lanka
 Tanzania
 Uganda
 Zambia

Governmental operators

 People's Republic of China

Civil operators

 Bangladesh
 People's Republic of China
 Fiji
 Kiribati
 Vanuatu
 Laos
 Malaysia
 Mongolia
 Nepal
 Tonga

Specifications (Y-12 (II))

Data from Brassey's World Aircraft & Systems Directory 1999/2000

General characteristics

Performance

  • Maximum speed: 328 km/h (177 knots, 204 mph) at 3,000m (9,840 ft) (max cruise)
  • Cruise speed: 250 km/h (135 knots, 155 mph) at 3,000m (9,840 ft) (econ cruise)
  • Range: 1,340 km (723 NM, 832 mi) at econ cruise, 45 min reserves
  • Service ceiling: 7,000 m (23,000 ft)
  • Rate of climb: 8.1 m/s (1,595 ft/min)

See also

Comparable aircraft

Related lists

Bibliography

External links
