Schweizer S-333

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Schweizer_330

Schweizer 330/ S-333
Role Light utility and trainer helicopter
Manufacturer Schweizer Aircraft Corporation
Sikorsky Global Helicopters
First flight June 14, 1988
Introduced 1992
Status In production
Developed from Schweizer 300
Variants MQ-8 Fire Scout
Sikorsky S-434

The Schweizer 330 and 333 are turbine-powered developments of the Schweizer 300 light piston-powered helicopter. As of 2007, only the Schweizer 333 remains in production. In February 2009, the 333 was rebranded as the Sikorsky S-333.

Development

Schweizer 330

In 1987, Schweizer announced development of the Schweizer 330 using the dynamic components, rotors, controls and systems of the 300C; however, it was redesigned with an all-new fuselage. The first 330, converted from a 300C and powered by an Allison 250-C10A, flew on June 14 1988. The FAA certified the aircraft in September 1992.

The improved 330SP was introduced in May 1997 and featured an improved rotor and raised skids, which could be retrofitted to previous 330 models. An Allison (later Rolls-Royce) 250-C20W turboshaft was derated to 165kW (220hp), giving the 330SP excellent hot and high performance, maintaining power output to 18,000 feet.

Schweizer 333

Shortly after the release of the 330, Schweizer began work on upgrading the dynamic components of the Schweizer 330SP. Over two years later, Schweizer released a new variant, the Schweizer 333. Featuring the newly developed dynamic systems components and new-technology rotor blades with a cambered airfoil and a larger diameter, the upgraded helicopter benefited with a greater max gross weight, more useful load, more speed and more hover performance; nearly a 30% increase in performance over the 330SP. Schweizer created a kit to upgrade Model 330 and 330SP aircraft.

In February 2008, an improved version of the series, the Schweizer S-434, was released.

Design

The 330 used the 300C's dynamic components, a Rolls Royce 250 turboshaft engine, and a new four-seat cockpit/cabin and body and new instrumentation.

Operational history

Schweizer was purchased on August 26, 2004, by Sikorsky Aircraft. The Schweizer 300/333 models fill a gap in the Sikorsky helicopter line, which is known for its medium and heavy utility and cargo helicopters. Sikorsky has since taken advantage of Schweizer's rapid prototyping technology, originally used during development of the 333 dynamic components and the RQ-8 prototype, to develop the X-2 Technology Demonstrator.

Variants

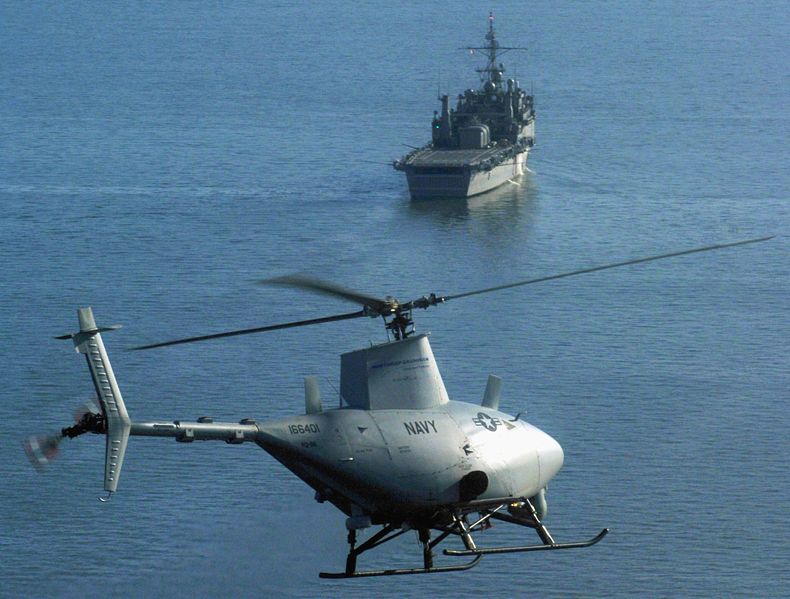

A RQ-8A Fire Scout helicopter preparing to land on the USS Nashville
A RQ-8A Fire Scout helicopter preparing to land on the USS Nashville
330
Using the 300C dynamic components, Schweizer mounted a Rolls Royce 250-C10A engine to the airframe and developed a new four-seat cockpit/cabin and body.
330SP
improved rotor and raised skids, Rolls Royce 250-C20W engine.
333
Featuring new dynamic system components, new rotor blades, and high skids as standard equipment, the 333 has a 30% greater useful load than the 330SP.
MQ-8 Fire Scout
The MQ-8B Fire Scout is an unmannned derivative of the Schweizer 330SP/333 helicopter, with a new fuselage, new fuel system, and UAV electronics and sensors. It also utilizes a new four-bladed rotor system based on that of the Schweizer 333. The Fire Scout is currently in development for the United States Navy's VTUAV program with cooperation from Northrop Grumman. The original RQ-8A was based on the 330SP.
Schweizer S-434
Based on improvements developed for the MQ-8B, this is a new version of the 333. Four-bladed main rotor.

Operators

Specifications (333)

Data from International Directory of Civil Aircraft and Technical specifications

General characteristics

  • Crew: 1-2 pilots
  • Capacity: 1-3 passengers
  • Payload: 1250 lb (kg)
  • Length: (overall) 31 ft 2 in (9.5 m)
  • Rotor diameter: 27 ft 6 in (8.38 m)
  • Height: 11 ft 0 in (3.35 m)
  • Empty weight: 1210 lb (549 kg)
  • Loaded weight: lb (kg)
  • Max takeoff weight: 2550 lb (1156 kg)
  • Powerplant: 1× Rolls-Royce 250-C20W turboshaft, 235 shp (175 kW); full rating: 420 shp (315 kW)

Performance

See also

Related development

Comparable aircraft

External links
