Enstrom F-28

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Enstrom_F-28

F-28 / 280

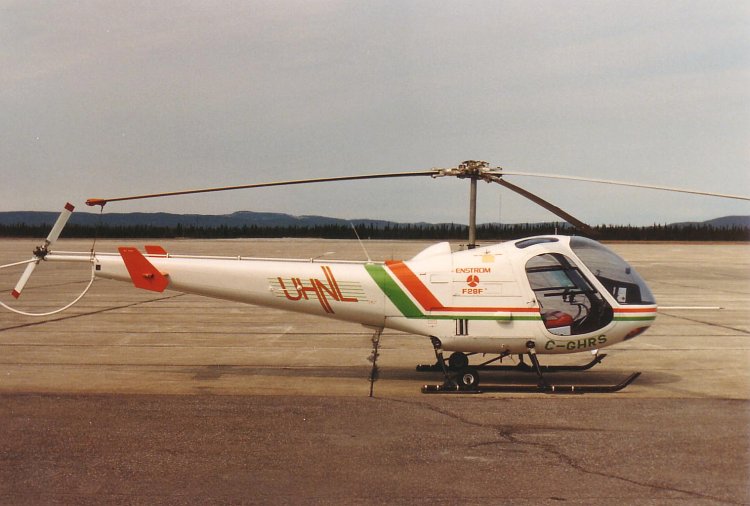

An Enstrom F-28F used by Universal Helicopters of Newfoundland and Labrador for training, 1988
Role Light helicopter
Manufacturer Enstrom Helicopter
Introduced 1965
Produced 1965-present
Variants Enstrom 480

An Enstrom F-28C on inflatable floats with a scrapped Enstrom in the background, 1986
An Enstrom F-28C on inflatable floats with a scrapped Enstrom in the background, 1986

The Enstrom F-28 and 280 are a family of small, light piston-engined helicopters produced by the Enstrom Helicopter Corporation.

Design and development

Since delivering their first helicopter shortly after Federal Aviation Administration type certification of the F-28 model in April 1965, Enstrom helicopter has produced (as of 2007) approx 1,200 aircraft.

The company produces three models, the F-28, the more aerodynamic 280 and the turbine-engined 480, each with their own variants. The F-28 and 280 both use Lycoming piston engines virtually identical to those found in general aviation fixed-wing aircraft.

The 280 was a huge design success, with a Boston-based design firm concluding a brief to make the F28 more commercially appealing. This resulted in the 280 later being named by Fortune (magazine) as one of the 25 best factory-made products in the United States.

Variants

F-28


1973 model F-28A
1973 model F-28A
F-28
Certified April 1965.
F-28A
Initial production version. Certified May 1968.
T-28
Turbine powered.
F-28B
Turbocharged version.
F-28C
Fitted with an upgraded engine with turbocharger, and a two piece windscreen. Certified 1975
F-28C-2
Fitted with a more rounded cabin, a single piece windsrceen and new console.
F-28F Falcon
Similar to F-28C with more powerful engine, improved turbocharger and addition of a throttle corellator. Certified December 1980
F-27F-P
Police patrol version developed for the Pasadena Police Department. It is equipped with searchlights, FLIR and a PA system.

280

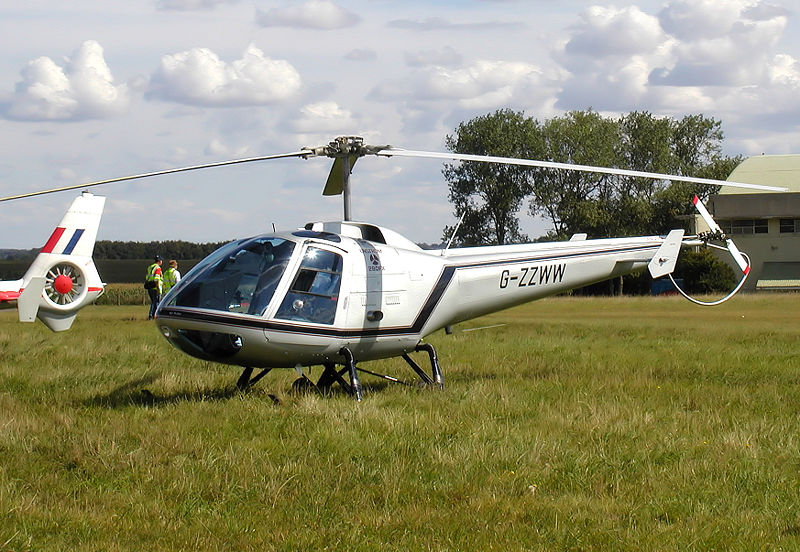

Enstrom 280FX Shark, an aerodynamically restyled Enstrom F-28 for the corporate market
Enstrom 280FX Shark, an aerodynamically restyled Enstrom F-28 for the corporate market
280 Shark
Certified September 1975.
280C Shark
Aerodynamically refined version of the F28C-2, equipped with an upgraded engine, fitted with a turbocharger. Certified 1975
280L Hawk
Stretched cabin four-seat version, first flying in December 1968. Development halted due to lack of funds.
280F
Similar to 280C with more powerful engine, improved turbocharger and addition of a throttle correlator. Certified December 1980
280FX
Based on the 280F with landing gear fairings, redesigned air intakes on top of the cabin and a redesigned a relocated horizontal stabilizer with vertical end plates. Certified in January 1985

Operators

Military operators

 Chile
 Colombia
 Peru
 Venezuela

Law enforcement operators

 Indonesia
  • Indonesian National Police
 Thailand
  • Ministry of Agriculture and Cooperatives
 United States

Specifications (F28F)

Data from Brassey's World Aircraft & Systems Directory

General characteristics

  • Crew: One
  • Capacity: Two passengers
  • Length: 29 ft 3 in (8.91 m)
  • Rotor diameter: 32 ft (9.75 m)
  • Height: 9 ft (2.74 m)
  • Disc area: 804 ft² (74.7 m²)
  • Empty weight: 1,570 lb (712 kg)
  • Loaded weight: lb (kg)
  • Useful load: 1,030 lb (467 kg)
  • Max takeoff weight: 2,600 lb (1,179 kg)
  • Powerplant:Lycoming HIO-360-F1AD piston engine, 225 hp (168 kW)

Performance

See also

Related development

Comparable aircraft
