Internal combustion engine

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Internal_combustion

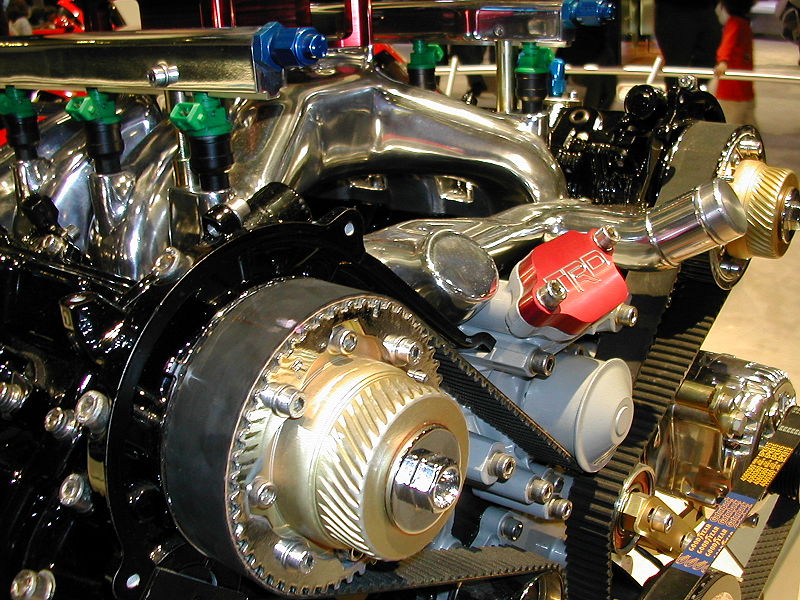

An automobile engine partly opened and colored to show components
An automobile engine partly opened and colored to show components

The internal combustion engine is an engine in which the combustion of a fuel occurs with an oxidiser (usually air) in a combustion chamber. In an internal combustion engine the expansion of the high temperature and pressure gases, that are produced by the combustion, directly apply force to a movable component of the engine, such as the pistons or turbine blades and by moving it over a distance, generate useful mechanical energy.

The term internal combustion engine usually refers to an engine in which combustion is intermittent, such as the more familiar four-stroke and two-stroke piston engines, along with variants, such as the Wankel rotary engine. A second class of internal combustion engines use continuous combustion: gas turbines, jet engines and most rocket engines, each of which are internal combustion engines on the same principle as previously described.

The internal combustion engine (or ICE) is quite different from external combustion engines, such as steam or Stirling engines, in which the energy is delivered to a working fluid not consisting of, mixed with or contaminated by combustion products. Working fluids can be air, hot water, pressurised water or even liquid sodium, heated in some kind of boiler by fossil fuel, wood-burning, nuclear, solar etc.

A large number of different designs for ICEs have been developed and built, with a variety of different strengths and weaknesses. While there have been and still are many stationary applications, the real strength of internal combustion engines is in mobile applications and they completely dominate as a power supply for cars, aircraft, and boats, from the smallest to the biggest. Only for hand-held power tools do they share part of the market with battery powered devices. Powered by an energy-dense fuel (nearly always liquid, derived from fossil fuels) the ICE delivers an excellent power-to-weight ratio with few safety or other disadvantages.

Applications


A 1906 gasoline engine
A 1906 gasoline engine

Internal combustion engines are most commonly used for mobile propulsion in vehicles and portable machinery. In mobile equipment, internal combustion is advantageous since it can provide high power-to-weight ratios together with excellent fuel energy density. Generally using fossil fuel (mainly petroleum), these engines have appeared in transport in almost all vehicles (automobiles, trucks, motorcycles, boats, and in a wide variety of aircraft and locomotives).

Internal combustion engines appear in the form of gas turbines as well where a very high power is required, such as in jet aircraft, helicopters, and large ships. They are also frequently used for electric generators and by industry.

Classification

At one time the word, "Engine" (from Latin, via Old French, ingenium, "ability") meant any piece of machinery—a sense that persists in expressions such as siege engine. A "motor" (from Latin motor, "mover") is any machine that produces mechanical power. Traditionally, electric motors are not referred to as, "Engines"; however, combustion engines are often referred to as, "motors." (An electric engine refers to a locomotive operated by electricity.)

Engines can be classified in many different ways: By the engine cycle used, the layout of the engine, source of energy, the use of the engine, or by the cooling system employed.

Principles of operation

Reciprocating:

Rotary:

Continuous combustion: Brayton cycle:

History

Engine configurations

Internal combustion engines can be classified by their configuration.

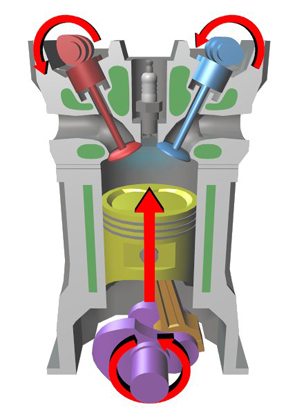

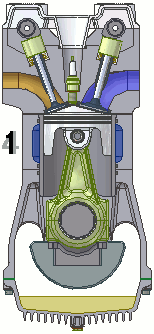

Four stroke configuration

Operation

Basic process

As their name implies, operation of a four stroke internal combustion engines have 4 basic steps that repeat with every two revolutions of the engine:

  1. Intake
    • Combustible mixtures are emplaced in the combustion chamber
  2. Compression
    • The mixtures are placed under pressure
  3. Combustion/Expansion
    • The mixture is burnt, almost invariably a deflagration, although a few systems involve detonation. The hot mixture is expanded, pressing on and moving parts of the engine and performing useful work.
  4. Exhaust
    • The cooled combustion products are exhausted into the atmosphere

Many engines overlap these steps in time, jet engines do all steps simultaneously at different parts of the engines.

Combustion

All internal combustion engines depend on the exothermic chemical process of combustion: the reaction of a fuel, typically with oxygen from the air (though it is possible to inject nitrous oxide in order to do more of the same thing and gain a power boost). The combustion process typically results in the production of a great quantity of heat, as well as the production of steam and carbon dioxide and other chemicals at very high temperature; the temperature reached is determined by the chemical make up of the fuel and oxidisers (see stoichiometry).

The most common modern fuels are made up of hydrocarbons and are derived mostly from fossil fuels (petroleum). Fossil fuels include dieselfuel, gasoline and petroleum gas, and the rarer use of propane. Except for the fuel delivery components, most internal combustion engines that are designed for gasoline use can run on natural gas or liquefied petroleum gases without major modifications. Large diesels can run with air mixed with gases and a pilot diesel fuel ignition injection. Liquid and gaseous biofuels, such as ethanol and biodiesel (a form of diesel fuel that is produced from crops that yield triglycerides such as soybean oil), can also be used. Some engines with appropriate modifications can also run on hydrogen gas.

Internal combustion engines require ignition of the mixture, either by spark ignition (SI) or compression ignition (CI). Before the invention of reliable electrical methods hot tube and flame methods were used.

Gasoline Ignition Process

Gasoline engine ignition systems generally rely on a combination of a lead-acid battery and an induction coil to provide a high-voltage electrical spark to ignite the air-fuel mix in the engine's cylinders. This battery is recharged during operation using an electricity-generating device such as an alternator or generator driven by the engine. Gasoline engines take in a mixture of air and gasoline and compress it to not more than 12.8 bar (1.28 MPa), then use a spark plug to ignite the mixture when it is compressed by the piston head in each cylinder.

Diesel Ignition Process

Diesel engines and HCCI(Homogeneous charge compression ignition) engines, rely solely on heat and pressure created by the engine in its compression process for ignition. The compression level that occurs is usually twice or more than a gasoline engine. Diesel engines will take in air only, and shortly before peak compression, a small quantity of diesel fuel is sprayed into the cylinder via a fuel injector that allows the fuel to instantly ignite. HCCI type engines will take in both air and fuel but continue to rely on an unaided auto-combustion process, due to higher pressures and heat. This is also why diesel and HCCI engines are more susceptible to cold-starting issues, although they will run just as well in cold weather once started. Light duty diesel engines with indirect injection in automobiles and light trucks employ glowplugs that pre-heat the combustion chamber just before starting to reduce no-start conditions in cold weather. Most diesels also have a battery and charging system; nevertheless, this system is secondary and is added by manufacturers as a luxury for the ease of starting, turning fuel on and off (which can also be done via a switch or mechanical apparatus), and for running auxiliary electrical components and accessories. Most new engines rely on electrical and electronic control system that also control the combustion process to increase efficiency and reduce emissions.

Two stroke configuration

Engines based on the two-stroke cycle use two strokes (one up, one down) for every power stroke. Since there are no dedicated intake or exhaust strokes, alternative methods must be used to scavenge the cylinders. The most common method in spark-ignition two-strokes is to use the downward motion of the piston to pressurize fresh charge in the crankcase, which is then blown through the cylinder through ports in the cylinder walls.

Spark-ignition two-strokes are small and light for their power output and mechanically very simple; however, they are also generally less efficient and more polluting than their four-stroke counterparts. In terms of power per cubic centimetre, a single-cylinder small motor application like a two-stroke engine produces much more power than an equivalent four-stroke engine due to the enormous advantage of having one power stroke for every 360 degrees of crankshaft rotation (compared to 720 degrees in a 4 stroke motor).

Small displacement, crankcase-scavenged two-stroke engines have been less fuel-efficient than other types of engines when the fuel is mixed with the air prior to scavenging allowing some of it to escape out of the exhaust port. Modern designs (Sarich and Paggio) use air-assisted fuel injection which avoids this loss, and are more efficient than comparably sized four-stroke engines. Fuel injection is essential for a modern two-stroke engine in order to meet ever more stringent emission standards.

Research continues into improving many aspects of two-stroke motors including direct fuel injection, amongst other things. The initial results have produced motors that are much cleaner burning than their traditional counterparts. Two-stroke engines are widely used in snowmobiles, lawnmowers, string trimmers, chain saws, jet skis, mopeds, outboard motors, and many motorcycles. Two-stroke engines have the advantage of an increased specific power ratio (i.e. power to volume ratio), typically around 1.5 times that of a typical four-stroke engine.

The largest compression-ignition engines are two-strokes and are used in some locomotives and large ships. These particular engines use forced induction to scavenge the cylinders; an example of this type of motor is the Wartsila-Sulzer turbocharged two-stroke diesel as used in large container ships. It is the most efficient and powerful engine in the world with over 50% thermal efficiency. For comparison, the most efficient small four-stroke motors are around 43% thermal efficiency (SAE 900648); size is an advantage for efficiency due to the increase in the ratio of volume to surface area.

Common cylinder configurations include the straight or inline configuration, the more compact V configuration, and the wider but smoother flat or boxer configuration. Aircraft engines can also adopt a radial configuration which allows more effective cooling. More unusual configurations such as the H, U, X, and W have also been used.

Multiple crankshaft configurations do not necessarily need a cylinder head at all because they can instead have a piston at each end of the cylinder called an opposed piston design. This design was used in the Junkers Jumo 205 diesel aircraft engine, using at either end of a single bank of cylinders with two crankshafts, and most remarkably in the Napier Deltic diesel engines. These used three crankshafts to serve three banks of double-ended cylinders arranged in an equilateral triangle with the crankshafts at the corners. It was also used in single-bank locomotive engines, and continues to be used for marine engines, both for propulsion and for auxiliary generators. The Gnome Rotary engine, used in several early aircraft, had a stationary crankshaft and a bank of radially arranged cylinders rotating around it.

Wankel

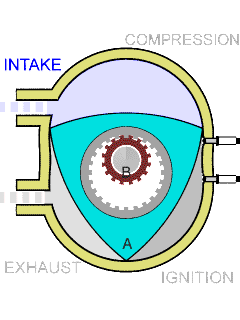

The Wankel cycle. The shaft turns three times for each rotation of the rotor around the lobe and once for each orbital revolution around the eccentric shaft.
The Wankel cycle. The shaft turns three times for each rotation of the rotor around the lobe and once for each orbital revolution around the eccentric shaft.

The Wankel engine (rotary engine) does not have piston strokes. It operates with the same separation of phases as the four-stroke engine with the phases taking place in separate locations in the engine. In thermodynamic terms it follows the Otto engine cycle, so may be thought of as a "four-phase" engine. While it is true that three power strokes typically occur per rotor revolution due to the 3/1 revolution ratio of the rotor to the eccentric shaft, only one power stroke per shaft revolution actually occurs; this engine provides three power 'strokes' per revolution per rotor giving it a greater power-to-weight ratio than piston engines. This type of engine is most notably used in the current Mazda RX-8, the earlier RX-7, and other models.

Gas turbines

A gas turbine is a rotary machine similar in principle to a steam turbine and it consists of three main components: a compressor, a combustion chamber, and a turbine. The air after being compressed in the compressor is heated by burning fuel in it. About two-thirds of the heated air combined with the products of combustion is expanded in a turbine resulting in work output which is used to drive the compressor. The rest (about one-third) is available as useful work output.

Jet engine

Jet engines take a large volume of hot gas from a combustion process (typically a gas turbine, but rocket forms of jet propulsion often use solid or liquid propellants, and ramjet forms also lack the gas turbine) and feed it through a nozzle which accelerates the jet to high speed. As the jet accelerates through the nozzle, this creates thrust and in turn does useful work.

Engine cycle

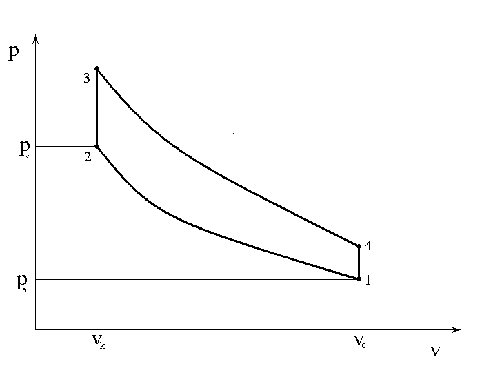

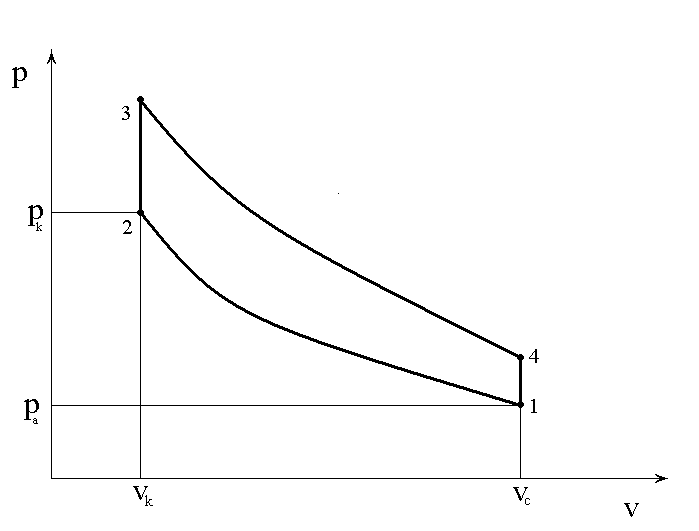

Idealised P/V diagram for two stroke Otto cycle
Idealised P/V diagram for two stroke Otto cycle

Two-stroke

This system manages to pack one power stroke into every two strokes of the piston (up-down). This is achieved by exhausting and re-charging the cylinder simultaneously.

The steps involved here are:

  1. Intake and exhaust occur at bottom dead center. Some form of pressure is needed, either crankcase compression or super-charging.
  2. Compression stroke: Fuel-air mix compressed and ignited.
  3. Power stroke: piston is pushed downwards by the hot exhaust gases.

Four-stroke


Idealised Pressure/volume diagram of the Otto cycle showing combustion heat input Qp and waste exhaust output Qo, the power stroke is the top curved line, the bottom is the compression stroke
Idealised Pressure/volume diagram of the Otto cycle showing combustion heat input Qp and waste exhaust output Qo, the power stroke is the top curved line, the bottom is the compression stroke

Engines based on the four-stroke ("Otto cycle") have one power stroke for every four strokes (up-down-up-down) and employ spark plug ignition. Combustion occurs rapidly, and during combustion the volume varies little ("constant volume"). They are used in cars, larger boats, some motorcycles, and many light aircraft. They are generally quieter, more efficient, and larger than their two-stroke counterparts.

The steps involved here are:

  1. Intake stroke: Air and vaporized fuel are drawn in.
  2. Compression stroke: Fuel vapor and air are compressed and ignited.
  3. Combustion stroke: Fuel combusts and piston is pushed downwards.
  4. Exhaust stroke: Exhaust is driven out. During the 1st, 2nd, and 4th stroke the piston is relying on power and the momentum generated by the other pistons. In that case, a four cylinder engine would be less powerful than a six or eight cylinder engine.

There are a number of variations of these cycles, most notably the Atkinson and Miller cycles. The diesel cycle is somewhat different.

Diesel cycle


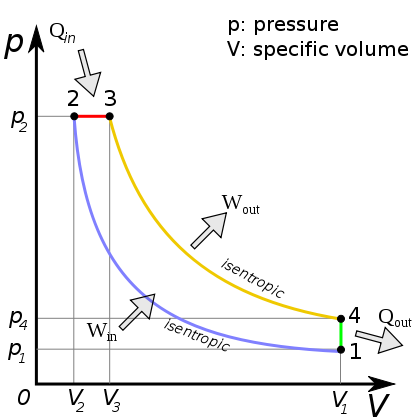

P-v Diagram for the Ideal Diesel cycle. The cycle follows the numbers 1-4 in clockwise direction.
P-v Diagram for the Ideal Diesel cycle. The cycle follows the numbers 1-4 in clockwise direction.

Most truck and automotive diesel engines use a cycle reminiscent of a four-stroke cycle, but with a compression heating ignition system, rather than needing a separate ignition system. This variation is called the diesel cycle. In the diesel cycle, diesel fuel is injected directly into the cylinder so that combustion occurs at constant pressure, as the piston moves, rather than with the four stroke with the piston essentially stationary.

Six-stroke

The six stroke engine captures the wasted heat from the four-stroke Otto cycle and creates steam, which simultaneously cools the engine while providing a free power stroke. This removes the need for a cooling system making the engine lighter while giving 40% increased efficiency over the Otto Cycle.

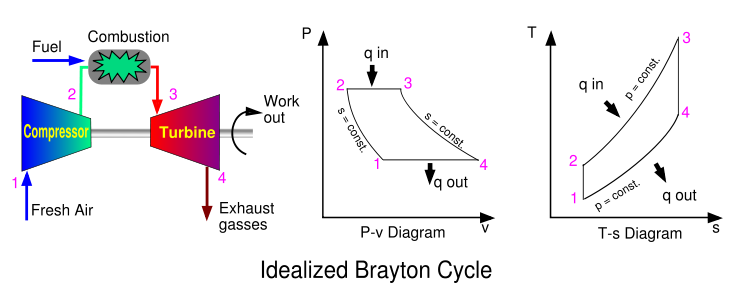

Brayton cycle


Brayton cycle
Brayton cycle

A gas turbine is a rotary machine somewhat similar in principle to a steam turbine and it consists of three main components: a compressor, a combustion chamber, and a turbine. The air after being compressed in the compressor is heated by burning fuel in it, this heats and expands the air, and this extra energy is tapped by the turbine which in turn powers the compressor closing the cycle and powering the shaft.

Gas turbine cycle engines employ a continuous combustion system where compression, combustion, and expansion occur simultaneously at different places in the engine—giving continuous power. Notably the combustion takes place at constant pressure, rather than with the Otto cycle, constant volume.

Disused methods

In some old noncompressing internal combustion engines: in the first part of the piston downstroke, a fuel-air mixture was sucked or blown in, and in the rest of the piston downstroke, the inlet valve closed and the fuel-air mixture fired. In the piston upstroke, the exhaust valve was open. This was an attempt at imitating the way a piston steam engine works, and since the explosive mixture was not compressed, the heat and pressure generated by combustion was much less causing lower overall efficiency.

Fuels and oxidizers

Engines are often classified by the fuel (or propellant) used.

Fuels

Nowadays, fuels used include:


Even fluidized metal powders and explosives have seen some use. Engines that use gases for fuel are called gas engines and those that use liquid hydrocarbons are called oil engines, however gasoline engines are also often colloquially referred to as, "gas engines" ("petrol engines" in the UK).

The main limitations on fuels are that it must be easily transportable through the fuel system to the combustion chamber, and that the fuel releases sufficient energy in the form of heat upon combustion to make practical use of the engine.

Diesel engines are generally heavier, noisier, and more powerful at lower speeds than gasoline engines. They are also more fuel-efficient in most circumstances and are used in heavy road vehicles, some automobiles (increasingly so for their increased fuel efficiency over gasoline engines), ships, railway locomotives, and light aircraft. Gasoline engines are used in most other road vehicles including most cars, motorcycles, and mopeds. Note that in Europe, sophisticated diesel-engined cars have taken over about 40% of the market since the 1990s. There are also engines that run on hydrogen, methanol, ethanol, liquefied petroleum gas (LPG), and biodiesel. Paraffin and tractor vaporizing oil (TVO) engines are no longer seen.

Hydrogen

At present, hydrogen is mostly used as fuel for rocket engines. In the future, hydrogen might replace more conventional fuels in traditional internal combustion engines. If hydrogen fuel cell technology becomes widespread, then the use of internal combustion engines may be phased out.

Although there are multiple ways of producing free hydrogen, those methods require converting combustible molecules into hydrogen or consuming electric energy. Unless that electricity is produced from a renewable source—and is not required for other purposes—it seems hydrogen does not solve any energy crisis. The disadvantage of hydrogen in many situations is its storage. Liquid hydrogen has extremely low density (14 times lower than water) and requires extensive insulation—whilst gaseous hydrogen requires heavy tankage. Even when liquefied, hydrogen has a higher specific energy but the volumetric energetic storage is still roughly five times lower than petrol. The 'Hydrogen on Demand' process (see direct borohydride fuel cell) creates hydrogen as it is needed, but has other issues such as the high price of the sodium borohydride which is the raw material.

Oxidizers

Since air is plentiful at the surface of the earth, the oxidizer is typically atmospheric oxygen which has the advantage of not being stored within the vehicle, increasing the power-to-weight and power to volume ratios. There are other materials that are used for special purposes, often to increase power output or to allow operation under water or in space.

  • Compressed air has been commonly used in torpedoes.
  • Compressed oxygen, as well as some compressed air, was used in the Japanese Type 93 torpedo. Some submarines are designed to carry pure oxygen. Rockets very often use liquid oxygen.
  • Nitromethane is added to some racing and model fuels to increase power and control combustion.
  • Nitrous oxide has been used—with extra gasoline—in tactical aircraft and in specially equipped cars to allow short bursts of added power from engines that otherwise run on gasoline and air. It is also used in the Burt Rutan rocket spacecraft.
  • Hydrogen peroxide power was under development for German World War II submarines and may have been used in some non-nuclear submarines and some rocket engines.
  • Other chemicals such as chlorine or fluorine have been used experimentally, but have not been found to be practical.

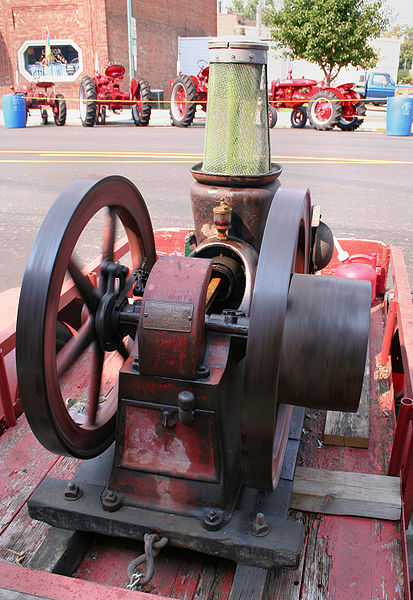

One-cylinder gasoline engine (ca. 1910).
One-cylinder gasoline engine (ca. 1910).

Engine capacity

For piston engines, an engine's capacity is the engine displacement, in other words the volume swept by all the pistons of an engine in a single movement. It is generally measured in litres (L) or cubic inches (c.i.d. or cu in or in³) for larger engines, and cubic centimetres (abbreviated cc) for smaller engines. Engines with greater capacities are usually more powerful and provide greater torque at lower rpm, but also consume more fuel. Apart from designing an engine with more cylinders, there are two ways to increase an engines' capacity. The first is to lengthen the stroke: the second is to increase the pistons' diameter (See also: Stroke ratio). In either case, it may be necessary to make further adjustments to the fuel intake of the engine to ensure optimum performance.

Common components

Combustion chambers

Internal combustion engines can contain any number of combustion chambers (cylinders), with numbers between one and twelve being common, though as many as 36 (Lycoming R-7755) have been used. Having more cylinders in an engine yields two potential benefits: first, the engine can have a larger displacement with smaller individual reciprocating masses, that is, the mass of each piston can be less thus making a smoother-running engine since the engine tends to vibrate as a result of the pistons moving up and down. Doubling the number of the same size cylinders will double the torque and power. The downside to having more pistons is that the engine will tend to weigh more and generate more internal friction as the greater number of pistons rub against the inside of their cylinders. This tends to decrease fuel efficiency and robs the engine of some of its power. For high-performance gasoline engines using current materials and technology—such as the engines found in modern automobiles, there seems to be a break-point around 10 or 12 cylinders after which the addition of cylinders becomes an overall detriment to performance and efficiency. Although, exceptions such as the W16 engine from Volkswagen exist.

  • Most car engines have four to eight cylinders with some high performance cars having ten, twelve—or even sixteen, and some very small cars and trucks having two or three. In previous years, some quite large cars such as the DKW and Saab 92, had two-cylinder or two-stroke engines.
  • Radial aircraft engines (now obsolete) had from three to 28 cylinders; an example is the Pratt & Whitney R-4360. A row contains an odd number of cylinders so an even number indicates a two- or four-row engine. The largest of these was the Lycoming R-7755 with 36 cylinders (four rows of nine cylinders), but it did not enter production.
  • Motorcycles commonly have from one to four cylinders, with a few high performance models having six; although, some 'novelties' exist with 8, 10, or 12.
  • Snowmobiles Usually have one to four cylinders and can be both 2 stroke or 4 stroke, normally in the in-line configuration however there are again some novelties that exist with V-4 Engines
  • Small portable appliances such as chainsaws, generators, and domestic lawn mowers most commonly have one cylinder, but two-cylinder chainsaws exist.
  • Large reversible two cycle marine diesels have a minimum of three to over ten cylinders. Freight diesel locomotives usually have around 12 to 20 cylinders due to space limitations as larger cylinders take more space (volume ) per kwh, due to the limit on average piston speed of less than 30 ft/sec on engines lasting more than 40000 hours under full power.

Ignition system

The ignition system of an internal combustion engines depends on the type of engine and the fuel used. Petrol engines are typically ignited by a precisely timed spark, and diesel engines by compression heating. Historically, outside flame and hot-tube systems were used, see hot bulb engine.

Spark

The mixture is ignited by an electrical spark from a spark plug—the timing of which is very precisely controlled. Almost all gasoline engines are of this type. Diesel engines timing is precisely controlled by the pressure pump and injector.

Compression

Ignition occurs as the temperature of the fuel/air mixture is taken over its autoignition temperature, due to heat generated by the compression of the air during the compression stroke. The vast majority of compression ignition engines are diesels in which the fuel is mixed with the air after the air has reached ignition temperature. In this case, the timing comes from the fuel injection system. Very small model engines for which simplicity and light weight is more important than fuel costs use easily ignited fuels (a mixture of kerosene, ether, and lubricant) and adjustable compression to control ignition timing for starting and running.

Ignition Timing

For reciprocating engines, the point in the cycle at which the fuel-oxidizer mixture is ignited has a direct effect on the efficiency and output of the ICE. The thermodynamics of the idealized Carnot heat engine tells us that an ICE is most efficient if most of the burning takes place at a high temperature, resulting from compression—near top dead center. The speed of the flame front is directly affected by the compression ratio, fuel mixture temperature, and octane or cetane rating of the fuel. Leaner mixtures and lower mixture pressures burn more slowly requiring more advanced ignition timing. It is important to have combustion spread by a thermal flame front (deflagration), not by a shock wave. Combustion propagation by a shock wave is called detonation and, in engines, is also known as pinging or Engine knocking.

So at least in gasoline-burning engines, ignition timing is largely a compromise between an earlier "advanced" spark—which gives greater efficiency with high octane fuel—and a later "retarded" spark that avoids detonation with the fuel used. For this reason, high-performance diesel automobile proponents such as, Gale Banks, believe that

There’s only so far you can go with an air-throttled engine on 91-octane gasoline. In other words, it is the fuel, gasoline, that has become the limiting factor. ... While turbocharging has been applied to both gasoline and diesel engines, only limited boost can be added to a gasoline engine before the fuel octane level again becomes a problem. With a diesel, boost pressure is essentially unlimited. It is literally possible to run as much boost as the engine will physically stand before breaking apart. Consequently, engine designers have come to realize that diesels are capable of substantially more power and torque than any comparably sized gasoline engine.

Fuel systems

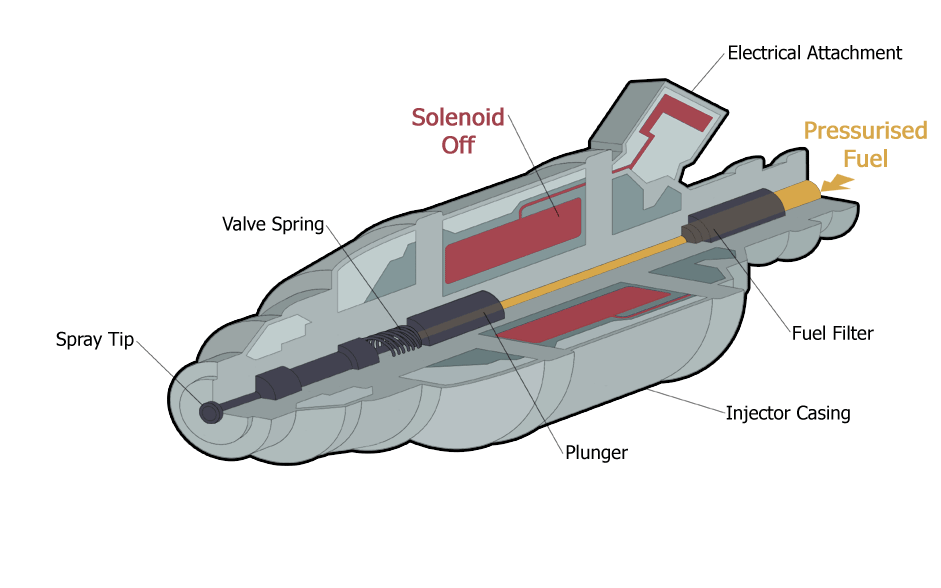

Animated cut through diagram of a typical fuel injector, a device used to deliver fuel to the internal combustion engine.
Animated cut through diagram of a typical fuel injector, a device used to deliver fuel to the internal combustion engine.

Fuels burn faster and more efficiently when they present a large surface area to the oxygen in air. Liquid fuels must be atomized to create a fuel-air mixture, traditionally this was done with a carburetor in petrol engines and with fuel injection in diesel engines. Most modern petrol engines now use fuel injection too - though the technology is quite different. While diesel must be injected at an exact point in that engine cycle, no such precision is needed in a petrol engine. However, the lack of lubricity in petrol means that the injectors themselves must be more sophisticated.

Carburetor

Simpler reciprocating engines continue to use a carburetor to supply fuel into the cylinder. Although carburetor technology in automobiles reached a very high degree of sophistication and precision, from the mid-1980s it lost out on cost and flexibility to fuel injection. Simple forms of carburetor remain in widespread use in small engines such as lawn mowers and more sophisticated forms are still used in small motorcycles.

Fuel injection

Larger gasoline engines used in automobiles have mostly moved to fuel injection systems (see Gasoline Direct Injection). Diesel engines have always used fuel injection because the timing of the injection initiates and controls the combustion.

Autogas (LPG) engines use either fuel injection systems or open- or closed-loop carburetors.

Fuel pump

Most internal combustion engines now require a fuel pump. Diesel engines use an all-mechanical precision pump system that delivers a timed injection direct into the combustion chamber, hence requiring a high delivery pressure to overcome the pressure of the combustion chamber. Petrol fuel injection delivers into the inlet tract at atmospheric pressure (or below) and timing is not involved, these pumps are normally driven electrically. Gas turbine and rocket engines use electrical systems.

Other

Other internal combustion engines like jet engines and rocket engines employ various methods of fuel delivery including impinging jets, gas/liquid shear, preburners and others.

Oxidiser-Air inlet system

Some engines such as solid rockets have oxidisers already within the combustion chamber but in most cases for combustion to occur, a continuous supply of oxidiser must be supplied to the combustion chamber.

Natural aspirated engines

When air is used with piston engines it can simply suck it in as the piston increases the volume of the chamber. However, this gives a maximum of 1 atmosphere of pressure difference across the inlet valves, and at high engine speeds the resulting airflow can limit potential power output.

Superchargers

A supercharger is a "forced induction" system which uses a compressor powered by the shaft of the engine which forces air through the valves of the engine to achieve higher flow. When these systems are employed the maximum absolute pressure at the inlet valve is typically around 2 times atmospheric pressure or more.

Turbochargers/gas turbine powered compressors

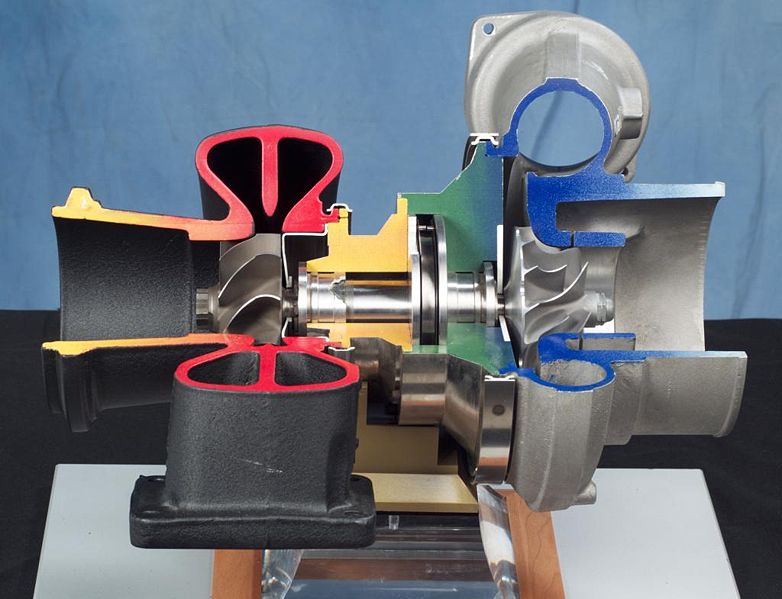

A cutaway of a turbocharger
A cutaway of a turbocharger

Turbochargers are another type of forced induction system which has its compressor powered by a gas turbine running off the exhaust gases from the engine.

Duct jet engines use the same basic system, but eschew the piston engine, and replace it with a burner instead.

Liquids

In liquid rocket engines, the oxidiser comes in the form of a liquid and needs to be delivered at high pressure (typically 10-230 bar or 1–23 MPa) to the combustion chamber. This is normally achieved by the use of a centrifugal pump powered by a gas turbine - a configuration known as a turbopump, but it can also be pressure fed.

Parts


An illustration of several key components in a typical four-stroke engine.
An illustration of several key components in a typical four-stroke engine.

For a four-stroke engine, key parts of the engine include the crankshaft (purple), connecting rod (orange), one or more camshafts (red and blue), and valves. For a two-stroke engine, there may simply be an exhaust outlet and fuel inlet instead of a valve system. In both types of engines there are one or more cylinders (grey and green), and for each cylinder there is a spark plug (darker-grey, gasoline engines only), a piston (yellow), and a crankpin (purple). A single sweep of the cylinder by the piston in an upward or downward motion is known as a stroke. The downward stroke that occurs directly after the air-fuel mix passes from the carburetor or fuel injector to the cylinder, where it is ignited. This is also known as a power stroke.

A Wankel engine has a triangular rotor that orbits in an epitrochoidal (figure 8 shape) chamber around an eccentric shaft. The four phases of operation (intake, compression, power, and exhaust) take place in what is effectively a moving, variable-volume chamber.

Valves

All four-stroke internal combustion engines employ valves to control the admittance of fuel and air into the combustion chamber. Two-stroke engines use ports in the cylinder bore, covered and uncovered by the piston, though there have been variations such as exhaust valves.

Piston engine valves

In piston engines, the valves are grouped into 'inlet valves' which admit the entrance of fuel and air and 'outlet valves' which allow the exhaust gases to escape. Each valve opens once per cycle and the ones that are subject to extreme accelerations are held closed by springs that are typically opened by rods running on a camshaft rotating with the engines' crankshaft.

Control valves

Continuous combustion engines—as well as piston engines—usually have valves that open and close to admit the fuel and/or air at the startup and shutdown. Some valves feather to adjust the flow to control power or engine speed as well.

Exhaust systems

Internal combustion engines have to manage the exhaust of the cooled combustion gas from the engine. The exhaust system frequently contains devices to control pollution, both chemical and noise pollution. In addition, for cyclic combustion engines the exhaust system is frequently tuned to improve emptying of the combustion chamber.

For jet propulsion internal combustion engines, the 'exhaust system' takes the form of a high velocity nozzle, which generates thrust for the engine and forms a colimated jet of gas that gives the engine its name.

Cooling systems

Combustion generates a great deal of heat, and some of this transfers to the walls of the engine. Failure will occur if the body of the engine is allowed to reach too high a temperature; either the engine will physically fail, or any lubricants used will degrade to the point that they no longer protect the engine.

Cooling systems usually employ air (air cooled) or liquid (usually water) cooling while some very hot engines using radiative cooling (especially some Rocket engines). Some high altitude rocket engines use ablative cooling where the walls gradually erode in a controlled fashion. Rockets in particular can use regenerative cooling which uses the fuel to cool the solid parts of the engine.

Piston

A piston is a component of reciprocating engines. It is located in a cylinder and is made gas-tight by piston rings. Its purpose is to transfer force from expanding gas in the cylinder to the crankshaft via a piston rod and/or connecting rod. In two-stroke engines the piston also acts as a valve by covering and uncovering ports in the cylinder wall.

Propelling nozzle

For jet engine forms of internal combustion engines a propelling nozzle is present. This takes the high temperature, high pressure exhaust and expands and cools it. The exhaust leaves the nozzle going at much higher speed and provides thrust, as well as constricting the flow from the engine and raising the pressure in the rest of the engine, giving greater thrust for the exhaust mass that exits.

Crankshaft

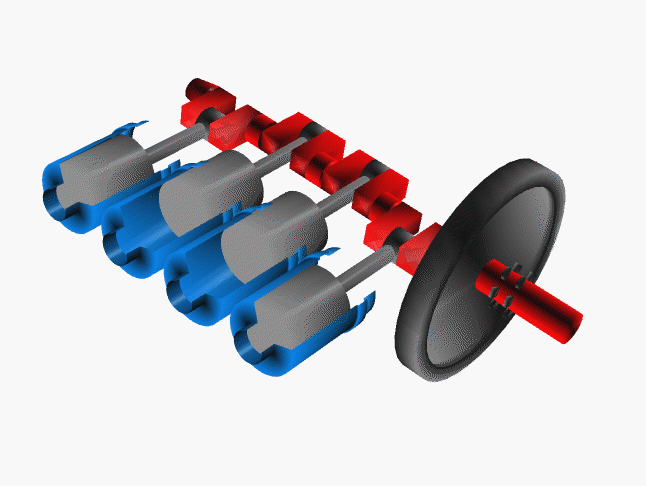

A crankshaft for a 4 cylinder engine
A crankshaft for a 4 cylinder engine

Most reciprocating internal combustion engines end up turning a shaft. This means that the linear motion of a piston must be converted into rotation. This is typically achieved by a crankshaft.

Flywheels

The flywheel is a disk or wheel attached to the crank, forming an inertial mass that stores rotational energy. In engines with only a single cylinder the flywheel is essential to carry energy over from the power stroke into a subsequent compression stroke. Flywheels are present in most reciprocating engines to smooth out the power delivery over each rotation of the crank and in most automotive engines also mount a gear ring for a starter. The rotational inertia of the flywheel also allows a much slower minimum unloaded speed and also improves the smoothness at idle. The flywheel may also perform a part of the balancing of the system and so by itself be out of balance, although most engines will use a neutral balance for the flywheel, enabling it to be balanced in a separate operation. The flywheel is also used as a mounting for the clutch or a torque converter in most automotive applications.

Starter systems

All internal combustion engines require some form of system to get them into operation. Most piston engines use a starter motor powered by the same battery as runs the rest of the electric systems. Large jet engines and gas turbines are started with a compressed air motor that is geared to one of the engine's driveshafts. Compressed air can be supplied from another engine, a unit on the ground or by the aircraft's APU. Small internal combustion engines are often started by pull cords. Motorcycles of all sizes were traditionally kick-started, though all but the smallest are now electric-start. Large stationary and marine engines may be started by the timed injection of compressed air into the cylinders - or occasionally with cartridges. Jump starting refers to assistance from another battery (typically when the fitted battery is discharged), while bump starting refers to an alternative method of starting by the application of some external force, e.g. rolling down a hill.

Lubrication Systems

Internal combustions engines require lubrication in operation that moving parts slide smoothly over each other. Insufficient lubrication subjects the parts of the engine to metal-to-metal contact, friction, heat build-up, rapid wear often culminating in parts becoming friction welded together eg pistons in their cylinders. Big end bearings seizing up will sometimes lead to a connecting rod breaking and poking out through the crankcase.

Several different types of lubrication systems are used. Simple two-stroke engines are lubricated by oil mixed into the fuel or injected into the induction stream as a spray. Early slow-speed stationary and marine engines were lubricated by gravity from small chambers similar to those used on steam engines at the time—with an engine tender refilling these as needed. As engines were adapted for automotive and aircraft use, the need for a high power-to-weight ratio led to increased speeds, higher temperatures, and greater pressure on bearings which in turn required pressure-lubrication for crank bearings and connecting-rod journals. This was provided either by a direct lubrication from a pump, or indirectly by a jet of oil directed at pickup cups on the connecting rod ends which had the advantage of providing higher pressures as the engine speed increased.

Control systems

Most engines require one or more systems to start and shutdown the engine and to control parameters such as the power, speed, torque, pollution, combustion temperature, efficiency and to stabilise the engine from modes of operation that may induce self-damage such as pre-ignition. Such systems may be referred to as engine control units.

Many control systems today are digital, and are frequently termed FADEC (Full Authority Digital Electronic Control) systems.

Diagnostic systems

Engine On Board Diagnostics (also known as OBD) is a computerized system that allows for electronic diagnosis of a vehicles' powerplant. The first generation, known as OBD1, was introduced 10 years after the U.S. Congress passed the Clean Air Act in 1970 as a way to monitor a vehicles' fuel injection system. OBD2, the second generation of computerized on-board diagnostics, was codified and recommended by the California Air Resource Board in 1994 and became mandatory equipment aboard all vehicles sold in the United States as of 1996.

Measures of engine performance

Engine types vary greatly in a number of different ways:

Energy efficiency

Once ignited and burnt, the combustion products—hot gases—have more available thermal energy than the original compressed fuel-air mixture (which had higher chemical energy). The available energy is manifested as high temperature and pressure that can be translated into work by the engine. In a reciprocating engine, the high-pressure gases inside the cylinders drive the engine's pistons.

Once the available energy has been removed, the remaining hot gases are vented (often by opening a valve or exposing the exhaust outlet) and this allows the piston to return to its previous position (top dead center, or TDC). The piston can then proceed to the next phase of its cycle, which varies between engines. Any heat that isn't translated into work is normally considered a waste product and is removed from the engine either by an air or liquid cooling system.

Engine efficiency can be discussed in a number of ways but it usually involves a comparison of the total chemical energy in the fuels, and the useful energy extracted from the fuels in the form of kinetic energy. The most fundamental and abstract discussion of engine efficiency is the thermodynamic limit for extracting energy from the fuel defined by a thermodynamic cycle. The most comprehensive is the empirical fuel efficiency of the total engine system for accomplishing a desired task; for example, the miles per gallon accumulated.

Internal combustion engines are primarily heat engines and as such the phenomenon that limits their efficiency is described by thermodynamic cycles. None of these cycles exceed the limit defined by the Carnot cycle which states that the overall efficiency is dictated by the difference between the lower and upper operating temperatures of the engine. A terrestrial engine is usually and fundamentally limited by the upper thermal stability derived from the material used to make up the engine. All metals and alloys eventually melt or decompose and there is significant researching into ceramic materials that can be made with higher thermal stabilities and desirable structural properties. Higher thermal stability allows for greater temperature difference between the lower and upper operating temperatures—thus greater thermodynamic efficiency.

The thermodynamic limits assume that the engine is operating in ideal conditions. A frictionless world, ideal gases, perfect insulators, and operation at infinite time. The real world is substantially more complex and all the complexities reduce the efficiency. In addition, real engines run best at specific loads and rates as described by their power curve. For example, a car cruising on a highway is usually operating significantly below its ideal load, because the engine is designed for the higher loads desired for rapid acceleration. The applications of engines are used as contributed drag on the total system reducing overall efficiency, such as wind resistance designs for vehicles. These and many other losses result in an engines' real-world fuel economy that is usually measured in the units of miles per gallon (or fuel consumption in liters per 100 kilometers) for automobiles. The miles in miles per gallon represents a meaningful amount of work and the volume of hydrocarbon implies a standard energy content.

Most steel engines have a thermodynamic limit of 37%. Even when aided with turbochargers and stock efficiency aids, most engines retain an average efficiency of about 18%-20%. Rocket engine efficiencies are better still, up to 70%, because they combust at very high temperatures and pressures and are able to have very high expansion ratios.

There are many inventions concerned with increasing the efficiency of IC engines. In general, practical engines are always compromised by trade-offs between different properties such as efficiency, weight, power, heat, response, exhaust emissions, or noise. Sometimes economy also plays a role in not only the cost of manufacturing the engine itself, but also manufacturing and distributing the fuel. Increasing the engines' efficiency brings better fuel economy but only if the fuel cost per energy content is the same.

Measures of fuel/propellant efficiency

For stationary and shaft engines including propeller engines, fuel consumption is measured by calculating the brake specific fuel consumption which measures the number of pounds of fuel that is needed to generate an hours' worth of horsepower-energy. In metric units, the number of grams of fuel needed to generate a kilowatt-hour of energy is calculated.

For internal combustion engines in the form of jet engines, the power output varies drastically with airspeed and a less variable measure is used: thrust specific fuel consumption (TSFC), which is the number of pounds of propellant that is needed to generate impulses that measure a pound an hour. In metric units, the number of grams of propellant needed to generate an impulse that measures one kilonewton per second.

For rockets— TSFC can be used, but typically other equivalent measures are traditionally used, such as specific impulse and effective exhaust velocity.

Air and noise pollution

Internal combustion engines such as reciprocating internal combustion engines produce air pollution emissions, due to incomplete combustion of carbonaceous fuel. The main derivatives of the process are carbon dioxide CO2, water and some soot—also called particulate matter (PM). The effects of inhaling particulate matter have been studied in humans and animals and include asthma, lung cancer, cardiovascular issues, and premature death. There are however some additional products of the combustion process that include nitrogen oxides and sulfur and some uncombusted hydrocarbons, depending on the operating conditions and the fuel-air ratio.

Not all of the fuel will be completely consumed by the combustion process; a small amount of fuel will be present after combustion, some of which can react to form oxygenates, such as formaldehyde or acetaldehyde, or hydrocarbons not initially present in the fuel mixture. The primary causes of this is the need to operate near the stoichiometric ratio for gasoline engines in order to achieve combustion and the resulting "quench" of the flame by the relatively cool cylinder walls, otherwise the fuel would burn more completely in excess air. When running at lower speeds, quenching is commonly observed in diesel (compression ignition) engines that run on natural gas. It reduces the efficiency and increases knocking, sometimes causing the engine to stall. Increasing the amount of air in the engine reduces the amount of the first two pollutants, but tends to encourage the oxygen and nitrogen in the air to combine to produce nitrogen oxides (NOx) that has been demonstrated to be hazardous to both plant and animal health. Further chemicals released are benzene and 1,3-butadiene that are also particularly harmful; and not all of the fuel burns up completely, so carbon monoxide (CO) is also produced.

Carbon fuels contain sulfur and impurities that eventually lead to producing sulfur oxides (SO) and sulfur dioxide (SO2) in the exhaust which promotes acid rain. One final element in exhaust pollution is ozone (O3). This is not emitted directly but made in the air by the action of sunlight on other pollutants to form "ground level ozone", which, unlike the "ozone layer" in the high atmosphere, is regarded as a bad thing if the levels are too high. Ozone is broken down by nitrogen oxides, so one tends to be lower where the other is higher.

For the pollutants described above (nitrogen oxides, carbon monoxide, sulphur dioxide, and ozone) there are accepted levels that are set by legislation to which no harmful effects are observed—even in sensitive population groups. For the other three: benzene, 1,3-butadiene, and particulates, there is no way of proving they are safe at any level so the experts set standards where the risk to health is, "exceedingly small".

Finally, significant contributions to noise pollution are made by internal combustion engines. Automobile and truck traffic operating on highways and street systems produce noise, as do aircraft flights due to jet noise, particularly supersonic-capable aircraft. Rocket engines create the most intense noise.

  1. ^ Encyclopedia Britannica: Internal Combustion engines
  2. ^ Answers.com Internal combustion engine
  3. ^ Columbia encyclopedia: Internal combustion engine
  4. ^ http://www.infoplease.com/ce6/sci/A0825332.html
  5. ^ [1]
  6. ^ Diesel — The Performance Choice, Banks Talks Tech, 11.19.04
  7. ^ Physics In an Automotive Engine
  8. ^ Improving IC Engine Efficiency
  9. ^ Rocket propulsion elements 7th edition-George Sutton, Oscar Biblarz pg 37-38

Bibliography

  • Singer, Charles Joseph; Raper, Richard, A History of Technology: The Internal Combustion Engine, edited by Charles Singer ... [et al.], Clarendon Press, 1954-1978. pp.157–176 [2]
  • Hardenberg, Horst O., The Middle Ages of the Internal combustion Engine, Society of Automotive Engineers (SAE), 1999



Text from Wikipedia is available under the Creative Commons Attribution/Share-Alike License; additional terms may apply.


Published in July 2009.




Click here to read more articles related to aviation and space!














christianity portal
directory of hotels worldwide



Copyright 2004-2024 © by Airports-Worldwide.com, Vyshenskoho st. 36, Lviv 79010, Ukraine
Legal Disclaimer
