Pressure

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Pressure

Pressure (symbol: p or P) is the force per unit area applied in a direction perpendicular to the surface of an object. Gauge pressure is the pressure relative to the local atmospheric or ambient pressure.

Definition

Pressure is an effect which occurs when a force is applied on a surface. The symbol of pressure is p or P.

Formula

Mathematically:


p = \frac{F}{A}\ \mbox{or}\ p = \frac{dF}{dA}

where:

p is the pressure,
F is the normal force,
A is the area.

Pressure is a scalar quantity, and has SI units of pascals; 1 Pa = 1 N/m, and has EES units of psi; 1 psi = 1 lb/in.

Pressure is transmitted to solid boundaries or across arbitrary sections of fluid normal to these boundaries or sections at every point. It is a fundamental parameter in thermodynamics and it is conjugate to volume.

Units

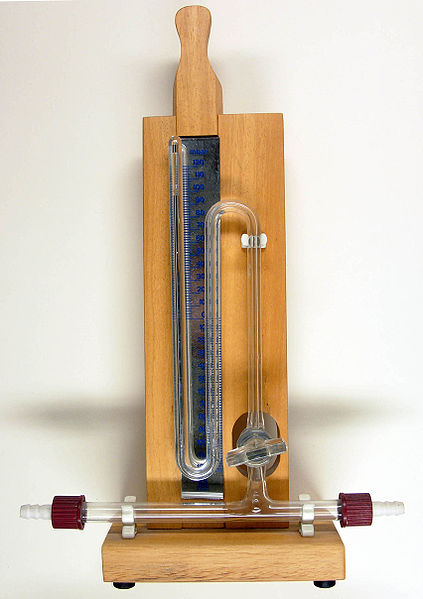

Mercury column
Mercury column

The SI unit for pressure is the pascal (Pa), equal to one newton per square meter (N·m or kg/m·s). This special name for the unit was added in 1971; before that, pressure in SI was expressed simply as N/m.

Non-SI measures such as pound per square inch (psi) and bar are used in parts of the world. The cgs unit of pressure is the barye (ba), equal to 1 dyn·cm. Pressure is sometimes expressed in grams-force/cm, or as kg/cm and the like without properly identifying the force units. But using the names kilogram, gram, kilogram-force, or gram-force (or their symbols) as units of force is expressly forbidden in SI. The technical atmosphere (symbol: at) is 1 kgf/cm. In US Customary units, it is 14.696 psi.

Some meteorologists prefer the hectopascal (hPa) for atmospheric air pressure, which is equivalent to the older unit millibar (mbar). Similar pressures are given in kilopascals (kPa) in most other fields, where the hecto prefix is rarely used. The unit inch of mercury (inHg, see below) is still used in the United States. Oceanographers usually measure underwater pressure in decibars (dbar) because an increase in pressure of 1 dbar is approximately equal to an increase in depth of 1 meter. Scuba divers often use a manometric rule of thumb: the pressure exerted by ten metres depth of water is approximately equal to one atmosphere.

The standard atmosphere (atm) is an established constant. It is approximately equal to typical air pressure at earth mean sea level and is defined as follows:

standard atmosphere = 101325 Pa = 101.325 kPa = 1013.25 hPa.

Because pressure is commonly measured by its ability to displace a column of liquid in a manometer, pressures are often expressed as a depth of a particular fluid (e.g., inches of water). The most common choices are mercury (Hg) and water; water is nontoxic and readily available, while mercury's high density allows for a shorter column (and so a smaller manometer) to measure a given pressure. The pressure exerted by a column of liquid of height h and density ρ is given by the hydrostatic pressure equation p = ρgh. Fluid density and local gravity can vary from one reading to another depending on local factors, so the height of a fluid column does not define pressure precisely. When millimeters of mercury or inches of mercury are quoted today, these units are not based on a physical column of mercury; rather, they have been given precise definitions that can be expressed in terms of SI units. The water-based units still depend on the density of water, a measured, rather than defined, quantity. These manometric units are still encountered in many fields. Blood pressure is measured in millimeters of mercury in most of the world, and lung pressures in centimeters of water are still common.

Gauge pressure is often given in units with 'g' appended, eg 'kPag' or 'psig', and units for measurements of absolute pressure are sometimes given a suffix of 'a', to avoid confusion, for example 'kPaa', 'psia'.

Presently or formerly popular pressure units include the following:

  • atmosphere (atm)
  • manometric units:
    • centimeter, inch, and millimeter of mercury (torr)
    • millimeter, centimeter, meter, inch, and foot of water
  • customary units:
    • kip, ton-force (short), ton-force (long), pound-force, ounce-force, and poundal per square inch
    • pound-force, ton-force (short), and ton-force (long)
  • non-SI metric units:
    • bar, decibar, millibar
    • kilogram-force, or kilopond, per square centimetre (technical atmosphere)
    • gram-force and tonne-force (metric ton-force) per square centimetre
    • barye (dyne per square centimetre)
    • kilogram-force and tonne-force per square metre
    • sthene per square metre (pieze)
Pressure Units

pascal
(Pa)

bar
(bar)
technical atmosphere
(at)

atmosphere
(atm)

torr
(Torr)
pound-force per
square inch

(psi)
1 Pa ≡ 1 N/m2 10−5 1.0197×10−5 9.8692×10−6 7.5006×10−3 145.04×10−6
1 bar 100,000 ≡ 106 dyn/cm2 1.0197 0.98692 750.06 14.5037744
1 at 98,066.5 0.980665 ≡ 1 kgf/cm2 0.96784 735.56 14.223
1 atm 101,325 1.01325 1.0332 ≡ 1 atm 760 14.696
1 torr 133.322 1.3332×10−3 1.3595×10−3 1.3158×10−3 ≡ 1 Torr; ≈ 1 mmHg 19.337×10−3
1 psi 6,894.76 68.948×10−3 70.307×10−3 68.046×10−3 51.715 ≡ 1 lbf/in2

Example reading:  1 Pa = 1 N/m  = 10 bar  = 10.197×10 at  = 9.8692×10 atm, etc.


Examples

As an example of varying pressures, a finger can be pressed against a wall without making any lasting impression; however, the same finger pushing a thumbtack can easily damage the wall. Although the force applied to the surface is the same, the thumbtack applies more pressure because the point concentrates that force into a smaller area. Pressure is transmitted to solid boundaries or across arbitrary sections of fluid normal to these boundaries or sections at every point. Unlike stress, pressure is defined as a scalar quantity.

Another example is of a common knife. If we try and cut a fruit with the flat side it obviously won't cut. But if we take the thin side, it will cut smoothly. The reason is, the flat side has a greater surface area(less pressure) and so it does not cut the fruit. When we take the thin side, the surface area is reduced and so it cuts the fruit easily and quickly. This is one example of a practical application of pressure.

The gradient of pressure is called the force density. For gases, pressure is sometimes measured not as an absolute pressure, but relative to atmospheric pressure; such measurements are called gauge pressure (also sometimes spelled gage pressure). An example of this is the air pressure in an automobile tire, which might be said to be "220 kPa/32psi", but is actually 220 kPa/32 psi above atmospheric pressure. Since atmospheric pressure at sea level is about 100 kPa/14.7 psi, the absolute pressure in the tire is therefore about 320 kPa/46.7 psi. In technical work, this is written "a gauge pressure of 220 kPa/32 psi". Where space is limited, such as on pressure gauges, name plates, graph labels, and table headings, the use of a modifier in parentheses, such as "kPa (gauge)" or "kPa (absolute)", is permitted. In non-SI technical work, a gauge pressure of 32 psi is sometimes written as "32 psig" and an absolute pressure as "32 psia", though the other methods explained above that avoid attaching characters to the unit of pressure are preferred.

Gauge pressure is the relevant measure of pressure wherever one is interested in the stress on storage vessels and the plumbing components of fluidics systems. However, whenever equation-of-state properties, such as densities or changes in densities, must be calculated, pressures must be expressed in terms of their absolute values. For instance, if the atmospheric pressure is 100 kPa, a gas (such as helium) at 200 kPa (gauge) (300 kPa [absolute]) is 50 % denser than the same gas at 100 kPa (gauge) (200 kPa [absolute]). Focusing on gauge values, one might erroneously conclude the first sample had twice the density of the second one.

Scalar nature

In a static gas, the gas as a whole does not appear to move. The individual molecules of the gas, however, are in constant random motion. Because we are dealing with an extremely large number of molecules and because the motion of the individual molecules is random in every direction, we do not detect any motion. If we enclose the gas within a container, we detect a pressure in the gas from the molecules colliding with the walls of our container. We can put the walls of our container anywhere inside the gas, and the force per unit area (the pressure) is the same. We can shrink the size of our "container" down to an infinitely small point, and the pressure has a single value at that point. Therefore, pressure is a scalar quantity, not a vector quantity. It has magnitude but no direction sense associated with it. Pressure acts in all directions at a point inside a gas. At the surface of a gas, the pressure force acts perpendicular (at right angle) to the surface.

A closely related quantity is the stress tensor σ, which relates the vector force F to the vector area A via


\mathbf{F}=\mathbf{\sigma A}\,

This tensor may be divided up into a scalar part (pressure) and a traceless tensor part shear. The shear tensor gives the force in directions parallel to the surface, usually due to viscous or frictional forces. The stress tensor is sometimes called the pressure tensor, but in the following, the term "pressure" will refer only to the scalar pressure.

Types

Explosion or deflagration pressures

Explosion or deflagration pressures are the result of the ignition of explosive gases, mists, dust/air suspensions, in unconfined and confined spaces.

Negative pressures

While pressures are generally positive, there are several situations in which negative pressures may be encountered:

  • When dealing in relative (gauge) pressures. For instance, an absolute pressure of 80 kPa may be described as a gauge pressure of -21 kPa (i.e., 21 kPa below an atmospheric pressure of 101 kPa).
  • When attractive forces (e.g., Van der Waals forces) between the particles of a fluid exceed repulsive forces. Such scenarios are generally unstable since the particles will move closer together until repulsive forces balance attractive forces. Negative pressure exists in the transpiration pull of plants, and is used to suction water even higher than the ten metres that it rises in a pure vacuum.
  • The Casimir effect can create a small attractive force due to interactions with vacuum energy; this force is sometimes termed 'vacuum pressure' (not to be confused with the negative gauge pressure of a vacuum).
  • Depending on how the orientation of a surface is chosen, the same distribution of forces may be described either as a positive pressure along one surface normal, or as a negative pressure acting along the opposite surface normal.
  • In the cosmological constant.

Stagnation pressure

Stagnation pressure is the pressure a fluid exerts when it is forced to stop moving. Consequently, although a fluid moving at higher speed will have a lower static pressure, it may have a higher stagnation pressure when forced to a standstill. Static pressure and stagnation pressure are related by the Mach number of the fluid. In addition, there can be differences in pressure due to differences in the elevation (height) of the fluid. See Bernoulli's equation (note: Bernoulli's equation only applies for incompressible flow).

The pressure of a moving fluid can be measured using a Pitot tube, or one of its variations such as a Kiel probe or Cobra probe, connected to a manometer. Depending on where the inlet holes are located on the probe, it can measure static pressure or stagnation pressure.

Surface pressure

There is a two-dimensional analog of pressure – the lateral force per unit length applied on a line perpendicular to the force.

Surface pressure is denoted by π and shares many similar properties with three-dimensional pressure. Properties of surface chemicals can be investigated by measuring pressure/area isotherms, as the two-dimensional analog of Boyle's law, πA = k, at constant temperature.

\pi = \frac{F}{l}.

Pressure of an ideal gas

In an ideal gas, molecules have no volume and do not interact. Pressure varies linearly with temperature, volume, and quantity according to the ideal gas law,

p=\frac{nRT}{V}

where:

p is the absolute pressure of the gas
n is the amount of substance (in [mole])
T is the temperature (in kelvin)
V is the volume
R is the ideal gas constant.

Real gases exhibit a more complex dependence on the variables of state.
