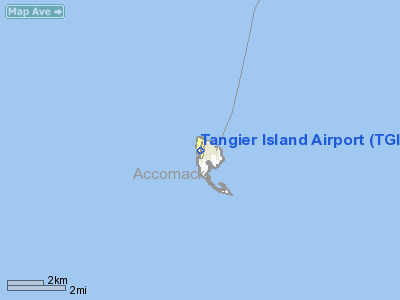

Location & QuickFacts
| FAA Information Effective: | 2008-09-25 |
| Airport Identifier: | TGI |
| Airport Status: | Operational |
| Longitude/Latitude: | 075-59-52.0000W/37-49-30.5000N
-75.997778/37.825139 (Estimated) |
| Elevation: | 5 ft / 1.52 m (Surveyed) |
| Land: | 121 acres |
| From nearest city: | 4 nautical miles W of Tangier, VA |
| Location: | Accomack County, VA |
| Magnetic Variation: | 07W (1965) |
Owner & Manager
| Ownership: | Publicly owned |
| Owner: | Town Of Tangier |
| Address: | Tangier Island
Tangier, VA 23440 |
| Phone number: | 757-891-2496 |
| Manager: | Renee Tyler |
| Address: | Po Box 222
Tangier, VA 23440 |
| Phone number: | 757-891-2496
ALSO 757-891-2446. |
Airport Operations and Facilities
| Airport Use: | Open to public |
| Wind indicator: | Yes |
| Segmented Circle: | No |
| Control Tower: | No |
| Lighting Schedule: | PHONE REQ
ROTG BCN OPERATES ON REQ (EMERG ONLY THROUGH AMGR - CTAF OR PHONE 757-891-2496). |
| Beacon Color: | Clear-Green (lighted land airport) |
| Landing fee charge: | Yes |
| Sectional chart: | Washington |
| Region: | AEA - Eastern |
| Boundary ARTCC: | ZDC - Washington |
| Tie-in FSS: | DCA - Leesburg |
| FSS on Airport: | No |
| FSS Toll Free: | 1-800-WX-BRIEF |
| NOTAMs Facility: | DCA (NOTAM-d service avaliable) |
| Federal Agreements: | NGVY |
Airport Communications
| CTAF: | 122.800 |
| Unicom: | 122.800 |
Airport Services
| Airframe Repair: | NONE |
| Power Plant Repair: | NONE |
| Bottled Oxygen: | NONE |
| Bulk Oxygen: | NONE |

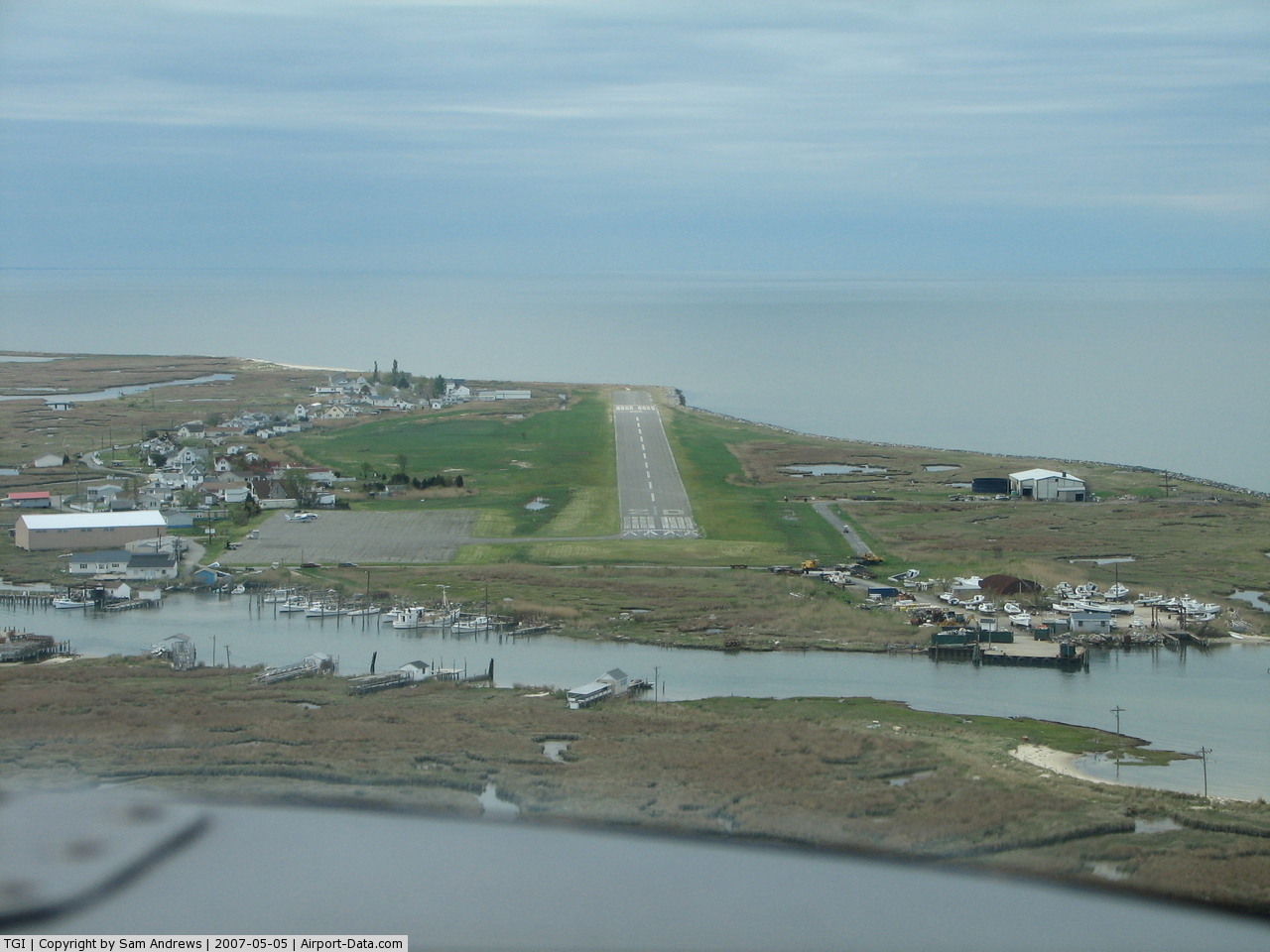

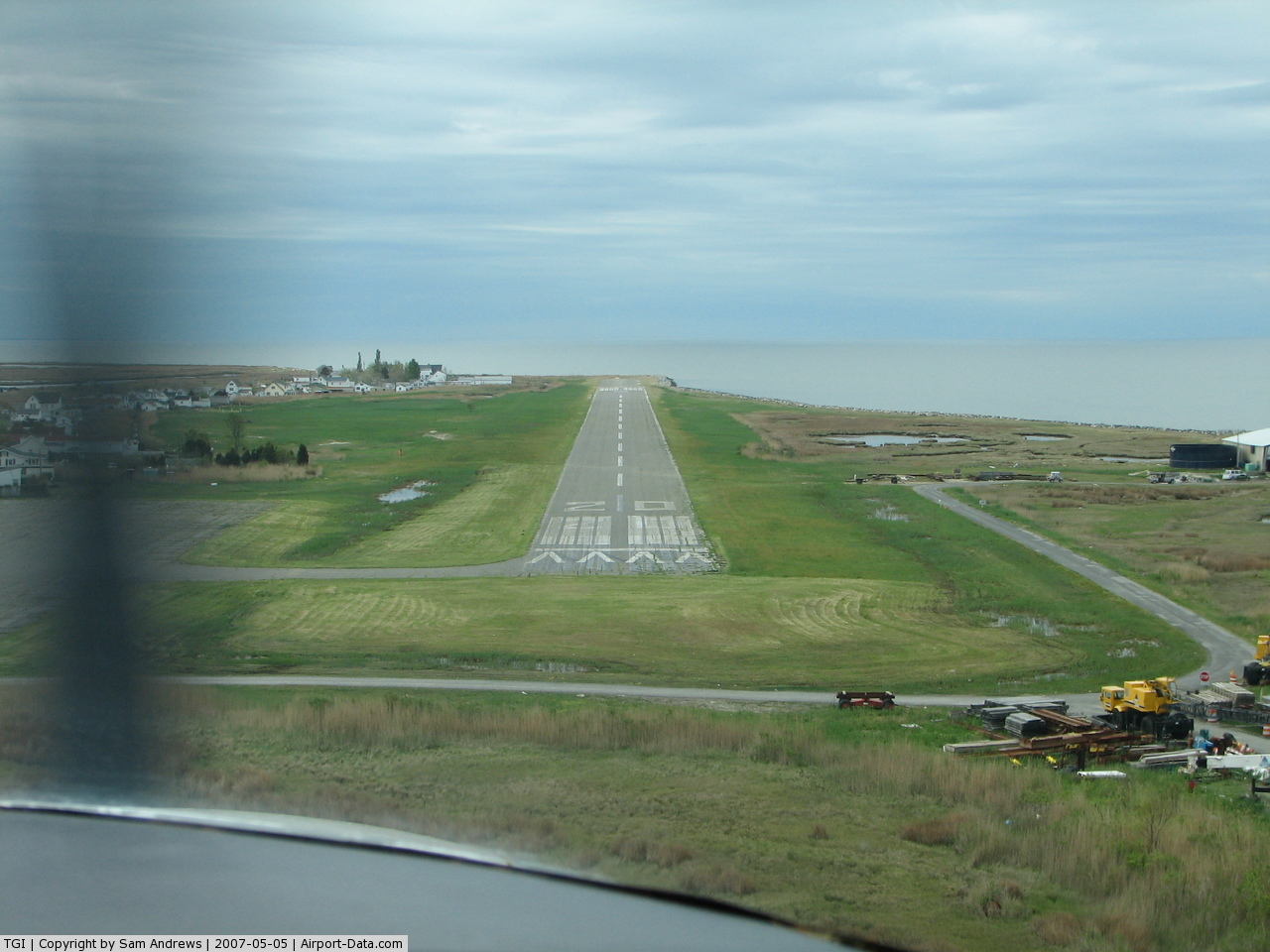

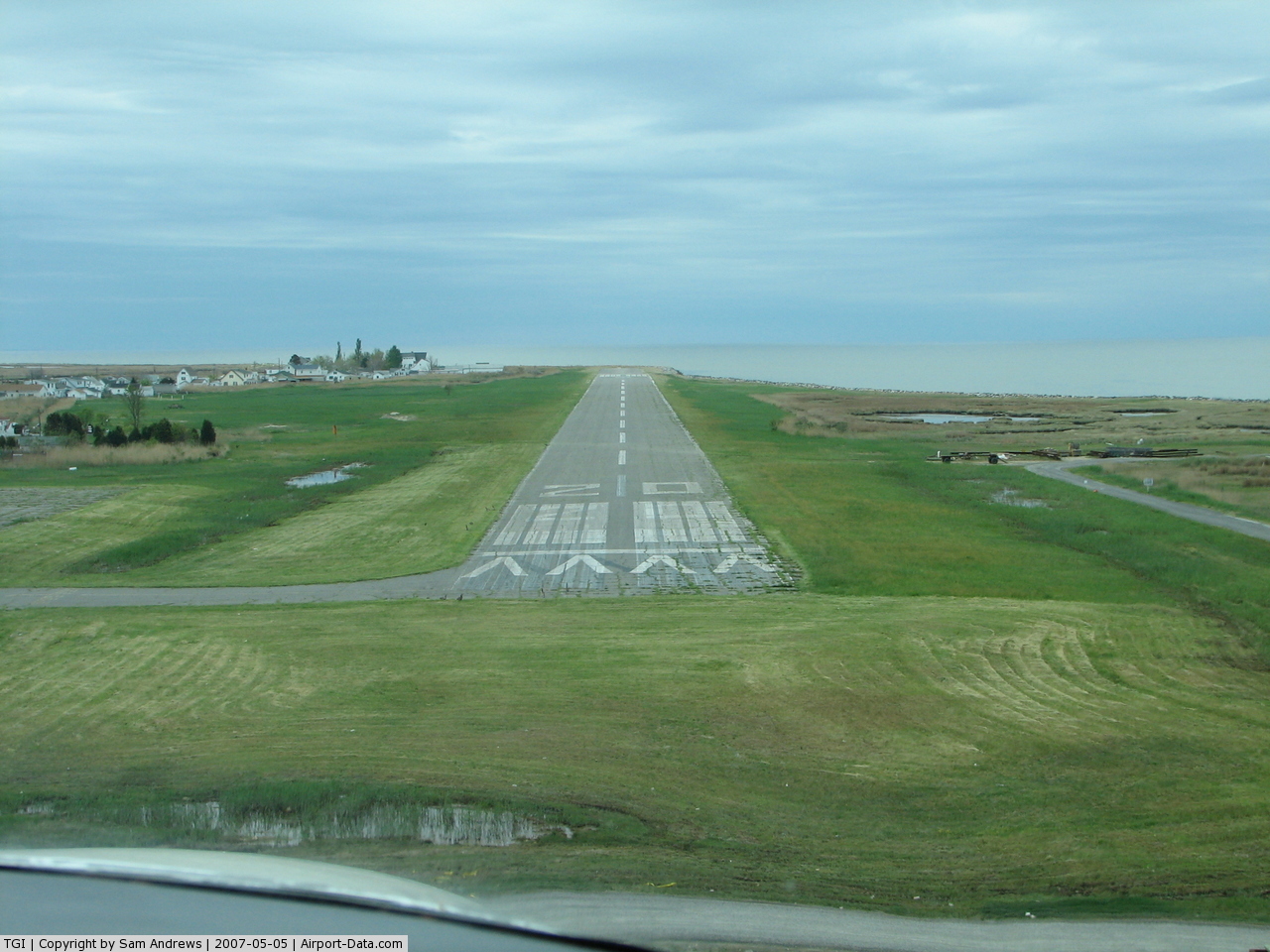

Runway Information
Runway 02/20
| Dimension: | 2950 x 75 ft / 899.2 x 22.9 m |
| Surface: | ASPH, Fair Condition
UNEVEN PAVEMENT; BUMPS & CRACKS. |
| Weight Limit: | Single wheel: 12500 lbs. |
| |
Runway 02 |
Runway 20 |
| Longitude: | 075-59-54.2604W | 075-59-49.7185W |
| Latitude: | 37-49-16.0609N | 37-49-45.0035N |
| Elevation: | 5.00 ft | 5.00 ft |
| Alignment: | 7 | 127 |
| Traffic Pattern: | Right | Left |
| Markings: | Non-precision instrument, Fair Condition
MARKINGS VARY GOOD - FAIR | Non-precision instrument, Fair Condition
MARKINGS VARY GOOD - FAIR |
| Displaced threshold: | 0.00 ft | 99.00 ft |
| Obstruction: | 8 ft pole, 486.0 ft from runway, 207 ft right of centerline, 35:1 slope to clear
SEAWALL LOCATED APPROX 20 FEET WEST RUNWAY 02, GRADUALLY TRENDING AWAY FROM RUNWAY DURING FIRST 400 FEET. | 15 ft road, 254.0 ft from runway, 3:1 slope to clear
APCH SLOPE 23:1 TO DSPLCD THR. |
|
Radio Navigation Aids
| ID |
Type |
Name |
Ch |
Freq |
Var |
Dist |
| BDB | NDB | Accomack | | 336.00 | 11W | 18.0 nm |
| NHK | NDB | Patuxent | | 400.00 | 10W | 33.7 nm |
| CGE | NDB | Cambridge | | 355.00 | 10W | 42.9 nm |
| PJS | NDB | Henry | | 375.00 | 09W | 47.9 nm |
| OX | NDB | Landy | | 407.00 | 12W | 49.8 nm |
| LFI | TACAN | Langley | 070X | | 10W | 47.7 nm |
| CCV | VORTAC | Cape Charles | 059X | 112.20 | 10W | 28.7 nm |
| SWL | VORTAC | Snow Hill | 071X | 112.40 | 08W | 28.9 nm |
| PXT | VORTAC | Patuxent | 123X | 117.60 | 10W | 33.7 nm |
| SBY | VORTAC | Salisbury | 049X | 111.20 | 12W | 38.8 nm |
| HCM | VORTAC | Harcum | 025X | 108.80 | 07W | 40.8 nm |
Remarks
- PAEW ADJECENT TO ALL RYS, TWYS & RAMPS.
- BE ALERT: RSTD AREA ONE MI WEST OF ARPT; HI-SPEED ACFT DROP BOMBS & FIRE LIVE AMUNITION IN AREA.
