Nashville Intl Airport



Nashville International Airport
BNA Nashville.jpg
IATA: BNA – ICAO: KBNA
BNA is located in Tennessee
+
BNA
Location of the Nashville International Airport
Summary
Airport type Public
Owner MNAA
Operator Metropolitan Nashville Airport Authority
Location Nashville, Tennessee
Elevation AMSL 599 ft / 183 m
Coordinates 36°07′36″N 86°40′55″W / 36.12667°N 86.68194°W / 36.12667; -86.68194
Website www.flynashville.com
Runways
Direction Length Surface
ft m
2L/20R 7,703 2,348 Concrete
2C/20C 8,001 2,438 Concrete
2R/20L 8,000 2,438 Concrete
13/31 11,030 3,362 Concrete
Statistics (2009)
Aircraft operations 190,993
Based aircraft 100

Nashville International Airport (IATA: BNA, ICAO: KBNA) is a joint civil-military airport in southeastern Nashville, Tennessee. The IATA Airport Code BNA is descended from one of the city's early aviation facilities—Berry Field, NAshville, which was the name of the current facility until 1988, when the name was changed to reflect plans for international flights. The airport has four runways.

Berry Field Air National Guard Base is located at Nashville International Airport. The base is home to the 118th Airlift Wing, an Air National Guard unit operationally-gained by the Air Education and Training Command (AETC), as well as the headquarters of the Tennessee Air National Guard.

The airport is served by MTA bus #18. The Airport served nearly 10 million passengers in 2008, and over 79,000 tons of Cargo in 2008. The Terminal Complex includes a 900,000-square-foot (84,000 m) passenger terminal with 47 Air Carrier Gates and up to 78 Commuter Parking Positions. It contributes $3.74 billion in economic activity and $1.18 billion in wages and more than 39,700 jobs annually to the regional economy. The Airport serves a trade area of 79 counties in Middle Tennessee, Southern Kentucky, and Northern Alabama.

History

The airport first opened in 1937 as Berry Field. It was named after Harry S. Berry, the Tennessee administrator for the Works Progress Administration. It spread along 340 acres (1.4 km) on Dixie Parkway (now Murfreesboro Road).

During World War II the airfield was used by the United States Army Air Force Air Transport Command 20th Ferrying Group for movement of new aircraft from the United States to overseas locations.

A much larger terminal opened in 1961 to handle increased air traffic. It was the setting for several scenes in the 1975 Robert Altman film Nashville, and was accessed off Briley Parkway. The current passenger facility on Donelson Pike was opened in 1987, and was designed for a new American Airlines hub. A year later, it was renamed Nashville International Airport/Berry Field to reflect its new status. While it is now very rare to see the "Berry Field" portion used, the airport's IATA code reflects the old name; it is short for Berry Field NAshville.

In 2002, Embraer Aircraft Maintenance Services (EAMS) selected Nashville as the location for its Regional Airline Support Facility.

Initially, American Airlines scheduled 135 flights daily destined for 60 different cities. An international wing was constructed in Concourse A to accommodate a service to London. However, airline service with American peaked in 1992 and in the years that followed, routes were cut back until eventually American ceased operations in Nashville at the hub status. Though BNA lost American, Southwest Airlines quickly filled the void by seizing 47% of the Nashville market and making it a focus city. Today, Nashville International Airport is served by 14 carriers. More than 375 average daily arriving and departing flights operate from 47 air carrier gates. Nashville International provides direct air service to 90 markets. BNA averages a total of 523 commercial, general aviation, air taxi, and military flight operations per day. Nonstop flights are available to 45 domestic destinations and two international.

Concourses, airlines, and destinations

Airlines Destinations Concourse
Air Canada Jazz Toronto-Pearson C
American Airlines Dallas/Fort Worth, Los Angeles, Miami, New York-LaGuardia C
American Eagle Chicago-O'Hare, Miami, New York-LaGuardia, Washington-Reagan C
Branson Air Express Branson A
Continental Express operated by ExpressJet Airlines Houston-Intercontinental, Newark A
Delta Air Lines Atlanta, Detroit
Seasonal: Cancún, Salt Lake City
B
Delta Connection operated by Atlantic Southeast Airlines Atlanta B
Delta Connection operated by Comair New York-JFK B
Delta Connection operated by Compass Airlines Detroit, New York-LaGuardia B
Delta Connection operated by Pinnacle Airlines Atlanta, Memphis, Minneapolis/St. Paul B
Delta Connection operated by SkyWest Airlines Cincinnati/Northern Kentucky, Salt Lake City B
Frontier Airlines Denver A
Midwest Connect operated by Chautauqua Airlines Milwaukee C
Southwest Airlines Austin, Baltimore, Birmingham (AL), Chicago-Midway, Cleveland, Columbus (OH), Denver, Detroit, Ft Lauderdale, Ft Myers [begins February 13], Hartford/Springfield, Houston-Hobby, Jacksonville, Kansas City, Las Vegas, Los Angeles, New Orleans, Norfolk, Orlando, Panama City (FL), Philadelphia, Phoenix, Providence [ends November 7], Raleigh/Durham, San Antonio, San Diego, St. Louis, Tampa
Seasonal: Oakland, Seattle/Tacoma
C
United Express operated by ExpressJet Airlines Chicago-O'Hare, Washington-Dulles A
United Express operated by Mesa Airlines Chicago-O'Hare, Washington-Dulles A
United Express operated by SkyWest Airlines Chicago-O'Hare, Denver A
United Express operated by Trans States Airlines Chicago-O'Hare, Washington-Dulles A
US Airways Charlotte B
US Airways Express operated by Air Wisconsin Philadelphia, Washington-Reagan B
US Airways Express operated by Mesa Airlines Charlotte B
US Airways Express operated by Republic Airlines and PSA Airlines Charlotte, Philadelphia, Washington-Reagan B

Concourse D

This concourse, currently closed by the Metro Nashville Airport Authority (MNAA), was constructed as a ground level commuter terminal for American Eagle. All American Eagle flights operated out of Concourse D until, as a cost cutting measure after 9/11, all American Eagle flights were moved to Concourse C to share gates with American Airlines. For a short period of time, Concourse D was used by Corporate Airlines to operate its own regional flights until it became an American Connection and Continental Connection regional affiliate. Currently, the MNAA has no plans to reopen Concourse D.

Signature Flight Support

Airlines Destinations
Locair Somerset (KY)

Future Service Without Gate Assignments

Airlines Destinations
KentuckySkies Owensboro (KY)
TennesseeSkies Jackson (TN)
Pacific Wings Athens (GA)

Airline lounges

Nashville International Airport is home to a Delta Air Lines Sky Club located adjacent to gate B3.

The American Airlines Admirals Club is located above gate C12. The facility, which was closed after September 11, 2001, reopened on July 11, 2007.

Airport Arts

Nashville International Airport takes great pride in showcasing the Middle Tennessee region's visual and performing arts. Arts at the Airport receives funding for the visual arts from the Metropolitan Nashville Airport Authority (MNAA) and the Tennessee Arts Commission (TAC). The award-winning Arts at the Airport program reviews and presents works by local, regional, and national artists for the enjoyment and enrichment of Nashville International Airport's passengers and visitors. In addition to visual art, Arts at the Airport includes music since it is an integral part of Nashville. The arts come alive with musical performances on stages throughout BNA’s passenger terminal. The Flying Solo Exhibition Series is supported by the Metropolitan Nashville Airport Authority (MNAA), the Tennessee Arts Commission (TAC), and is funded under an agreement with the State of Tennessee.

Cargo facilities

Air cargo integrators, charter cargo airlines and air express companies operate daily from the Nashville Air Cargo all-cargo complex. The complex, located across the airfield from the airport's passenger facility, is within five minutes of Interstate 40. It provides taxiway access to Nashville International's three parallel runways and crosswind international runway. The airport has seen considerable growth in its cargo offerings in recent years with the addition of a 70,000 sq ft (7,000 m) FedEx facility at BNA. China Airlines ceased operations at Nashville on July 31, 2009

Airlines with cargo operations at Nashville International Airport are:

  • BAX Global
  • FedEx Express

Berry Field Air National Guard Base

Berry Field Air National Guard Base is home to Headquarters, Tennessee Air National Guard and the 118th Airlift Wing (118 AW), the latter serving as host wing for the installation. Berry Field and the 118 AW currently operate the C-130 International Training Center, an AETC activity in support of DoD Foreign Military Sales (FMS) of the C-130, training up to 150 international military C-130E and C-130H flight crew and maintenance students annually.

The Air National Guard presence at BNA dates back to 1937, when the 105th Observation Squadron, a U.S. Army Air Corps-gained element of the Tennessee National Guard initially took up residence at the airport. With the advent of World War II, the squadron was called into active Federal service as a U.S. Army Air Forces unit and transitioned to a bombardment mission flying the B-25 Mitchell medium bomber in the Pacific theater. At war's end and into the immediate postwar period, the unit transitioned to a fighter mission flying the P-47 Thunderbolt. With the establishment of the U.S. Air Force as a separate service in 1947, the unit was redesignated the 118th Fighter Group. Subsequent redesignations occurred in 1950 as the 118th Composite Wing and in 1953 as the 118th Tactical Reconnaissance Wing, during which time the unit operated the F-51 Mustang, RF-80 Shooting Star and RF-84 Thunderflash while operationally gained by the Tactical Air Command (TAC).

In 1961, the unit transitioned to an airlift mission, first operating C-97 Stratofreighter, followed by C-124 Globemaster II and finally C-130 Hercules aircraft under the cognizance of the Military Air Transport Service (MATS), Military Airlift Command (MAC) and Air Mobility Command (AMC), with combat service in Operation Desert Shield, Operation Desert Storm, Operation Enduring Freedom and Operation Iraqi Freedom.

Approximately 1,500 personnel are assigned to both HQ, Tennessee Air Hational Guard and to the 118 AW at Berry ANGB. Approximately 400 are full-time Active Guard and Reserve (AGR) and Air Reserve Technician (ART) personnel, augmented by approximately 1100 traditional part-time air guardsmen. Approximately 100 additional foreign military personnel are also temporarily assigned to the 118 AW at any one time for training in the C-130E or C-130H aircraft.

BRAC 2005

In its 2005 BRAC Recommendations, DoD recommended to realign Nashville International Airport (IAP) Air National Guard Station, Tennessee. This recommendation would distribute the C-130H aircraft of the 118th Airlift Wing to the 182d Airlift Wing of the Illinois Air National Guard at Greater Peoria Airport Air National Guard Station, Illinois (four aircraft), and the 123d Airlift Wing of the Kentucky Air National Guard at Louisville IAP Air National Guard Station, Kentucky (four aircraft). Flying related ECS (aerial port and fire fighters) would move to Memphis IAP Air National Guard Station and the aeromedical squadron from Nashville would move to NAS JRB Fort Worth, Texas. Other ECS would remain in place at Nashville. Nashville (104) had a low military value ranking and was near other ANG bases keeping or gaining aircraft.

C-130 International Training Center

In October 2007, it was announced that as an amendment to the BRAC 2005 decision, the 118 AW would continue to retain a flying mission, transitioning from an Air Mobility Command (AMC)-gained unit to that of a training organization operationally gained by the Air Education and Training Command (AETC). As the C-130 International Training Center, the 118 AW assumed a new role as a C-130 Formal Training Unit (FTU) in support of DoD Foreign Military Sales (FMS), training up to 150 international military C-130E and C-130H flight crew and maintenance students annually. Although the 118 AW's C-130H2 aircraft were transferred to other Air National Guard airlift wings, the 118 AW did gain six WC-130H aircraft that had been retired from weather reconnaissance duties with the Air Force Reserve Command's 403d Wing at Keesler AFB, Mississippi. The first class of international C-130 students trained by the 118 AW graduated in October 2008.



The above content comes from Wikipedia and is published under free licenses – click here to read more.

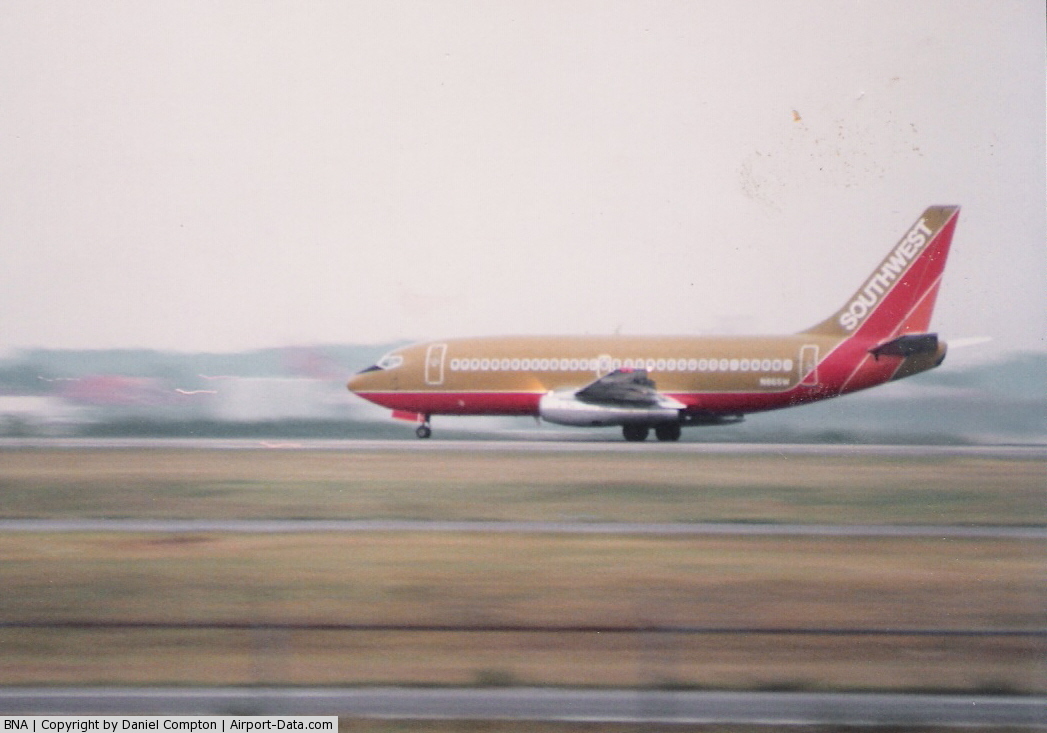

Nashville Intl Airport picture

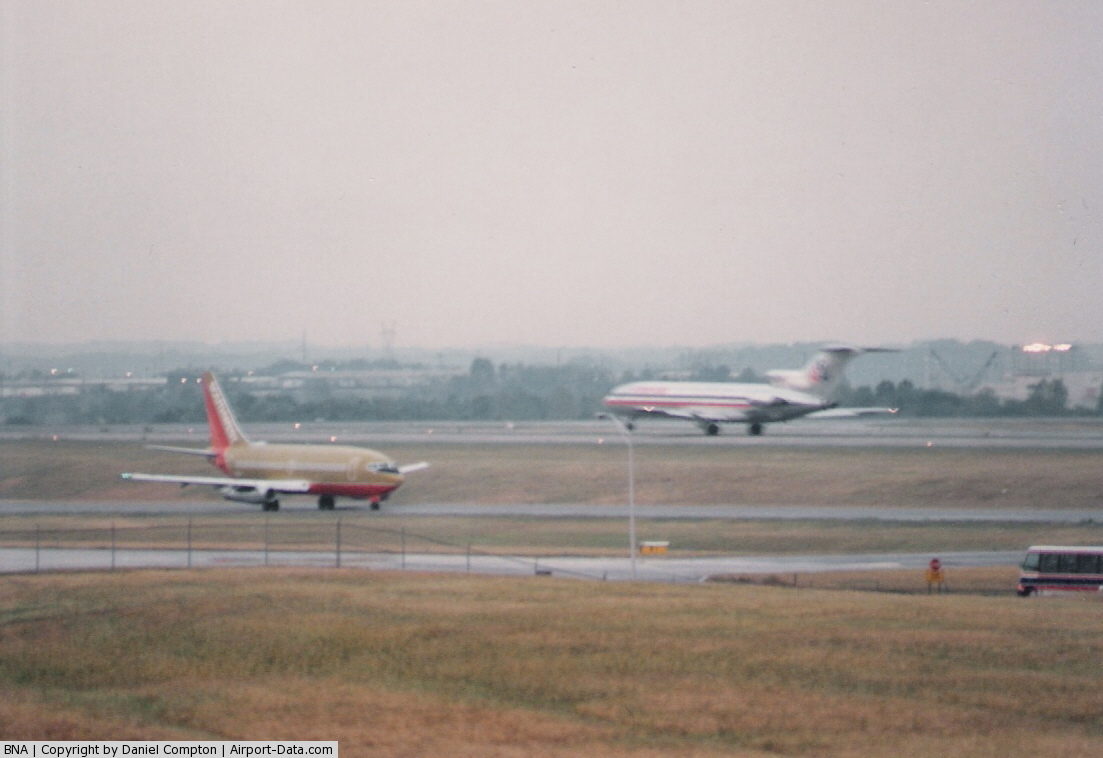

Nashville Intl Airport picture
(Click on the photo to enlarge)


Nashville Intl Airport picture
(Click on the photo to enlarge)



Location & QuickFacts

FAA Information Effective:2008-09-25
Airport Identifier:BNA
Airport Status:Operational
Longitude/Latitude:086-40-41.5000W/36-07-28.1000N
-86.678194/36.124472 (Estimated)
Elevation:599 ft / 182.58 m (Surveyed)
Land:3900 acres
From nearest city:5 nautical miles SE of Nashville, TN
Location:Davidson County, TN
Magnetic Variation:02W (1995)

Owner & Manager

Ownership:Publicly owned
Owner:Metro Nashville Arpt Auth
Address:One Terminal Dr. Suite 501
Nashville, TN 37214
Phone number:615-275-1600
Manager:Raul Regalado
Address:One Terminal Dr. Suite 501
Nashville, TN 37214
Phone number:615-275-1600

Airport Operations and Facilities

Airport Use:Open to public
Wind indicator:Yes
Segmented Circle:No
Control Tower:Yes
Lighting Schedule:DUSK-DAWN
Beacon Color:Clear-Green (lighted land airport)
Landing fee charge:No
Sectional chart:Atlanta
Region:ASO - Southern
Boundary ARTCC:ZME - Memphis
Tie-in FSS:BNA - Nashville
FSS on Airport:Yes
FSS Toll Free:1-800-WX-BRIEF
FOR LOCAL CALL TO FSS DIAL 695-6624.
NOTAMs Facility:BNA (NOTAM-d service avaliable)
Certification type/date:I C S 05/1973
Federal Agreements:NGPRY3

Airport Communications

Unicom:122.950

Airport Services

Fuel available:100LLA
Airframe Repair:MAJOR
Power Plant Repair:MAJOR
Bottled Oxygen:LOW
Bulk Oxygen:LOW

Runway Information

Runway 02C/20C

Dimension:8001 x 150 ft / 2438.7 x 45.7 m
Surface:CONC, Good Condition
Surface Treatment:Saw-cut or plastic Grooved
Weight Limit:Single wheel: 75000 lbs.
Dual wheel: 209000 lbs.
Dual tandem wheel: 350000 lbs.
Edge Lights:High


Runway 02C

Runway 20C

Longitude:086-41-16.6598W086-40-46.5515W
Latitude:36-06-11.9913N36-07-27.2392N
Elevation:569.00 ft572.00 ft
Alignment:18127
ILS Type:LOC/GS
Traffic Pattern:LeftLeft
Markings:Precision instrument, Good ConditionPrecision instrument, Good Condition
Crossing Height:40.00 ft0.00 ft
VASI:2-box SAVASI on left side
Visual Glide Angle:3.00°0.00°
RVR Equipment:touchdown
Approach lights:MALSR
Runway End Identifier:Yes
Obstruction:, 50:1 slope to clear32 ft , 850.0 ft from runway, 20:1 slope to clear
Decleard distances:Take off run available 8000.00 ft
Take off distance available 8000.00 ft
Actual stop distance available 8000.00 ft
Landing distance available 8000.00 ft
Take off run available 8000.00 ft
Take off distance available 8000.00 ft
Actual stop distance available 8000.00 ft
Landing distance available 8000.00 ft

Runway 02L/20R

Dimension:7703 x 150 ft / 2347.9 x 45.7 m
Surface:CONC, Good Condition
Surface Treatment:Saw-cut or plastic Grooved
Weight Limit:Single wheel: 100000 lbs.
Dual wheel: 200000 lbs.
Dual tandem wheel: 390000 lbs.
Edge Lights:High


Runway 02L

Runway 20R

Longitude:086-41-11.3086W086-40-42.8371W
Latitude:36-07-03.6414N36-08-16.2304N
Elevation:598.00 ft555.00 ft
Alignment:18127
ILS Type:ILS/DME ILS
Traffic Pattern:LeftLeft
Markings:Precision instrument, Good ConditionPrecision instrument, Good Condition
Crossing Height:0.00 ft77.00 ft
VASI:4-light PAPI on left side
Visual Glide Angle:0.00°3.00°
RVR Equipment:touchdown, rollouttouchdown, rollout
Approach lights:ALSF1
OTS INDEFLY.
ODALS
OTS INDEFLY.
Centerline Lights:YesYes
Touchdown Lights:YesNo
Decleard distances:Take off run available 7702.00 ft
Take off distance available 7702.00 ft
Actual stop distance available 7702.00 ft
Landing distance available 7702.00 ft
Take off run available 7702.00 ft
Take off distance available 7702.00 ft
Actual stop distance available 7702.00 ft
Landing distance available 7702.00 ft

Runway 02R/20L

Dimension:8000 x 150 ft / 2438.4 x 45.7 m
Surface:CONC, Good Condition
Surface Treatment:Saw-cut or plastic Grooved
Weight Limit:Single wheel: 75000 lbs.
Dual wheel: 209000 lbs.
Dual tandem wheel: 350000 lbs.
Edge Lights:High


Runway 02R

Runway 20L

Longitude:086-40-03.5155W086-39-33.3978W
Latitude:36-06-45.7672N36-08-01.0105N
Elevation:590.00 ft540.00 ft
Alignment:18127
ILS Type:ILS/DME ILS/DME
Traffic Pattern:LeftLeft
Markings:Precision instrument, Good ConditionPrecision instrument, Good Condition
Crossing Height:55.00 ft55.00 ft
VASI:4-light PAPI on right side4-light PAPI on left side
Visual Glide Angle:3.00°3.00°
RVR Equipment:touchdown, midfield, rollouttouchdown, midfield, rollout
Approach lights:ALSF2MALSR
Centerline Lights:YesYes
Touchdown Lights:YesNo
Decleard distances:Take off run available 8000.00 ft
Take off distance available 8000.00 ft
Actual stop distance available 8000.00 ft
Landing distance available 8000.00 ft
Take off run available 8000.00 ft
Take off distance available 8000.00 ft
Actual stop distance available 8000.00 ft
Landing distance available 8000.00 ft

Runway 13/31

Dimension:11030 x 150 ft / 3361.9 x 45.7 m
Surface:ASPH-CONC, Good Condition
Surface Treatment:Saw-cut or plastic Grooved
Weight Limit:Single wheel: 75000 lbs.
Dual wheel: 175000 lbs.
Dual tandem wheel: 250000 lbs.
Edge Lights:High


Runway 13

Runway 31

Longitude:086-41-43.2779W086-40-05.4409W
Latitude:36-08-28.5978N36-07-13.7850N
Elevation:536.00 ft582.00 ft
Alignment:127127
ILS Type:ILS
Traffic Pattern:LeftLeft
Markings:Precision instrument, Good ConditionPrecision instrument, Good Condition
Displaced threshold:801.00 ft741.00 ft
VASI:6-box on left side
Runway End Identifier:YesYes
Decleard distances:Take off run available 10288.00 ft
Take off distance available 11029.00 ft
Actual stop distance available 10288.00 ft
Landing distance available 9487.00 ft
Take off run available 10228.00 ft
Take off distance available 11029.00 ft
Actual stop distance available 10228.00 ft
Landing distance available 9487.00 ft

Radio Navigation Aids

ID Type Name Ch Freq Var Dist
SYIFAN MARKERBomar 01W39.9 nm
VINDBOpery344.0002W4.9 nm
SWZNDBSewart391.0002W14.5 nm
FQWNDBWalter Hill371.0002W17.9 nm
JUENDBLebanon414.0002W18.1 nm
ONNDBMusic279.0003W24.8 nm
PEDNDBNeedmore221.0001W27.3 nm
DMZNDBDickson203.0001W36.6 nm
PBCNDBMaury County365.0001W37.0 nm
LFBNDBLafayette245.0002W38.0 nm
LUGNDBVerona251.0000W38.0 nm
SKNNDBHurricane256.0002W43.1 nm
ULHNDBBurwi332.0003W45.2 nm
RNNDBWarri209.0002W49.8 nm
UXMVORTullahoma Regional109.6503W49.4 nm
SYIVOR/DMEShelbyville027X109.0001W35.8 nm
CKVVOR/DMEClarksville043X110.6001W46.5 nm
BNAVORTACNashville088X114.1002W0.8 nm
GHMVORTACGraham053X111.6003E41.5 nm
BWGVORTACBowling Green126X117.9002E49.7 nm
BNAVOTNashville Metropoln108.600.2 nm
MQYVOTSmyrna110.2010.9 nm

Remarks

  • LIGHTED JET BLAST FENCE 598 MSL 1100 FT SE OF RY 31 THLD.
  • LIGHTED JET BLAST FENCE 568 FT MSL 1167 FT NW RY 13 THLD.
  • NO UNAUTHORIZED 180 DEG TURNS FOR ACFT OVER 12500 LBS ON ASPHALT SURFACES.
  • NO FLIGHT OVER MAIN TERMINAL BLDG IS PERMITTED.
  • BIRD ACTIVITY ON & INVOF ARPT.
  • DO NOT CONFUSE 150 FT WIDE TWY S FOR RY 20C.
  • ACFT CONDUCTING VISUAL APCH TO RYS 20R 20C 20L OR 13 AVOID CORNELIA FORT AIRPARK (5 MILES NW OF NASHVILLE INTL ARPT) BELOW 2000 FT MSL.
  • 'C' CONCOURSE TAXILANES ARE; INNER TAXILANE FOR OUTBOUND TFC & OUTER TAXILANE FOR INBOUND TFC.
  • TWY 'S' BTN TWY 'S5' & 'S7' INCLUDING TWY 'S6' CLSD INDEFLY.
  • FENCE CONSTRUCTION NE RAMP APRON 'D' CONCOURSE LGTD.
  • NO FLIGHTS OVER AIR NATL GUARD RAMP.
  • CAUTION: BASH PHASE I: RUNS FROM 1 APRIL THROUGH 30 SEPTEMBER EACH YEAR. PHASE II RUNS FROM 1 OCTOBER THROUGH 31 MARCH EACH YEAR DUE TO ITS PROXIMITY TO THE FOUR MAJOR MIGRATORY FLYWAYS. SEE AP/1 FOR MORE INFORMATION.
  • READ BACK OF ALL RY HOLDING INSTRUCTIONS IS REQUIRED.
  • FLIGHT NOTIFICATION SERVICE (ADCUS) AVAILABLE.
  • PILOTS COMPLY WITH ALL HOLD SHORT INSTRUCTIONS PARTICULARLY AT TWY K & RY 20C APCH; TWY L8 & RY 31 APCH; TWY L AT RY 13 APCH; AND TWY H AT RY 31 APCH.
  • ALL TURBOJET RYS HAVE NOISE ABATEMENT PROCEDURES. MIL FIGHTER/ATTACK/TRAINER TURBOJETS USE RY 13/31 FOR ARRIVAL & DEPARTURE.

Images and information placed above are from
http://www.airport-data.com/airport/BNA/

We thank them for the data!


General Info
Country United States
State TENNESSEE
FAA ID BNA
Latitude 36-07-28.116N
Longitude 086-40-41.456W
Elevation 599 feet
Near City NASHVILLE


We don't guarantee the information is fresh and accurate. The data may be wrong or outdated.
For more up-to-date information please refer to other sources.














Please see some ads intermixed with other content from this site:





christianity portal
directory of hotels worldwide



Copyright 2004-2021 © by Airports-Worldwide.com, Vyshenskoho st. 36, Lviv 79010, Ukraine
Legal Disclaimer
