Location & QuickFacts
| FAA Information Effective: | 2008-09-25 |
| Airport Identifier: | PN76 |
| Airport Status: | Operational |

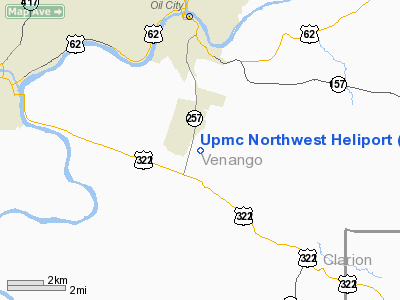

| Longitude/Latitude: | 079-42-01.0000W/41-21-42.0000N
-79.700278/41.361667 (Estimated) |
| Elevation: | 1415 ft / 431.29 m (Estimated) |
| Land: | 0 acres |
| From nearest city: | 1 nautical miles S of Seneca, PA |
| Location: | Venango County, PA |
| Magnetic Variation: | () |
Owner & Manager
| Ownership: | Privately owned |
| Owner: | U Of Pittsburgh Medical Center |
| Address: | 200 Lothrop St
Pittsburgh, PA 15213-2582 |
| Phone number: | 412-647-8762 |
| Manager: | John G. Williams |
| Address: | Upmc Northwest Hospital, 100 Fairfield Drive
Seneca, PA 16436 |
| Phone number: | 814-676-7870 |
Airport Operations and Facilities
| Airport Use: | Private
MEDICAL USE. |
| Wind indicator: | Yes |
| Control Tower: | No |
| Lighting Schedule: | PHONE REQ
FOR PERIMETER LGTS CALL 814-676-7870. |
| Sectional chart: | Detroit |
| Region: | AEA - Eastern |
| Boundary ARTCC: | ZOB - Cleveland |
| Tie-in FSS: | AOO - Altoona |
| FSS Toll Free: | 1-800-WX-BRIEF |
Runway Information
Helipad H1
| Dimension: | 60 x 60 ft / 18.3 x 18.3 m |
| Surface: | CONC, |
| |
Runway H1 |
Runway |
| Traffic Pattern: | Left | Left |
|
Radio Navigation Aids
| ID |
Type |
Name |
Ch |
Freq |
Var |
Dist |
| ORJ | NDB | Corry | | 258.00 | 09W | 33.2 nm |
| UCP | NDB | Castle | | 272.00 | 09W | 38.2 nm |
| HBD | NDB | Hubbard | | 408.00 | 08W | 39.6 nm |
| CQD | NDB | Cascade | | 372.00 | 08W | 49.0 nm |
| FKL | VOR | Franklin | | 109.60 | 06W | 8.4 nm |
| CIP | VOR/DME | Clarion | 076X | 112.90 | 06W | 17.0 nm |
| TDT | VORTAC | Tidioute | 123X | 117.60 | 09W | 24.7 nm |
| EWC | VORTAC | Ellwood City | 105X | 115.80 | 08W | 39.7 nm |
| YNG | VORTAC | Youngstown | 027X | 109.00 | 05W | 44.0 nm |
| ERI | VORTAC | Erie | 031X | 109.40 | 06W | 47.5 nm |
Remarks
- PRVDD A CLEAR 8:1 INGRESS/EGRESS; ALL OPNS IN COMPLIANCE W/FAR 77.29(B); OPERATE IN A MANNER TO MINIMIZE NOISE; VEHICULAR TFC AROUND SITE CONTROLLED; IF NIGHTIME OPNS, A LGTD WINDSOCK INSTALLED AND PERIMETER BOUNDARY OF HELIPAD PROTECTED FM THE PUBLIC.
