(Click on the photo to enlarge) |
 |

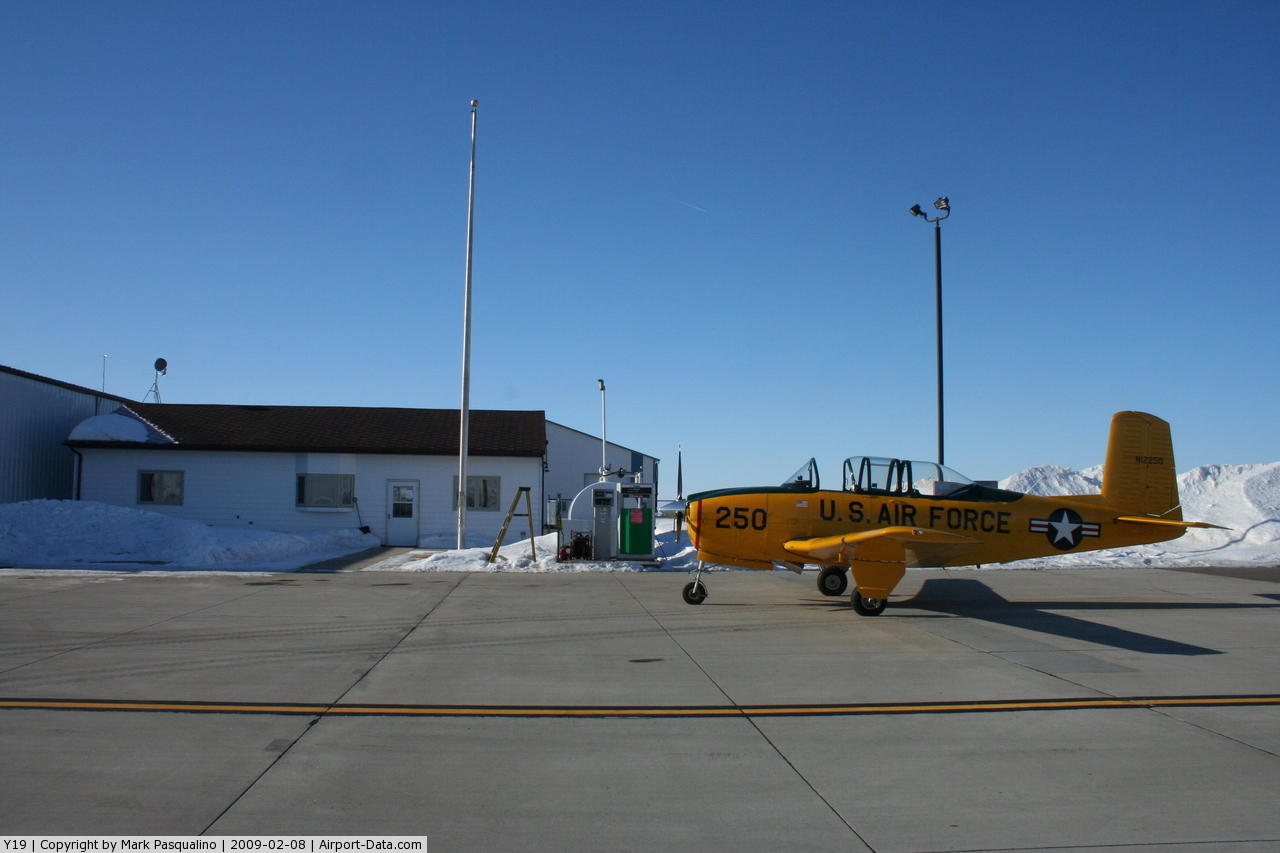

(Click on the photo to enlarge) |
Location & QuickFacts
| FAA Information Effective: | 2008-09-25 |
| Airport Identifier: | Y19 |
| Airport Status: | Operational |
| Longitude/Latitude: | 100-53-39.6360W/46-46-05.6520N
-100.894343/46.768237 (Estimated) |
| Elevation: | 1944 ft / 592.53 m (Surveyed) |
| Land: | 237 acres |
| From nearest city: | 4 nautical miles S of Mandan, ND |
| Location: | Morton County, ND |
| Magnetic Variation: | 10E (1985) |
Owner & Manager
| Ownership: | Publicly owned |
| Owner: | Mandan Arpt Authority |
| Address: | Box 250
Mandan, ND 58554 |
| Phone number: | 701-663-0669 |
| Manager: | Jim Lawler
AMGR HOME PHONE 701-663-3690 OR 701-391-1394. |
| Address: | Box 250
Mandan, ND 58554 |
| Phone number: | 701-663-0669 |
Airport Operations and Facilities
| Airport Use: | Open to public |
| Wind indicator: | Yes |
| Segmented Circle: | Yes |
| Control Tower: | No |
| Lighting Schedule: | DUSK-DAWN
MIRL RYS 13/31 & 04/22 PRESET ON MED TO INCR INTST ACTVT - CTAF; ACTVT VASI RYS 13 & 31 & REIL RYS 13 & 31 - CTAF. |
| Beacon Color: | Clear-Green (lighted land airport) |
| Landing fee charge: | No |
| Sectional chart: | Twin Cities |
| Region: | AGL - Great Lakes |
| Boundary ARTCC: | ZMP - Minneapolis |
| Tie-in FSS: | GFK - Grand Forks |
| FSS on Airport: | No |
| FSS Toll Free: | 1-800-WX-BRIEF |
| NOTAMs Facility: | GFK (NOTAM-d service avaliable) |
| Federal Agreements: | NGY |
Airport Communications
| CTAF: | 122.800 |
| Unicom: | 122.800 |
Airport Services
| Fuel available: | 100LL
FOR FUEL 24 HR SELF SVC WITH CREDIT CARD OR CALL (701) 663-0669. |
| Airframe Repair: | MAJOR |
| Power Plant Repair: | MAJOR |
| Bulk Oxygen: | NONE |
Runway Information
Runway 04/22
| Dimension: | 2900 x 120 ft / 883.9 x 36.6 m |
| Surface: | TURF, Good Condition |
| Edge Lights: | Medium |
| |
Runway 04 |
Runway 22 |
| Longitude: | 100-53-58.1400W | 100-53-23.9100W |
| Latitude: | 46-45-52.4900N | 46-46-08.8000N |
| Elevation: | 1924.00 ft | 1944.00 ft |
| Alignment: | 55 | 127 |
| Traffic Pattern: | Left | Left |
| Obstruction: | 14 ft road, 480.0 ft from runway, 170 ft left of centerline, 34:1 slope to clear | , 50:1 slope to clear |
|
Runway 13/31
| Dimension: | 4400 x 75 ft / 1341.1 x 22.9 m |
| Surface: | ASPH, Good Condition |
| Surface Treatment: | Aggregate Friction Seal Coat |
| Weight Limit: | Single wheel: 12500 lbs. |
| Edge Lights: | Medium |
| |
Runway 13 |
Runway 31 |
| Longitude: | 100-53-56.7600W | 100-53-20.7520W |
| Latitude: | 46-46-25.2590N | 46-45-49.5670N |
| Elevation: | 1937.00 ft | 1940.00 ft |
| Alignment: | 127 | 127 |
| Traffic Pattern: | Left | Left |
| Markings: | Non-precision instrument, Good Condition | Non-precision instrument, Good Condition |
| Crossing Height: | 40.00 ft | 40.00 ft |
| VASI: | 2-box on left side | 2-box on left side |
| Visual Glide Angle: | 2.50° | 3.00° |
| Runway End Identifier: | Yes | Yes |
| Obstruction: | 30 ft trees, 1200.0 ft from runway, 10 ft right of centerline, 33:1 slope to clear
-5'ROAD 640'FM THR 300'R OF EXTDD CL APCH RATIO 44:1. | 40 ft pline, 1450.0 ft from runway, 450 ft right of centerline, 31:1 slope to clear |
|
Radio Navigation Aids
| ID |
Type |
Name |
Ch |
Freq |
Var |
Dist |
| BI | NDB | Jadan | | 230.00 | 11E | 11.0 nm |
| BIS | VOR/DME | Bismarck | 112X | 116.50 | 12E | 9.4 nm |
Remarks
- CONFIRM SNOW RMVL AFT MAJOR WINTER STORMS WITH AMGR 701-663-0669/3690 OR 701-391-1394.
- +200'TWR LCTD 9500'NW OF RWY 13/31.
- 120 FT TOWER LCTD 5000 FT SW OF RY 04/22.
- RY 4/22 & RY 13/31 INTERSECTION TRANSITION ACROSS RY 4/22 UNEVEN AND BE ALERT FOR HIGH SPEED AIRCRAFT MOVEMENTS.
Images and information placed above are from
http://www.airport-data.com/airport/Y19/
We thank them for the data!
| General Info
|
| Country |
United States
|
| State |
NORTH DAKOTA
|
| FAA ID |
Y19
|
| Latitude |
46-46-05.652N
|
| Longitude |
100-53-39.636W
|
| Elevation |
1944 feet
|
| Near City |
MANDAN
|
We don't guarantee the information is fresh and accurate. The data may
be wrong or outdated.
For more up-to-date information please refer to other sources.
|
|
