| Lake Placid Municipal Airport |
| IATA: LKP – ICAO: KLKP |
| Summary |
| Airport type |
Public |
| Operator |
Adirondack Flying Service |
| Location |
Lake Placid, NY |
| Elevation AMSL |
1,747 ft / 532 m |
| Coordinates |
44°15′52″N 73°57′53″W / 44.26444°N 73.96472°W / 44.26444; -73.96472Coordinates: 44°15′52″N 73°57′53″W / 44.26444°N 73.96472°W / 44.26444; -73.96472 |
| Runways |
| Direction |
Length |
Surface |
| ft |
m |
| 14/32 |
4,200 |
1,280 |
Asphalt |
Lake Placid Airport (IATA: LKP, ICAO: KLKP) is a small public use airport near Lake Placid, NY.
Currently, there is no scheduled air service to this airport, although charter operations are available at the airport.
The above content comes from Wikipedia and is published under free licenses – click here to read more.
Location & QuickFacts
| FAA Information Effective: | 2008-09-25 |
| Airport Identifier: | LKP |
| Airport Status: | Operational |
| Longitude/Latitude: | 073-57-42.7190W/44-15-52.1050N
-73.961866/44.264474 (Estimated) |
| Elevation: | 1747 ft / 532.49 m (Estimated) |
| Land: | 35 acres |

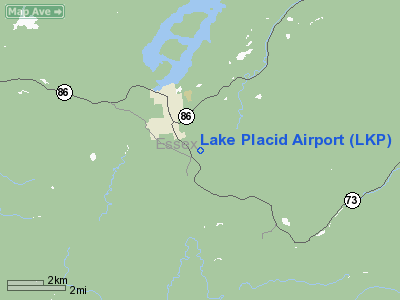

| From nearest city: | 1 nautical miles SE of Lake Placid, NY |
| Location: | Essex County, NY |
| Magnetic Variation: | 15W (1985) |
Owner & Manager
| Ownership: | Publicly owned |
| Owner: | No.elba Park District |
| Address: | Box 630
Lake Placid, NY 12946 |
| Phone number: | 518-523-2473 |
| Manager: | Steve Short |
| Address: | Box 630
Lake Placid, NY 12946 |
| Phone number: | 518-523-2473 |
Airport Operations and Facilities
| Airport Use: | Open to public |
| Wind indicator: | Yes |
| Segmented Circle: | Yes
SEGMENTED CIRCLE HAS NO TFC PATTERN INDICATOR. |
| Control Tower: | No |
| Lighting Schedule: | RDO-CTL
ACTVT MIRL RY 14/32; PAPI RY 14 & TWY LGTS - CTAF. |
| Landing fee charge: | No |
| Sectional chart: | Montreal |
| Region: | AEA - Eastern |
| Boundary ARTCC: | ZBW - Boston |
| Tie-in FSS: | BTV - Burlington |
| FSS on Airport: | No |
| FSS Toll Free: | 1-800-WX-BRIEF |
| NOTAMs Facility: | BTV (NOTAM-d service avaliable) |
| Federal Agreements: | NGY |
Airport Communications
| CTAF: | 122.800 |
| Unicom: | 122.800 |
Airport Services
| Fuel available: | 100LL |
| Airframe Repair: | MAJOR |
| Power Plant Repair: | MAJOR |
| Bottled Oxygen: | NONE |
| Bulk Oxygen: | NONE |
Runway Information
Runway 14/32
| Dimension: | 4200 x 60 ft / 1280.2 x 18.3 m |
| Surface: | ASPH, Good Condition |
| Weight Limit: | Single wheel: 8000 lbs. |
| Edge Lights: | Medium |
| |
Runway 14 |
Runway 32 |
| Longitude: | 073-58-06.1770W | 073-57-19.2620W |
| Latitude: | 44-16-04.1840N | 44-15-40.0260N |
| Elevation: | 1743.00 ft | 1747.00 ft |
| Alignment: | 126 | 127 |
| Traffic Pattern: | Left | Left |
| Markings: | Non-precision instrument, Good Condition | Non-precision instrument, Good Condition |
| Crossing Height: | 45.00 ft | 0.00 ft |
| Displaced threshold: | 0.00 ft | 1250.00 ft |
| VASI: | 2-light PAPI on left side | |
| Visual Glide Angle: | 3.50° | 0.00° |
| Runway End Identifier: | Yes | Yes |
| Centerline Lights: | No | No |
| Touchdown Lights: | No | No |
| Obstruction: | 30 ft trees, 475.0 ft from runway, 200 ft left of centerline, 9:1 slope to clear
RY 14 HAS 20 FT ROAD 136 FT FM THLD. RY 14 HAS 10 FT DITCH 4 FT DEEP 124 FT FM THLD PARELLEL TO RD. | 90 ft trees, 600.0 ft from runway, 100 ft left of centerline, 4:1 slope to clear
APCH RATIO 20:1 TO DSPLCD THLD.
RWY 32 ROAD 30' FROM RWY END. 15' TREES 175' L AND 85' R FROM RW END. |
|
Radio Navigation Aids
| ID |
Type |
Name |
Ch |
Freq |
Var |
Dist |
| PTD | NDB | Potsdam | | 400.00 | 14W | 48.2 nm |
| SLK | VOR/DME | Saranac Lake | 029X | 109.20 | 14W | 12.7 nm |
| PLB | VORTAC | Plattsburgh | 116X | 116.90 | 15W | 31.5 nm |
| BTV | VORTAC | Burlington | 122X | 117.50 | 15W | 34.4 nm |
| BTV | VOT | Burlington Intl | | 109.00 | | 37.0 nm |
Remarks
- MOUNTAINS ON BOTH APPROACHES 1-5 MILES FROM RWY ENDS.
- EXTENSIVE GLIDER ACTIVITY SPRING AND FALL.
- NON COMPLIANCE WITH FAR 157.
Images and information placed above are from
http://www.airport-data.com/airport/LKP/
We thank them for the data!
| General Info
|
| Country |
United States
|
| State |
NEW YORK
|
| FAA ID |
LKP
|
| Latitude |
44-15-52.105N
|
| Longitude |
073-57-42.719W
|
| Elevation |
1747 feet
|
| Near City |
LAKE PLACID
|
