| Tuba City Airport |
| IATA: TBC – ICAO: none – FAA LID: T03 |
| Summary |
| Airport type |
Public |
| Operator |
The Navajo Nation |
| Location |
Tuba City, Arizona |
| Elevation AMSL |
4,513 ft / 1,376 m |
| Coordinates |
36°05′34″N 111°22′58″W / 36.09278°N 111.38278°W / 36.09278; -111.38278 |
| Runways |
| Direction |
Length |
Surface |
| ft |
m |
| 15/33 |
6,230 |
1,899 |
Asphalt |
Tuba City Airport (IATA: TBC, FAA LID: T03) is a public airport located five miles (8 km) west of the central business district of Tuba City, in Coconino County, Arizona, United States.
This is one of six airports owned by the Navajo Nation; the other five being Chinle Airport (E91), Kayenta Airport (0V7) and Window Rock Airport (RQE) in Arizona, plus Crownpoint Airport (0E8) and Shiprock Airport (5V5) in New Mexico.
Facilities
Tuba City Airport covers an area of 350 acres (142 ha) and has one runway:
- Runway 15/33: 6,230 x 75 ft (1,899 x 23 m), Surface: Asphalt
The above content comes from Wikipedia and is published under free licenses – click here to read more.

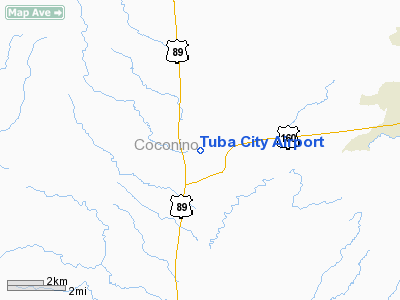

Location & QuickFacts
|
FAA
Information Effective: |
2005-10-27 |
|
Airport Identifier: |
T03 |
|
Longitude/Latitude: |
111-22-57.5110W/36-05-33.9710N
-111.382642/36.092770 (Estimated) |
|
Elevation: |
4513 ft / 1375.56 m (Estimated) |
|
Land: |
350 acres |
|
From nearest city: |
5
nautical miles W of Tuba City, AZ |
|
Location: |
Coconino County, AZ |
|
Magnetic Variation: |
13E (1990) |
Owner & Manager
|
Ownership: |
Publicly owned |
|
Owner: |
Navajo Nation C/o Navajo Dot |
|
Address: |
Po Box 4620
Window Rock, AZ 86515 |
|
Phone number: |
928-871-6164 |
|
Manager: |
Tom Platero |
|
Address: |
Po Box 4620
Window Rock, AZ 86515 |
|
Phone number: |
520-871-6164 |
Airport Operations and Facilities
|
Airport
Use: |
Open to public |
|
Wind indicator: |
Yes |
|
Segmented Circle: |
Yes |
|
Control Tower: |
No |
|
Attendance Schedule: |
UNATNDD |
|
Lighting Schedule: |
DUSK-DAWN |
|
Beacon Color: |
Clear-Green (lighted land airport) |
|
Landing fee charge: |
No |
|
Sectional chart: |
Las Vegas |
|
Region: |
AWP - Western-Pacific |
|
Boundary ARTCC: |
ZDV - Denver |
|
Tie-in FSS: |
PRC - Prescott |
|
FSS on Airport: |
No |
|
FSS Phone: |
928-778-7810 |
|
FSS Toll Free: |
1-800-WX-BRIEF |
|
NOTAMs Facility: |
PRC (NOTAM-d service avaliable) |
|
Federal Agreements: |
N |
Airport Communications
Runway Information
Runway 15/33
|
Dimension: |
6230
x 75 ft / 1898.9 x 22.9 m |
|
Surface: |
ASPH,
Good Condition
BRUSH GROWING THRU RY SFC. |
|
Weight Limit: |
Single
wheel: 12500 lbs. |
|
Edge Lights: |
Medium |
|
|
Runway 15 |
Runway 33 |
|
Traffic Pattern: |
Left |
Left |
|
Markings: |
Basic, Poor Condition
RWY 15/33 SOUTH HALF OF RY CENTERLINE MISSING. |
Basic, Poor Condition |
|
Crossing Height: |
40.00 ft |
40.00 ft |
|
Displaced threshold: |
1520.00 ft |
0.00 ft |
|
VASI: |
2-light PAPI on left side
PAPI RY 15 OTS INDEFLY. |
2-light PAPI on left side |
|
Visual Glide Angle: |
3.00° |
3.00° |
|
Obstruction: |
34
ft hill, 807.0 ft from runway, 17:1 slope to clear
RY 15, 1 FT RIDGE PARALLEL TO RY, BOTH SIDES AND 162 FT FM
EOR. |
10
ft brush, 280.0 ft from runway, 100 ft left of centerline,
8:1 slope to clear |
|
Radio Navigation Aids
|
ID |
Type |
Name |
Ch |
Freq |
Var |
Dist |
|
GCN |
VOR/DME |
Grand
Canyon |
078X |
113.10 |
15E |
38.0
nm |
|
TBC |
VORTAC |
Tuba
City |
082X |
113.50 |
15E |
5.8
nm |
Remarks
-
LIVESTOCK ON ARPT.
-
FOR GATE ENTRY CALL
INDIAN HEALTH SVCS, TUBA CITY (928) 283-2827.
Operational Statistics
|
Aircraft
Operations: |
21/Month |
|
General Aviation
Itinerant: |
100.0% |
Tuba City Airport
Address:
Coconino County,
AZ
Tel:
928-871-6164,
520-871-6164
|
 |

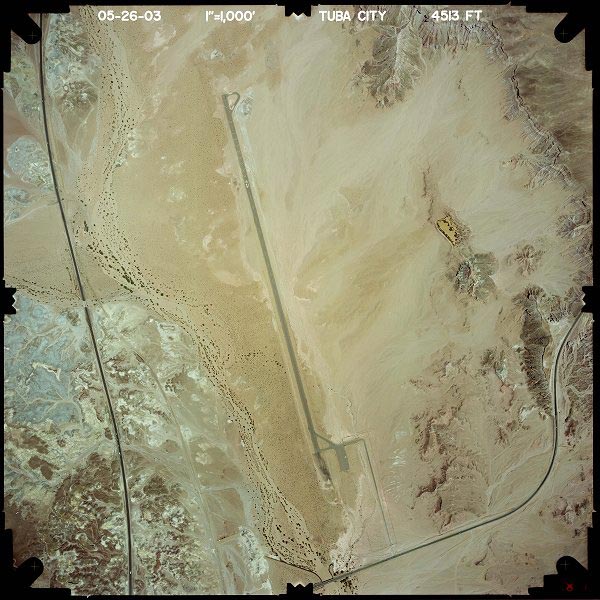

(Click on the image to enlarge) |
Images and information placed above are from
http://www.airport-data.com/airport/T03/
http://www.dot.state.az.us/aviation/airports/airports_list.asp?FAA=T03
We thank them for the data!
| General
Info |
| Country |
United
States |
| State |
ARIZONA
|
| FAA ID |
T03 |
| Latitude |
36-05-33.971N
|
| Longitude |
111-22-57.511W
|
| Elevation |
4513 feet
|
| Near City |
TUBA CITY
|
We don't guarantee the information is fresh and accurate. The data may be wrong or outdated.
For more up-to-date information please refer to other sources.
|
|
