Socata TBM

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Socata_TBM-700

TBM 700 / TBM 850

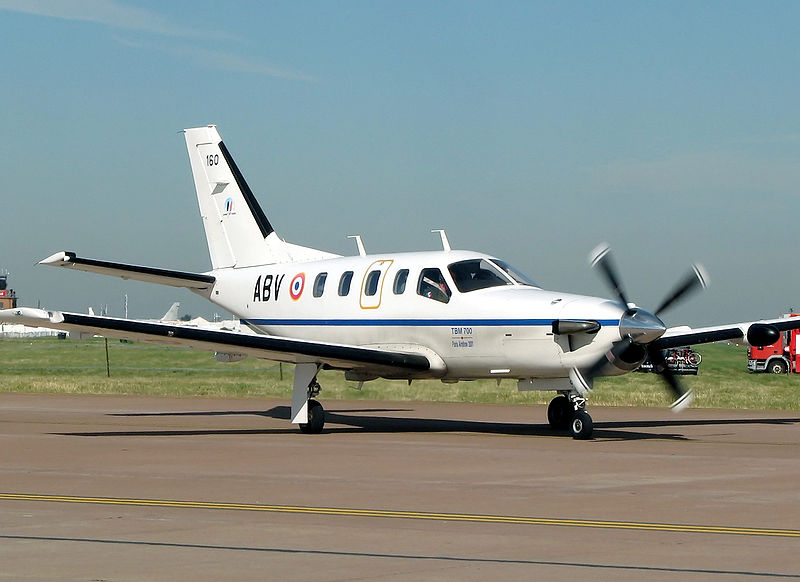

Socata TBM 700 of the French Army Light Aviation
Role Single-engined utilty
National origin France
Manufacturer Socata
First flight 14 July 1988
Introduction 1990
Primary users French Army
French Air Force

The Socata TBM 700 and TBM 850 are high performance single engine turboprop light business and utility aircraft manufactured by Socata. The TBM 700 was offered until 2006, when the TBM 850 was introduced.

Design and development

The TBM 700 is a single turboprop engined, six to seven seat low-wing monoplane of aluminium and steel construction. The TBM 700 first flew on 14 July 1988 and French certification followed in 1990. The TBM 700 was designed together with the Mooney Airplane Company, but Mooney withdrew from the project shortly after certification. In the designation TBM, "TB" stands for Tarbes, the city in France in which Socata is located, the "M" stands for Mooney (the initial was kept in the model designation even though Mooney was never involved in the production of the airplane). The TBM 700 also comes in a cargo variant. The TBM 700 uses a Pratt & Whitney Canada PT6A-64 engine delivering 700 shp (522 kW).

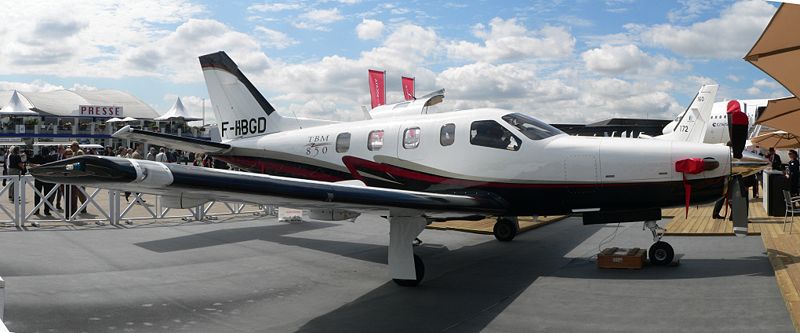

EADS Socata TBM 850 at the Paris Air Show 2007
EADS Socata TBM 850 at the Paris Air Show 2007

The TBM 850 is the production name for the TBM 700N, an improved version with the more powerful Pratt & Whitney PT6A-66D engine flat rated at 850 shp (634 kW). The TBM 850 is limited to 700 shp (522 kW) for takeoff and landing, but in cruise flight the engine power can be increased to 850 shp (634 kW). This extra power gives it a higher cruising speed than the TBM 700 models, especially at high elevations (due to the flat-rating). The maximum cruise speed of 320 KTAS now comes close to that of light business jets which are more expensive to operate than a single engined turboprop. The outside appearance of the TBM 850 has remained the same as that of the TBM 700. The TBM 850 has a typical range of 1520 nm.

As of the spring of 2007, over 370 TBMs have been produced. The manufacturer expects to produce 450 units in the 2007-2016 time period.

Beginning with the 2008 model, the TBM-850 is equipped with the Garmin G1000 integrated flight deck as standard equipment.

Variants

TBM 700A
Initial production version with one Pratt & Whitney Canada PT6A-64 turboprop engine.
TBM 700B
Variant with wide entrance door, increased maximum zero fuel weight and other improvements.
TBM 700C1
Improved version with rear unpressurised cargo compartment, reinforced structure, new air conditioning system and other improvements.
TBM 700C2
C1 with increased maximum take off weight.
TBM 700N
Variant with increased maximum cruise/climb power, one Pratt & Whitney Canada PT6A-66D turboprop engine, produced as the TBM850
TBM 850
Production name for the TBM 700N.

Operators

 France

Specifications (TBM 850)

Data from {name of first source}

General characteristics

  • Crew: 1 or 2 pilots
  • Capacity: 4 to 6 (including one passenger in the cockpit if there is no co-pilot)
  • Length: 10.65m (34 ft 11 in)
  • Wingspan: 12.68m (41 ft 7 in)
  • Height: 4.36m (14 ft 3 in)
  • Wing area: 18m² (193.7ft²)
  • Empty weight: 2,132 kg (4,699 lb)
  • Max takeoff weight: 3,354 kg (7,394 lb)
  • Powerplant:Pratt & Whitney Canada PT6A-66D turboprop, 634 kW (850 hp)

Performance
