PAC 750XL

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/PAC_750XL

PAC 750

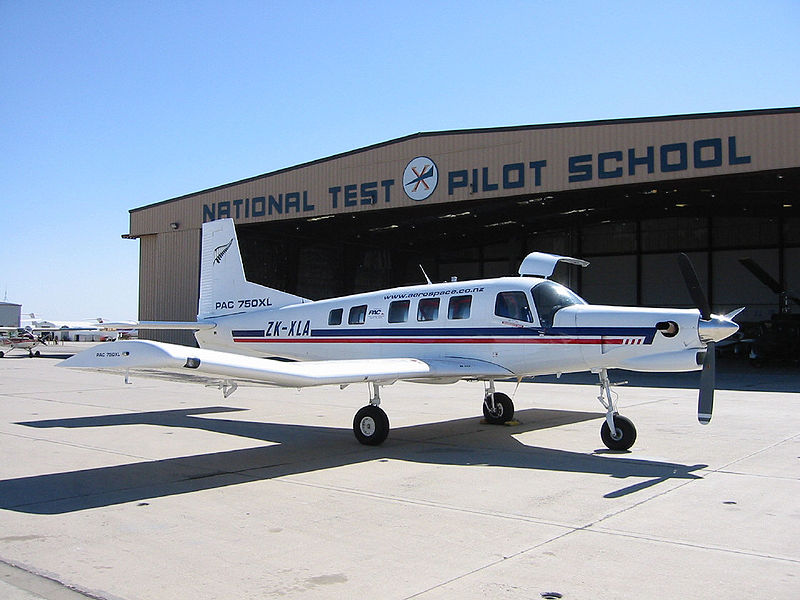

A 750XL at the National Test Pilot School in the USA
Role Utility Turboprop
National origin New Zealand
Manufacturer Pacific Aerospace.
First flight 2001
Developed from PAC Cresco

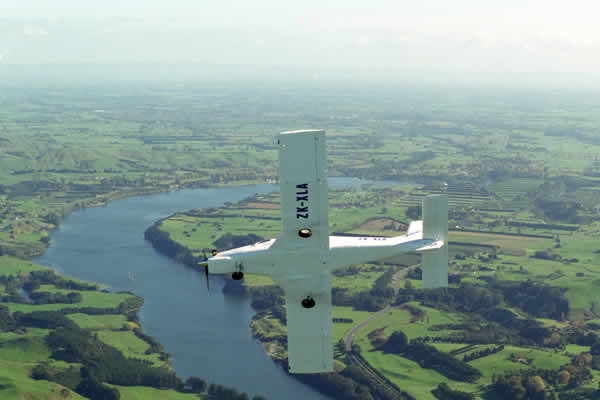

A PAC 750XL over the Waikato
A PAC 750XL over the Waikato

The PAC 750 is a utility aircraft of conventional all-metal low-wing monoplane design, with fixed tricycle undercarriage. Combining the engine and wings of the PAC Cresco with a new large fuselage and modified tail, all versions to date have been powered by a 750 hp (560 kW) Pratt & Whitney Canada PT6A turboprop. It is designed and manufactured in Hamilton, New Zealand by the Pacific Aerospace Corporation.

Design and development

The design made its maiden flight in 2001. As with the Cresco, horizontal tail surfaces presented difficulties, and these were redesigned before the type entered production. The PAC 750 received full US FAA certification in 2004.

The type was targeted initially to the narrow market of skydiving. In the parachuting role, the high-lift wings from the Cresco and relatively high power to weight ratio enable the PAC 750 to take a load of parachutists to 12,000 feet (3,700 m) and return to land within 15 minutes.

A wider market was subsequently sought, and examples have been sold for use in utility roles, including freight, agricultural applications, passenger operations, aerial photography and surveying. One aircraft has been extensively modified for geo-survey work, being fitted with a Magnetic anomaly detector sting tail. Proposed ski and float conversions have yet to fly. The PAC 750XL is used in South Africa by NatureLink on United Nations Humanitarian Air Services / World Food Programme contracts. While the manufacturer claims single-engine lower running costs than many other utility types, for example, the twin-engined DHC-6 Twin Otter though the type has less useable volume (large cargo panniers providing a partial solution).

Over 50 aircraft have been ordered in New Zealand by 2008, when the manufacturer stated production was increasing from 12 to 24 per year.

In New Zealand there has been some media criticism of government assistance for the manufacturer following cancellation of a large order, (and the related plan to manufacture the aircraft in North America).

Accidents

  • PAC 750 registration ZK-UAC was lost on 26 December 2003 after ditching in the Pacific Ocean during a ferry flight from New Zealand to the United States. The pilot, Kelvin Stark, did not survive the ditching.
  • PAC 750 registration ZK-JPP was lost on 21 September 2008 after crashing in the Forest of Gibloux, near Gumefens, Switzerland. Both crew members were killed in the crash .

Specifications

Data from EASA Type Certificate Data Sheet

General characteristics

  • Crew: 1 (pilot)
  • Capacity: Pilot + 9 passengers or 17 parachutists
  • Length: 38 ft 10 in (11.84 m)
  • Wingspan: 42 ft 0 in (12.80 m)
  • Height: 13 ft 3 in (4.04 m)
  • Wing area: 268 ft² (24.88 m²)
  • Empty weight: 3100 lb (1410 kg)
  • Gross weight: 7500 lb (3395 kg)
  • Powerplant: 1 × Pratt & Whitney PT6A-34, 750 hp (560 kW)

Performance

  • Maximum speed: 196 mph (314 km/h)
  • Range: 670 miles (1078 km)
  • Service ceiling: 20,000 ft (6098 m)

See also

Related development

External links
