McDonnell Douglas MD-90

By Wikipedia,
the free encyclopedia,

BritishJET MD-90-30 landing at Gatwick Airport near London
Role Airliner
National origin United States
Manufacturer McDonnell Douglas
First flight February 22, 1993
Introduction 1995 with Delta Air Lines
Primary users Saudi Arabian Airlines
Delta Air Lines
China Southern
Japan Airlines
Produced 1993-2000
Number built 116[1]
Unit cost US$41.5-48.5 million
Developed from McDonnell Douglas MD-80

The McDonnell Douglas MD-90 is a twin-engine, medium-range, single-aisle commercial jet aircraft. The MD-90 was developed from the MD-80 series. Differences from the MD-80 include more fuel efficient International Aero Engines V2500 engines and a longer fuselage. The MD-90 has a seating capacity of up to 172 passengers and was introduced into service with Delta Air Lines in 1995.

The MD-90 and the subsequent MD-95/Boeing 717 were derivatives of the MD-80 which, itself, was a derivative commercially introduced in 1980 from the DC-9.

Design and development


The Douglas Aircraft Company developed the DC-9 in the 1960s as a short-range companion to their larger DC-8. The DC-9 was an all-new design, using two rear fuselage-mounted turbofan engines, and a T-tail. The DC-9 has a narrow-body fuselage design with a 5-abreast seating with a capacity of 80 to 135 passengers depending on seating arrangement and aircraft version.

The second generation of the DC-9 was originally called the DC-9-80 series or the DC-9 Super 80 but later marketed as the MD-80 and entered service in 1980. The MD-80 series was then developed into the MD-90 entering service in 1995. The last variant of the family was the MD-95, which was renamed the Boeing 717-200 after McDonnell Douglas (successor to Douglas Aircraft Company) merged with Boeing in 1997.


The MD-90 is a mid-size, medium-range airliner that was developed from the MD-80 series. It is a 5 feet longer updated version of the MD-88 with a similar electronic flight instrument system (EFIS) and even more powerful, quieter and fuel efficient IAE V2500 engines instead of Pratt-Whitney engines, which power the MD-80 series. Typical seating for the MD-90 ranges from 153 to 172 passengers depending on seating arrangement.

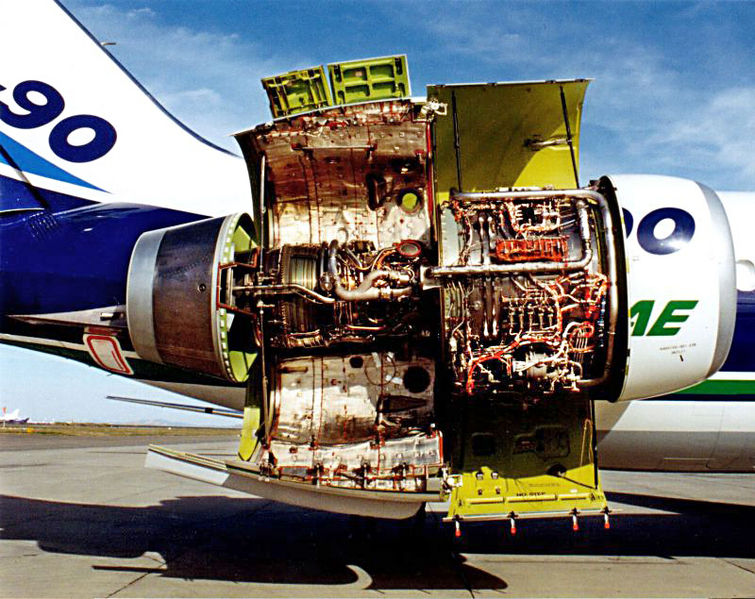

International Aero Engines V2500 engine powering the MD-90
International Aero Engines V2500 engine powering the MD-90

The MD-90 program was launched in November 1989. The aircraft first flew on February 22, 1993 and the first MD-90 was delivered to Delta Airlines in February 1995. The MD-90 was produced adjacent to the Long Beach Airport in Long Beach, California, United States, though two aircraft were produced at Jiangwan Airfield in Shanghai, People's Republic of China. The MD-90 was produced in two versions: -30 and -30ER. The -30 had a range of 2,400 miles (3,860 km). The -30ER had a higher gross weight and range up to 2,750 miles (4,426 km) with an auxiliary fuel tank. An even longer range version, the -50 was offered but was not ordered.

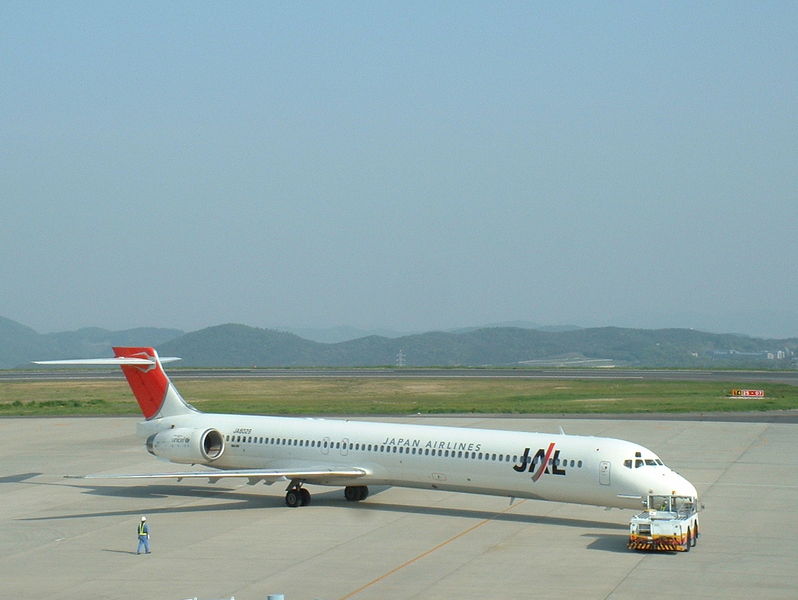

Japan Airlines MD-90
Japan Airlines MD-90

The initial MD-90s featured a glass cockpit similar to the MD-88's cockpit. The 29 MD-90s delivered to Saudi Arabian Airlines feature a full glass cockpit with avionics similar to the Boeing 717's cockpit and an overhead panel similar to the MD-11's panel for easy transition for the pilots within Saudi Arabian Airlines, which operate the MD-11.

No MD-90 orders were received after Boeing and McDonnell Douglas merged in 1997 due to internal competition with Boeing's 737. Delta Air Lines had initially placed a large order for the MD-90 to replace some aging Boeing 727s. After the Boeing-McDonnell Douglas merger, Delta canceled their remaining 19 MD-90 orders in favor of the Boeing 737-800. A total of 40 MD-90s (later 20) were to be assembled under contract in Shanghai, People's Republic of China under the Trunkliner program, but Boeing's decision to phase out the MD-90 resulted in only two built by Shanghai Aircraft.

Nordic Leisure MD-90
Nordic Leisure MD-90

MD-90 production at Long Beach, California ended in 2000 with the last airplane being delivered to Saudi Arabian Airlines, and MD-90T production at Shanghai ended in 2000. With 116 MD-90 aircraft produced, the MD-90 production run was the smallest among the DC-9 family. The main competitors of the MD-90 included the Airbus A320 and the Boeing 737-800.


Major airlines that have operated the MD-90 include Delta Air Lines, Saudi Arabian Airlines and Japan Air System (JAS).

In August 2008, a total of 110 MD-90 aircraft (all variants) were in airline service, including:

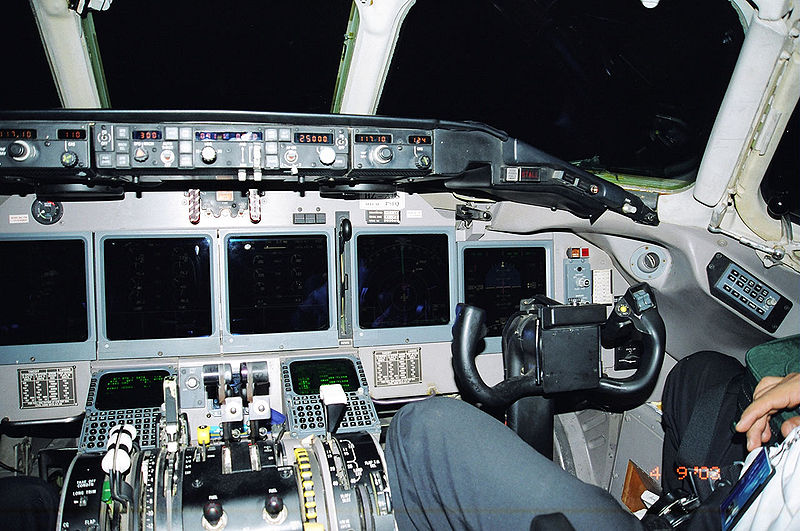

Glass cockpit of a Saudi Arabian Airlines MD-90
Glass cockpit of a Saudi Arabian Airlines MD-90


Basic variant with two V2500 engines and an EFIS cockpit.
Increased Gross Weight version, one built.
Extended Range (ER) version of MD-90-30, two built.
MD-90-30T "Trunkliner"
Variant of the MD-90-30 assembled by Shanghai Aviation Industrial Corporation in the People's Republic of China. Production was initially planned to be 40, later reduced to 20, with only two built in the end. To accommodate the heavy aircraft on unsuitable runways, a dual tandem landing gear with more tires to spread the weight of the aircraft was designed for the Trunkliner, but ultimately not used in the two aircraft produced. The ACAC ARJ21 is built using tooling sold for the MD-90-30.

Incidents and accidents

Notable accidents and incidents
  • An MD-90 was involved in one hull-loss accident in 1999 when a UNI Air aircraft caught fire after a passenger's carry-on luggage containing gasoline ignited another passenger's carry-on luggage containing a motorcycle battery. One person was killed as a result of the cabin fire.
  • On 9 March 2009, Lion Air Flight 793, an MD-90 skidded off the runway, going into a 180-degree spin before eventually stopping tail first in an open field; no one was killed.


Note: * With extra 565 gallon auxiliary fuel tank.
Sources: MD-90 characteristics, MD-90 specs, MD-90 airport report

See also

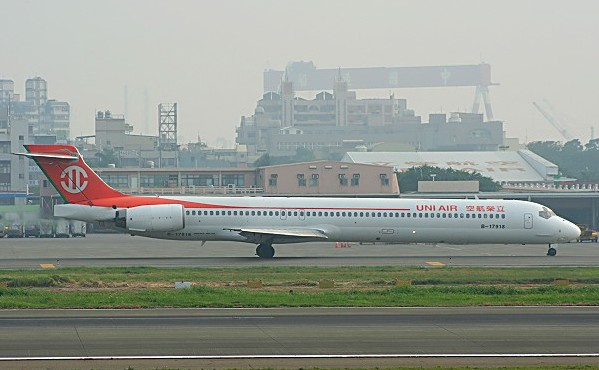

Uni Air MD-90
Uni Air MD-90

Related development

Comparable aircraft

Related lists
