Extra EA-400

By Wikipedia,
the free encyclopedia,


Extra EA-400
Role Six-seat utility aircraft
National origin Germany
Manufacturer Extra Flugzeugbau GmbH
First flight 23 April 1996

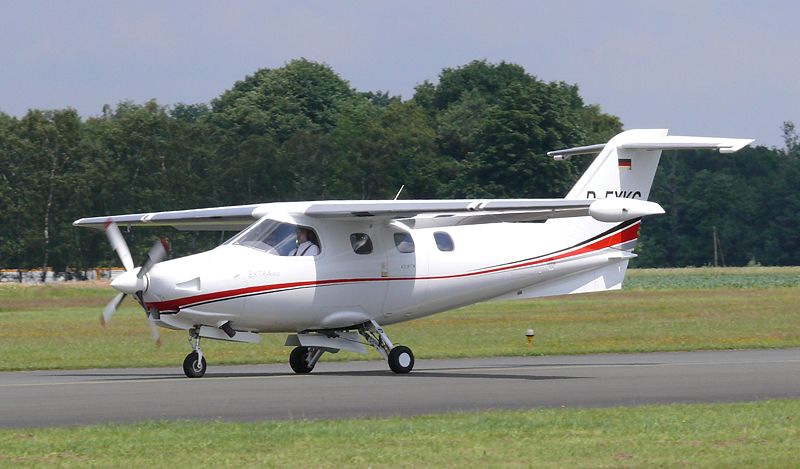

The Extra EA-400 is a six-seat single-engined monoplane produced by Extra Flugzeugbau GmbH. The EA-400 is powered by a liquid cooled Continental IO-550 turbocharged piston engine.

Design and development

Started by Walter Extra, the company manufactures aerobatic airplanes almost exclusively with their latest products being the Extra EA-300 series. This changed with the introduction of the EA-400. It was a cross-country airplane with many exclusive features including carbon fiber construction, pressurized cabin, high strut-less wing, and seating for six. Despite the capabilities of the airplane, its $1 million dollar cost and a weak market saw slow sales.

Specifications (Extra EA-400)

Data from Extra EA-400 Standard Specification, Pilots Information Manual

General characteristics

  • Crew: 1
  • Capacity: 5
  • Length: 31.4 ft (9.57 m)
  • Wingspan: 37.73 ft (11.5 m)
  • Height: 10.14 ft (3.09 m)
  • Empty weight: 3,153 lbs (1,430 kg)
  • Loaded weight: 4,407 lbs (1,999 kg)
  • Useful load: 1,254 lbs (569 kg)
  • Max takeoff weight: 4,407 lbs (1,999 kg)
  • Powerplant:Continental TSIOL-550-C Voyager piston engine, 350 hp takeoff, 325 hp continuous (261 kW takeoff, 242 kW continuous)


See also

Related development

External links

Text from Wikipedia is available under the Creative Commons Attribution/Share-Alike License; additional terms may apply.

Published in July 2009.
