Douglas DC-6

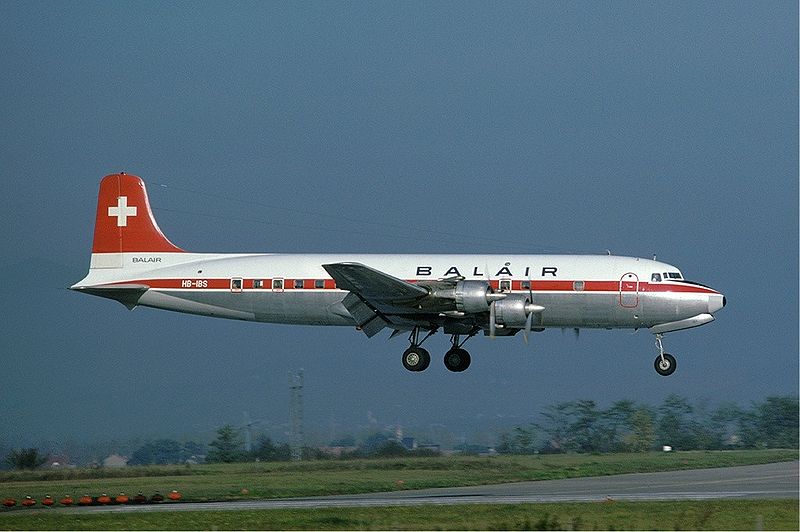

Douglas DC-6B of Swiss airline Balair in 1976
Role	Airliner/transport aircraft
Manufacturer	Douglas Aircraft Company
First flight	15 February 1946
Introduced	March 1947
Status	49 fully active
Primary users	United States Air Force United States Navy
Produced	1946-1959
Number built	>700
Developed from	Douglas DC-4
Variants	Douglas DC-7

The Douglas DC-6 is a piston-powered airliner and transport aircraft built by the Douglas Aircraft Company from 1946 to 1958. Originally intended as a military transport near the end of World War II, it was reworked after the war to compete with the Lockheed Constellation in the long-range transport market. More than 700 were built, and many still fly today in cargo, military, and wildfire control roles.

The DC-6 was known as the C-118 Liftmaster in United States Air Force service, and as the R6D in United States Navy service prior to 1962, after which all U.S. Navy variants were also designated as the C-118.

Design and development

The United States Army Air Forces commissioned the DC-6 project as the XC-112 in 1944. The Air Force wanted an expanded, pressurized version of the popular C-54 Skymaster transport with improved engines. By the time the XC-112 flew, the war was over, and the USAAF had rescinded its requirement.

Douglas converted its prototype into a civil transport (redesignated YC-112A, having significant differences from subsequent production DC-6 aircraft) and delivered the first production DC-6 in March 1947. However, a series of mysterious in-flight fires (including the fatal crash of United Airlines Flight 608) grounded the DC-6 fleet later that year. The cause was found to be a fuel vent located adjacent to the cabin cooling turbine intake. All DC-6s in service were modified to correct the problem, and the fleet was flying again after just four months on the ground.

Operational history

Passengers deplaning an SAS DC-6. Note the upper row of windows, indicating this was built as the optional sleeper variant of the original length DC-6

Pan Am used DC-6B aircraft to inaugurate its first trans-Atlantic tourist class flights, starting in 1952.

Douglas designed four basic variants of the DC-6: the "basic DC-6," and the longer fuselage, higher-gross-weight, longer range versions—the "DC-6A" with large cargo doors forward and aft of the wing on the port (left hand side) with a cargo floor, the "DC-6B" designed for passenger work, had passengers doors only and a lighter floor and the "DC-6C" a "convertible" aircraft built with the 2 cargo doors, but fitted with removable passenger seats. The DC-6B, originally powered by Pratt & Whitney R-2800-CB-16 engines with Hamilton Standard 43E60 constant speed reversing propellers, was regarded as the ultimate piston-engine airliner from the standpoint of ruggedness, reliability, economical operation and handling qualities. The military version, essentially similar to the DC-6A, was the USAF C-118 Liftmaster, and the USN R6D which used the more powerful R-2800-CB-17 engines. The more powerful engine was later used on the commercial DC-6B to accommodate international flights.

The USAF and USN renewed their interest in the DC-6 during the Korean War, and ordered a total of 167 C-118/R6D aircraft, some of which later found their way into civilian service. Harry Truman's first presidential aircraft was an Air Force VC-118 called The Independence.

Total production of the DC-6 Series was 702 including military versions.

In the 1960s, two DC-6s were used as transmitter platforms for educational television, based at Purdue University, in a program called MPATI (Midwest Program for Airborne Television Instruction).

Many older DC-6 aircraft were replaced in airline passenger service by the Douglas DC-7, but the simpler, more economic engines in the DC-6 has meant that this type has out-lived the more sophisticated DC-7. DC-6/7s surviving into the Jet Age were replaced in front line service by Boeing 707 and Douglas DC-8 aircraft.

2006 marked the 60th anniversary since the introduction of the DC-6.

Variants

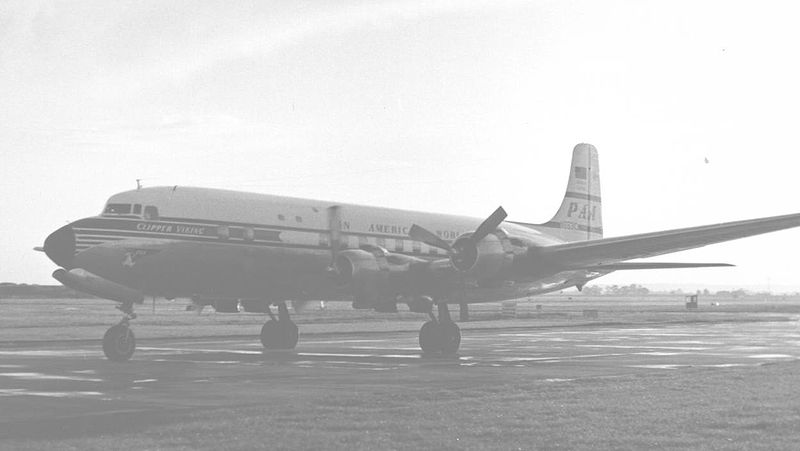

Pan Am DC-6B at London Heathrow in September 1954 on a tourist flight

XC-112: United States military designation of an improved version of the C-54 (DC-4); became the prototype DC-6. Eventually designated YC-112A, pressurized, P&W R-2800-83AM3 engines
DC-6: Initial production variant.
DC-6A: Freighter variant; fuselage slightly lengthened from DC-6 ; fitted with cargo door.
DC-6B: All-passenger variant of DC-6A, without cargo door.
DC-6C: Convertible cargo/passenger variant.
VC-118: One DC-6 bought as a presidential transport with special 25 seat interior and 12 beds.
C-118A: Designation of DC-6As for the United States Air Force, 101 built.
VC-118A: C-118As converted as staff transports.
C-118B: R6D-1s re-designated.
VC-118B: R6D-1Zs re-designated.
R6D-1: United States Navy designation for the DC-6A, 65 built.
R6D-1Z: Four R6D-1s converted as staff transports.

Operators

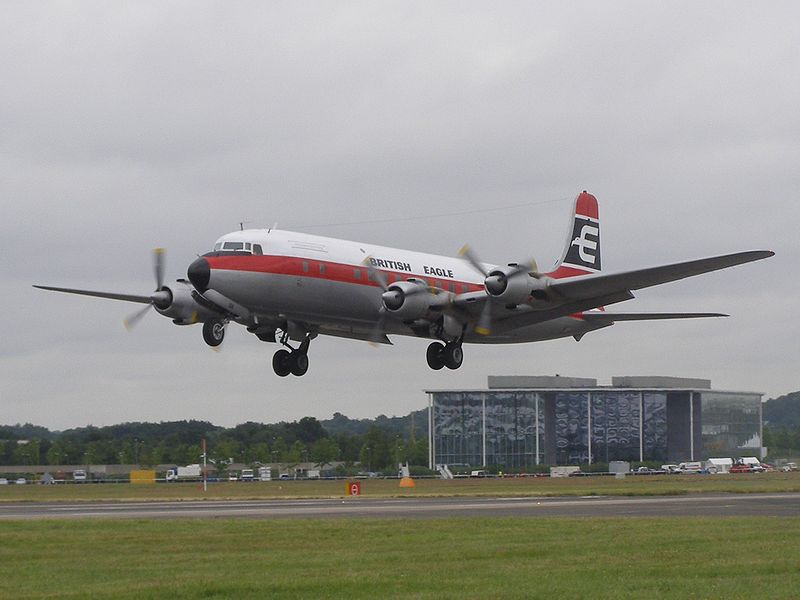

G-APSA in British Eagle scheme

G-APSA displaying at Hamburg

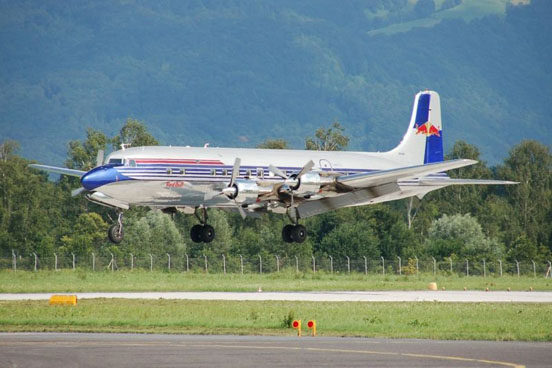

The Red Bull DC-6B landing at Salzburg

Current operators of the DC-6: Today, most DC-6s in commercial use are based in Alaska. Several other DC-6s are still in operation for small carriers in South America.

About 100 DC-6s still fly (or are potentially capable of flight).
In 2002, 49 were fully active.
One DC-6A, G-APSA, is in use by Air Atlantique, Coventry, UK. They also own a DC-6B, G-SIXC.
One is in use by Red Bull in Salzburg, Austria.
One DC-6 is in use by Namibia Commercial Aviation.
An unknown number are in use as freighters or waterbombers in Canada and the western US.

Civil operators

New Zealand
- TEAL
United Kingdom
- Air Atlantique, a former cargo carrier based in Coventry, England.
United States
- Everts Air Fuel
- Everts Air Cargo
Greece
- Olympic Airways

Military operators

Notable incidents and accidents

On 29 November 1949, American Airlines Flight 157 crashed while attempting a 3 engine landing in Dallas Texas, killing 28 people.
On 24 August 1951, United Airlines Flight 615 crashed into Tolman Peak and into Dry Gulch Canyon below, 15 miles southeast of Oakland, California, killing all 44 passengers and 6 crew.
On 14 February 1953, National Airlines Flight 470 crashed into the Gulf of Mexico off Mobile, Alabama. The aircraft broke up in the turbulence of a "frontal wave" storm after failure of the left wing, killing all 41 passengers and 5 crew members.
On 29 October 1953, British Commonwealth Pacific Airlines flight 304 from Sydney, Nadi (Fiji), Canton Island, and Honolulu crashed upon landing at San Francisco Airport, killing all 19 on board.
On 12 February 1955, a Sabena DC-6 crashed on mount Terminillo, near Rieti, Italy; 29 people died, including 1953 Miss Italia winner Marcella Mariani.
On 1 November 1955, a time bomb exploded aboard United Airlines Flight 629, a DC-6, killing 44 people above Longmont, Colorado, USA.

Survivors

Harry Truman's C-118, The Independence

Several DC-6s are preserved in museums.

The most well-known is President Harry S. Truman's VC-118B Independence (s/n 46-505), which is preserved at the National Museum of the United States Air Force, Wright-Patterson Air Force Base in Dayton, Ohio. It was retired to the Museum in 1965. In 1977-1978 museum personnel restored "Independence" to its former presidential markings and eagle-like paint scheme. The aircraft is on display in the Museum's Presidential Hangar.

Specifications (DC-6B)

Data from Airliners.net

General characteristics

Crew: 3: captain, copilot, flight engineer, plus attendants appropriate to number of passengers
Capacity: 54-102 passengers
Length: 105 ft 7 in (32.18 m)
Wingspan: 117 ft 6 in (35.81 m)
Height: 28 ft 5 in (8.66 m)
Wing area: 1,463 ft (135.9 m)
Empty weight: 55,357 lb (25,110 kg)
Max takeoff weight: 107,000 lb (48,500 kg)
Powerplant: 4×radial engine, 2,500 hp (1,700 kW) with water injection each
Propellers: Hamilton Standard 43E60 "Hydromatic" constant speed props with autofeather and reverse thrust

Performance

Cruise speed: 274 kn (315 mph, 507 km/h)
Range: 2,610 nmi (3,010 mi, 4,840 km)
Service ceiling: 25,000 ft (7,600 m)
Rate of climb: 1,070 ft/min (5.44 m/s)
