Dornier Do 28

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Dornier_Do_28

Do 28 Skyservant
Dornier Do 28 G.92 turboprop conversion
Role STOL light utility aircraft
Manufacturer Dornier Flugzeugbau GmbH
First flight 29 April 1959
Status In civilian use
Primary user Luftwaffe
Developed from Dornier Do 27

The Dornier Do 28 Skyservant is a twin-engine STOL utility aircraft, manufactured by Dornier Flugzeugbau GmbH. It served with the Luftwaffe and Marineflieger and other air forces around the world in the communications and utility role.

Design and development

The Do 28 was developed from the single-engine Do 27 at the end of the 1950s. The design shared the high-wing cantilever layout and the lift augmentation devices of the Do 27, together with the rear fuselage which seated six passengers.

The most defining feature of the new design was the unusual incorporation of two Lycoming engines, as well as the two main landing gear shock struts of the faired main landing gear attached to short pylons on either side of the forward fuselage.

The internal space of the Do 28 was the same as the Do 27 and the company was given financial assistance from the German government to develop a larger STOL transport to carry up to 13 passengers. The type was designated the Do 28D and later named Skyservant. The Do 28D was a complete redesign and shared only the basic layout and wing construction of the earlier versions. The fuselage and engine nacelles were rectangular, unlike the rounded Do 28A/B. The aim was to develop a simple and rugged aircraft for use under arduous conditions, which could be easily maintained. With a crew of two pilots, the cabin accommodated up to 12 passengers; freight could be loaded easily through large double doors and with the seats removed the cabin gave 283 sq ft (26.3 m) of unobstructed space. The first flight of a Do 28D took place on 23 February 1966.

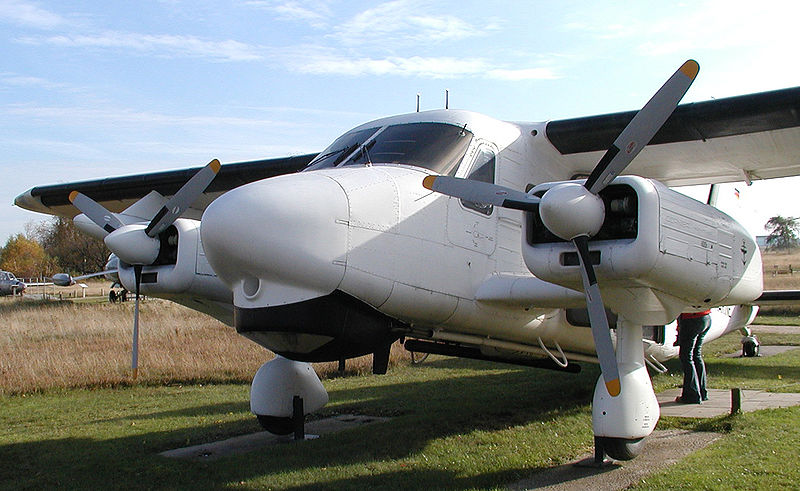

Dornier Do 28 D-2/OU pollution patrol aircraft
Dornier Do 28 D-2/OU pollution patrol aircraft

A further variant of the Skyservant was the Do 28D-2/OU (Oil Unit). Two aircraft were fitted with radar and SLAR (Side-Looking Airborne Radar) to monitor oil pollution in the Baltic and North Seas. Painted in a white scheme, they were operated between 1984 and 1995 by MFG 5 of the Marineflieger, on behalf of the German Transport Ministry. These aircraft are easily recognised by the fuselage-mounted SLAR antenna and a radome under the cockpit. In 1991, both aircraft operated for several weeks in the Persian Gulf during the Gulf War under the control of the United Nations. These two aircraft were replaced by the Do 228 at the end of 1995. These Skyservants are preserved in the museum at Nordholz.

Like the Do 27, the Dornier Do 28 possessed a high cruising speed, excellent low-speed handling characteristics, as well as very short takeoff and landing (STOL) performance. The Do 28 was readily accepted as a natural progression from its single-engine forebear. With many of the same STOL characteristics, most Do 28 production was destined for military customers, notably Germany, although a small number were in service for commercial operators as a rugged, low-cost utility transport. The design proved remarkably adaptable and was developed into a number of progressively improved variants, from the original D, through the D1 and D2 to the 128-2, introduced in 1980. Each variant introduced a number of detail changes that enhanced its already versatile performance capabilities.

In 1997, the Hungarian engineer Andreas Gál developed a conversion based on a D-variant, that was intended to meet the requirements of skydivers. Instead of the Lycoming piston engines, Gál had two Walter M601-D2 turboprops, modified three-blade propellers and a skydiving kit installed by Aerotech Slovakia on seven planes. Although CAA, Hungary's aviation authorities, instantly certified the conversion, the JAA-certification could not be applied for before 2007, due to certification restrictions on the engines. In 2008, there have been three planes flying in Europe, all of them Hungarian registered, mainly at dropzones in Soest, Germany and Wiener Neustadt, Austria.

Operational history


Dornier Do 28D-2 Skyservant
Dornier Do 28D-2 Skyservant

A total of 121 Dornier Do 28D-2s were built between 1971 and 1974 at Oberpfaffenhofen for the Bundeswehr (German Federal Armed Forces) where they replaced ageing Percival Pembrokes, they served until the introduction of the Dornier Do 228 in 1994, predominantly as a transportation and communications aircraft. 20 aircraft were transferred to the Marineflieger, 10 served from 1978 in the maritime reconnaissance role, additional underwing fuel tanks were fitted for extended endurance (see photo). The high noise levels and vibration in the cabin led to the type's replacement by the significantly quieter turboprop-powered Do 228. During the 20 years in German military service, only three aircraft were lost to accidents.

The Do 28D was flown in 30 countries around the world and is still in service today. More than 150 aircraft were built. In the German Federal Armed Forces jargon, the Skyservant was called the "farmer's eagle" and was regarded as a reliable "workhorse". Turkey received two specially equipped SIGINT aircraft with the code name of 'Anadolou' as well as the normal transport version.

Variants

Do 28
Prototype, first flew 29 April 1959 with two 180 hp (130 kW) Lycoming O-360-A1A engines and fixed pitch two-blade propellers.
Do 28A-1
Designation of production aircraft with 250 hp (190 kW) Lycoming O-540-A1A engines and a 7 ft increase in wingspan, 60 built. First flown on 20 March 1960 at Oberpfaffenhofen. One aircraft was used for the personal transport of the German Defense Minister, Franz Josef Strauss.
Do 28A-1-S
Floatplane converson of the Do 27A-1 by the Jobmaster Company of Seattle, Washington, USA.
Do 28B-1
Do 28A with enlarged nose, additional fuel tanks, increased tailplane area and powered by 290 hp (220 kW) Lycoming IO-540 fuel injected engines and three-blade constant speed propellers, 60 built.
Do 28B-1-S
Proposed floatplane conversion of the Do 28B-1 by the Jobmaster Company of Seattle, Washington, USA.
Do 28B-2
Variant with turbocharged Lycoming TIO-540 engines, one built.
Do 28C
Designation of a proposed eight-seat version with two 530 shp turboprops but this design was not pursued.
Do 28D
Redesigned aircraft with box fuselage, larger wing, new tail and two 380 hp (280 kW) IGSO-540 engines, seven built.
Do 28D-1
Production version of the Do 28D, 54 built.

Dornier Do 28 D-2
Dornier Do 28 D-2
Do 28D-2
Increased maximum takeoff weight, lengthened fuselage, 172 built.
Do 28D-2/OU
Do 28D modified as a pollution patrol aircraft
Do 28D-2T
In 1980 one Luftwaffe Do 28D-2 aircraft was fitted with two Avco Lycoming TIGO-540 turbochared engines.
Do 28D-5X Turbo Skyservant
Prototype version powered by Lycoming LTP-101-600 turboprops, one built. Also known as the TurboSky.
Do 28D-6X Turbo Skyservant
Prototype version powered by PT6A-110 turboprops, one built later redesignated Dornier 128-6.
Do 28E-TNT
A Do 28D fitted with a high technology wing for trials, one built first flown in 1979.
Do 28 G.92
1997 Slovakian conversion of Do 28D powered by two Walter Engines M601-D2 450 hp (340 kW) turboprops used for skydiving operations, seven built
Do 128-2
Improved Do 28D
Do 128-6
Production version of the Turbo Skyservant, six built.

Operators

Military operators

 Benin
 Cameroon
 Germany
 Greece
 Israel
 Kenya
 Lesotho
  • Police Mobile Unit
 Malawi
 Morocco
 Niger
 Nigeria
 Serbia
 Spain
 Turkey
 Zambia

Specifications (Do 28D-2)

Data from

General characteristics

  • Crew: 1 or 2 pilots
  • Capacity: 12 passengers
  • Length: 11.41 m (37 ft 5 in)
  • Wingspan: 15.55 m (51 ft)
  • Height: 3.9 m (12 ft 10 in)
  • Wing area: 29 m² (312 ft²)
  • Empty weight: 2,328 kg (5,132 lb)
  • Loaded weight: 3,647 kg (8,040 lb)
  • Max takeoff weight: 4,350 kg (9,590 lb)
  • Powerplant:Lycoming IGSO-540-A1E 6-cylinder piston engine, 285 kW (380 hp) each

Performance
