The Lunar Orbiter program was a series of five unmanned Lunar orbiter missions launched by the United States in 1966 through 1967 with the purpose of mapping the lunar surface before the Apollo landings.All five missions were successful, and 99% of the Moon was photographed with a resolution of 60 m or better. The first three missions were dedicated to imaging 20 potential lunar landing sites, selected based on Earth based observations. These were flown at low inclination orbits. The fourth and fifth missions were devoted to broader scientific objectives and were flown in high altitude polar orbits. Lunar Orbiter 4 photographed the entire nearside and 95% of the farside, and Lunar Orbiter 5 completed the farside coverage and acquired medium (20 m) and high (2 m) resolution images of 36 pre-selected areas.

The Lunar Orbiters had an ingenious imaging system, which consisted of a dual lens camera, a film processing unit, a readout scanner, and a film handling apparatus. Both lenses, a 610 mm narrow angle high resolution (HR) lens and an 80 mm wide angle medium resolution (MR) lens, placed their frame exposures on a single roll of 70 mm film. The axes of the two cameras were coincident so the area imaged in the HR frames were centered within the MR frame areas. The film was moved during exposure to compensate for the spacecraft velocity, which was estimated by an electro-optical sensor. The film was then processed, scanned, and the images transmitted back to Earth.

During the Lunar Orbiter missions the first pictures of the planet Earth as a whole were taken, Earthrise over the Lunar surface by Lunar Orbiter 1 and a full picture of the Earth by Lunar Orbiter 5.

Spacecraft and subsystems

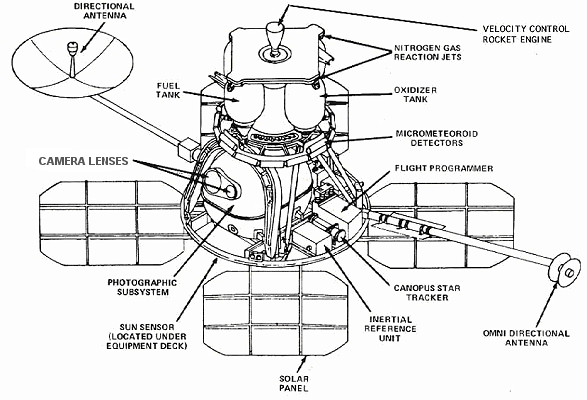

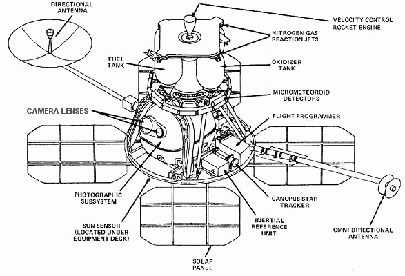

Lunar Orbiter diagram (NASA)
Lunar Orbiter diagram (NASA)

The main bus of the Lunar Orbiter had the general shape of a truncated cone, 1.65 metres tall and 1.5 m in diameter at the base. The spacecraft was composed of three decks supported by trusses and an arch. The equipment deck at the base of the craft held the battery, transponder, flight progammer, inertial reference unit (IRU), Canopus star tracker, command decoder, multiplex encoder, traveling wave tube amplifier (TWTA), and the photographic system. Four solar panels were mounted to extend out from this deck with a total span across of 3.72 m. Also extending out from the base of the spacecraft were a high gain antenna on a 1.32 m boom and a low gain antenna on a 2.08 m boom. Above the equipment deck, the middle deck held the velocity control engine, propellant, oxidizer and pressurization tanks, Sun sensors, and micrometeoroid detectors. The third deck consisted of a heat shield to protect the spacecraft from the firing of the velocity control engine. The nozzle of the engine protruded through the center of the shield. Mounted on the perimeter of the top deck were four attitude control thrusters.

Power of 375 W was provided by the four solar arrays containing 10,856 n/p solar cells which would directly run the spacecraft and also charge the 12 A·h nickel-cadmium battery. The batteries were used during brief periods of occultation when no solar power was available. Propulsion for major maneuvers was provided by the gimballed velocity control engine, a hypergolic 100 pound-force (445 N) thrust Marquardt rocket motor. Three axis stabilization and attitude control were provided by four one lbf (4 N) nitrogen gas jets. Navigational knowledge was provided by five Sun sensors, Canopus star sensor, and the IRU equipped with internal gyros. Communications were via a 10 W transmitter and the directional 1 m diameter high gain antenna for transmission of photographs and a 0.5 W transmitter and omnidirectional low gain antenna for other communications. Both antennas operated in S-band at 2295 MHz. Thermal control was maintained by a multilayer aluminized Mylar and Dacron thermal blanket which enshrouded the main bus, special paint, insulation, and small heaters.

Results of the Lunar Orbiter Program

The Lunar Orbiter program consisted of five Lunar Orbiters which returned photography of 99% of the surface of the Moon (near and far side) with resolution down to 1 meter. Altogether the Orbiters returned 2180 high resolution and 882 medium resolution frames. The micrometeoroid experiments recorded 22 impacts showing the average micrometeoroid flux near the Moon was about two orders of magnitude greater than in interplanetary space but slightly less than the near Earth environment. The radiation experiments confirmed that the design of Apollo hardware would protect the astronauts from average and greater than average short term exposure to solar particle events. The use of Lunar Orbiters for tracking to evaluate the Manned Space Flight Network tracking stations and Apollo Orbit Determination Program was successful, with three Lunar Orbiters (2, 3, and 5) being tracked simultaneously from August to October 1967. The Lunar Orbiters were all eventually commanded to crash on the Moon before their attitude control gas ran out so they would not present navigational or communications hazards to later Apollo flights. The Lunar Orbiter program was managed by NASA Langley Research Center at a total cost of roughly $200 million.

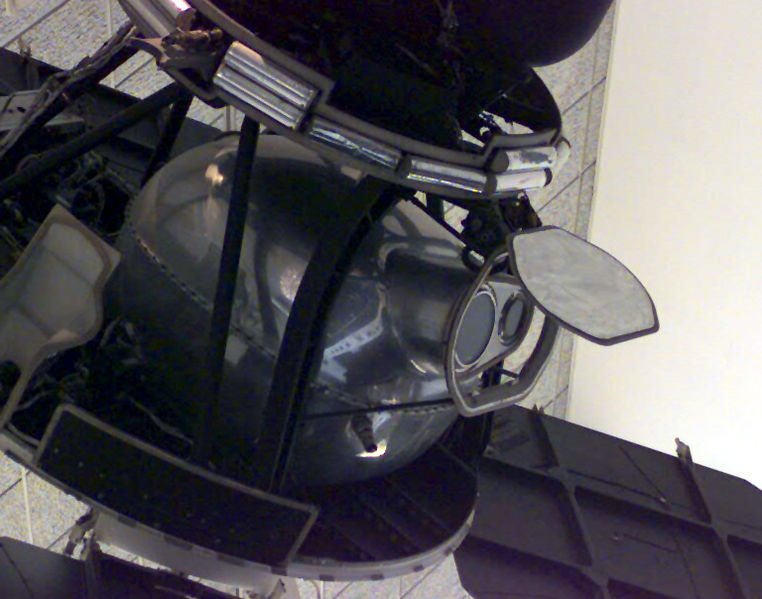

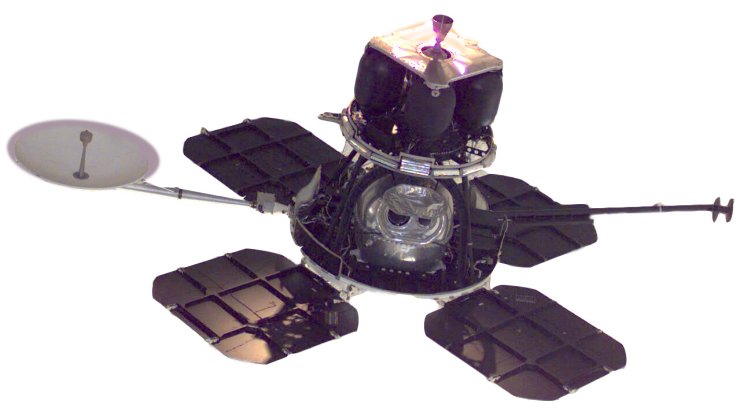

Lunar Orbiter camera (NASA)
Lunar Orbiter camera (NASA)
  • Lunar Orbiter 1
    • Launched August 10, 1966
    • Imaged Moon: August 18 to 29, 1966
    • Apollo landing site survey mission
  • Lunar Orbiter 2
    • Launched November 6, 1966
    • Imaged Moon: November 18 to 25, 1966
    • Apollo landing site survey mission
  • Lunar Orbiter 3
    • Launched February 5, 1967
    • Imaged Moon: February 15 to 23, 1967
    • Apollo landing site survey mission
  • Lunar Orbiter 4
    • Launched May 4, 1967
    • Imaged Moon: May 11 to 26, 1967
    • Lunar mapping mission
  • Lunar Orbiter 5
    • Launched August 1, 1967
    • Imaged Moon: August 6 to 18, 1967
    • Lunar mapping and hi-res survey mission

Data Availability

The Lunar Orbiter orbital photographs were transmitted to Earth as analog data after onboard scanning of the original film into a series of strips. The data were written to magnetic tape and also to film. The film data were used to create hand-made mosaics of Lunar Orbiter frames. Each LO exposure resulted in two photographs: medium-resolution frames recorded by the 80-mm focal-length lens and high-resolution frames recorded by the 610-mm focal length lens. Due to their large size, HR frames were divided into three sections, or sub-frames. Large-format prints (16 x 20 inches) from the mosaics were created and several copies were distributed across the U.S. to NASA image and data libraries known as Regional Planetary Information Facilities. The resulting outstanding views were of generally very high spatial resolution and covered a substantial portion of the lunar surface, but they suffered from a “venetian blind” striping, missing or duplicated data, and frequent saturation effects that hampered their use. Nevertheless, for many years these images have been the basis of much of lunar scientific research. Because they were obtained at low to moderate Sun angles, the Lunar Orbiter photographic mosaics are particularly useful for studying the morphology of lunar topographic features.

Several atlases and books featuring Lunar Orbiter photographs have been published. Perhaps the most definitive was that of Bowker and Hughes (1971); it contained 675 photographic plates with approximately global coverage of the Moon. In part because of high interest in the data and in part because that atlas is out of print, the task was undertaken at the Lunar and Planetary Institute to scan the large-format prints of Lunar Orbiter data . These were made available online as the Digital Lunar Orbiter Photographic Atlas of the Moon.

Data recovery and digitization

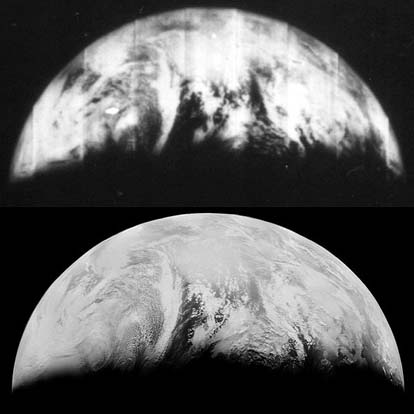

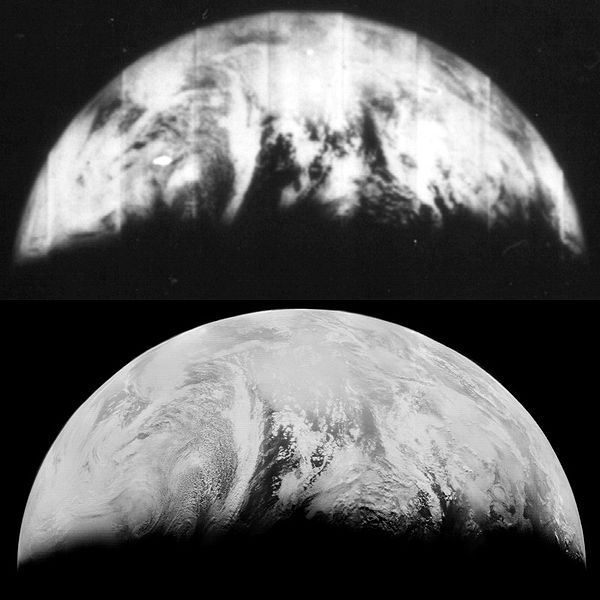

A detail of an original image at the top, compared to a reprocessed version at the bottom.
A detail of an original image at the top, compared to a reprocessed version at the bottom.

In 2000, the Astrogeology Research Program of the US Geological Survey in Flagstaff, AZ was funded by NASA (as part of the Lunar Orbiter Digitization Project) to scan at 25 micron resolution archival LO positive film strips that were produced from the original data . The goal was to produce a global mosaic of the Moon using the best available Lunar Orbiter frames (largely the same coverage as that of Bowker and Hughes, 1971). The frames were constructed from scanned film strips; they were digitally constructed, geometrically controlled, and map-projected without the stripes that had been noticeable in the original photographic frames. Because of its emphasis on construction of a global mosaic, this project only scanned about 15% of the available Lunar Orbiter photographic frames. Data from Lunar Orbiter missions III, IV and V were included in the global mosaic.

In addition, the USGS digitization project created frames from very high resolution Lunar Orbiter images for several 'sites of scientific interest.' These sites had been identified in the 1960's when the Apollo landing sites were being selected. Frames for sites such as the Apollo 12 landing site, the Marius Hills, and the Sulpicius Gallus rilles have been released.

In 2007, the Lunar Orbiter Image Recovery Project (LOIRP) began a process to convert the Lunar Orbiter Images directly from the original analog video recordings of the spacecraft data to digital image format, a change which provided vastly improved resolution over the original images released in the 1960s. The first of these restored images were released in late 2008.
