Luna 16

By Wikipedia,
the free encyclopedia,

Luna 16, also known as Lunnik 16, was an unmanned space mission, part of the Soviet Luna program.

Luna 16 was the first robotic probe to land on the Moon and return a sample of lunar soil to Earth after five unsuccessful similar attempts. The sample was returned from Mare Fecunditatis. It represented the first lunar sample return mission by the Soviet Union and was the third lunar sample return mission overall, following the Apollo 11 and Apollo 12 missions.

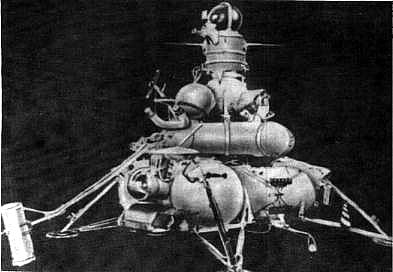

The spacecraft consisted of two attached stages, an ascent stage mounted on top of a descent stage. The descent stage was a cylindrical body with four protruding landing legs, fuel tanks, a landing radar, and a dual descent-engine complex.

A main descent engine was used to slow the craft until it reached a cutoff point, which was determined by the on-board computer based on altitude and velocity. After cutoff a bank of lower-thrust jets was used for the final landing. The descent stage also acted as a launch pad for the ascent stage.

The ascent stage was a smaller cylinder with a rounded top. It carried a cylindrical hermetically sealed soil-sample container inside a re-entry capsule.

The spacecraft descent stage was equipped with a television camera, radiation and temperature monitors, telecommunications equipment, and an extendable arm with a drilling rig for the collection of a lunar soil sample.

Luna 16

Luna 16
Mission type Lunar sample return
COSPAR ID 1970-072A
SATCAT no. 4527
Mission duration 12 days
Spacecraft properties
Bus Ye-8-5
Manufacturer GSMZ Lavochkin
Launch mass 5,600 kg (12,300 lb)
Start of mission
Launch date 12 September 1970, 13:25:53 UTC
Rocket Proton-K/D
Launch site Baikonur 81/23
End of mission
Landing date 24 September 1970, 05:25 UTC
Orbital parameters
Reference system Selenocentric
Semi-major axis 6,488.8 km (4,032.0 mi)
Eccentricity 0
Periselene 111 km (69 mi)
Aposelene 111 km (69 mi)
Inclination 70°
Period 119 minutes
Epoch 18 September 1970
Lunar orbiter
Orbital insertion 17 September 1970
Orbits ~36
Lunar lander
Landing date 20 September 1970, 05:18 UTC
Return launch 21 September 1970, 07:43 UTC
Landing site 0°41′S 56°18′E
Sample mass 101 grams (3.6 oz)
Stereo photographic imaging system
Remote arm for sample collection
Radiation detector

Mission summary

The Luna 16 automated station was launched toward the Moon from a preliminary Earth orbit and after one mid-course correction on 13 September it entered a circular 111 km with 70° inclination lunar orbit on 17 September 1970.

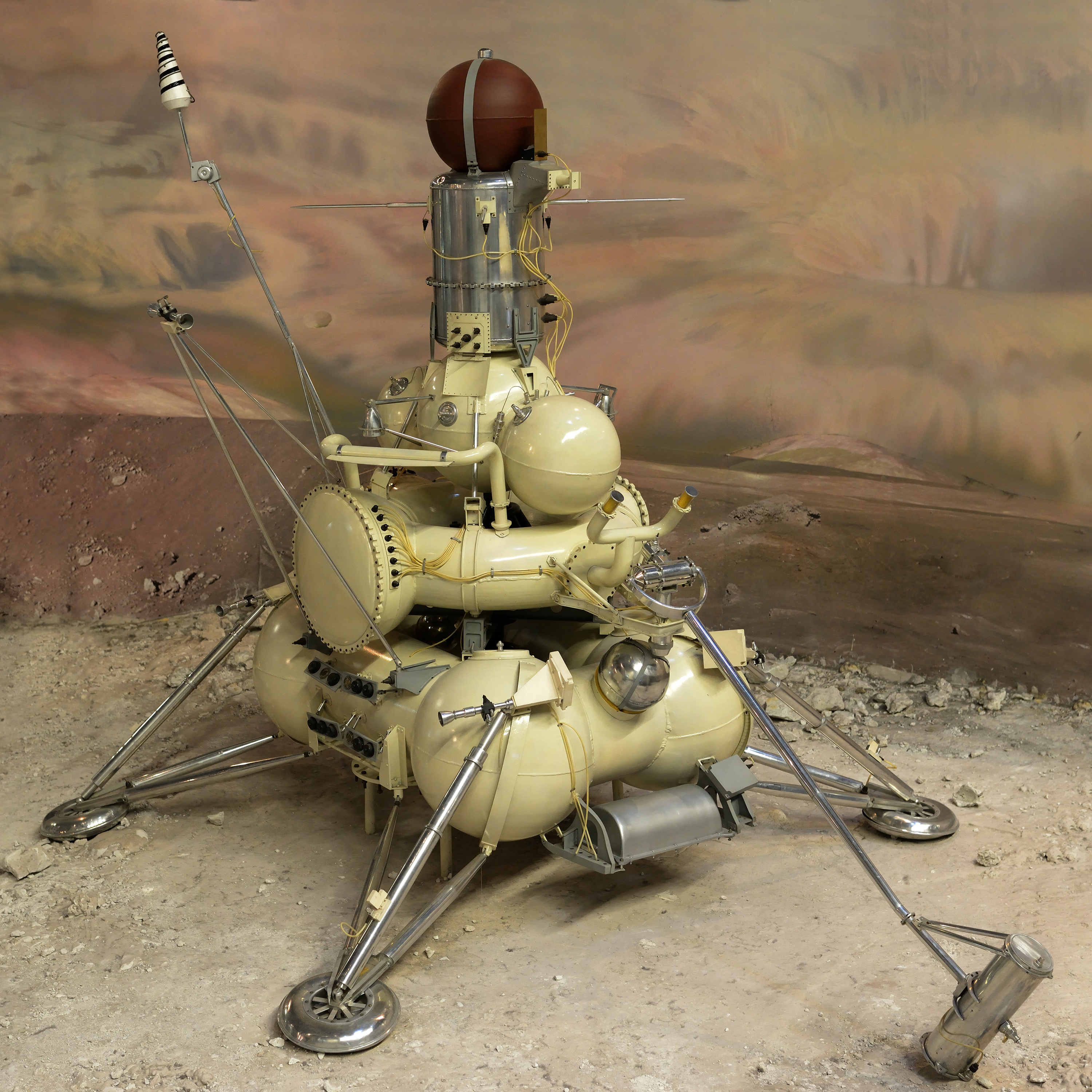

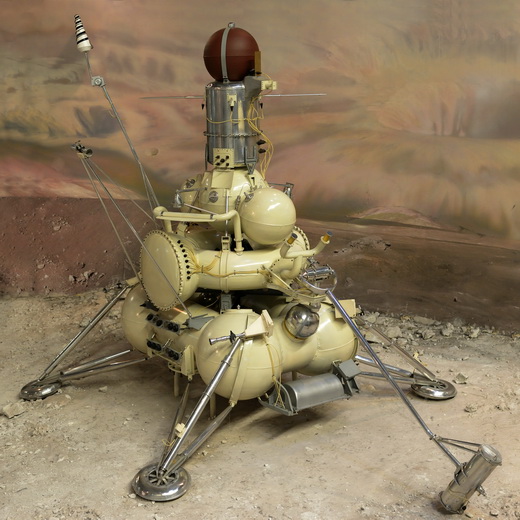

Lunik 16 Moon lander

Lunik 16 Moon lander

The lunar gravity was studied from this orbit. After two orbital adjustments were performed on 18 September and 19 September the perilune was decreased to 15.1 km, as well as the inclination altered in preparation for landing. At perilune at 05:12 UT on 20 September, the main braking engine was fired, initiating the descent to the lunar surface. Six minutes later, at 05:18 UT, the spacecraft safely soft-landed in its target area at 0°41′ south latitude and 56°18′ east longitude, in the northeast area of Mare Fecunditatis (Sea of Fertility) approximately 100 kilometers west of Webb crater and 150 km north of Langrenus crater. This was the first landing made in the lunar night side, as the Sun had set about 60 hours earlier. The main descent engine cut off at an altitude of 20 m, and the landing jets cut off at 2 m height at a velocity less than 2.4 m/s, followed by vertical free fall. The mass of the spacecraft at landing was 1,880 kilograms. Less than an hour after landing, at 06:03 UT, an automatic drill penetrated the lunar surface to collect a soil sample. After drilling for seven minutes, the drill reached a stop at 35 centimeters depth and then withdrew its sample and lifted it in an arc to the top of the spacecraft, depositing the lunar material in a small spherical capsule mounted on the main spacecraft bus. The column of regolith in the drill tube was then transferred to the soil sample container.

Finally, after 26 hours and 25 minutes on the lunar surface, at 07:43 UT on 21 September, the spacecraft’s upper stage lifted off from the Moon. The lower stage of Luna 16 remained on the lunar surface and continued transmission of lunar temperature and radiation data. Three days later, on 24 September, after a direct ascent traverse with no mid-course corrections, the capsule, with its 101 grams of lunar soil, reentered Earth’s atmosphere at a velocity of 11 kilometers per second. The capsule parachuted down 80 kilometers southeast of the town of Jezkazgan in Kazakhstan at 05:25 UT on 24 September 1970. Analysis of the dark basalt material indicated a close resemblance to soil recovered by the American Apollo 12 mission.

According to the Bochum Observatory in Germany, strong and good-quality television pictures were returned by the spacecraft. Luna 16 was a landmark success for the Soviets in their deep-space exploration program; the mission accomplished the first fully automatic recovery of soil samples from the surface of an extraterrestrial body.


Luna 16 101 g (3.6 oz) 1970
Luna 20 30 g (1.1 oz) 1972
Luna 24 170 g (6.0 oz) 1976

Three tiny samples (0.2 grams) of the Luna 16 soil were sold at Sotheby’s auction for $442,500 in 1993.

A series of 10-kopeck stamps was issued in 1970 to commemorate the flight of Luna 16 lunar probe and depicted the main stages of the programme: soft landing on Moon, launch of the lunar soil sample return capsule, and parachute assisted landing back on Earth.
