| Grants Pass Airport |
| IATA: none – ICAO: FAA: 3S8 |
| Summary |
| Airport type |
Public |
| Operator |
Josephine County Airports |
| Location |
Grants Pass, Oregon |
| Elevation AMSL |
1126 ft / 343.2 m |
| Coordinates |
42°30′36.4220″N 123°23′16.7620″W / 42.51011722°N 123.38798944°W / 42.51011722; -123.38798944Coordinates: 42°30′36.4220″N 123°23′16.7620″W / 42.51011722°N 123.38798944°W / 42.51011722; -123.38798944 |
| Runways |
| Direction |
Length |
Surface |
| ft |
m |
| 12/30 |
3999 |
1219 |
Asphalt |
Grants Pass Airport (FAA LID: 3S8), is a public airport located five miles (8 km) northwest of the city of Grants Pass in Josephine County, Oregon, USA.
The above content comes from Wikipedia and is published under free licenses – click here to read more.
 |

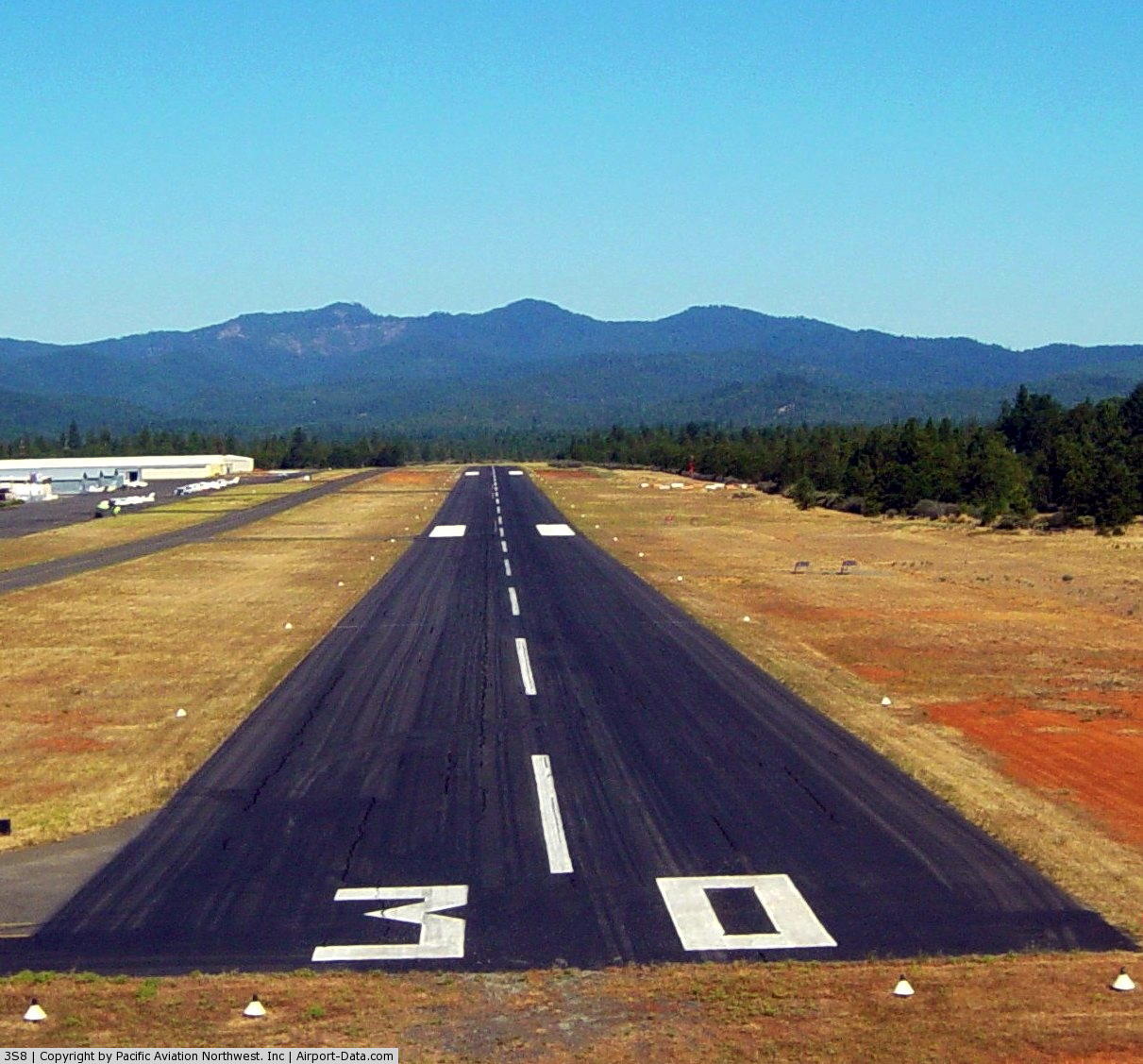

(Click on the photo to enlarge) |
 |

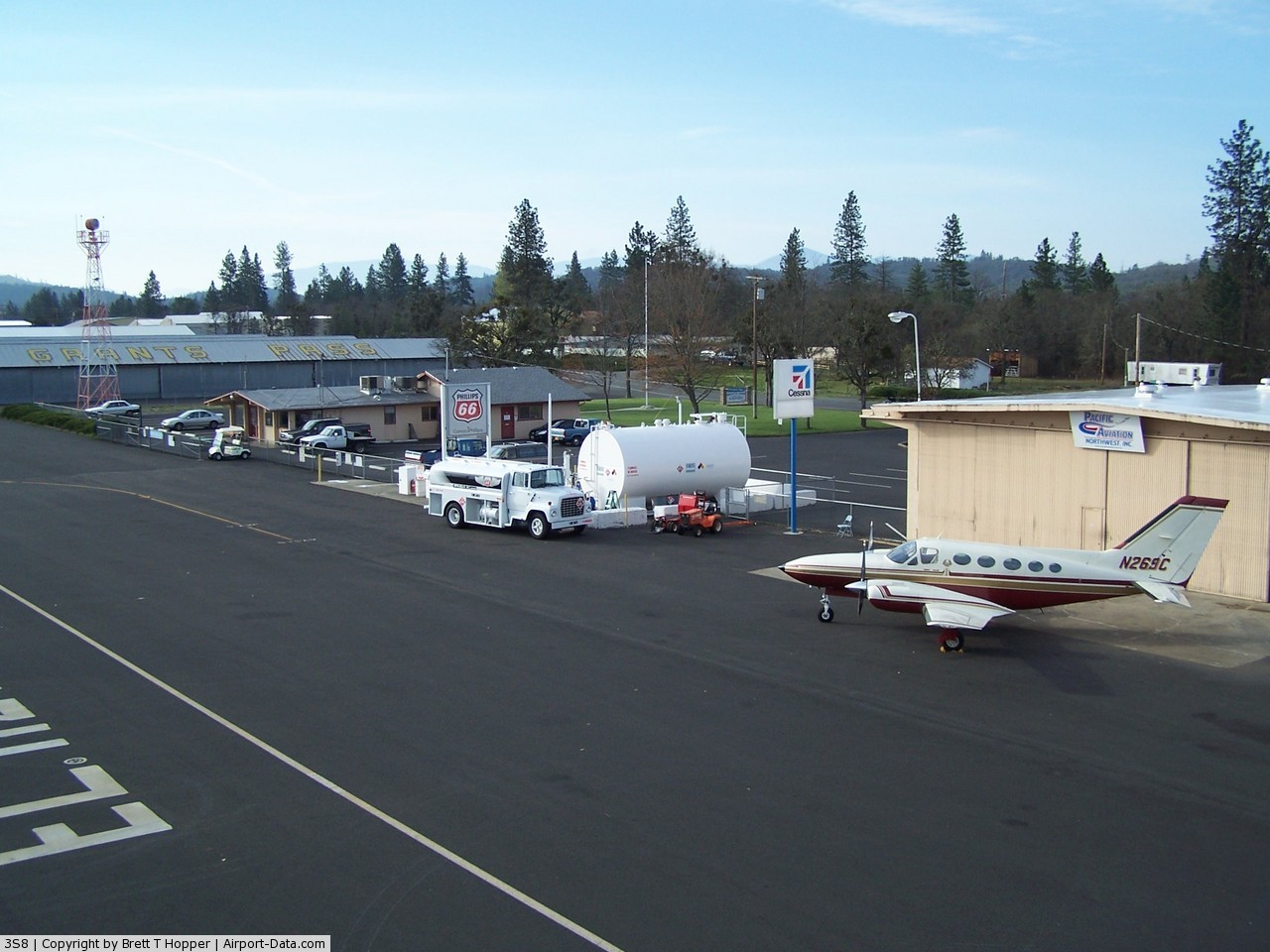

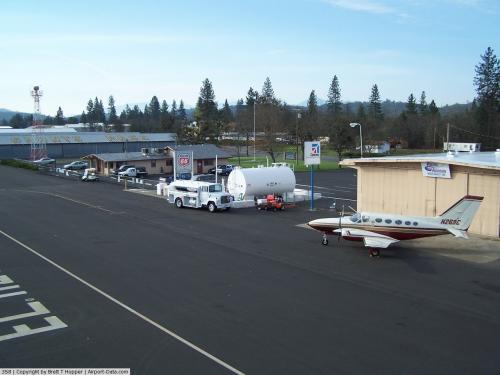

(Click on the photo to enlarge) |
Location & QuickFacts
| FAA Information Effective: | 2008-09-25 |
| Airport Identifier: | 3S8 |
| Airport Status: | Operational |
| Longitude/Latitude: | 123-23-16.7620W/42-30-36.4220N
-123.387989/42.510117 (Estimated) |
| Elevation: | 1126 ft / 343.20 m (Surveyed) |
| Land: | 400 acres |
| From nearest city: | 5 nautical miles NW of Grants Pass, OR |
| Location: | Josephine County, OR |
| Magnetic Variation: | 17E (1995) |
Owner & Manager
| Ownership: | Publicly owned |
| Owner: | Josephine Country Airports |
| Address: | 1441 Brookside Blvd.
Grants Pass, OR 97526 |
| Phone number: | 541-955-4535 |
| Manager: | Alex Grossi |
| Address: | 1441 Brookside Blvd.
Grants Pass, OR 97526 |
| Phone number: | 541-955-4535 |
Airport Operations and Facilities
| Airport Use: | Open to public |
| Wind indicator: | Yes |
| Segmented Circle: | Yes |
| Control Tower: | No |
| Lighting Schedule: | DUSK-DAWN
ACTVT MIRL RY 12/30, VASI RY 30 & REIL RY 12 & 30 - CTAF. |
| Beacon Color: | Clear-Green (lighted land airport) |
| Landing fee charge: | No |
| Sectional chart: | Klamath Falls |
| Region: | ANM - Northwest Mountain |
| Traffic Pattern Alt: | 1000 ft |
| Boundary ARTCC: | ZSE - Seattle |
| Tie-in FSS: | MMV - Mc Minnville |
| FSS on Airport: | No |
| FSS Toll Free: | 1-800-WX-BRIEF |
| NOTAMs Facility: | MMV (NOTAM-d service avaliable) |
| Federal Agreements: | NGY |
Airport Communications
| CTAF: | 122.800 |
| Unicom: | 122.800 |
Airport Services
| Fuel available: | 100LLA
24 HR CREDIT CARD FUEL AVBL. |
| Airframe Repair: | MAJOR |
| Power Plant Repair: | MAJOR |
| Bulk Oxygen: | NONE |
Runway Information
Runway 12/30
| Dimension: | 3999 x 75 ft / 1218.9 x 22.9 m |
| Surface: | ASPH, Fair Condition |
| Weight Limit: | Single wheel: 19000 lbs. |
| Edge Lights: | Medium |
| |
Runway 12 |
Runway 30 |
| Longitude: | 123-23-33.3750W | 123-23-00.1510W |
| Latitude: | 42-30-51.8800N | 42-30-20.9630N |
| Elevation: | 1095.00 ft | 1126.00 ft |
| Alignment: | 127 | 127 |
| Traffic Pattern: | Left | Left |
| Markings: | Basic, Fair Condition
RY 12/30 BSC MARKINGS, PLUS AIMING POINT MARKINGS. | Basic, Fair Condition |
| Crossing Height: | 0.00 ft | 55.00 ft |
| VASI: | | 4-box on right side |
| Visual Glide Angle: | 0.00° | 4.25° |
| Runway End Identifier: | Yes | Yes |
| Obstruction: | 55 ft trees, 1050.0 ft from runway, 260 ft left of centerline, 15:1 slope to clear | 50 ft trees, 1440.0 ft from runway, 165 ft left of centerline, 24:1 slope to clear |
|
Radio Navigation Aids
| ID |
Type |
Name |
Ch |
Freq |
Var |
Dist |
| MEF | NDB | Medford | | 356.00 | 19E | 23.7 nm |
| RBG | NDB | Roseburg | | 400.00 | 20E | 43.6 nm |
| RBG | VOR/DME | Roseburg | 019X | 108.20 | 20E | 40.4 nm |
| OED | VORTAC | Rogue Valley | 083X | 113.60 | 19E | 21.1 nm |
| MFR | VOT | Medford-jackson County | | 117.20 | | 24.9 nm |
Remarks
- VASI RY 30 NOT TO BE USED FOR TURBOJET OPNS.
Images and information placed above are from
http://www.airport-data.com/airport/3S8/
We thank them for the data!
| General Info
|
| Country |
United States
|
| State |
OREGON
|
| FAA ID |
3S8
|
| Latitude |
42-30-36.422N
|
| Longitude |
123-23-16.762W
|
| Elevation |
1126 feet
|
| Near City |
GRANTS PASS
|
We don't guarantee the information is fresh and accurate. The data may
be wrong or outdated.
For more up-to-date information please refer to other sources.
|
|
