Norman Y. Mineta San Jose International Airport



Norman Y. Mineta San José International Airport
IATA: SJC – ICAO: KSJC – FAA LID: SJC

SJC

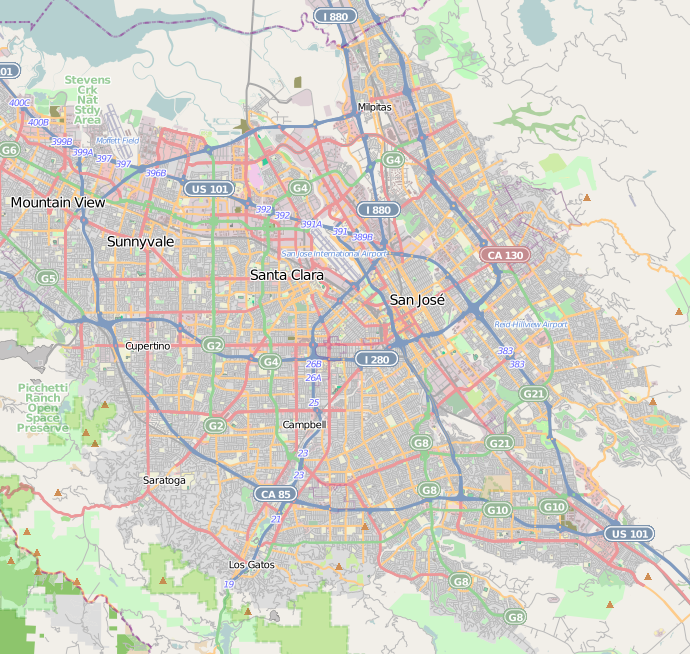

Location of the San Jose International Airport
Summary
Airport type Public
Owner City of San José
Serves San José, California
Location San Jose, California, USA
Elevation AMSL 62 ft / 19 m
Coordinates 37°21′46″N 121°55′45″W / 37.36278°N 121.92917°W / 37.36278; -121.92917
Website www.SJC.org
Runways
Direction Length Surface
ft m
12L/30R 11,000 3,353 Concrete
12R/30L 11,000 3,353 Concrete
11/29 4,599 1,402 Asphalt
Statistics (2006)
Passenger boardings 5,283,407
Aircraft operations 213,107
Based aircraft 176
Sources: airport web site, FAA Airport Master Record and FAA Passenger Boarding Data

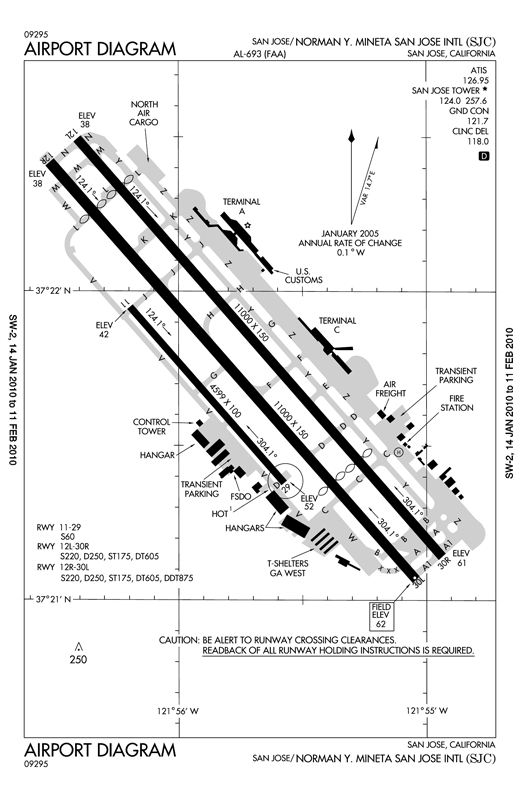

FAA Airport Diagram

Norman Y. Mineta San José International Airport (IATA: SJC, ICAO: KSJC, FAA LID: SJC) is a city-owned public-use airport serving the city of San José in Santa Clara County, California, United States. It is a U.S. Customs and Border Protection international Port of entry. It is located two nautical miles (4 km) northwest of Downtown San Jose, near the intersections of three major freeways, U.S. Route 101, Interstate 880, and State Route 87. The airport's dominant carrier is Southwest Airlines. Alaska Airlines, along with its regional subsidiary, Horizon Air, is the second largest carrier at the airport. Alaska Airlines also operates most of its departing flights from the Bay Area out of SJC. The airport offers free Wi-Fi in all its terminal buildings.

Overview

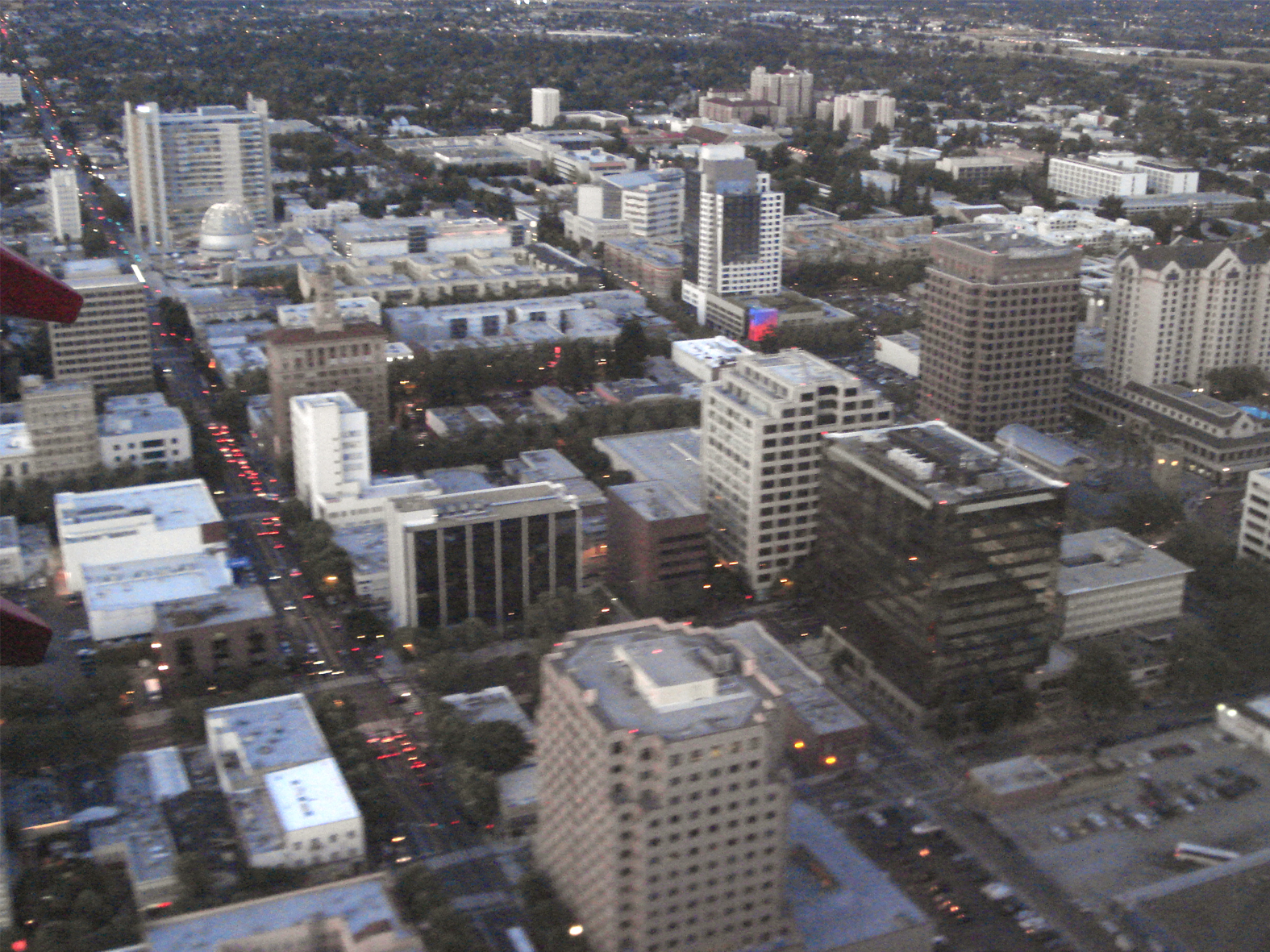

The approach from the southeast over downtown San Jose to runway 30L
The approach from the southeast over downtown San Jose to runway 30L

Despite San Jose's position as the most populous city in the Bay Area, SJC is the smallest of the three Bay Area airports offering scheduled service (10.9 million passengers annual in 2006), with less than one third the passengers of the region's major international airport San Francisco International Airport (SFO), and fewer passengers than Oakland International Airport (OAK). Like the Oakland airport, it attracts Bay Area residents who find SFO to be inconveniently distant from their homes.

SJC is situated as a "downtown airport". Its relatively convenient location for residents and visitors near downtown San Jose has also led to some drawbacks. It became surrounded by the city and had little room for expansion. The proximity to downtown has also led to restrictions on heights of buildings in downtown San Jose by safety margins set in FAA regulations.

History

Beginnings and Expansion

In 1939, Ernie Renzel, a wholesale grocer and future mayor of San Jose, led a group that negotiated an option to purchase 483 acres (1.95 km) of the Stockton Ranch from the Crocker family, to be the site of San Jose's airport. Renzel led the effort to pass a bond measure to pay for the land in 1940. In 1945, test pilot James Nissen leased about 16 acres (65,000 m) of this land to build a runway, hangar and office building for a flight school. When the city of San Jose decided to develop a municipal airport, Nissen sold his share of the aviation business and became San Jose's first airport manager. Both Renzel and Nissen were instrumental in the development of San Jose Municipal Airport over the next few decades, culminating with the opening of what is now Terminal C in 1965.

In the early 1980s San Jose International Airport was one of the first U.S airports to participate in the noise regulation program enacted by the U.S. Congress for delineation of airport noise contours and developing a pilot study of residential sound insulation. This program succeeded in its objective of demonstrating that residences in the airport vicinity could be retrofitted in a cost-effective manner to reduce interior sound levels from aircraft noise substantially.

In 1990, San Jose International Airport greatly expanded with the opening of Terminal A. Plans at the time called for a Terminal B to be eventually built between Terminals A and C.

In November 2001, the airport was renamed after Norman Yoshio Mineta, who is a native of San Jose, its former mayor and congressman, former United States Secretary of Commerce and former United States Secretary of Transportation. In December 2003, the airfield was named after former mayor Ernie Renzel.

Current News

In August 2004, the city broke ground on the North Concourse, the first phase in a three-phase, nine-year expansion plan. The master plan, designed by Gensler and The Steinberg Group, called for a single consolidated terminal that contains 40 gates (eight more than present), an international concourse, and expanded security areas. The terminal would be named after James Nissen. The sail-shaped facade would greet up to 17.6 million passengers a year. A people mover system would link the new terminal with VTA light rail and the planned BART station adjacent to the current Santa Clara Caltrain station. Cargo facilities would be moved to the east side of the airport. A long term parking garage would be constructed at the current location of the rental car operations. A new short term parking structure would also be constructed at the site of current Terminal C short term parking lot.

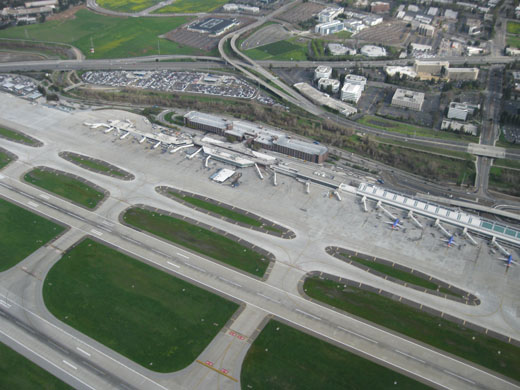

SJC aerial photo of Terminals A and B
SJC aerial photo of Terminals A and B

In November 2005, a scaled-back airport improvement plan was approved and announced. The new two-phase plan called for a simplified Terminal B, rather than the initially proposed James Nissen Central Terminal, with a North Concourse to replace the aging Terminal C. In addition, Terminal A would be expanded for additional check-in counters, security checkpoints, and drop-off/pick-up curbside space. The new plan cost $1.3 billion, less than half of the original plan's cost of $3 billion. The first phase was completed in June 2010, when Terminal B and the North Concourse officially opened for service. The second phase, adding a South Concourse to Terminal B, is to be built when demand is sufficient.

Passenger Service History

Early days

San Jose's first airline flights were Southwest Airways DC-3s on the multistop run between SFO and LAX, starting in 1948-49. Southwest (later called Pacific) was the only airline until 1966, when PSA started flying Electras nonstop from LAX, with 727s later that year. (SJC's first airline jets were Pacific 727 nonstops to LAX earlier in 1966). In 1968 United Airlines arrived, with 727 nonstops from Denver, Chicago and LAX, and DC-8s from New York Kennedy and Baltimore.

1988-2008

American Airlines opened a hub at San Jose in 1988, using slots it obtained in the buyout of Air California in 1986. Reno Air, a startup based in Reno, Nevada, took over many of American's gates until it was bought out by American in 1998.

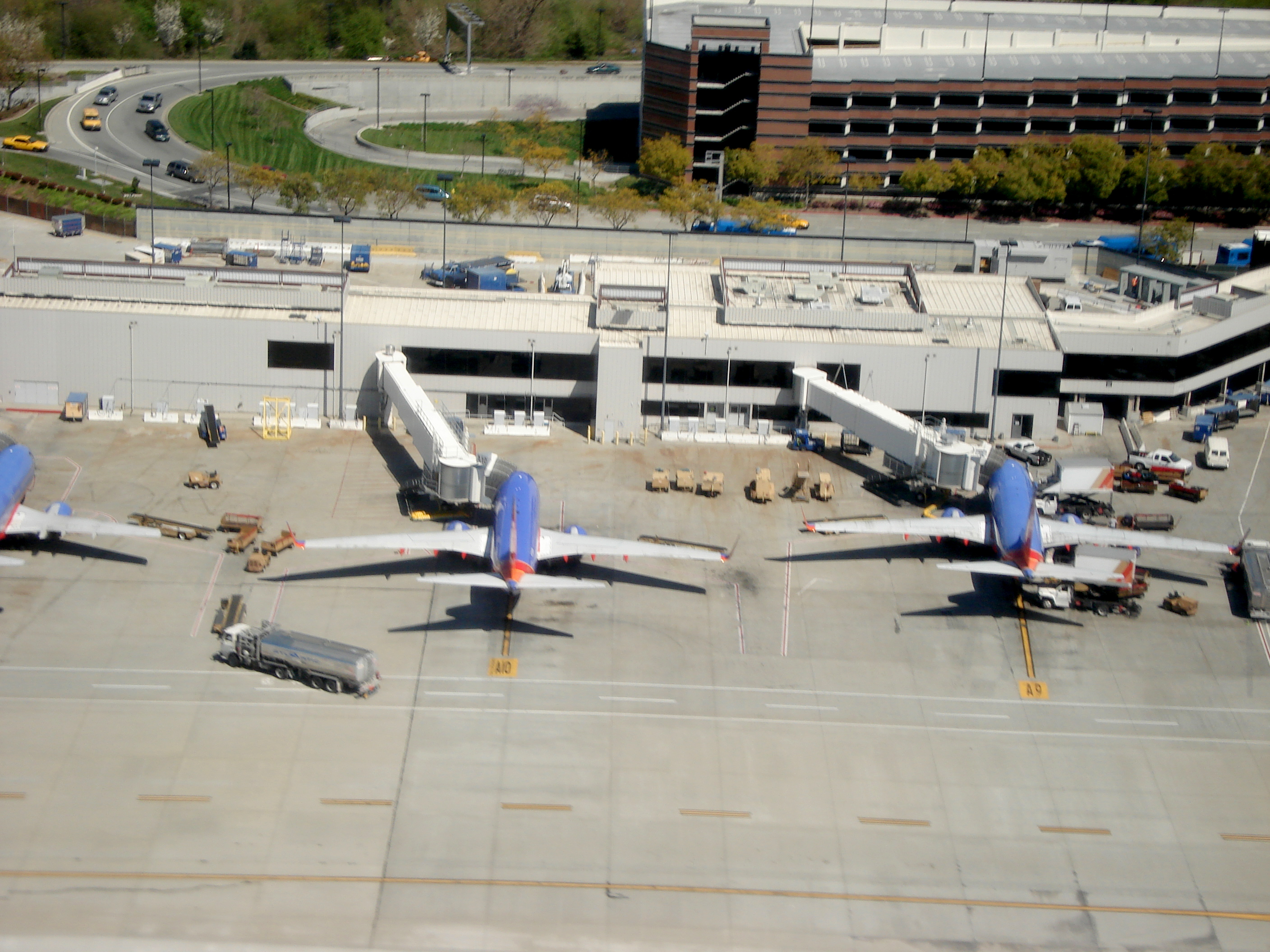

Southwest Airlines Boeing 737 aircraft parked at Terminal A with parking structure behind
Southwest Airlines Boeing 737 aircraft parked at Terminal A with parking structure behind

After the dot-com bubble burst in 2001, the city lost several flights because of a decrease in demand. Air Canada discontinued its flights to Toronto and Ottawa, Canada, and American Airlines stopped its nonstop flights to Taipei, Taiwan; Vancouver, Canada; and Paris, France. American also dropped its focus city service to Miami, St. Louis, Seattle, Portland, Denver, and Phoenix; the airline's flights to Southern California were downgraded to American Eagle regional flights.

Dramatic reduction at SJC continued throughout 2004. Alaska Airlines halted its San Jose–Puerto Vallarta and Cabo San Lucas seasonal routes, Horizon Air discontinued its twice daily San Jose-Tucson service. and American Airlines discontinued its San Jose–San Luis Obispo and San Jose–Boston Logan links.

In October 2005, Hawaiian Airlines began nonstop daily service from Honolulu to San Jose. This made San Jose Hawaiian's fifth gateway city in California, along with San Diego, Los Angeles, Sacramento and San Francisco. However, one year later, in October 2006, American Airlines discontinued the San Jose–Tokyo-Narita route, which was San Jose's last remaining link with an international overseas destination.

SJC suffered with many mid-tier airports during the 2008 rise in oil prices as airlines reduced marginal services to improve profitability. SJC lost much of its transcontinental U.S. service in the fall with Continental ending Newark flights, JetBlue ceasing Boston service, and United ending longtime service to its Chicago-O'Hare and Washington Dulles hubs.[1] The New York Times reported that between 2007 and 2009, SJC lost 22% of its seat capacity.

2009-present

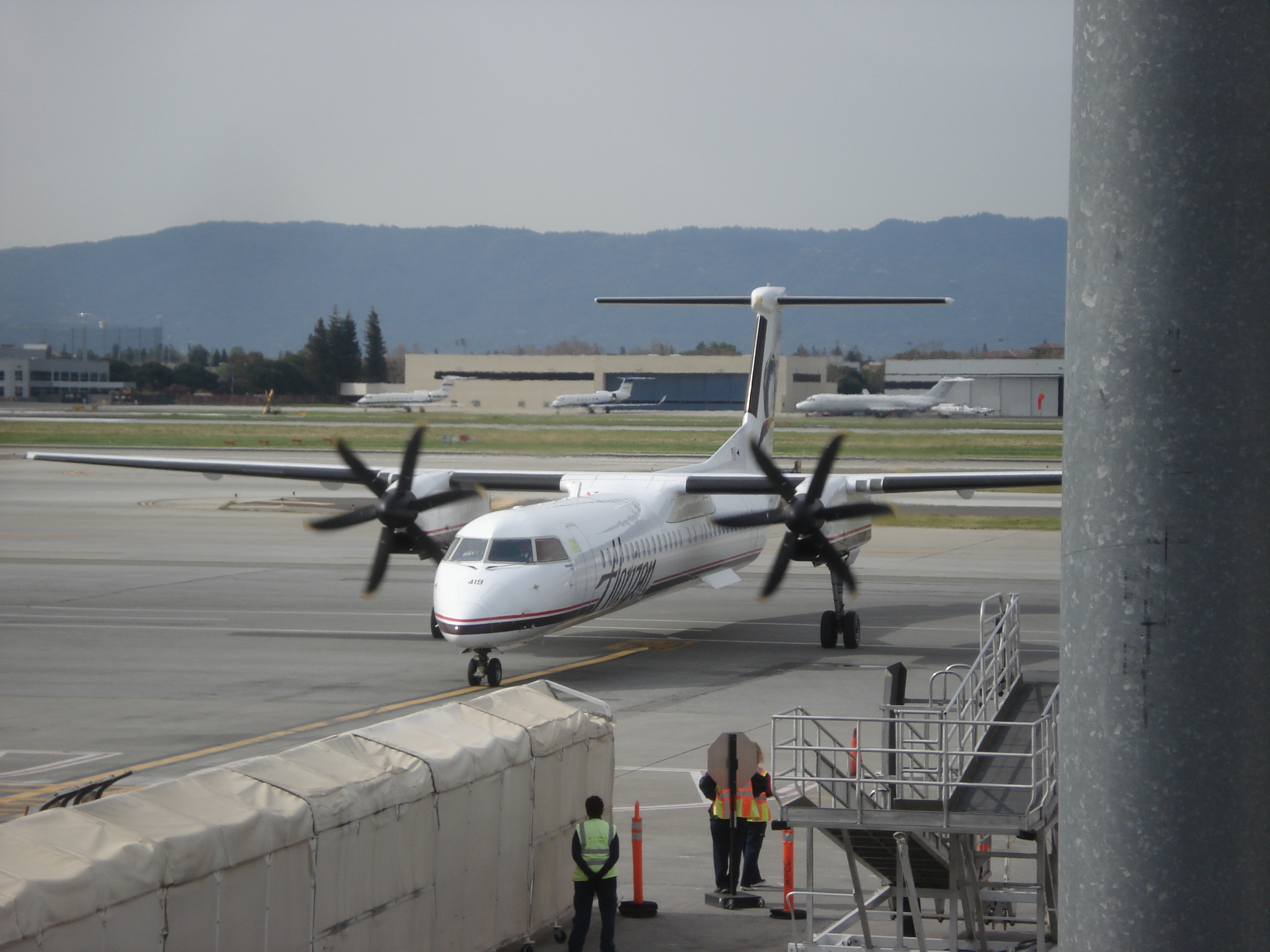

A Horizon Air Q400 arriving at Terminal C in March 2010
A Horizon Air Q400 arriving at Terminal C in March 2010

In the summer of 2009, American Airlines ceased service to Austin, Texas. However, Alaska Airlines announced afterward it would begin new routes to Austin from SJC, and would upgrade service to Portland, Oregon, which was run by regional subsidiary Horizon Air, to commercial jet service which began on September 2, 2009.

In 2010, service expanded at SJC for the first time in several years. JetBlue Airways resumed San Jose/Boston routes, although it discontinued service to Long Beach on the same day. Volaris entered into service at SJC in May 2010, with flights to Guadalajara, Mexico. Alaska Airlines added service to Kahului and Kona, Hawaii and Spokane, Washington, and plans to add flights to Los Angeles and Lihue, Hawaii. The airline also doubled its daily flights to several destinations on its regional subsidiary, Horizon Air, and has announced plans for a new international route to and from Los Cabos/San Jose Del Cabo. The airline also added service to Guadalajara, Mexico, which will begin on December 15, 2010. Alaska now operates most of its flights out of the Bay Area from San Jose. In August 2010, Southwest Airlines announced it will soon begin flights to Austin, Texas.

Despite the addition of service, Frontier Airlines pulled out of SJC in May 2010, citing lack of profitability on its single flight from the airport to Denver, Colorado.

In August 2010, Mexicana Airlines suspended all its flights out of the airport and its other destinations indefinitely until further notice due to financial problems.

Study of Passenger Service Satisfaction

A 2010 study by J.D. Power and Associates revealed that San Jose Airport has the lowest passenger satisfaction rating of any comparable small airport in the United States. San Jose Airport ranked the lowest in each of the six categories surveyed: accessibility, baggage claim, check-in, terminal facilities, security check, and food/retail services; however, this survey was conducted before Terminal B was opened.

Public Art

SJC's new consolidated parking and rental facility, CONRAC, has been fitted with new public art featuring hands of people in Silicon Valley. The art is on the outside of the facility and can be seen from more than one mile away. Artist Christian Moeller designed the new "Hands" mural.

Facilities and aircraft

Norman Y. Mineta San Jose International Airport covers an area of 1,050 acres (420 ha) at an elevation of 62 feet (19 m) above mean sea level. It has three runways: 12L/30R and 12R/30L each have a 11,000 by 150 feet (3,353 × 46 m) concrete surface and 11/29 has a 4,599 by 100 feet (1,402 × 30 m) asphalt surface.

For the 12-month period ending December 31, 2006, the airport had 213,107 aircraft operations, an average of 583 per day: 59% scheduled commercial, 14% air taxi, 27% general aviation and <1% military. At that time there were 176 aircraft based at this airport: 50% single-engine, 6% multi-engine, 38% jet, and 6% helicopter.

From 1960 to 2010 San Jose State University operated a flight-simulator facility for its aviation program in buildings at the southeast corner of the airport. The university has since relocated to the Reid-Hillview Airport located about 5 miles to the southeast.

Terminals

There are currently two terminals at the airport, Terminals A, opened in 1990, and Terminal B, opened in 2010. The airport's first modern terminal building, Terminal C, was opened in 1965 and closed in 2010.

In 2009, the gates at the airport were renumbered in preparation for the addition of Terminal B. Gate A16B at the north end became Gate 1, and Gate A1A at the south end became Gate 16.


Walkway that connects parking garage (left) to Terminal A proper (right).
Walkway that connects parking garage (left) to Terminal A proper (right).

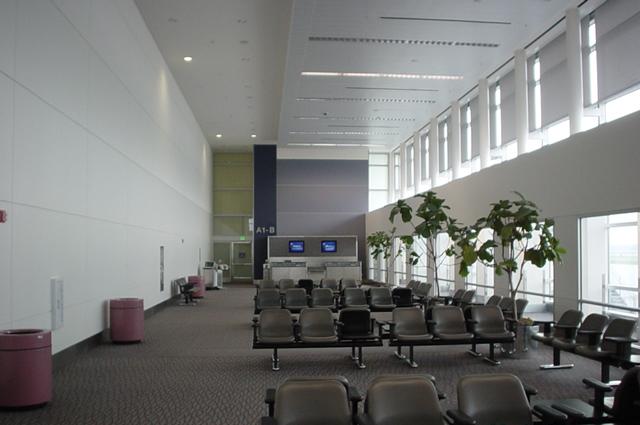

Gate and waiting area in Terminal A
Gate and waiting area in Terminal A

Terminal A

Terminal A has 16 gates: 1-16.

Designed by a team of architects and engineers led by HTB,Inc., Terminal A and its adjoining parking garage were originally designed and built in 1990 for American Airlines. The overall program was led by a joint team of San Jose Airport and Public Works staff known as the "Airport Development Team". The project was awarded the Public Works Project of the Year by the California Council of Civil Engineers. It underwent extensive renovation and expansion in 2009, with larger ground-level ticketing counters, more curbside parking space, larger security checkpoints, and more concessions. The renovations and expansion was designed by Curtis W. Fentress, FAIA, RIBA of Fentress Architects.

The terminal includes an international arrivals building, which contains Gates 15 and 16. All international flights (all of which depart at Terminal A) at the airport must clear customs from this building in order to proceed to their gates. The gates used in this building are also used for arrivals of Volaris flights.

Terminal A currently has an Admirals Club across from Gate 8 for American Airlines passengers, however the club is scheduled to close in September 2010, with the airline citing rising costs, and cutbacks in its flight schedule at San Jose for the club's closure.

Terminal B


The departure hall in the newly completed departure area in Terminal B in August 2009.
The departure hall in the newly completed departure area in Terminal B in August 2009.

The concourse was designed by Gensler (see inset photo) and the Terminal by Fentress Architects. Construction management was provided by Hensel Phelps Construction Co. The terminal officially opened on June 30, 2010. Its design features dramatic daylit spaces, modern art, shared use ticket counters/gates, and chairs with power cords and USB ports on the armrest to charge laptops or handheld devices.

North Concourse

The North Concourse of Terminal B has 12 gates: 17-28.

The first six gates of the new concourse were opened to the public on July 15, 2009. The remaining gates were opened in June 30, 2010. Southwest Airlines is the primary tenant, along with Alaska Airlines, Horizon Air, and Delta Air Lines.

South Concourse

The South Concourse will be built once traffic levels reach a certain level determined by the city of San Jose to justify the expansion.

Airlines and destinations

Commercial Aviation

Airlines Destinations Terminal
Alaska Airlines Austin, Guadalajara [begins December 15], Kahului, Kona, Lihue [begins March 27], Portland (OR), San Jose del Cabo [begins November 20], Seattle/Tacoma B
American Airlines Chicago-O'Hare, Dallas/Fort Worth A
American Eagle Los Angeles A
Continental Airlines Houston-Intercontinental A
Delta Air Lines Atlanta, Minneapolis/St. Paul
Seasonal: Salt Lake City
B
Delta Connection operated by Mesaba Airlines Salt Lake City B
Delta Connection operated by SkyWest Airlines Salt Lake City B
Hawaiian Airlines Honolulu A
Horizon Air Boise, Los Angeles, Portland (OR), Sacramento, Spokane
Seasonal: Mammoth Lakes
B
JetBlue Airways Boston, New York–JFK A
Southwest Airlines Austin [Begins November 7], Burbank, Chicago-Midway, Denver, Las Vegas, Los Angeles, Ontario (CA), Orange County, Phoenix, Portland (OR), Reno/Tahoe, San Diego, Seattle/Tacoma B
United Airlines Denver A
United Express operated by
SkyWest Airlines
Denver, Los Angeles A
US Airways Phoenix A
Volaris Guadalajara A

Cargo

  • ABX Air
  • Air Transport International
  • BAX Global (formerly Burlington Air Express)
  • DHL Express
  • Emery Worldwide
  • FedEx Express
  • National Airlines
  • UPS Airlines

Accidents and Incidents Involving SJC

  • February 17, 1981 - Air California (AirCal) Flight 336 (a Boeing 737-200), flying from San Jose, California to John Wayne Airport, crashed upon initiating a go around. The crew was cleared for a visual approach to Runway 19R while the controller had cleared another flight to take-off from 19R. Upon realizing the mistake, the controller ordered Air California 336 to go-around and the other aircraft to abort its take-off, which it did. The Captain of the landing Air California aircraft delayed the go-around then selected the gear up before a positive rate of climb was achieved. The 737 with the gear up skidded down the runway before coming to rest. A fire started, 4 passengers sustained minor injuries, 91 other passengers and 5 crew exited without incident. The aircraft N468AC was damaged beyond repair and was written off.
  • April 7, 1994 - FedEx Flight 705, operated by a McDonnell Douglas DC-10-30 identified as N306FE, was flying from Memphis International Airport to San Jose International Airport and experienced an attempted hijacking by a soon to be terminated employee. Auburn Calloway, the hijacker, planned to use the aircraft for a kamikaze attack on FedEx Corporation Headquarters in Memphis, Tennessee. The crew of Flight 705 were able to fight off Calloway and land the plane safely. This incident was featured on the National Geographic television show, Mayday (Air Crash Investigation or Air Emergency). The episode (Season 3, Episode 4) was titled "Fight for Your Life (Suicide Attack)"

Former Terminals

Terminal C

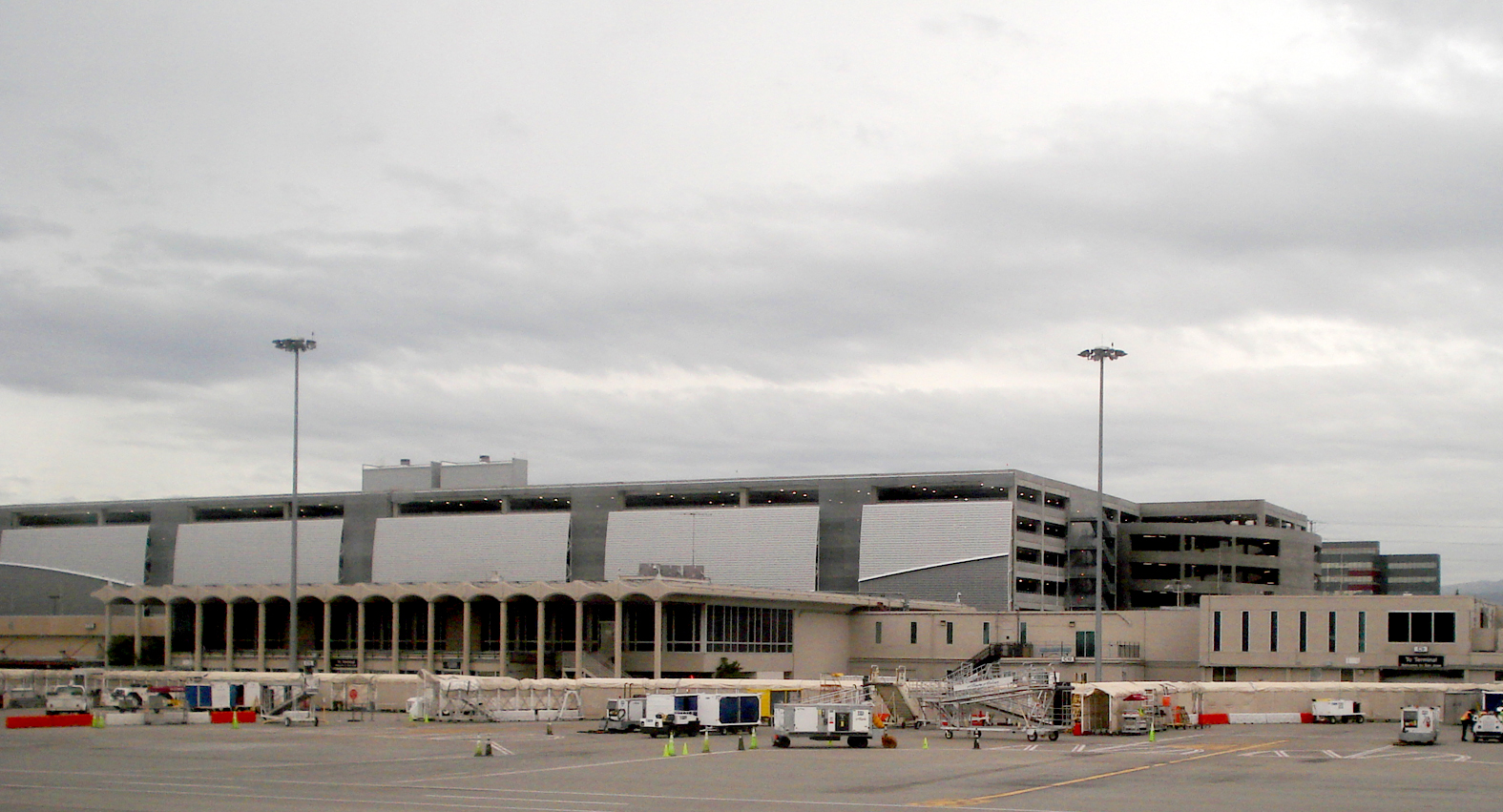

Terminal C with its dark windows in the foreground, with the new parking structure behind it in early 2010
Terminal C with its dark windows in the foreground, with the new parking structure behind it in early 2010

This terminal was built in 1965. Instead of using jetways (elevated tunnels that connect planes to the terminal), Terminal C mostly used airstairs, but most airlines, including Alaska Airlines and SkyWest Airlines, used turboway ramps. Terminal C will be torn down for construction of a temporary parking lot in 2010. In preparation for construction of Terminal B, the north end of Terminal C, previously home to gates C14–C16 and home to Alaska Airlines, Horizon Air, and Frontier Airlines, was closed for demolition in December 2007. The remaining portion of the terminal was reconfigured, including the addition of a new, larger consolidated security checkpoint. In February 2008, the north end of Terminal C was torn down to start the new construction of Terminal B.

In December 2009, United Airlines, Continental Airlines, and JetBlue Airways moved to new or reconstructed gates in Terminal A, as the area within Terminal C containing the three airlines' gates was demolished. Other airlines currently operating within Terminal C remained in the terminal until Terminal B and the North Concourse opened in June 2010.

The Terminal C baggage claim was closed for demolition on February 2, 2010. This allowed for completion of the airport's new roadways. The terminal was officially closed on June 30, 2010.

Terminal C featured a wall mural, children's play area and access to outdoor observation decks. The lobby held a food court and restroom facilties.

General aviation

Private and corporate aircraft are based on the opposite side of the runway from Terminals A and B, on Coleman Avenue.

  • ACM Aviation
  • Atlantic Aviation (formerly San Jose Jet Center)
  • AvBase Inc

Ground transportation

The airport's web site lists transportation options at SJC including taxis, limousines, rental cars, shuttles and public transportation, which are located on or accessible from the airport.

Public transit connections

The free VTA Route 10 Airport Flyer connects the airport to the Santa Clara Station for Caltrain and Altamont Commuter Express commuter rail services as well as numerous local buses; and to the Metro/Airport Light Rail Station for VTA's light rail service.



The above content comes from Wikipedia and is published under free licenses – click here to read more.

Norman Y. Mineta San Jose International Airport picture

Location & QuickFacts

FAA Information Effective:

2006-09-28

Airport Identifier:

SJC

Longitude/Latitude:

121-55-44.8000W/37-21-45.6000N
-121.929111/37.362667 (Estimated)

Elevation:

62 ft / 18.90 m (Surveyed)

Land:

1050 acres

From nearest city:

2 nautical miles NW of San Jose, CA

Location:

Santa Clara County, CA

Magnetic Variation:

16E (1990)



Owner & Manager

Ownership:

Publicly owned

Owner:

City Of San Jose

Address:

801 North First Street
San Jose, CA 95110

Phone number:

408-277-4705

Manager:

William Sherry

Address:

1732 N. First St Suite 600
San Jose, CA 95112-4541

Phone number:

408-501-7600



Airport Operations and Facilities

Airport Use:

Open to public

Wind indicator:

Yes

Segmented Circle:

Yes

Control Tower:

Yes

Attendance Schedule:

ALL/ALL/ALL

Lighting Schedule:

DUSK-DAWN
ACTVT MIRL RY 11/29, HIRL RYS 12L/30R - 12R/30L, MALSR RY 12R & MALSR RY 30L - FREQ 124.0 WHEN TWR CLSD.

Beacon Color:

Clear-Green (lighted land airport)

Landing fee charge:

No

Sectional chart:

San Francisco

Region:

AWP - Western-Pacific

Boundary ARTCC:

ZOA - Oakland

Tie-in FSS:

OAK - Oakland

FSS on Airport:

No

FSS Phone:

510-273-6111

FSS Toll Free:

1-800-WX-BRIEF

NOTAMs Facility:

SJC (NOTAM-d service avaliable)

Certification type/date:

I DS 5/1973
RY 12R/30L; RY 12L/30R AND RY 11/29 FAR 139 CERTIFIED.

Federal Agreements:

NGY



Airport Communications

CTAF:

124.000



Airport Services

Fuel available:

100LLA

Airframe Repair:

MAJOR

Power Plant Repair:

MAJOR

Bottled Oxygen:

HIGH/LOW

Bulk Oxygen:

HIGH/LOW



Runway Information

Runway 11/29

Dimension:

4599 x 100 ft / 1401.8 x 30.5 m

Surface:

ASPH, Good Condition

Weight Limit:

Single wheel: 60000 lbs.
RY 11/29 LTD TO 60000 LBS GWT ANY WHEEL ACFT; DEPS AUTHORIZED FOR BUSINESS JETS UNDER 75,000 LBS MANUFACTURER DESIGNED CERTIFIED MAXIMUM GROSS TAKE-OFF WGT ONLY DURG CLOSURES OF BOTH RY 12R/30L AND RY 12L/30R. .

Edge Lights:

Medium



Runway 11

Runway 29

Longitude:

121-56-11.7479W

121-55-34.2399W

Latitude:

37-21-57.2101N

37-21-22.9939N

Elevation:

42.00 ft

52.00 ft

Alignment:

127

127

Traffic Pattern:

Right

Left

Markings:

Basic, Good Condition

Basic, Good Condition

Crossing Height:

42.00 ft

52.00 ft

VASI:

4-light PAPI on left side

4-light PAPI on left side

Visual Glide Angle:

3.00

3.60

Runway End Identifier:

No

No

Centerline Lights:

No

No

Touchdown Lights:

No

No

Obstruction:

, 50:1 slope to clear

79 ft tree, 2060.0 ft from runway, 100 ft left of centerline, 23:1 slope to clear



Runway 12L/30R

Dimension:

11000 x 150 ft / 3352.8 x 45.7 m

Surface:

CONC, Good Condition

Surface Treatment:

Saw-cut or plastic Grooved
900 FT DSPLCD HR ON NE END NOT GROOVED.

Weight Limit:

Single wheel: 220000 lbs.
Dual wheel: 250000 lbs.
Dual tandem wheel: 605000 lbs.
RY 11/29 LTD TO 60000 LBS GWT ANY WHEEL ACFT; DEPS AUTHORIZED FOR BUSINESS JETS UNDER 75,000 LBS MANUFACTURER DESIGNED CERTIFIED MAXIMUM GROSS TAKE-OFF WGT ONLY DURG CLOSURES OF BOTH RY 12R/30L AND RY 12L/30R. .

Edge Lights:

High



Runway 12L

Runway 30R

Longitude:

121-56-24.6319W

121-54-54.9152W

Latitude:

37-22-29.9734N

37-21-08.1262N

Elevation:

38.00 ft

61.00 ft

Alignment:

127

127

Traffic Pattern:

Left

Right

Markings:

Precision instrument, Good Condition

Precision instrument, Good Condition

Crossing Height:

70.00 ft

69.00 ft

Displaced threshold:

1307.00 ft

2537.00 ft

VASI:

4-light PAPI on right side

4-light PAPI on left side

Visual Glide Angle:

3.00

3.00

Runway End Identifier:

Yes

No

Centerline Lights:

Yes

Yes

Touchdown Lights:

No

No

Obstruction:

32 ft pole, 1441.0 ft from runway, 580 ft right of centerline, 38:1 slope to clear

54 ft tree, 1435.0 ft from runway, 550 ft right of centerline, 23:1 slope to clear

Decleard distances:

Take off run available 10125.00 ft
Take off distance available 11000.00 ft
Actual stop distance available 10125.00 ft
Landing distance available 8810.00 ft

Take off run available 10020.00 ft
Take off distance available 11000.00 ft
Actual stop distance available 10020.00 ft
Landing distance available 7479.00 ft



Runway 12R/30L

Dimension:

11000 x 150 ft / 3352.8 x 45.7 m

Surface:

CONC, Good Condition

Surface Treatment:

Saw-cut or plastic Grooved
900 FT DSPLCD HR ON NE END NOT GROOVED.

Weight Limit:

Single wheel: 220000 lbs.
Dual wheel: 250000 lbs.
Dual tandem wheel: 605000 lbs.
Dual dual tandem wheel: 875000 lbs.
RY 11/29 LTD TO 60000 LBS GWT ANY WHEEL ACFT; DEPS AUTHORIZED FOR BUSINESS JETS UNDER 75,000 LBS MANUFACTURER DESIGNED CERTIFIED MAXIMUM GROSS TAKE-OFF WGT ONLY DURG CLOSURES OF BOTH RY 12R/30L AND RY 12L/30R. .

Edge Lights:

High



Runway 12R

Runway 30L

Longitude:

121-56-31.1548W

121-55-01.4362W

Latitude:

37-22-25.4194N

37-21-03.5695N

Elevation:

38.00 ft

62.00 ft

Alignment:

127

127

ILS Type:

ILS/DME

ILS/DME

Traffic Pattern:

Right

Left

Markings:

Precision instrument, Good Condition

Precision instrument, Good Condition

Crossing Height:

76.00 ft

72.00 ft

Displaced threshold:

1302.00 ft

2542.00 ft

VASI:

4-light PAPI on right side

4-light PAPI on left side

Visual Glide Angle:

3.00

3.00

Approach lights:

MALSR

MALSR

Runway End Identifier:

No

No

Centerline Lights:

Yes

Yes

Touchdown Lights:

No

No

Obstruction:

29 ft pole, 580.0 ft from runway, 480 ft right of centerline, 13:1 slope to clear
APCH RATIO 50:1 TO DSPLCD THR.

14 ft fence, 230.0 ft from runway, 170 ft right of centerline, 2:1 slope to clear
APCH RATIO 50:1 TO DSPLCD THR.

Decleard distances:

Take off run available 9883.00 ft
Take off distance available 11000.00 ft
Actual stop distance available 9883.00 ft
Landing distance available 8584.00 ft

Take off run available 10142.00 ft
Take off distance available 11000.00 ft
Actual stop distance available 10142.00 ft
Landing distance available 7605.00 ft





Radio Navigation Aids

ID

Type

Name

Ch

Freq

Var

Dist

LV

NDB

Reiga



374.00

16E

23.0 nm

PDG

NDB

Pajar



327.00

17E

27.6 nm

TCY

NDB

Tracy



203.00

15E

30.4 nm

NUQ

TACAN

Moffett

123X



17E

7.4 nm

SJC

VOR/DME

San Jose

088X

114.10

16E

1.0 nm

SFO

VOR/DME

San Francisco

105X

115.80

17E

26.2 nm

CCR

VOR/DME

Concord

117X

117.00

17E

41.4 nm

MOD

VOR/DME

Modesto

093X

114.60

17E

49.0 nm

OSI

VORTAC

Woodside

086X

113.90

17E

16.9 nm

OAK

VORTAC

Oakland

115X

116.80

17E

26.0 nm

SAU

VORTAC

Sausalito

109X

116.20

17E

40.9 nm

SNS

VORTAC

Salinas

120X

117.30

17E

44.8 nm

ECA

VORTAC

Manteca

107X

116.00

17E

45.9 nm

SFO

VOT

San Francisco Intl



111.00



26.3 nm



Remarks

  • TWY Y WILL BE PERIODICALLY RESTRICTED TO ACFT WITH A WINGSPAN OF LESS THAN 171 FT (MD-11 OR SMALLER) DURING B-777 OPNS ON RY 12L/30R.
  • TWY Z WILL BE PERIODICALLY RESTRICTED TO ACFT WITH A WINGSPAN OF LESS THAN 118 FT (BBJ OR SMALLER) DURING B-777 OPNS.
  • TWY Z CLSD BTWN TWY B AND TWY C PERIODICALLY FROM 1600-2000. TWY Z CLSD BTN TWY K AND TWY L PERIODICALLY FM 1600-0800.
  • BIRDS FREQUENTLY ON OR IN VICINITY OF AIRPORT.
  • RY 11/29 LTD TO ACFT WITH WINGSPAN OF LESS THAN 79 FT AND APCH SPEED OF LESS THAN 121 KNOTS (GULFSTREAM I OR SMALLER).
  • TWY V LTD TO ACFT WITH WINGSPAN OF LESS THAN 118 FT (A321 OR SMALLER).
  • UNSCHEDULED OPNS BY GROUP 5 ACFT (B747) AND LARGER NOT AUTH EXCEPT WITH PRIOR ARPT APPROVAL CTC AMGR (408) 277-4705.
  • NOISE ABATEMENT PROCEDURE: RY 30L/12R IS PREFERRED ARRIVAL RY FOR JET ACFT AND RY 12L/30R IS THE PREFERRED DEP RY FOR JET ACFT. ALL JET ACFT TKOFS ARE TO BE INITIATED FM EOR UNLESS DIRECTED OTHERWISE BY ATCT.
  • JET DEP ON RY 11/29 NOT AUTH EXCEPT FOR JETS UNDER 75,000 LBS MFG DESIGNED CERT GROSS TKOF WGT AND ONLY DURG CLOSURES OF BOTH RY 12R/30L AND RY 12L/30R.
  • TWY W BTN TWY B & TWY C RESTRICTED TO ACFT WITH A WING SPAN OF 118 FT, (BBJ OR SMALLER). TWY G AND TWY J BETWEEN RY 12R/30L AND TWY V LTD TO 100,000 LBS GROSS TKOF WEIGHT.
  • CURFEW HRS 2300-0700 FAR 36 STAGE II, 2330-0630 FAR 36 STAGE III ACFT LISTED ON THE SCHEDULE OF AUTHORIZED AIRCRAFT ISSUED BY THE DIRECTOR OF AVIATION. DELAYED SCHEDULED FLIGHTS, AND ALTERNATE/EMERGENCY OPERATIONS MAY BE EXEMPT FROM CURFEW HOUR RESTRICTIONS.
  • PRIOR AIRPORT NOTIFICATION IS REQUIRED FOR ALL LATE/EARLY ARRIVALS. CONTACT MANAGER ON DUTY AT (408) 277-5378.
  • FIRST 400 FT RY 30R & RY 30L CLSD FOR TKOF DC10, MD11, L1011.
  • ALL ENGINE RUN-UPS REQUIRE PRIOR AIRPORT APPROVAL, CONTACT MGR ON DUTY (408) 277-5378.
  • TWY Y CLSD BTN TWY B AND TWY L.



Based Aircraft

Aircraft based on field:

185

Single Engine Airplanes:

104

Multi Engine Airplanes:

26

Jet Engine Airplanes:

45

Helicopters:

10



Major Carriers Serving This Airport

Southwest Airlines

43.1%

American Eagle Airlines

14.1%

American Airlines

10.9%

Sky West Airlines

6.9%

Alaska Airlines

6.2%

United Airlines

5.8%

America West Airlines

5.2%

Delta Air Lines

2.4%

Continental Airlines

2.0%

Northwest Airlines

1.2%



Most Popular Destinations

Los Angeles Intl (LAX)

17.2%

San Diego Intl (SAN)

10.9%

John Wayne Airport-orange County (SNA)

8.2%

Mc Carran Intl (LAS)

6.8%

Seattle-tacoma Intl (SEA)

6.3%

Phoenix Sky Harbor Intl (PHX)

6.1%

Ontario Intl (ONT)

5.4%

Bob Hope (BUR)

5.2%

Dallas/fort Worth Intl (DFW)

4.3%

Chicago O'hare Intl (ORD)

4.3%



Most Popular Aircraft

N841AE

1.6%

N848AE

1.6%

N820AE

1.5%

N842AE

1.5%

N843AE

1.2%

N801AE

1.1%

N808AE

0.9%

N805AE

0.8%

N809AE

0.8%

N829AE

0.8%



Operational Statistics

Aircraft Operations:

946/Day

Air Carrier:

36.4%

Air Taxi:

9.4%

General Aviation Local:

4.3%

General Aviation Itinerant:

13.5%

Military:

0.0%



Norman Y. Mineta San Jose International Airport

Address: Santa Clara County, CA

Tel: 408-277-4705, 408-501-7600


Images and information placed above are from
http://www.airport-data.com/airport/SJC/

We thank them for the data!




General Info
Country United States
State CALIFORNIA
FAA ID SJC
Latitude 37-21-42.703N
Longitude 121-55-44.432W
Elevation 58 feet
Near City SAN JOSE



Thanks to: www.worldaerodata.com

We don't guarantee the information is fresh and accurate. The data may be wrong or outdated.
For more up-to-date information please refer to other sources.















Please see some ads intermixed with other content from this site:





christianity portal
directory of hotels worldwide



Copyright 2004-2018 © by Airports-Worldwide.com
Legal Disclaimer
