Location
& QuickFacts
|
FAA
Information Effective: |
2006-09-28 |
|
Airport
Identifier: |
L04 |
|
Longitude/Latitude: |
115-16-02.9300W/32-50-25.1650N
-115.267481/32.840324 (Estimated) |
|
Elevation: |
59 ft / 17.98 m (Surveyed) |
|
Land: |
1100 acres |
|
From
nearest city: |
5 nautical miles NE of Holtville, CA |
|
Location: |
Imperial County, CA |
|
Magnetic Variation: |
13E (1985) |
Owner
& Manager
|
Ownership: |
Publicly owned |
|
Owner: |
County Of Imperial |
|
Address: |
County Admin Center 940 Main St
El Centro, CA 92243 |
|
Phone
number: |
760-339-4290 |
|
Manager: |
Steve Birsall |
|
Address: |
1099 Airport Rd
Imperial, CA 92251 |
|
Phone
number: |
760-482-4314
ARPT MANAGERS OFFICE AT IMPERIAL CO. ARPT. |
Airport
Operations and Facilities
|
Airport
Use: |
Open to public |
|
Wind
indicator: |
No |
|
Segmented
Circle: |
No |
|
Control
Tower: |
No |
|
Attendance
Schedule: |
UNATNDD |
|
Landing
fee charge: |
No |
|
Sectional
chart: |
Phoenix |
|
Region: |
AWP - Western-Pacific |
|
Traffic
Pattern Alt: |
800 ft |
|
Boundary
ARTCC: |
ZLA - Los Angeles |
|
Tie-in
FSS: |
SAN - San Diego |
|
FSS
on Airport: |
No |
|
FSS
Phone: |
858-277-7043 |
|
FSS
Toll Free: |
1-800-WX-BRIEF |
|
NOTAMs
Facility: |
SAN (NOTAM-d service avaliable) |
|
Federal Agreements: |
NP |
Airport
Communications
Airport
Services
|
Airframe
Repair: |
NONE |
|
Power
Plant Repair: |
NONE |
|
Bottled
Oxygen: |
NONE |
|
Bulk
Oxygen: |
NONE |
|
Runway Information
Runway 08/26
|
Dimension: |
6000
x 150 ft / 1828.8 x 45.7 m
HAS A 25' CONC SHOULDER ON EACH SIDE OF RWY. |
|
Surface: |
CONC, Poor Condition
1-2 FOOT HOLES IN PAVEMENT, BUCKLED SECTION SLABS UP TO 2 FEET.
RWY
08/26 PAVEMENT BUCKLED AND CRACKED WITH VEGETATION GROWTH &
SPALLING. |
|
Weight
Limit: |
Single wheel: 30000 lbs.
Dual wheel: 50000 lbs.
LIMITED BY AMGR TO 20000 LBS; SINGLE WHEEL GEAR.
LIMITED
BY AMGR TO 40000 LBS; DUAL TANDEM WHEEL GEAR. |
|
|
Runway 08 |
Runway 26 |
|
Traffic
Pattern: |
Left |
Right |
|
Runway
End Identifier: |
No |
No |
|
Centerline
Lights: |
No |
No |
|
Touchdown
Lights: |
No |
No |
|
Obstruction: |
80 ft pline, 3200.0 ft from runway, 37:1 slope
to clear |
, 50:1 slope to clear |
|
Radio Navigation
Aids
|
ID |
Type |
Name |
Ch |
Freq |
Var |
Dist |
|
OEG |
NDB |
Golden Eagle |
|
413.00 |
12E |
41.7 nm |
|
NJK |
TACAN |
El Centro |
047X |
|
13E |
20.9 nm |
|
NYL |
TACAN |
Yuma |
084X |
|
14E |
35.1 nm |
|
MXL |
VOR/DME |
Mexicali |
097X |
115.00 |
14E |
13.1 nm |
|
IPL |
VORTAC |
Imperial |
106X |
115.90 |
14E |
13.4 nm |
|
BZA |
VORTAC |
Bard |
115X |
116.80 |
14E |
33.9 nm |
Remarks
- AIRPORT
CLOSED INDEFINITELY.
- BE
ALERT FREQUENT MILITARY TRAINING ACTIVITY DURING DALGT HRS AND DARK;
INCLUDES TACTICAL ACFT; HELICOPTERS AND PARACHUTING; CHECK LOCAL NOTAMS
CALL 619-337-7792.
- ESTABD
PRIOR TO 5/1/59.

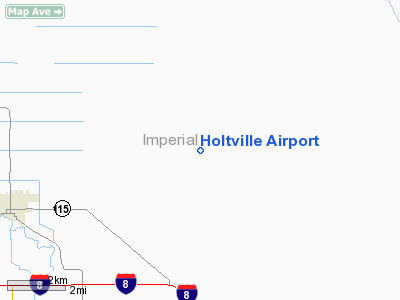

Holtville Airport
Address:
Imperial County, CA
Tel:
760-339-4290,
760-482-4314
Images
and information placed above are from
http://www.airport-data.com/airport/L04/
We
thank them for the data!
| General
Info |
| Country |
United
States |
| State |
CALIFORNIA
|
| FAA ID |
L04
|
| Latitude |
32-50-25.165N
|
| Longitude |
115-16-02.930W
|
| Elevation |
59 feet
|
| Near City |
HOLTVILLE
|
