Tainan Airport



Tainan Airport
臺南航空站
IATA: TNN – ICAO: RCNN
Summary
Airport type Public
Operator Civil Aeronautics Administration
Location Tainan City
Elevation AMSL 63 ft / 19 m
Coordinates 22°57′01″N 120°12′20″E / 22.95028°N 120.20556°E / 22.95028; 120.20556Coordinates: 22°57′01″N 120°12′20″E / 22.95028°N 120.20556°E / 22.95028; 120.20556
Runways
Direction Length Surface
ft m
18L/36R 10,006 3,050 Concrete
18R/36L 10,006 3,050 Concrete

Tainan Airport (traditional Chinese: 臺南機場; formally "臺南航空站") (IATA: TNN, ICAO: RCNN) is a commercial airport located in South District, Tainan City, Taiwan. It is shared with Republic of China Air Force Tainan AFB.

It is the third busiest domestic airport after Taipei Songshan Airport and Kaohsiung Airport. However its passenger number dropped significantly since 2007 after the inauguration of Taiwan High Speed Rail. The Far Eastern Air Transport suspended the service between Tainan Airport and Taipei Songshan Airport on March 1, 2008, ending this carrier's 50-year service history in the Tainan Airport. Its competitor, TransAsia Airways, also had to downgrade the aircraft from jet Airbus A320 to turboprop ATR 72 to maintain revenue, and finally decided to quit this airport since August 1, 2008.

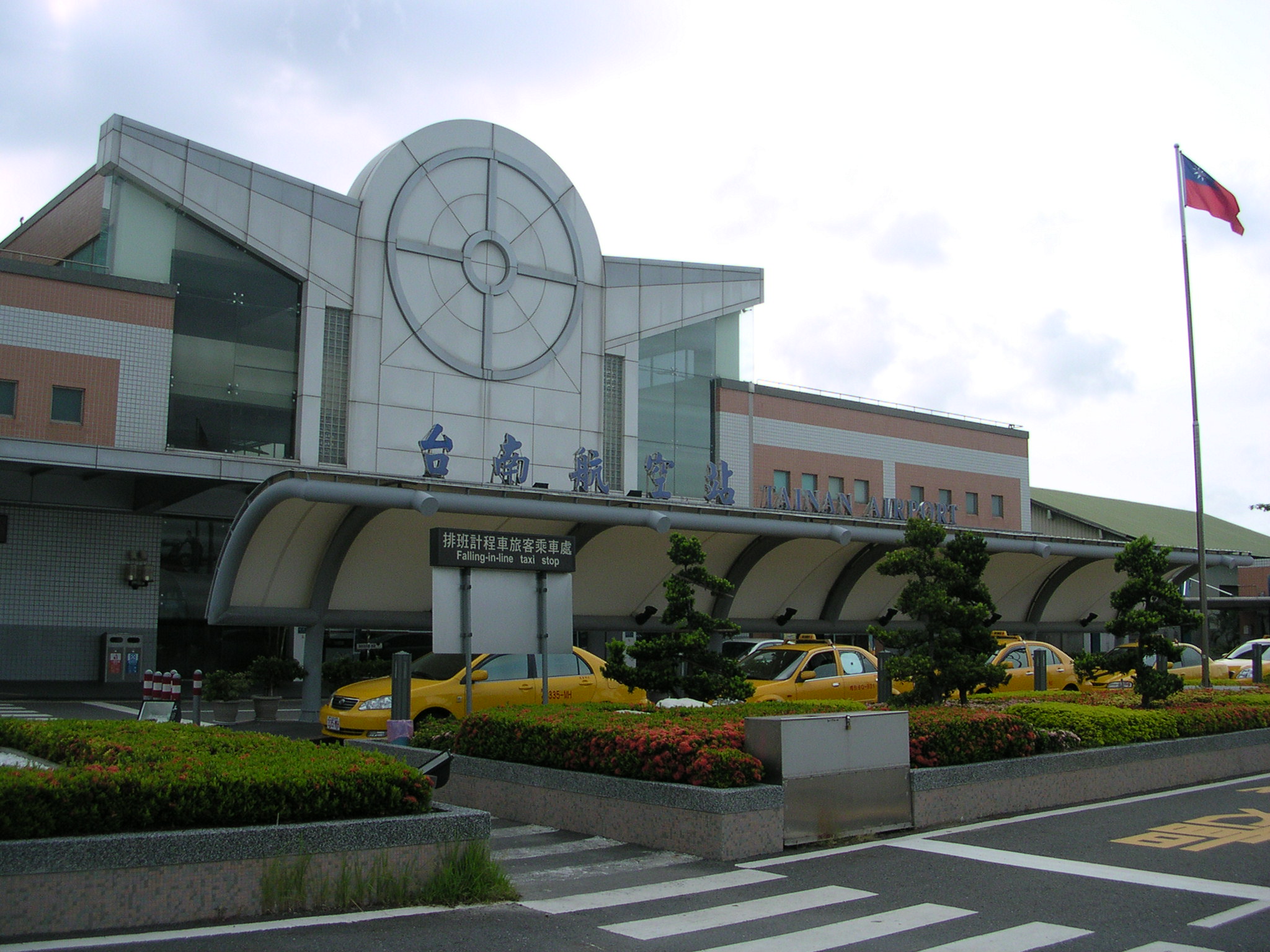

Because of the share use with the Air Force, the airport terminal was built quite a distance away from the airfield. Passengers disembark at the apron and board shuttle buses to the terminal. Also because of the share use, some flights will be cancelled when the Air Force is conducting war games.

Among other U.S. units, the 868th Tactical Missile Squadron was stationed at Tainan Air Base from 1958-1962 operating MGM-1 Matadors, probably under the ultimate control of the United States Taiwan Defense Command.

Airlines and destinations

  • EVA Air operated by Uni Air (Kinmen, Makung)

Incidents

On February 24, 1969, Far Eastern Air Transport Flight 104, a Handley Page Dart Herald with 36 passengers and crew board, crashed while attempting an emergency landing at Tainan. Everyone on board was killed.

On April 16, 1977, Douglas C-47A B-247 of FEAT was damaged beyond economic repair in a landing accident.



The above content comes from Wikipedia and is published under free licenses – click here to read more.


General Info
Country Taiwan
ICAO ID RCNN
Time UTC+8
Latitude 22.950361
22° 57' 01.30" N
Longitude 120.205778
120° 12' 20.80" E
Elevation 63 feet
19 meters
Type Military
Magnetic Variation 003° W (01/06)
Beacon Yes
Operating Agency MILITARY
Operating Hours SEE REMARKS FOR OPERATING HOURS OR COMMUNICATIONS FOR POSSIBLE HOURS


Communications
TWR
24 HR
118.4
126.18
236.6
275.8
GND 121.6
KAOHSIUNG APP
24 HR
121.1
124.7
125.7
328.7
363.8


Runways
ID Dimensions Surface PCN ILS
18R/36L 10007 x 148 feet
3050 x 45 meters
CONCRETE. - NO
18L/36R 10007 x 148 feet
3050 x 45 meters
CONCRETE. - YES


Navaids
Type ID Name Channel Freq Distance From Field Bearing From Navaid
VORTAC TNN SHIKANG 080X 113.3 9.9 NM 181.2
TACAN TWS TAINAN 101X - At Field -
NDB NN SHIKANG - 375 9.9 NM 182.0


Supplies/Equipment
Oil O-133, 1010, jet Engine Oil (MIL l 6081)

O-148, MIL L 7808 (Synthetic Base), Turboprop/Turboshaft Engine

O-156, MIL L 23699 (Synthetic Base)Turboprop/Turboshaft Engine
Other Fluids LPHOX, Low pressure oxygen servicing

LOX, Liquid oxygen servicing
JASU MA-1A
82lb/min (1123cfm) at 130 deg air inlet temp,45psia(min) air outlet


Remarks
A-GEAR BAK-12 - no reset capability 1000-2400Z.
CAUTION Kangshan Arpt lctd 10 NM S with same rwy hdg. Hi density jet stu trng tfc. Unsked hi angle and hi speed climbs to 15,000'. 25' hi rwy surveillance units E side of Rwy 18-36, 225' fr cntrline, 1000' fr apch ends. Obst 220' 0.5 MI NE Rwy 18R-36L. 611' building 2NM from the apch end of rwy 18L. 857' stack 5.6NM S of rwy 36L. Twr has ltd vis of tkof area. FOD haz in all prk areas.
FUEL Ctc the American Institute in Taiwan (AIT), duty hr fone, C886 2784 2336, OT, C886 2709 3013. (NC-A1).
JASU 1(MD-3) 1(MC-1) 1(MA-1A)
MISC Twr and APP CON manned by CAF ctl. Crash rescue opr 0100-1000Z. All aircrews useICAO NOTAM fac/off island sources. For assistance ctc the (AIT), address 7, Lane 134, Hsin Yi Road, Section 3, Taipei, Taiwan, duty hr fone, C886 2784 2336, OT, C886 2709 3013. Ovrn do not meet USAF std. All DoD acft must clear Chinese IMGon arr and prior to dep. Use of GCA is encouraged to promote language proficiency.
OPR HOURS Opr 2300-1400Z. OT by PPR.
RSTD PPR 96 hr IAW FCG exc emerg. Civ acft use rwy 18L-36R for tkof and ldg, rwy 18R-36L use for twy only.
TRAN ALERT No US mil/OPS/wx/aerospace gnd eqpt/tran alert/maint svc.



Thanks to: www.worldaerodata.com

The content above was published at Airports-Worldwide.com in 2010.
We don't guarantee the information is fresh and accurate. The data may be wrong or outdated.
For more up-to-date information please refer to other sources.
