Madrid-Torrejón Airport

Madrid-Torrejón airport is located 22 km from the centre of the capital. It is an air station that was opened to civil traffic under an agreement reached on 23 December 1996 between the Ministry of Defence and the Ministry of Public Works.

Civil aircraft operations are authorised exceptionally at Torrejón when they meet the requirements for operating in IFR (instrument flight) and have a maximum take-off weight of between 2,000 and 50,000 kg. This is the technical alternate airport for Madrid-Barajas for duly authorised civil aircraft.

Torrejón is dedicated primarily to executive and private aviation; it is the most important Spanish aerodrome for air-taxi traffic. In 2005, it handled 28,197 passengers and 13,063 flight operations.

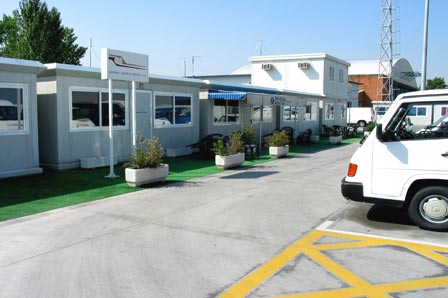

Madrid-Torrejón Airport photo

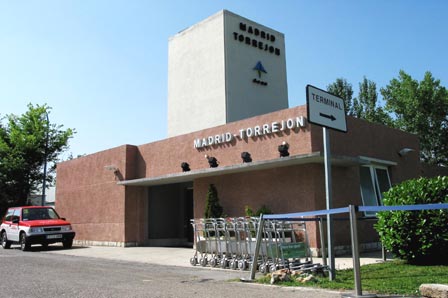

Madrid-Torrejón Airport photo

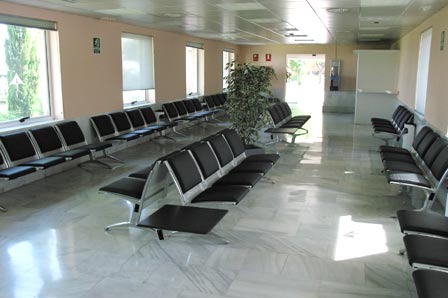

Madrid-Torrejón Airport photo

Madrid-Torrejón Airport photo

Madrid-Torrejón Airport - AENA airport

URL: http://www.aena.es/madrid-torrejon

AENA accepts no responsibility for the information posted at this site neither for the possible damages caused for the use of this information.


Images and information placed above are from
http://www.aena.es/madrid-torrejon
We thank them for the data!



General Info
Country Spain
ICAO ID LETO
Time UTC+1(+2DT)
Latitude 40.496747
40° 29' 48.29" N
Longitude -3.445872
003° 26' 45.14" W
Elevation 2026 feet
618 meters
Type Joint (Civil and Military)
Magnetic Variation 002° W (01/06)
Beacon Yes
Operating Agency MILITARY - CIVIL JOINT USE AIRPORT
Alternate Name MADRID TORREJON
Near City Madrid
Operating Hours 24 HOUR OPERATIONS
Daylight Savings Time Last Sunday in March to last Sunday in October


Communications
TWR 122.1
138.7
139.3
257.8
315.3
GND 118.3
375.0
GCA 118.9
125.3
344.0
385.4
MADRID APP 118.4
118.75
119.95
266.7
364.425
(E SCTR 118.4)


Runways
ID
Dimensions Surface PCN ILS
05/23 12001 x 217 feet
3658 x 66 meters
ASPHALT - YES


Navaids
Type ID Name Channel Freq Distance From Field Bearing From Navaid
TACAN TJZ TORREJON 072X - At Field -
VOR-DME VJZ TORREJON 098X 115.1 5.6 NM 226.4
NDB TJA TORREJON - 426 5.9 NM 225.7


Supplies/Equipment
Fuel JP-8, SemiKeroscene MIL Spec T-83133, without icing inhibitor
Oil O-128, 1100,(Dispersant)Reciprocating Engine Oil(MIL L 22851 Type II)

O-148, MIL L 7808 (Synthetic Base), Turboprop/Turboshaft Engine

O-156, MIL L 23699 (Synthetic Base)Turboprop/Turboshaft Engine
Other Fluids SP, Single Point Refueling

DE-ICE, Anti-icing/De-icing/Defrosting Fluid (MIL A 8243)

HPOX, High pressure oxygen servicing

LOX, Liquid oxygen servicing


Remarks
A-GEAR UFN the BAK-13 sys do not meet US std and should not be engaged by US or DoD acft.
CSTMS/IMG Avbl.
FLUID De-Ice SP HPOX LOX
FUEL (NC-A1+)
LGT PAPI Rwy 05 O/S UFN.
OIL 0-128-148-156
RSTD NORDO and copter proh.

Runway 05/23

12001 x 217 feet
3658 x 66 meters

Effective 08 June 2006 to 05 July 2006

Runway 05
Surface ASPHALT
True Heading 043.0
Latitude 40.484772
40° 29' 05.18" N
Longitude -3.460700
003° 27' 38.52" W
Elevation 1967.0 feet
600 meters
Slope 0.5°
Landing Distance 12001 feet
3658 meters
Takeoff Distance 13068 feet
3983 meters
Overrun Length 1067 feet
325 meters
Overrun Surface ASPHALT
Lighting System CL
HIRL
REIL
J
PAPI

Runway 23
Surface ASPHALT
True Heading 223.0
Latitude 40.508719
40° 30' 31.39" N
Longitude -3.431039
003° 25' 51.74" W
Elevation 2026.0 feet
618 meters
Slope -0.5°
Landing Distance 12001 feet
3658 meters
Takeoff Distance 14741 feet
4493 meters
Overrun Length 2740 feet
835 meters
Overrun Surface ASPHALT
Lighting System CL
HIRL
REIL
J
PAPI

Navaids

Effective 08 June 2006 to 05 July 2006

TORREJON
Type ID Channel Freq Country State
TACAN TJZ 072X - Spain -
Latitude Longitude Airport
40.498894
40° 29' 56.02" N
-3.445489
003° 26' 43.76" W
LETO

Navaids

Effective 08 June 2006 to 05 July 2006

TORREJON
Type ID Channel Freq Country State
VOR-DME VJZ 098X 115.1 Spain -
Latitude Longitude Airport
40.564086
40° 33' 50.71" N
-3.360333
003° 21' 37.20" W
LETO

Navaids

Effective 08 June 2006 to 05 July 2006

TORREJON
Type ID Channel Freq Country State
NDB TJA - 426 Spain -
Latitude Longitude Airport
40.568131
40° 34' 05.27" N
-3.357286
003° 21' 26.23" W
LETO

Madrid-Torrejón Airport - AENA airport


Thanks to: www.worldaerodata.com

The content above was published at Airports-Worldwide.com in 2006.
We don't guarantee the information is fresh and accurate. The data may be wrong or outdated.
For more up-to-date information please refer to other sources.
