Kansai Intl Airport



Kansai International Airport
関西国際空港
Kansai Kokusai Kūkō
Kansai International Airport
IATA: KIX – ICAO: RJBB
Kansai International Airport
Summary
Airport type Public
Operator Kansai International Airport Co., Ltd.
Serves Osaka
Location Osaka Bay, Osaka, Japan
Hub for All Nippon Airways
Japan Airlines
Nippon Cargo Airlines
Elevation AMSL 17 ft / 5 m
Coordinates 34°26′03″N 135°13′58″E / 34.43417°N 135.23278°E / 34.43417; 135.23278 (Kansai International Airport)Coordinates: 34°26′03″N 135°13′58″E / 34.43417°N 135.23278°E / 34.43417; 135.23278 (Kansai International Airport)
Website www.kiac.co.jp
Runways
Direction Length Surface
m ft
06R/24L 3,500 11,483 Asphalt concrete
06L/24R 4,000 13,123 Asphalt concrete
Statistics (FY2006)
Aircraft Movements 116,475
Passenger Movements 16,689,658
Freight Volume 802,162 t
Sources: Japanese AIP at AIS Japan
Statistics from Kansai International Airport

Kansai International Airport (関西国際空港 Kansai Kokusai Kūkō) (IATA: KIX, ICAO: RJBB) is an international airport located on an artificial island in the middle of Osaka Bay, 38 km (24 mi) southwest of Ōsaka Station, off the shore of the cities of Sennan and Izumisano and the town of Tajiri in Osaka Prefecture, Japan. It should not be confused with Osaka International Airport, which is closer to the city and now handles only domestic flights.

It was ranked 4th overall in the Airport of the Year 2006 awards named by Skytrax, after Singapore Changi Airport, Hong Kong International Airport and Munich Airport. The airport serves as an international hub for All Nippon Airways, Japan Airlines, and Nippon Cargo Airlines, and is one of the man-made structures that can be seen from outer space.

It is colloquially known as Kankū (関空) in Japanese.

Kansai International Airport

Kansai International Airport
Click to enlarge

Kansai International Airport

Kansai International Airport
Click to enlarge

During the 2006 fiscal year (FY), KIX, which serves the city of Osaka, had 116,475 aircraft movements, of which 73,860 were international (31 countries, 71 cities), and 42,615 were domestic (19 cities). The total number of passengers was 16,689,658 of which 11,229,444 were international, and 5,460,214 were domestic, sixth in Japan and second in Osaka area. However, in 2009, Kansai Airport traffic has fallen by almost 20% in just two years to 13.4 million.Freight volume was at 802,162 tonnes total, of which 757,414 t were international (18th in the world), and 44,748 t were domestic. The 4,000 × 60 m (13,123 × 197 ft) second runway was opened on 2 August 2007. Kansai Airport has become an Asian hub, with 499 weekly flights to Asia, 66 weekly flights to Europe and the Middle East, and 35 weekly flights to North America.

Flights

  • Weekly international passenger flights: 614
  • Weekly international freighter flights: 200
  • Weekly domestic (passenger and freighter) flights: 493

(Summer 2008 schedule)

History

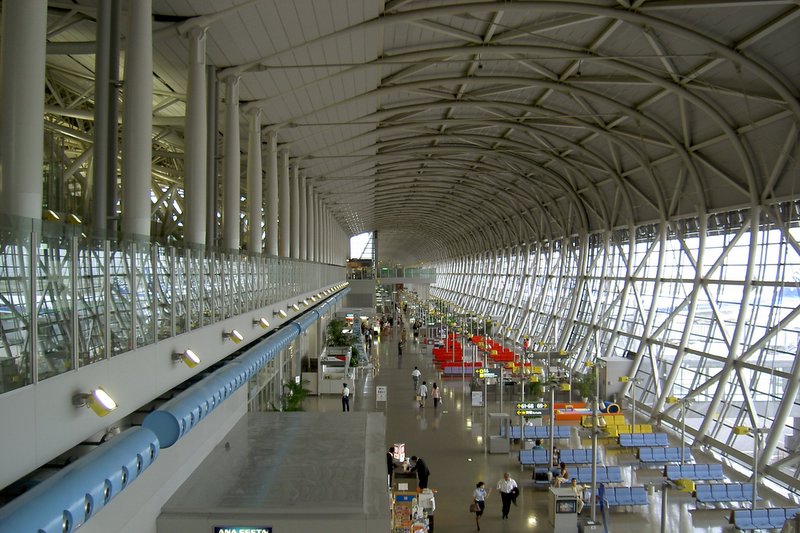

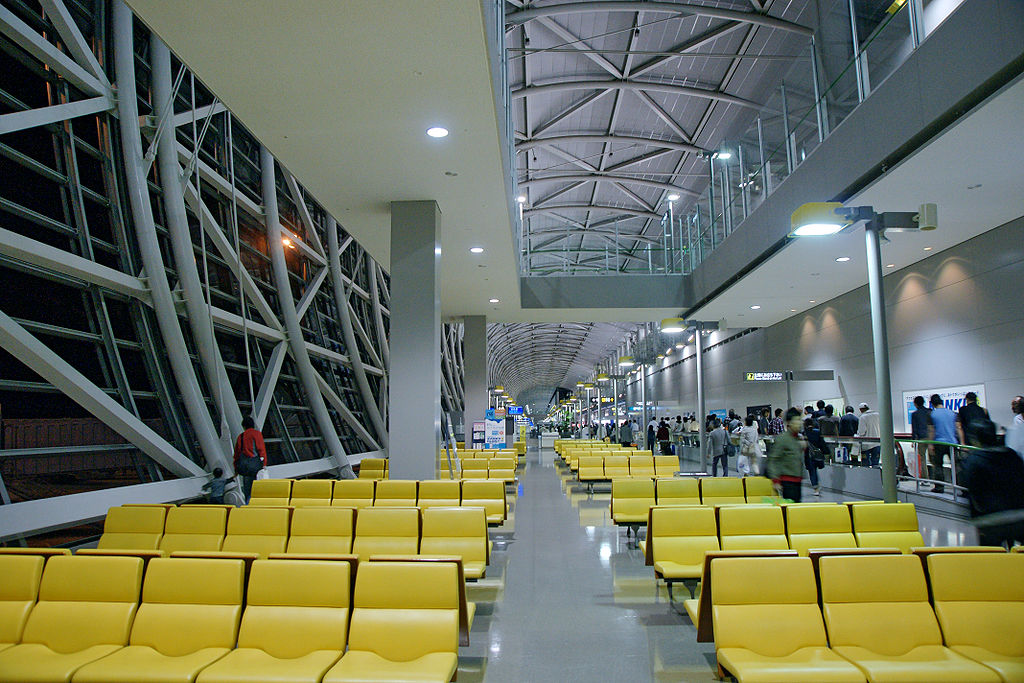

3rd floor boarding lobby, part of the longest airport concourse in the world.
3rd floor boarding lobby, part of the longest airport concourse in the world.

In the 1960s, when the Kansai region was rapidly losing trade to Tokyo, planners proposed a new airport near Kobe and Osaka. Osaka International Airport, located in the densely-populated suburbs of Itami and Toyonaka, was surrounded by buildings; it could not be expanded, and many of its neighbors had filed complaints because of noise pollution problems.

After the protests surrounding New Tokyo International Airport (now Narita International Airport), which was built with expropriated land in a rural part of Chiba Prefecture, planners decided to build the airport offshore. The new airport was part of a number of new developments to revitalize Osaka, which had lost economic and cultural ground to Tokyo for most of the century.

Initially, the airport was planned to be built near Kobe, but the city of Kobe refused the plan, so the airport was moved to a more southerly location on Osaka Bay. There, it could be open 24 hours per day, unlike its predecessor in the city.

Construction

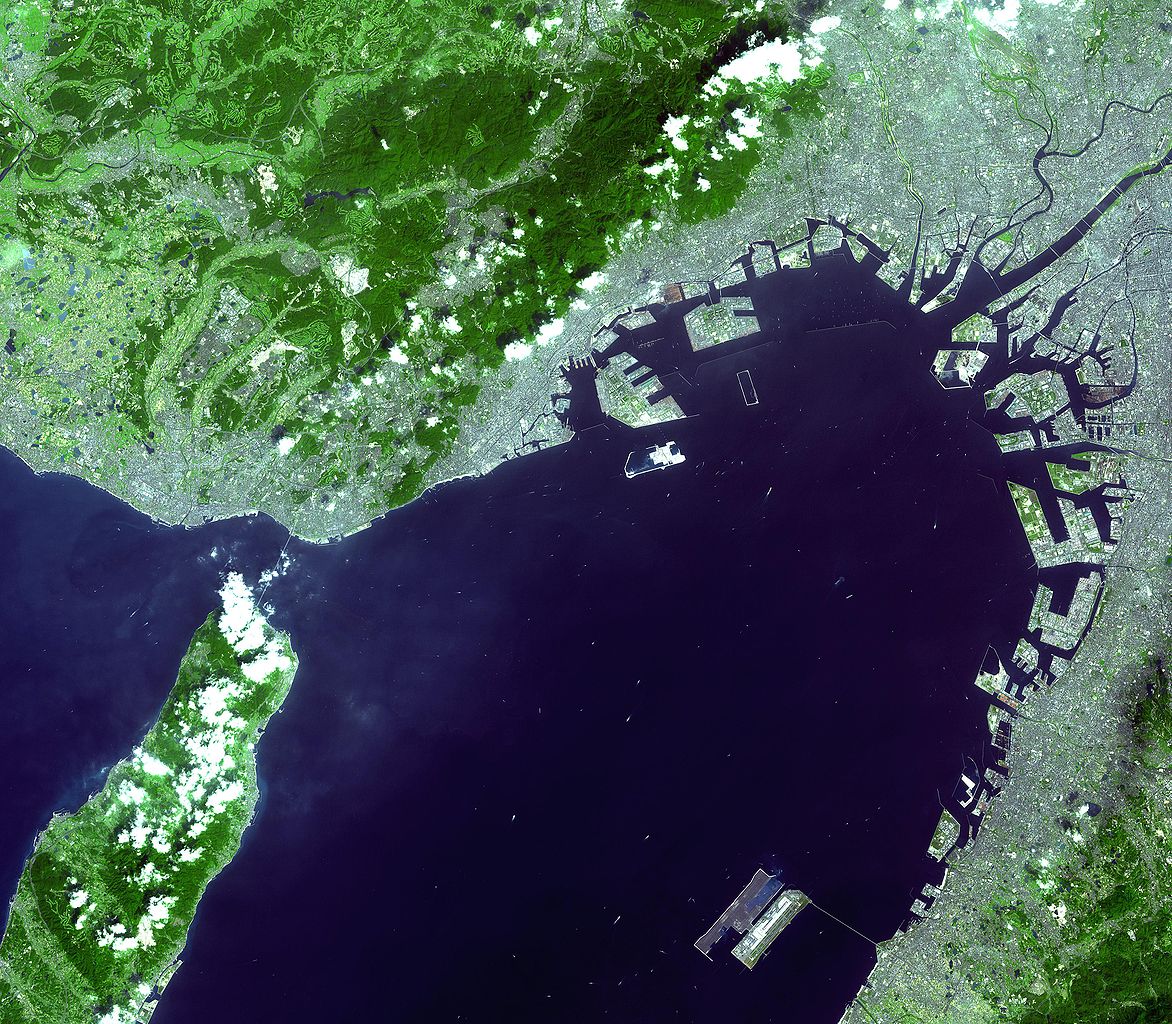

Satellite photo of Kansai Airport (lower-right island) in Osaka Bay. Kobe Airport is being built on the unfinished island near the middle of the photo. Central Osaka is in the upper-right corner, along with Osaka International.
Satellite photo of Kansai Airport (lower-right island) in Osaka Bay. Kobe Airport is being built on the unfinished island near the middle of the photo. Central Osaka is in the upper-right corner, along with Osaka International.

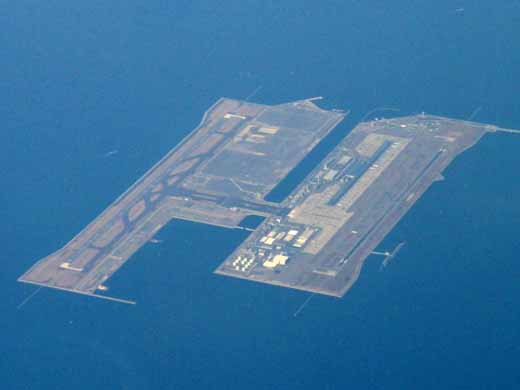

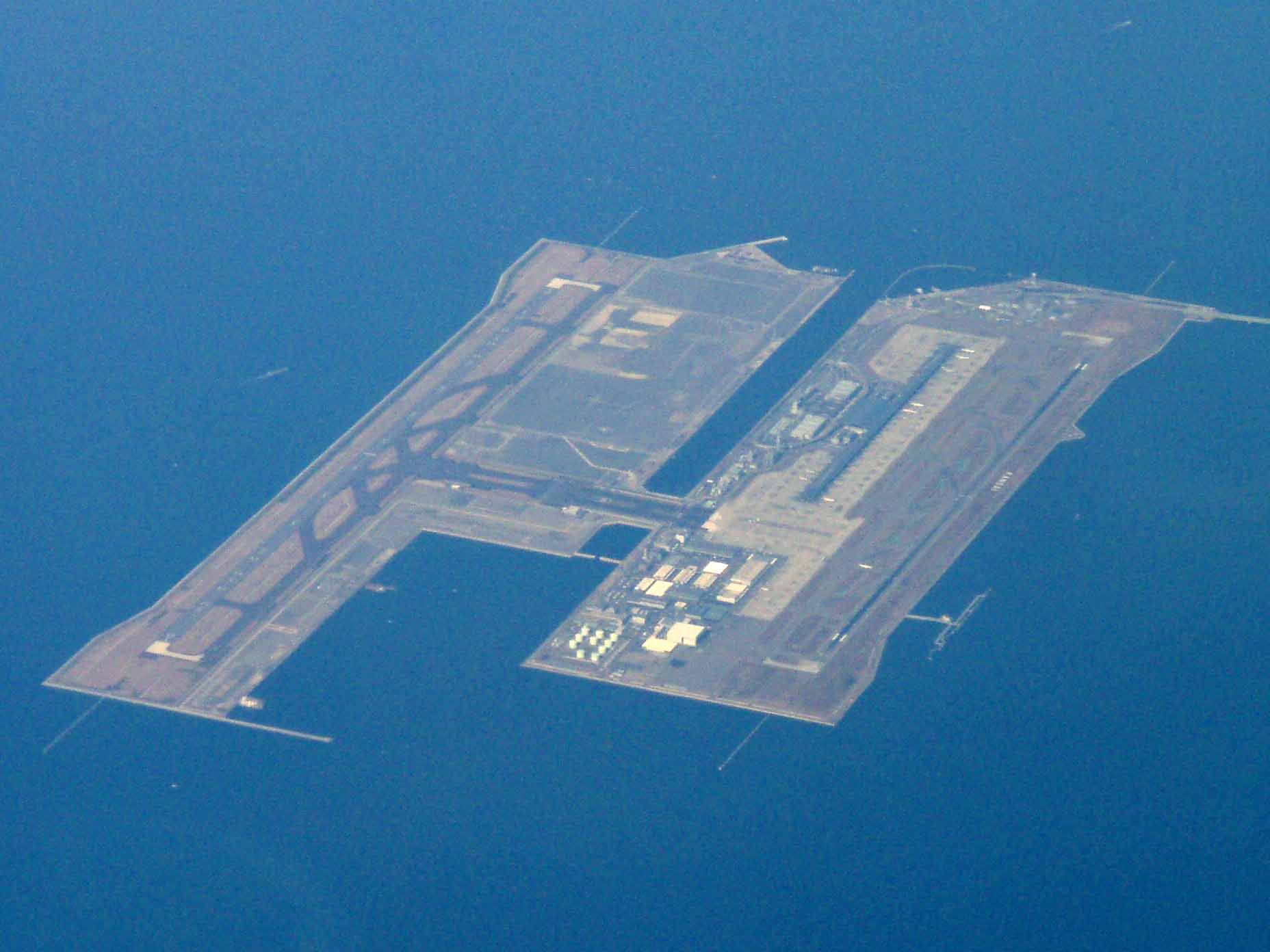

Closeup of the artificial island
Closeup of the artificial island

A man-made island, 4 km (2.5 mi) long and 2.5 km (1.6 mi) wide, was proposed. Engineers needed to overcome the extremely high risks of earthquakes and typhoons (with storm surges of up to 3 m (10 ft)).

Construction started in 1987. The sea wall was finished in 1989 (made of rocks and 48,000 tetrahedral concrete blocks). Three mountains were excavated for 21,000,000 m (27,000,000 cu yd) of landfill. 10,000 workers and 10 million work hours over three years, using eighty ships, were needed to complete the 30-metre (98 ft) layer of earth over the sea floor and inside the sea wall. In 1990, a three kilometer bridge was completed to connect the island to the mainland at Rinku Town, at a cost of $1 billion. Completion of the artificial island increased the area of Osaka Prefecture just enough to move it past Kagawa Prefecture in size (leaving Kagawa as the smallest by area in Japan).

The bidding and construction of the airport was a source of international trade friction during the late 1980s and early 1990s. Prime Minister Yasuhiro Nakasone responded to American concerns, particularly from Senator Frank Murkowski, that bids would be rigged in Japanese companies' favor by providing special offices for prospective international contractors, which ultimately did little to ease the participation of foreign contractors in the bidding process. Later, foreign airlines complained that two-thirds of the departure hall counter space had been allocated to Japanese carriers, disproportionately to the actual carriage of passengers through the airport.

The island had been predicted to gradually sink as the weight of the material used to construct the island would cause it to compress downwards. However, by this time, the island had sunk 8 m (26 ft), much more than predicted. The project then became the most expensive civil works project in modern history after twenty years of planning, three years of construction and several billion dollars of investment. However, much of what was learned went into the successful artificial islands in silt deposits for New Kitakyushu Airport, Kobe Airport, and Chūbu Centrair International Airport. The lessons of Kansai Airport were also applied in the construction of Hong Kong International Airport.

In 1991, the terminal construction commenced. To compensate for the sinking of the island, adjustable columns were designed to support the terminal building. These could be extended by inserting thick metal plates at their base. Government officials proposed reducing the length of the terminal to cut costs, but architect Renzo Piano insisted on keeping the terminal at its full planned length. The airport opened in 1994.

On 17 January 1995, Japan was struck by the Kobe earthquake, whose epicenter was about 20 km (12 mi) away from KIX and killed 6,434 people on Japan's main island of Honshū. As a result of its adequate earthquake engineering, the airport, however, emerged unscathed, mostly due to the use of sliding joints in its construction. Even the glass in the windows stayed intact. Later, in 1998, the airport survived a typhoon with wind speeds of up to 200 km/h (120 mph).

On 19 April 2001, the airport was one of ten structures given the "Civil Engineering Monument of the Millennium" award by the American Society of Civil Engineers.

The total cost of Kansai Airport so far is $20 billion. This includes the land reclamation, two runways, and terminal and facilities. The additional costs were mostly borne initially due to the island sinking, expected due to the soft soils of Osaka Bay, but after construction the rate of sinking was considered so severe that the airport was widely criticized as a notorious geotechnical engineering disaster. The rate of sinking has since fallen from 50 cm (20 in) during 1994 to 7 cm (2.8 in) in 2008.

Operation

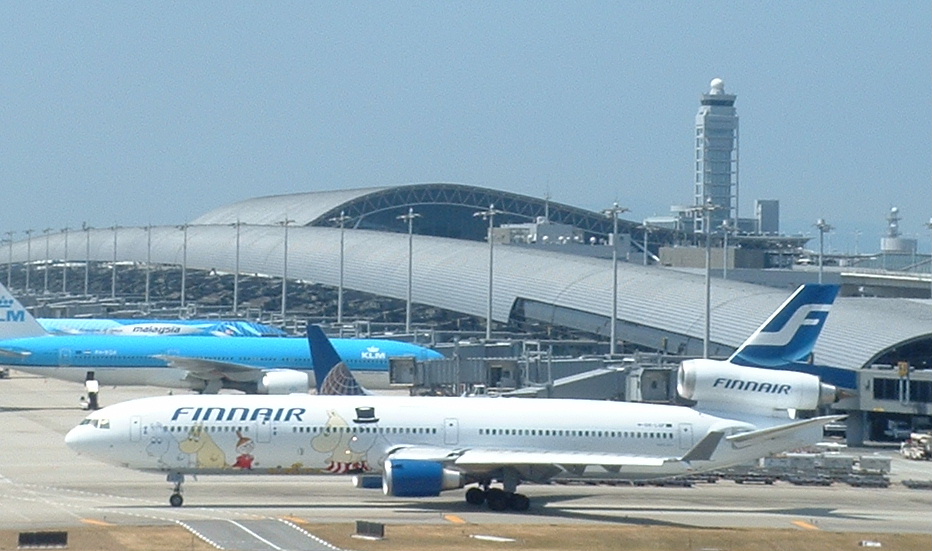

Aircraft in front of the terminal building
Aircraft in front of the terminal building

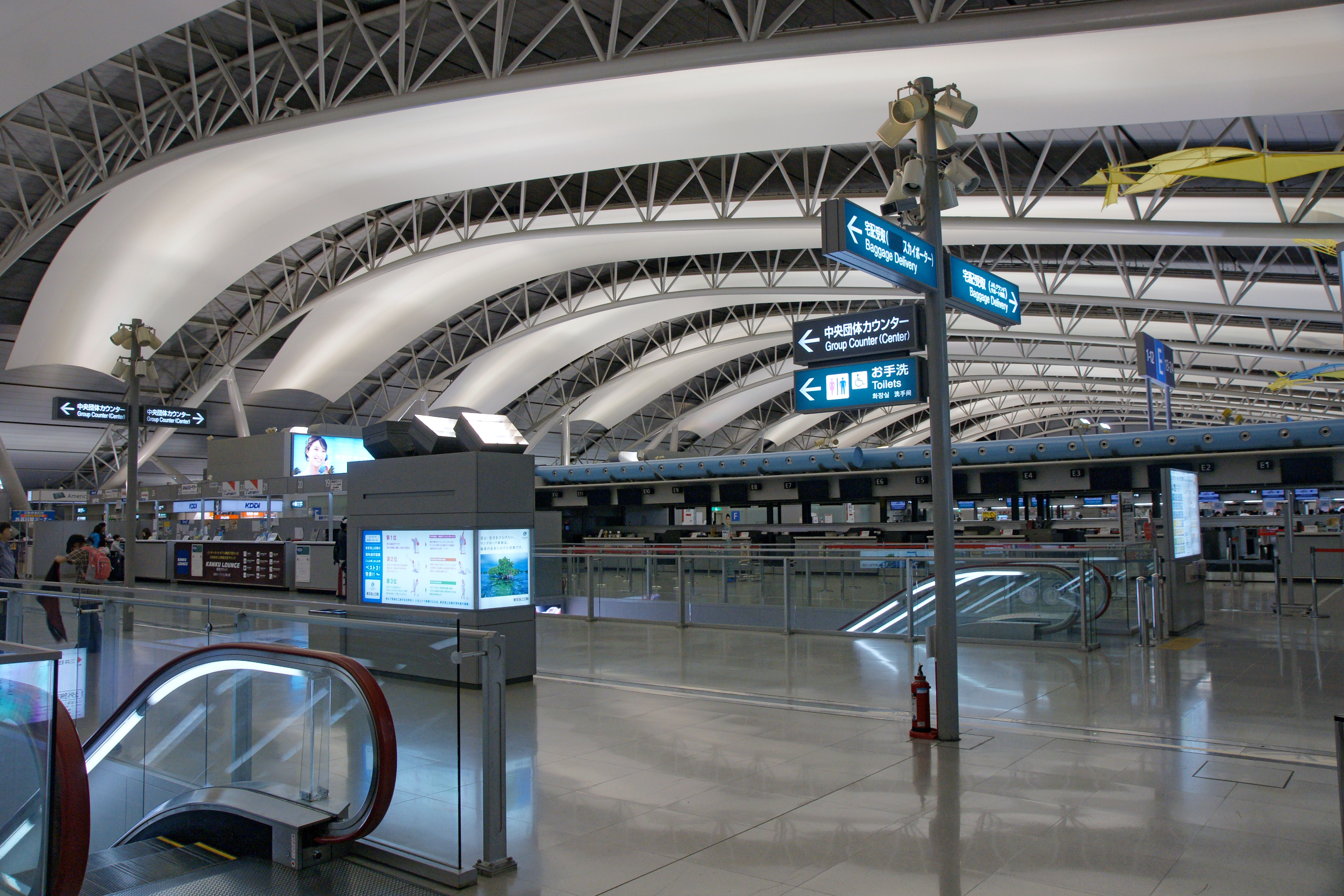

4th floor ticketing hall, illustrating the terminal's airfoil roof.
4th floor ticketing hall, illustrating the terminal's airfoil roof.

Opened on 4 September 1994, the airport serves as a hub for several airlines such as All Nippon Airways, Japan Airlines, and Nippon Cargo Airlines. It is the international gateway for Japan's Kansai region, which contains the major cities of Kyoto, Kobe, and Osaka. Other Kansai domestic flights fly from the older but more conveniently located Osaka International Airport in Itami, or from the newer Kobe Airport.

The airport had been deeply in debt, losing $560 million in interest every year. Airlines had been kept away by high landing fees (about $7,500 for a Boeing 747), the second most expensive in the world after Narita's. In the early years of the airport's operation, excessive terminal rent and utility bills for on-site concessions also drove up operating costs: some estimates before opening held that a cup of coffee would have to cost US$10. Osaka business owners pressed the government to take a greater burden of the construction cost to keep the airport attractive to passengers and airlines. Nowadays, after deep discounts, the number of flights is increasing.

On 17 February 2005, Chubu Centrair International Airport opened in Nagoya, just east of Osaka. The opening of the airport was expected to increase competition between Japan's international airports. Despite this, passenger totals were up 11% in 2005 over 2004, and international passengers increased to 3.06 million in 2006, up 10% over 2005. Adding to the competition was the opening of Kobe Airport, less than 25 km (16 mi) away, in 2006 and the lengthening of the runway at Tokushima Airport in Shikoku in 2007.

The main rationale behind the expansions is to compete with Incheon International Airport and Hong Kong International Airport as a gateway to Asia, as Tokyo area airports are severely congested. However, with the regional trend in open skies agreements being signed, it is possible that all airports can see increases in traffic.

Kansai has been marketed as an alternative to Narita Airport for international travellers from the Greater Tokyo Area. By flying to Kansai from Haneda Airport and connecting to international flights there, travellers can save the additional time required to get to Narita: up to one and a half hours for many residents of Kanagawa Prefecture and southern Tokyo.

Expansion

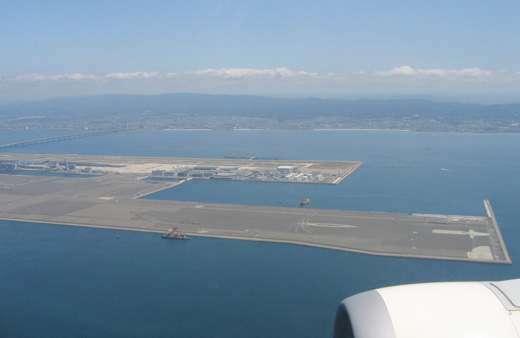

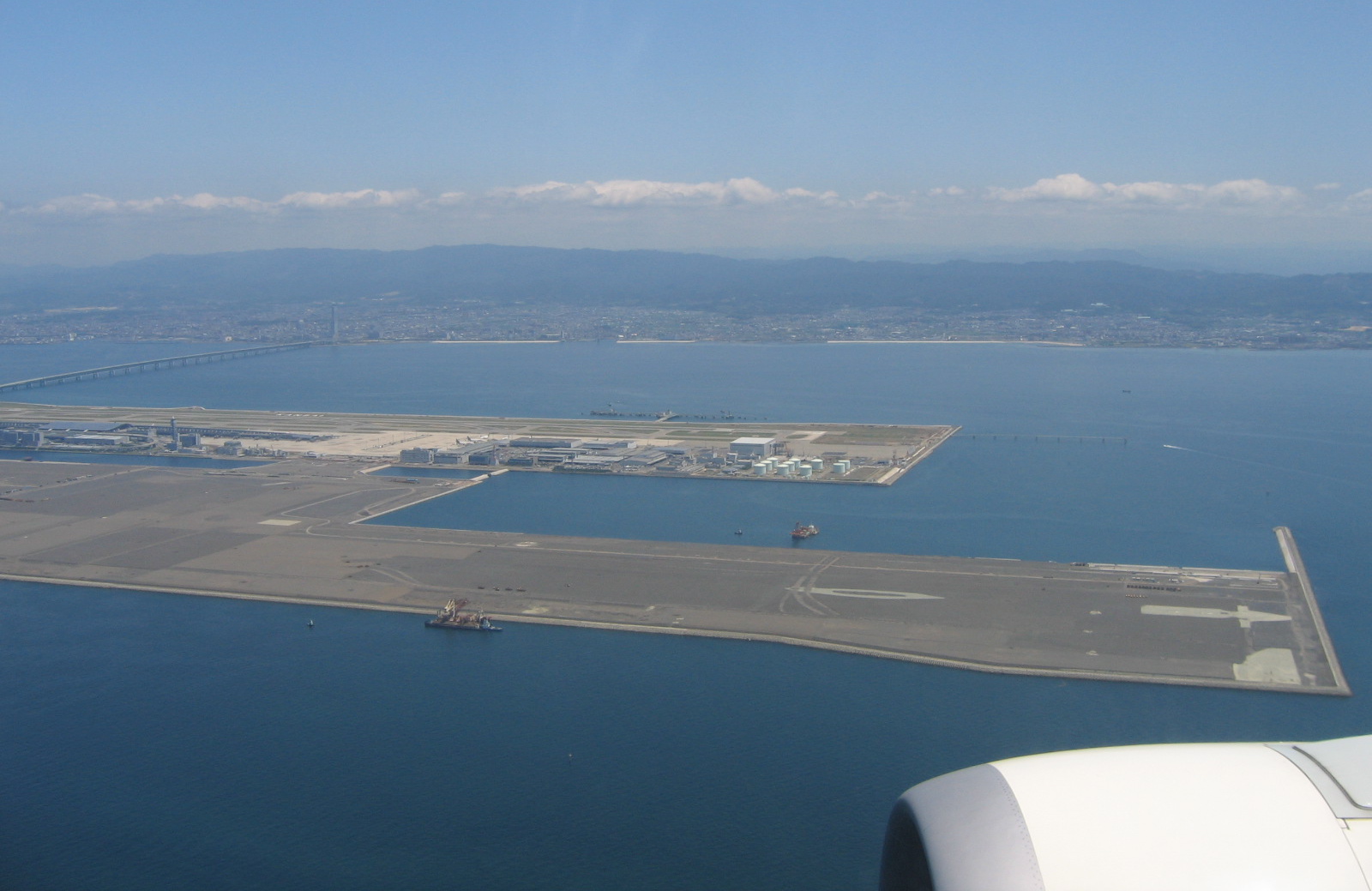

Second phase of Kansai International Airport under construction
Second phase of Kansai International Airport under construction

The airport was at its limit during peak times, owing especially to freight flights, so a portion of Phase II expansion—the second runway—was made a priority. Thus, in 2003, believing that the sinking problem was almost over, the airport operators started to construct a 4,000 m (13,000 ft) second runway and terminal.

The second runway opened on 2 August 2007, but without the originally planned terminal portion, now postponed to a later date. This lowered the project cost to JPY¥910 billion (approx. US$8 billion), saving ¥650 billion from the first estimate. The additional runway development, which was opened in time for the IAAF world athletics championships in Osaka, has expanded the airport size to 10.5 km (4.1 sq mi).

Further into the future, the airport is planning to construct a new terminal building, several aprons, a third runway (06C/24C) with a length of 3,500 m (11,483 ft), a new cargo terminal and expanding the airport size to 13 km (5.0 sq mi). However, the Japanese Government is postponing these plans for economic reasons. The new runway is only used for landings unless there are incidents prohibiting take off use of runway A.

The airport now expects to handle 129,000 flights during the year 2007, an increase of 11% compared to 2006 figures of 116,475 flights. The new runway allowed the airport to start 24 hour operations in September 2007.

Terminal

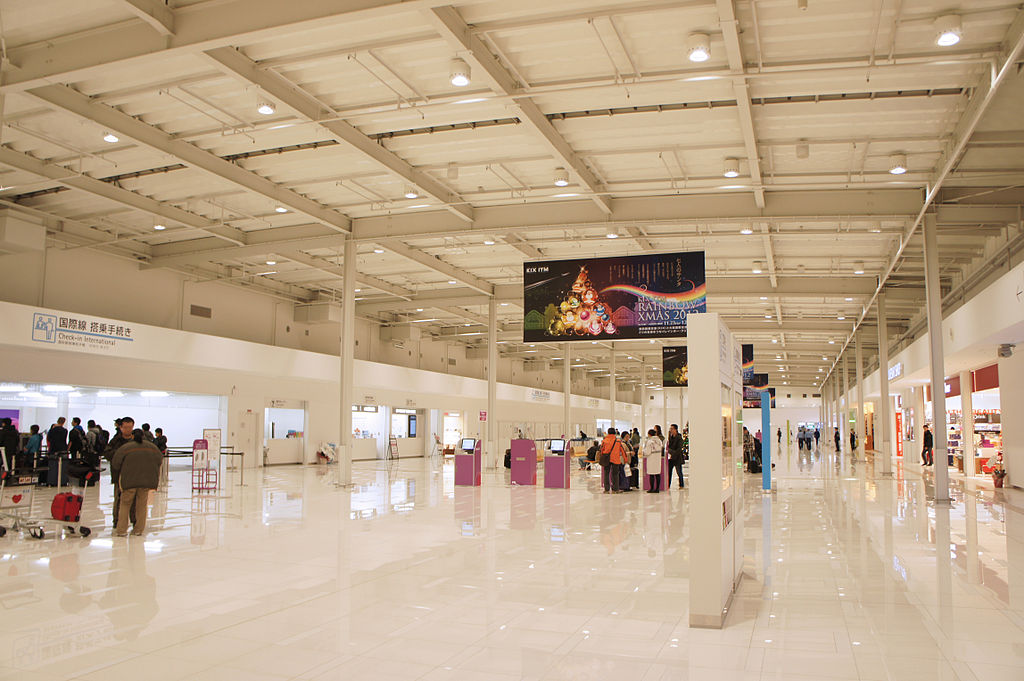

The ground level of the terminal looking north from the center
The ground level of the terminal looking north from the center

The KIX passenger terminal is a single four-storey building designed by Renzo Piano Building Workshop (Renzo Piano and Noriaki Okabe) and has a gross floor space of 296,043 square metres (3,186,580 sq ft). It is the longest airport terminal in the world, at a total length of 1.7 km (1.1 mi) from end to end. It has a sophisticated people mover system called the Wing Shuttle, which moves passengers from one end of the pier to the other.

The terminal's roof is shaped like an airfoil. This shape is used to promote air circulation through the building: giant air conditioning ducts blow air upwards at one side of the terminal, circulate the air across the curvature of the ceiling, and collect the air through intakes at the other side. Mobiles are suspended in the ticketing hall to take advantage of the flowing air.

The ticketing hall overlooks the international departures concourse, and the two are separated by a glass partition. During Kansai's early days, visitors were known to throw objects over the partition to friends in the corridor below. The partition was eventually modified to halt this practice.

Airlines and destinations

The second floor of the Passenger Terminal Building is used for domestic departures and arrivals. All ticketing, boarding, and baggage claim are handled on the second floor. International arrivals go to immigration and baggage claim on the first floor. International departures are ticketed on the fourth floor and board from the third floor.

Airlines Destinations Wing
Aircalin Nouméa South
Air Busan Busan North
Air China Beijing-Capital, Dalian, Shanghai-Pudong, Shenzhen South
Air France Paris-Charles de Gaulle South
Air India Delhi, Hong Kong South
Air Macau Macau North
Air New Zealand Auckland South
Alitalia Rome-Fiumicino North
All Nippon Airways Hong Kong, Naha, Sapporo-Chitose, Seoul-Incheon, Shanghai-Pudong, Tokyo-Haneda North
All Nippon Airways operated by Air Nippon Beijing-Capital, Dalian, Fukuoka, Hakodate, Hangzhou, Memambetsu [seasonal], Naha, Qingdao, Tokyo-Haneda, Wakkanai [seasonal] North
Asiana Airlines Busan, Saipan [seasonal], Seoul-Gimpo, Seoul-Incheon North
Cathay Pacific Airways Hong Kong, Taipei-Taoyuan North
Cebu Pacific Manila North
China Airlines Taipei-Taoyuan South
China Eastern Airlines Beijing-Capital, Nanjing, Kunming, Qingdao, Shanghai-Pudong, Yantai South
China Southern Airlines Changsha, Dailan, Guangzhou, Harbin, Shenyang South
Continental Airlines operated by Continental Micronesia Guam South
Delta Air Lines Guam, Honolulu, Seattle/Tacoma North
EgyptAir Cairo, Luxor South
Emirates Dubai South
EVA Air Taipei-Taoyuan North
Finnair Helsinki North
Garuda Indonesia Denpasar/Bali, Jakarta-Soekarno-Hatta North
Hainan Airlines Haikou South
Japan Airlines Fukuoka, Naha, Sapporo-Chitose, Shanghai-Pudong, Taipei-Taoyuan, Tokyo-Haneda, Tokyo-Narita South
Japan Airlines operated by J-Air Fukuoka South
Japan Airlines operated by JALways Bangkok-Suvarnabhumi, Honolulu South
Japan Airlines operated by JAL Express Seoul-Gimpo, Shanghai-Pudong, Tokyo-Haneda South
Japan Airlines operated by Japan Transocean Air Ishigaki, Naha, Tokyo-Haneda South
Jeju Air Seoul-Gimpo, Seoul-Incheon North
Jetstar Airways Cairns, Gold Coast, Sydney North
Jetstar Asia Airways Singapore, Taipei-Taoyuan North
KLM Amsterdam North
Korean Air Busan, Cheongju, Guam, Jeju, Seoul-Gimpo, Seoul-Incheon North
Lufthansa Frankfurt North
Malaysia Airlines Kota Kinabalu, Kuala Lumpur, Kuching [begins 20 January] North
MIAT Mongolian Airlines Ulan Bator [seasonal] North
Philippine Airlines Manila South
Qatar Airways Doha North
Shandong Airlines Jinan
Shanghai Airlines Shanghai-Pudong North
Shenzhen Airlines Fuzhou, Shenzhen, Wuxi South
Singapore Airlines Singapore South
StarFlyer Tokyo-Haneda South
Thai Airways International Bangkok-Suvarnabhumi North
Turkish Airlines Istanbul-Atatürk North
United Airlines San Francisco North
Uzbekistan Airways Tashkent North
Vietnam Airlines Hanoi, Ho Chi Minh City South
Xiamen Airlines Hangzhou, Xiamen South

:A:^ Some of Qatar Airways's flights stop at Tokyo-Narita en route to Doha. However, the airline has no rights to transport passengers solely between Osaka and Tokyo.

Cargo

Airlines Destinations
Air China Cargo Beijing, Shanghai-Pudong
Aircompany Yakutia Shanghai-Pudong
Air Hong Kong Hong Kong
ANA Cargo Bangkok-Suvarnabhumi, Dalian, Qingdao, Saga, Shanghai-Pudong, Tokyo-Haneda, Tokyo-Narita, Xiamen
ANA & JP Express Seoul- Incheon
Asiana Cargo Osaka-Itami, Seoul-Incheon
Cathay Pacific Cargo Hong Kong
China Airlines Cargo Taipei-Taoyuan, Los Angeles
China Cargo Airlines Shanghai-Pudong, Xiamen
China Postal Airlines Shanghai-Pudong
Dragonair Hong Kong
FedEx Express Anchorage, Memphis, Oakland
JAL Cargo Bangkok-Suvarnabhumi, Dalian, Ho Chi Minh City, Hong Kong, Shanghai-Pudong, Tianjin, Tokyo-Narita
Korean Air Cargo Seoul-Incheon
Lufthansa Cargo Frankfurt, Krasnoyarsk
Nippon Cargo Airlines Bangkok-Suvarnabhumi, Hong Kong, Shanghai-Pudong, Seoul-Incheon, Singapore, Tokyo-Narita
Polar Air Cargo Chicago-Ohare, Shanghai-Pudong
Shanghai Airlines Cargo Shanghai-Pudong
Singapore Airlines Cargo Los-Angeles, Singapore
UPS Airlines Anchorage, Clark, Shanghai-Pudong, Tokyo- Narita

Ground transportation

Rail

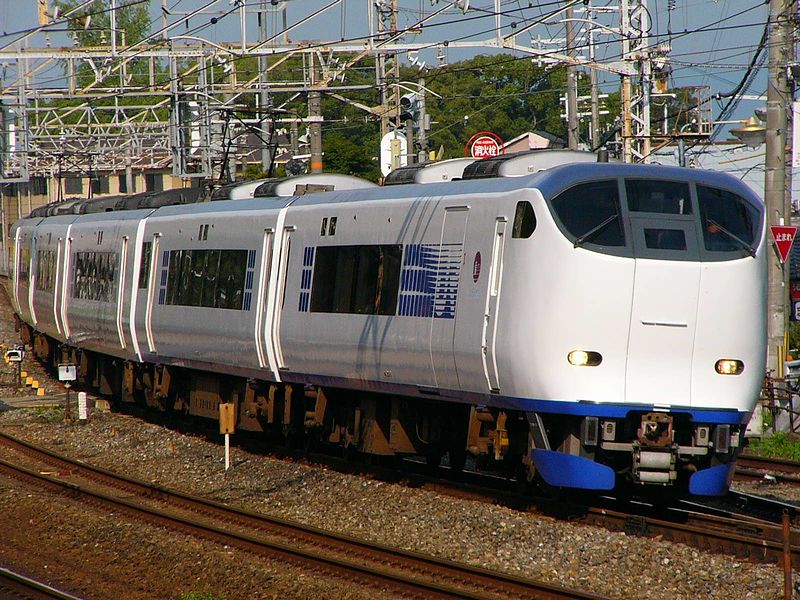

Haruka, JR West's Kansai Airport Limited Express to Tennōji, Shin-Ōsaka and Kyoto Station.
Haruka, JR West's Kansai Airport Limited Express to Tennōji, Shin-Ōsaka and Kyoto Station.

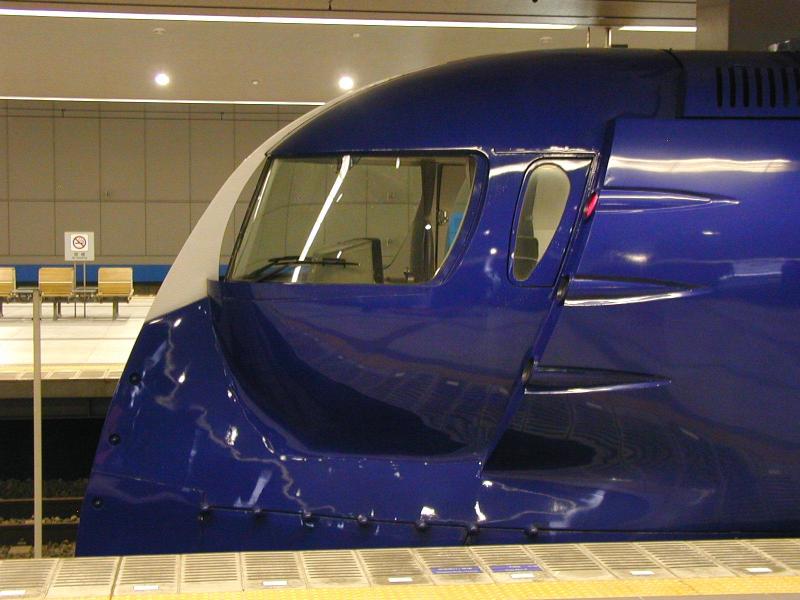

Nankai Railway's limited express train to Namba Station
rapi:t, Nankai Railway's limited express train to Namba Station. One way (for adult) ¥1,390.

Kansai International Airport is connected only by the Sky Gate Bridge R, a road / railroad bridge to Rinku Town and the mainland. The lower railroad level of the bridge is used by two railroad operators: West Japan Railway (JR West) and Nankai Electric Railway.

JR West operates Haruka, the limited express train services for Kansai Airport Station from Tennōji, Shin-Ōsaka and Kyoto Station. JR West also offers "Kansai Airport Rapid" services for Kansai Airport Station from Ōsaka and Kyōbashi Station, as well as several stations on the way. Various connections, such as buses, subways, trams, and other railroads, are available at each station.

Nankai operates rapi:t, a limited express train service to Namba Station on the southern edge of downtown Osaka. Subway connections are available at Namba and Tengachaya Station.

Railroad plans were drawn up in the late 1980s for an underwater railway connecting Kansai Airport to downtown Kobe and Kobe Airport, although the extremely high cost of the project led to its indefinite postponement.

Bus

Kansai Airport Transportation Enterprise and other bus operators offer scheduled express bus services, called "Airport Limousines", for Kansai International Airport.

Parking

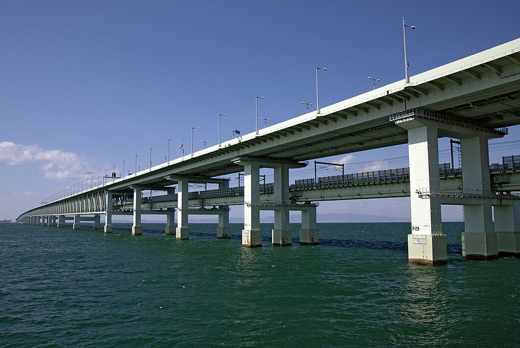

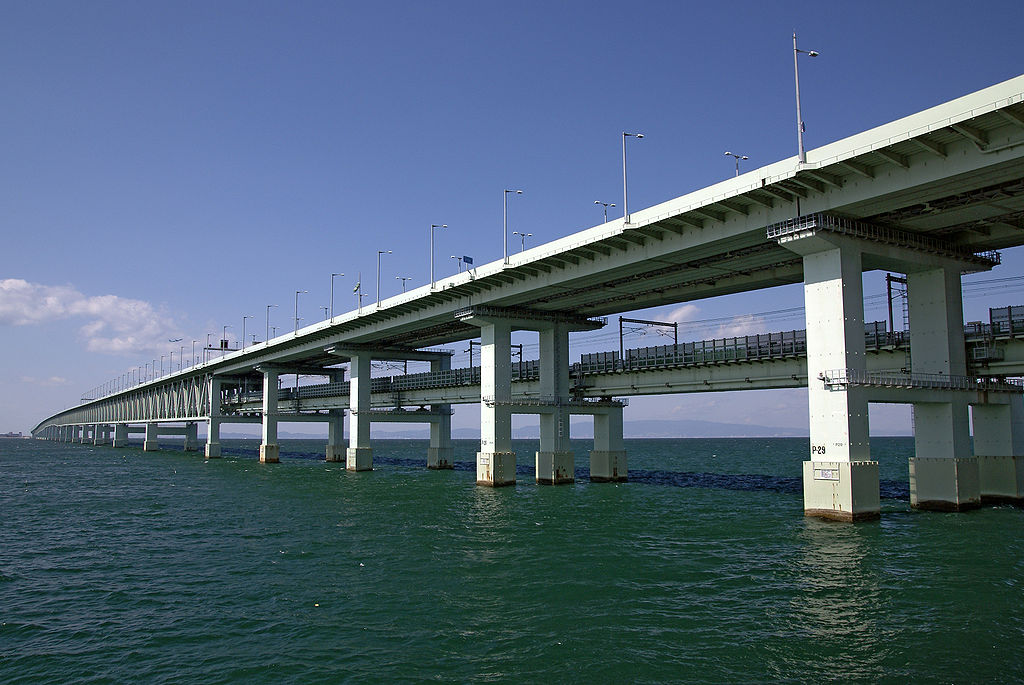

Sky Gate Bridge to the mainland
Sky Gate Bridge to the mainland

Two six story parking structures, called P1 and P2, are located above a railroad terminal station, while the other two level parking facilities, called P3 and P4, are situated next to "Aeroplaza", a hotel complex.

The airport is only accessible from the Sky Gate Bridge R, a part of Kansai Airport Expressway. The expressway immediately connects to Hanshin Expressways Route 5, "Wangan Route", and Hanwa Expressway.

Ferry service

In July 2007 a high-speed ferry service (run by Kaijo Access Co.) began operating between Kobe Airport and KIX. The journey takes about thirty minutes.

Previous services to Sumoto on Awaji Island and to Tokushima have been discontinued.

Other facilities

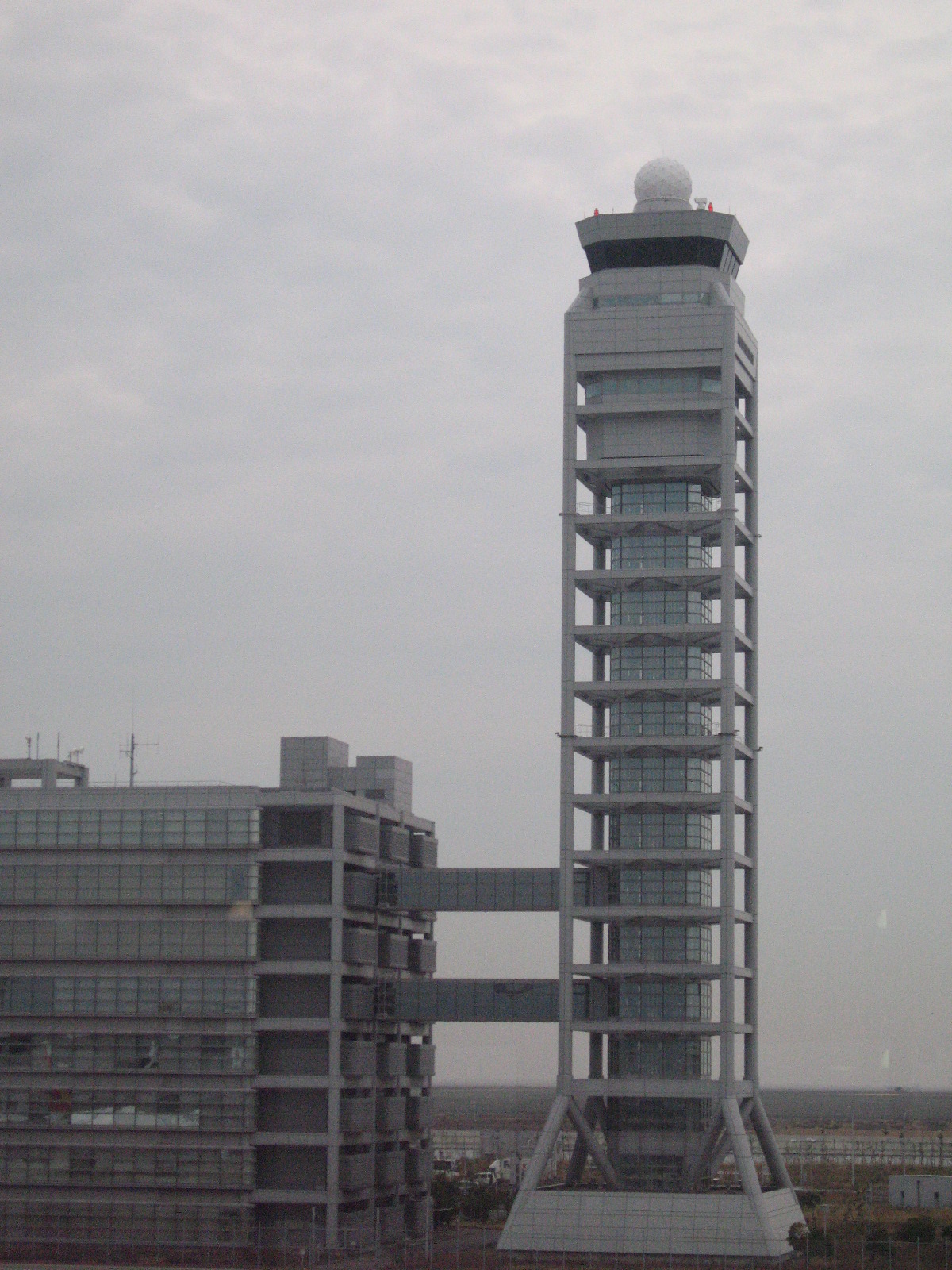

Air traffic control tower
  • Central power station (KEPCO energy center, 40,000 kW
  • Central heating and cooling plant
  • Sewage disposal plant (disposing 20,000 m (5,300,000 US gal) per day)
  • Incineration plant
  • Japan Coast Guard Kansai airport Coast Guard air base
  • Japan Coast Guard Special Security Team Base
  • Osaka international post office (treating international postal matters about 19,000 tonnes per year)
  • Oil tanker berths (three berths) and Fuel Supply center
  • Airport access bridge ("The Sky Gate Bridge R")
The longest truss bridge in the world at 3,750 m (12,303 ft). The double-decker bridge consists of a lower deck devoted to rail, with the upper for road.


The above content comes from Wikipedia and is published under free licenses – click here to read more.


General Info
Country Japan
ICAO ID RJBB
Time UTC+9
Latitude 34.427306
34° 25' 38.30" N
Longitude 135.244072
135° 14' 38.66" E
Elevation 26 feet
8 meters
Type Civil
Magnetic Variation 007° W (01/06)
Beacon Yes
Operating Agency CIVIL GOVERNMENT, (LANDING FEES AND DIPLOMATIC CLEARANCE MAY BE REQUIRED)
Near City Osaka
Island Group Honshu I
International Clearance Status Airport of Entry


Communications
TWR 118.2
236.8
126.2
TCA
Opr 2300-1200Z
121.1
270.8
GND 121.6
126.2
DEP 119.2
318.0
CLNC DEL 121.9
126.2
ATIS 127.85
APP 120.25
258.3
125.5


Runways
ID Dimensions Surface PCN ILS
06/24 11483 x 200 feet
3500 x 61 meters
ASPHALT 100FCXT YES


Navaids
Type ID Name Channel Freq Distance From Field Bearing From Navaid
VOR-DME TME TOMO 111X 116.4 9.9 NM 060.2
NDB KN KANSAI - 346 6.4 NM 237.9


Supplies/Equipment
Fuel Jet A1, without icing nhibitor.


Remarks
CAUTION WIP.
FUEL (NC-A1)
LGT PAPI Rwy 06-24 MEHT 66'. Thld lgt Rwy 06-24.
MISC Rwy grooved.
OPR HOURS Rwy 06-24 clsd 1700-2000Z Sat and Sun, and 1705-1930Z Wed, exc PPR.
RSTD Rwy 06-24 clsd until 25 Oct 06 exc emerg. PPR.



Thanks to: www.worldaerodata.com
