Keflavík International Airport |
Keflavík International Airport lies on the Reykjanes peninsula, seven minutes from the
town of Reykjanesbaer (Keflavik) and 50 km southwest of Iceland's capital
Reykjavik (about a 40-minute drive). Keflavik is the main international
airport for Iceland. It features modern passenger and commercial facilities
as well as extensive aircraft operation areas. Sitting astride the North
Atlantic route linking Europe and North America, the airport is of major
importance for technical stops and as an alternate airport on the North
Atlantic as well as polar routes.
The airport

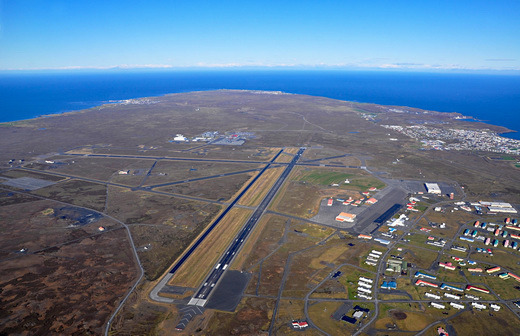

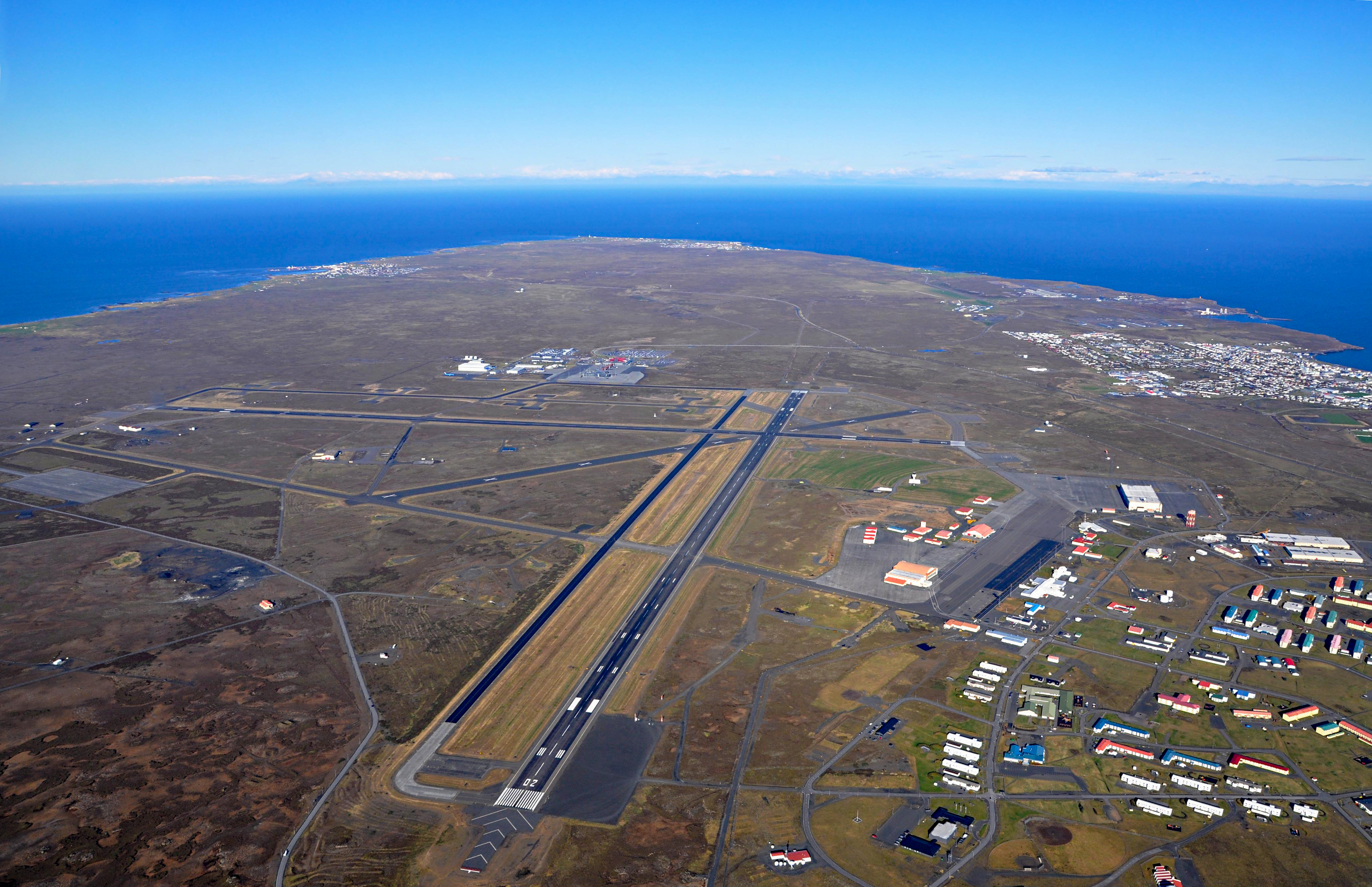

is well equipped and highly secure, with two runways: 02/20, 3054 x 60
m, and 11/29, 3065 x 60 m. All approaches are free of obstruction, and
the airport is equipped with today's most advanced approach systems. Runways
11 and 20 are Category II; runways 02 and 29 Category I. Keflavik
serves all types of aircraft 24 hours a day. It is non-congested: In 2005,
it handled 22,972 commercial movements as well as 38,474 military and
general aviation movements, and served 1,816,905 passengers.
History
of Keflavík International Airport
Inaugurated on March 24, 1943, "Keflavik Airport" was constructed
by American forces during World War II for military purposes. The airport,
one of the largest in the world at the time, played a major role in Allied
transatlantic aviation and convoy protection during the war. As the world
recuperated, the airport gained an important function as a refuelling
stop for the piston-engine aircraft of yesteryear that effectively developed
the commercial North Atlantic route between Europe and North America.
In those days it was quite common that an aircraft flying from continental
Europe had to make several stops: in Shannon, Ireland; then Keflavik and
perhaps Narsarsuaq or Sondrestrom, Greenland; then Frobisher Bay, Goose
Bay or Gander, in Canada; and finally New York. The advent of commercial
jetliners in the 1960s dramatically increased the range of commercial
aircraft. Keflavik Airport became less important as a refuelling stop
for international carriers, but retained its importance as an alternate
field on this busy route.A post-war 1946 agreement between Iceland and
the United States stipulated the withdrawal of all military forces and
transfer of the airport facilities to Iceland. The United States retained
transit access for military aircraft and maintained international airport
operation through civilian contractors (American Overseas Airlines and
Lockheed Aircraft Overseas Service) in conjunction with the Icelandic
Civil Aviation Administration. On May 5, 1951, upon NATO recommendation,
Iceland and the United States signed an agreement in which the U.S. assumed
the defence of Iceland. This agreement re-established American forces
in Iceland - a move that replaced the American airport contractors and
played an important role in the security of the North Atlantic during
the Cold War. Icelandic companies Loftleidir Icelandic, which pioneered
a transatlantic route between New York and Luxembourg via Iceland in the
1950s, and Flugfelag Islands (Icelandair), which kept to European routes,
initially operated from Reykjavik. At the dawn of the jet age, both companies
moved their international operations to Keflavik. These companies later
merged as "Icelandair". Thus began a new chapter in the operation
at Keflavik, with a dramatic increase in traffic from a mere 43,775 passengers
in 1958 to 1,816,905 in 2005. In 1958 the Airport's freight totalled 1,218
metric tons, as opposed to 57,157 tons in 2005. The "Leifur Eiriksson

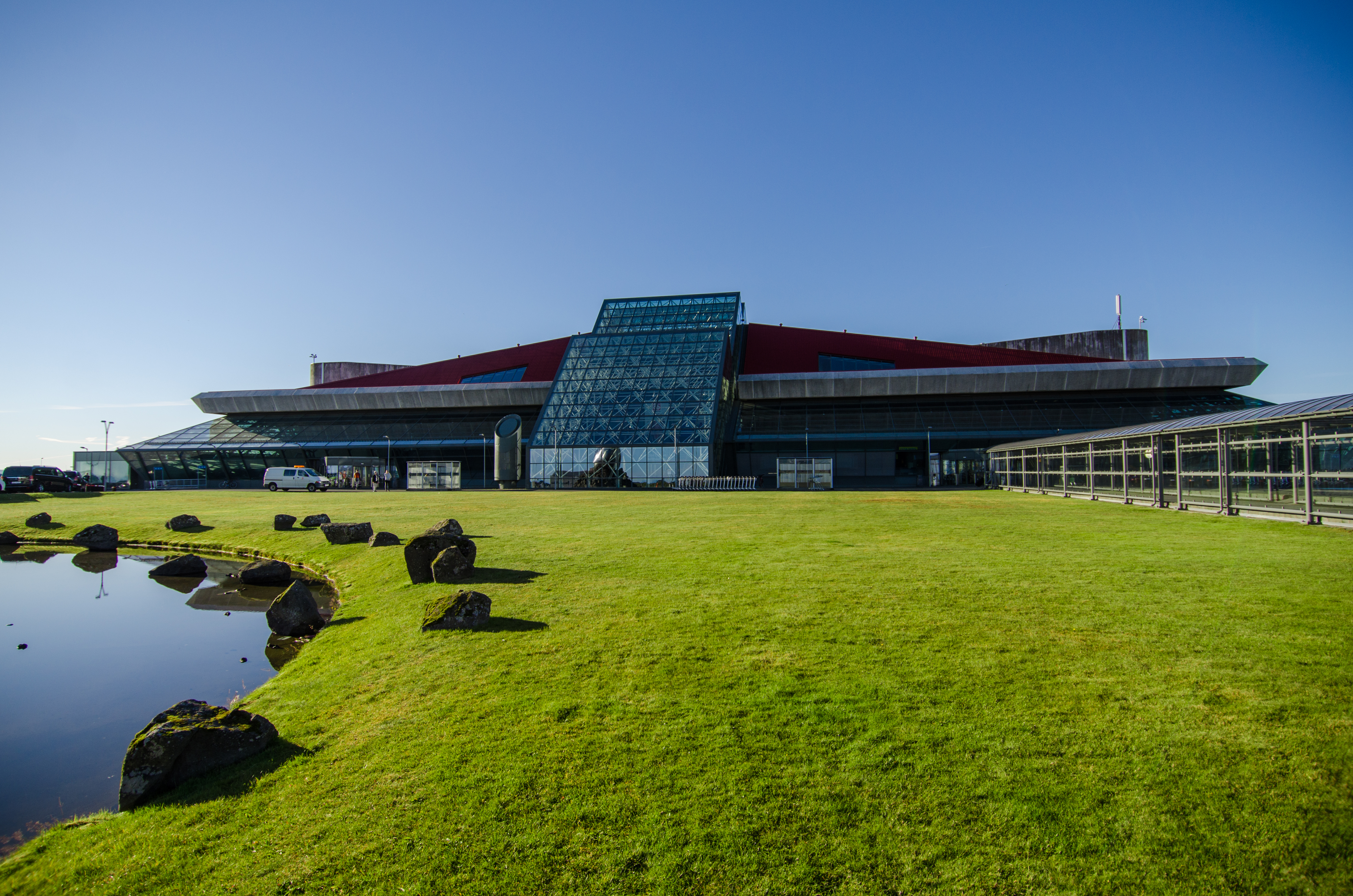

International Air Terminal" was inaugurated in April 1987 and was
extended in 2001 because of Schengen Convention requirements, which established
a single external European frontier. Improvement and expansion of terminal
facilities continue, with a 16,500 sq m extension to be completed in early
2007. Keflavik Airport remained both a civil and military airport operated
jointly by the Keflavík International Airport Administration (KIAA) and
the U.S. military until 2006, when all forces were again withdrawn from
Iceland for lack of a sufficient military threat in the North Atlantic.
The KIAA has now assumed sole operation of all aviation facilities at
Keflavík International Airport.
 |
(Click on the photo to enlarge) |
Contacts
Civil
Aviation Administration Keflavik Airport, 235 Keflavík International Airport,
Iceland Tel.
+ 354 425 0600, Fax +354 425 0610,
Airport
Director
Bjorn Ingi Knutsson Tel. +354 425 0600
e-Mail:
bjornk at kefairport is
Airport
Operation Division
Eirikur Omar Sveinsson Tel. +354 425 0600
e-Mail:
omar sveinsson at kefairport is
Airport
Security Division
Stefan Thordersen Tel. +354 425 0600
e-Mail:
stefant at kefairport is
Public Information
Fridthor Eydal Tel. +354 425-6170 e-Mail: fridthor
eydal at kefairport is
URL: http://www.keflavikairport.com

This photo - Copyright © Mats Wibe Lund - www.myndasafn.is

This photo - Copyright © Mats Wibe Lund - www.myndasafn.is

This photo - Copyright © Mats Wibe Lund - www.myndasafn.is

This photo - Copyright © Mats Wibe Lund - www.myndasafn.is
Images and information
placed above are from
http://www.keflavikairport.com
http://www.myndasafn.is/
We thank them for
the data!
| General
Info
|
| Country |
Iceland
|
| ICAO
ID |
BIKF
|
| Time |
UTC
0
|
| Latitude |
63.985000
63œ 59' 06.00" N
|
| Longitude |
-22.605556
022œ 36' 20.00" W
|
| Elevation |
171
feet
52 meters
|
| Type |
Joint
(Civil and Military)
|
| Magnetic
Variation |
017œ
W (01/06)
|
| Beacon |
Yes
|
| Operating
Agency |
MILITARY
- CIVIL JOINT USE AIRPORT
|
| Operating
Hours |
24
HOUR OPERATIONS
|
| International
Clearance Status |
Airport
of Entry |
| Communications
|
| TWR |
118.3
257.8
|
| PMSV
METRO |
125.0
344.6
(MIL TAF uses KQNT ident sent vis auto wx network.)
|
CW
NRK
500R 8364R |
SEE
REMARKS
|
| GND |
121.9
359.8
|
| DEP |
119.3
377.2
|
| ATIS |
128.3
311.6
|
| APP |
119.3
377.2
|
| ATOC |
131.1
|
| AIR
GND |
131.9
|
| Runways
|
ID
|
Dimensions |
Surface |
PCN |
ILS
|
| 02/20
|
10019
x 197 feet
3054 x 60 meters |
ASPHALT |
068FBWT |
YES
|
| 11/29
|
10056
x 197 feet
3065 x 60 meters |
ASPHALT |
080FCWT |
YES
|
| Navaids
|
| Type |
ID |
Name |
Channel |
Freq |
Distance
From Field |
Bearing
From Navaid
|
| VORTAC |
KEF |
KEFLAVIK |
057X |
112 |
At
Field |
-
|
| NDB |
OK |
OSCAR
KILO |
- |
364 |
3.9 NM |
199.2
|
| Supplies/Equipment
|
| Fuel |
JP-8,
SemiKeroscene MIL Spec T-83133, without icing inhibitor
100/130 MIL Spec, low lead, aviation gasoline (BLUE)
|
| Oil |
O-128,
1100,(Dispersant)Reciprocating Engine Oil(MIL L 22851 Type II)
O-133, 1010, jet Engine Oil (MIL l 6081)
O-148, MIL L 7808 (Synthetic Base), Turboprop/Turboshaft Engine
O-156, MIL L 23699 (Synthetic Base)Turboprop/Turboshaft Engine
SOAP Spectrometric Oil Analysis Program
|
| Other
Fluids |
ADI,
Anti-Deonation Injection Fluid-Reciprocating Engine Aircraft
SP, Single Point Refueling
PRESAIR, Air Compressors rated 3,000PSI or more
LHOX, Low and high pressure oxygen servicing
LOX, Liquid oxygen servicing
OX, Indicates oxygen servicing when type of servicing is unknown
LPNIT, Low pressure nitrogen servicing |
| Remarks
|
| CAUTION |
Abandoned
afld 3 NM SE of Keflavik. Bird haz May-Sep. Unctl veh/pedestrian
cros SE corner mil ramp and Twy S-1, not vis fr twr. Pilots
ctc GND to have veh tfc lgt turned to RED when apch cros and
advs when clear cros. Twy C2 clsd to mil acft. Twy C-1 clsd.
92' tmpry crane 2000' fr Rwy 11 thld/4855' S of cntrline.
|
| FUEL |
(NC-A1,
JP8). Ctc ATOC 131.1.
|
| JASU |
1(A/M47A-4),
2(A/M32A-108).
|
| LGT |
Rot
Bcn is secured when wind exceeds 40K.
|
| MISC |
Keflavik
Intl is a level 3, SCR/Cooridinated arpt. Acft arr/dep civil
side rqr slot times via SIMMS format. See www.keflavikairport.com.
MU-Meter rwy BA expressed in friction coefficient for ea third
of rwy. Four eng acft use idle or secure outboard eng for taxi.
AMC acft mnt SOF 131.1 dur all gnd opr. Rwy 07-25 clsd. All
publ inst proc will be withdrawn from DoD FLIP upon base closure
30 Sep 06.
|
| NS
ABTMT |
See
AP/2 Supplementary Arpt Rmk.
|
| OIL |
O-128-133-148-156
SOAP
|
| RSTD |
PPR
rqr 72 hr PN and will be apv on a case by case basis. Tran acft
not in support of NASKEF closure, arr/dep outside mil ramp hrs,
will not be issued a PPR. DSN 450-6202/4494, C011-354-425-6202/4494,
METRO DSN 450-4302. Fr 1600-1800Z dly, W bound flt ltd to 1
dep ev 5 min. See AP/2 Supplementary Arpt Rmk-Transient.
|
| TFC
PAT |
VFR
tfc pat alt 1200'.
|
| TRAN
ALERT |
No
tran maint avbl. Hgr space extremely ltd. |
Thanks to: www.worldaerodata.com
