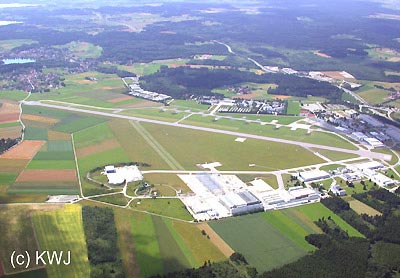

Oberpfaffenhofen Airport

Oberpfaffenhofen Airport Flugplatz Oberpfaffenhofen und Wessling

Oberpfaffenhofen AirportICAO Code EDMO
Name OBERPFAFFENHOFEN
Land Deutschland
Bundesland Bayern
Letzte Änderung 27. Mai 2004

Kategorie Sonderflughafen / Special Airport
Betreiber / Operator EDMO- Flugbetrieb GmbH

Lage / Location 12 NM WSW München
Instrumentenflug / IFR IFR
LFZ / ACFT Bis / up to PCN 46/R (F) A/X/T, HEL 25000 kg
Helicopter Ja / Yes
Summer PPR Tel/Fax OPS, CTR Mon-Fri Täglich/daily 0500-1700 EXC HOL
Winter PPR Tel/Fax OPS, CTR Mon-Fri täglich/daily 0600-1800, EXC HOL
O/T PPR
Nur für ACFT, die zum Zwecke des Kundendienstes landen oder starten oder die in Geschäftsbeziehung zur EDMO GmbH stehen/only for ACFT, landing or departing for service reasons or business relations with EDMO GmbH
Luftaufsicht / OPS +49 (0)8153 / 88172250, Fax 88172875
PPR +49 (0)8153 / 88172250, Fax 88172875
AIS AIS-Centre +49 (0)69 / 78072500
ACC EDDM +49 (0)89 / 9780330
MET (0190) 077225
Gafor 82

Zoll / Customs O / R 2 hour Tel: +49 (0)8153 / 88172250
Fuel 100 LL, Jet A1
Oil W 80, W 100, Turbo 2380
Hangar Nein / No
Höhe / Elevation 1947 ft / 594 m
FIS München Information 126.950
VDF / QDM 119.550 122.100
Rufzeichen / Call sign Oberpfaffenhofen Tower/Turm
Frequenz Tower 119.550 (122.100) EN/GE
NAV Aids ABN PAPI OBI 429/110.50 am Platz/at field
Koordinaten 48 04, 88 N / 11 16, 98 E

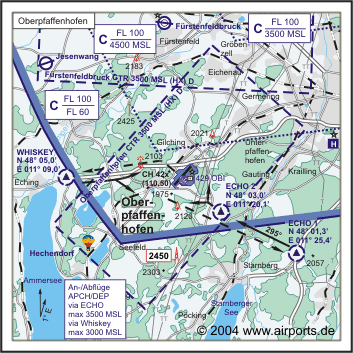

Platzrunde / Traffic circuit
Landebahnen / RWY 1
RWY 2286 x 45 m, ASPHALT
RWY 04 TKOF 2286 m; LDG 2286 m
RWY 22 TKOF 2286 m; LDG 2286 m
MTOW 46/R(F)/A/X/T HEL 25000 kg
Bemerkungen / Remarks Wohngebiete meiden!

Adresse
POB 1153
ZIP / City D-82230
Weßling

Fon +49 (0)8153 / 88172643
Fax 88172875


Images and information placed above are from http://www.airports.de/airport.php?ICAO=EDMO
http://www.ammersee-region.de/dlr-oberpfaffenhofen-tag-der-raumfahrt.html
We thank them for the data!


General Info
Country Germany
ICAO ID EDMO
Time UTC+1(+2DT)
Latitude 48.081364
48° 04' 52.91" N
Longitude 11.283067
011° 16' 59.04" E
Elevation 1947 feet
593 meters
Type Civil
Magnetic Variation 001° E (01/05)
Beacon Yes
Operating Agency PRIVATE
Near City Munchen
Operating Hours SEE REMARKS FOR OPERATING HOURS OR COMMUNICATIONS FOR POSSIBLE HOURS
Daylight Savings Time Last Sunday in March to last Sunday in October


Communications
TWR
Opr 0600-1800Z++ Mon-Fri, exc hol, OT HX.
119.55
122.1
292.8
MUNCHEN RADAR 127.95
120.775
(ARR - 120.775)
MUNCHEN INFO 126.95


Runways
ID
Dimensions Surface PCN ILS
04/22 7500 x 147 feet
2286 x 45 meters
ASPHALT 046FAXT YES


Navaids
Type ID Name Channel Freq Distance From Field Bearing From Navaid
NDB-DME OBI OBERPFAFFENHOFEN 042X 429 At Field -


Supplies/Equipment
Fuel Jet A1, without icing nhibitor.


Remarks
CAUTION Ints copter and F/W test flying.
CSTMS/IMG Avbl O/R 2 hr PN, fone C(08153)8817-2250.
FUEL Avbl O/R, fone C(08153)8817-2250. (NC-A1).
LGT PAPI Rwy 22 MEHT 63'.
MISC Ldg fees rqr. Wx avbl via Munchen. Fone C(0190)0-88336 or C089-978-5313, H24.
OPR HOURS Opr PPR 0600-1800Z++ Mon-Fri, exc hol.
RSTD PPR, fone C(08153)302227 or 302643.

Runway 04/22

7500 x 147 feet
2286 x 45 meters

Runway 04
Surface ASPHALT
True Heading 043.0
Latitude 48.074153
48° 04' 26.95" N
Longitude 11.272883
011° 16' 22.38" E
Elevation 1947.0 feet
593 meters
Slope -0.8°
Landing Distance 7500 feet
2286 meters
Takeoff Distance 7500 feet
2286 meters
Lighting System HIRL

Runway 22
Surface ASPHALT
True Heading 223.0
Latitude 48.089100
48° 05' 20.76" N
Longitude 11.293947
011° 17' 38.21" E
Elevation 1890.0 feet
576 meters
Slope 0.8°
Landing Distance 7500 feet
2286 meters
Takeoff Distance 7731 feet
2356 meters
Overrun Length 231 feet
70 meters
Overrun Surface ASPHALT
Lighting System HIRL
BF
PAPI

Navaids

OBERPFAFFENHOFEN
Type ID Channel Freq Country State
NDB-DME OBI 042X 429 Germany -
Latitude Longitude Airport
48.080642
48° 04' 50.31" N
11.285400
011° 17' 07.44" E
EDMO





The content above was published at Airports-Worldwide.com in 2005.
We don't guarantee the information is fresh and accurate. The data may be wrong or outdated.
For more up-to-date information please refer to other sources.
