Falkenberg Lonnewitz Special Airfield |
ICAO Code EDUF
Name FALKENBERG-Lönnewitz
Land Deutschland
Bundesland Brandenburg
Letzte Änderung 31. Mai 2001
Kategorie Sonderlandeplatz / Special Airfield
Betreiber / Operator Uebigauer Elektro-und Schaltanlagenbau-UESA GmbH
Lage / Location 2 NM S Falkenberg
LFZ / ACFT Bis / up to 12000 kg
Helicopter Ja / Yes
Motorsegler / GLDP Ja / Yes
Segelflugzeuge / GLD Ja / Yes
UL Ja / Yes
Summer PPR
Winter PPR
O/T PPER
Luftaufsicht / OPS +49 (0)35365 / 38042, 2378, Fax 2520
PPR +49 (0)35365 / 38042, 2378, Fax 2520
AIS EDDB +49 (0)30 / 60918250
MET (0190) 077226
Gafor 22
Zoll / Customs Nein / No
Fuel Nein / No
Oil Nein / No
Hangar Beschränkt / Restricted
Höhe / Elevation 284 ft / 95 m
FIS Berlin Information 125.800
Rufzeichen / Call sign Lönnewitz Info
Frequenz Tower 130.125 GE
NAV Aids 075°/29 NM from LEG 115.85 203°/31 NM from KLF 115.15
335°/35 NM from DRN 114.35
Koordinaten 51 32, 87 N / 13 13, 69 E

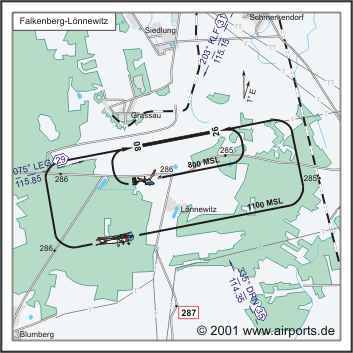

Platzrunde / Traffic circuit S 1100
Landebahnen / RWY 1
RWY 1200 x 30 m, CONCRETE
RWY 08 TKOF 1200 m; LDG 1200 m
RWY 26 TKOF 1200 m; LDG 1200 m
MTOW 12000 kg
Bemerkungen / Remarks Wohngebiete meiden! UL-Betrieb
Adresse
Doberluger Str. 52/53
ZIP / City D-04938 Uebigau
Fon +49 (0)35365 / 490
Fax 8217
WWW: http://www.airports.de/airport.php?ICAO=EDUF
Images and information placed
above are from
http://www.airports.de/airport.php?ICAO=EDUF
We thank them for the data!
| General Info
|
| Country |
Germany
|
| ICAO ID |
EDUF
|
| Time |
UTC+1(+2DT)
|
| Latitude |
51.547833
51° 32' 52.20" N
|
| Longitude |
13.228167
013° 13' 41.40" E
|
| Elevation |
284 feet
87 meters
|
| Magnetic Variation |
002° E (01/05)
|
| Operating Agency |
PRIVATE
|
| Alternate Name |
FALKENBERG
|
| Operating Hours |
SEE REMARKS FOR OPERATING HOURS OR COMMUNICATIONS FOR POSSIBLE HOURS
|
| Daylight Savings Time |
Last Sunday in March to last Sunday in October
|
| Communications
|
| BERLIN INFO |
125.8
|
| INFO |
130.125
|
| Runways
|
ID
|
Dimensions |
Surface |
PCN |
ILS
|
| 08/26 |
3937 x 98 feet
1200 x 30 meters |
CONCRETE. |
- |
NO
|
| Remarks
|
| CAUTION |
Gldr and ultra-lgt acrft act.
|
| OPR HOURS |
Opr PPR.
|
Runway 08/26
3937 x 98 feet
1200 x 30 meters
| Runway 08
|
| Surface |
CONCRETE.
|
| True Heading |
080.0
|
| Latitude |
51.546997
51° 32' 49.19" N
|
| Longitude |
13.220517
013° 13' 13.86" E
|
| Landing Distance |
3937 feet
1200 meters
|
| Takeoff Distance |
3937 feet
1200 meters
|
| Runway 26
|
| Surface |
CONCRETE.
|
| True Heading |
260.0
|
| Latitude |
51.548861
51° 32' 55.90" N
|
| Longitude |
13.237556
013° 14' 15.20" E
|
| Landing Distance |
3937 feet
1200 meters
|
| Takeoff Distance |
6637 feet
2023 meters
|
| Overrun Length |
2700 feet
823 meters
|
| Overrun Surface |
ASPHALT
|
The content above was published at Airports-Worldwide.com in 2005.
We don't guarantee the information is fresh and accurate. The data may be wrong or outdated.
For more up-to-date information please refer to other sources.
|
