LOCATION:

• strategically located, Edmonton International Airport (EIA) is conveniently situated adjacent to the major highway linking Edmonton and Calgary; near the Yellowhead TransCanada Highway which connects Winnipeg, Edmonton, and Vancouver; and near Via Rail's Transcontinental "Canadian" route
•  Edmonton International Airport is Canada's most northerly 24 hour international airport
•  Edmonton International Airport's elevation is 723 metres or 2372 feet above sea level

SIZE & CAPACITY:

• Edmonton International Airport is the fifth busiest airport in Canada in terms of passengers.  In 2004, 4.1 million passengers used the airport.
•  Edmonton International Airport is the second largest airport in Canada as measured by land mass. It comprises and area of just under 7000 acres.
• the current runways are large enough to accommodate an immediate 200% growth in air traffic movements.

AIRSIDE FACILITIES/SPECIFICATIONS:

Runways

• the Edmonton International Airport has two runways in an open "V" configuration:



  Runway	Length	Width	Direction
  02-20	11,000 ft	200 ft	extends NE and SW
  12-30	10,200 ft	200 ft	extends SE and NW

• the runways can accommodate any size of aircraft. In fact, the Antonov, the world's largest cargo carrier, has used Edmonton International Airport on several occasions
• no restrictions on aircraft weight and passenger load factors

Aprons

• the airport has three aprons:

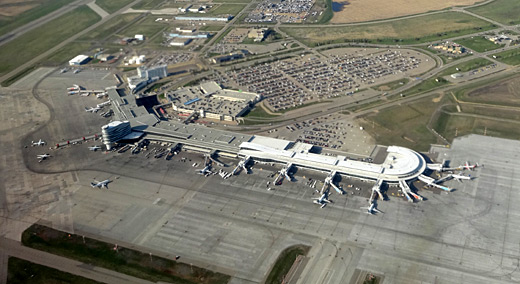

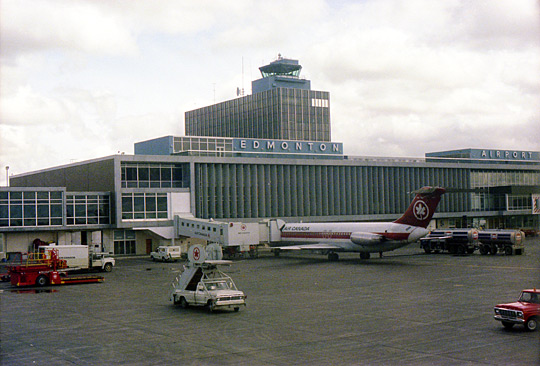

Apron 1 is located directly in front of the air terminal building, covering an area of 672,000 ft2. This apron contains sixteen aircraft parking positions with an additional two for General Aviation parking.
Apron II is located Northeast of the terminal building covering an area of 272,600 ft2. This apron is a common-use ramp for general aviation aircraft, military and courier operations.
Apron III is dedicated to cargo operations and large aircraft maintenance hangars, and is located in the AirLinks Cargo Park adjacent to Runway 02/20. It is 164,000 ft2 of concrete ramp & taxiway designed for the heaviest of freighter aircraft.

Navigational and Landing Aids

• Edmonton International Airport offers 24 hour service to accommodate any aircraft at any time
• the Edmonton Area Control Centre is part of the airport's operations facility. This Centre provides both radar and non-radar Instrument Flight Rules (IFR) control service to all aircraft operating in controlled airspace, and to aircraft operating under Visual Flight Rules (VFR)
• Edmonton International Airport is also the base for the Western Region Area Control Centre that is responsible for all aircraft movements over Alberta and most of northern Canada, including the high Arctic.
• Runways 02, 12 and 30 are equipped with Category 1 High Intensity Centre Row Approach Lighting as well as a SSALR approach lighting system, while Runways 20 is equipped with Low Intensity Centre Row Approach Lighting with runway identification lights. All runways include High Intensity threshold and runway lights
• the Airport contains the following navigational and approach aids:
  • Approach radar, Terminal area radar, Secondary surveillance radar, RVR measurement, ILS, VOR, DME, NDB, REILS, TACAN, VASIS
  • full front course Instrument Landing Systems are included on Runways 02, 12 and 30, with a back course approach system on Runway 20

OPERATING ENVIRONMENT:

Noise Abatement Procedures

• The Noise Abatement Procedures for Edmonton International Airport are as follows:

Departure Procedures
Runway 12 Turbo-jet/Turbo-fan aircraft.  No right turns west of the "KILO" non-directional beacon (NDB)
All runways - VNAP A or B

Arrival Procedures
1-Avoid flying over the city of Leduc below 5000' above sea level
2-Runway 30 right hand circuits



Edmonton International Airport

Address: P.O. Box 9860
Edmonton, Alberta
T5J 2T2

Tel: (780) 890-8900

Fax: (780) 890-8329

E-mail: info at edmontonairports com

URL: http://www.edmontonairports.com/
