Jorge Wilstermann International Airport
Aeropuerto Internacional Jorge Wilstermann |
 |
| IATA: CBB – ICAO: SLCB |
| Summary |
| Airport type |
Public / Military |
| Operator |
abertis airports |
| Serves |
Cochabamba, Bolivia |
| Elevation AMSL |
8,360 ft / 2,548 m |
| Coordinates |
17°25′15″S 066°10′37″W / 17.42083°S 66.17694°W / -17.42083; -66.17694 |
| Runways |
| Direction |
Length |
Surface |
| m |
ft |
| 14/32 |
3,798 |
12,460 |
Asphalt |
| 04/22 |
2,649 |
8,692 |
Asphalt |
| Sources: AASANA and DAFIF |
Jorge Wilstermann International Airport, known in Spanish as Aeropuerto Internacional Jorge Wilstermann (IATA: CBB, ICAO: SLCB) is an airport serving Cochabamba, a city in the Cochabamba department of Bolivia. The facility is named in honor of Jorge Wilstermann, a respected Bolivian commercial aviator.
It was a focus city for Lloyd Aéreo Boliviano (LAB), the country's national airline, until service from LAB was suspended. The facility is one of the most clean and modern within Bolivia. In 2005, the airport served 670,898 passengers. Facilities
The airport resides at an elevation of 8,360 feet (2,548 m) above mean sea level. It has two asphalt paved runways: 14/32 measuring 12,460 by 148 feet (3,798 × 45 m) and 04/22 measuring 8,692 by 148 feet (2,649 × 45 m).
Operators
On March 1, 1997 the Government of Bolivia entered into a 25 year contract with Airport Group International to operate the three largest airports in Bolivia – El Alto International Airport in La Paz, Jorge Wilstermann Airport and Viru Viru International Airport in Santa Cruz de la Sierra. Servicios de Aeropuertos Bolivianos Sociedad Anonima (SABSA) was created to operate the concession. In 1999 Airport Group International was purchased by TBI plc and, in 2004, Spain's Abertis/AENA purchased TBI.
Airlines and destinations
 | |

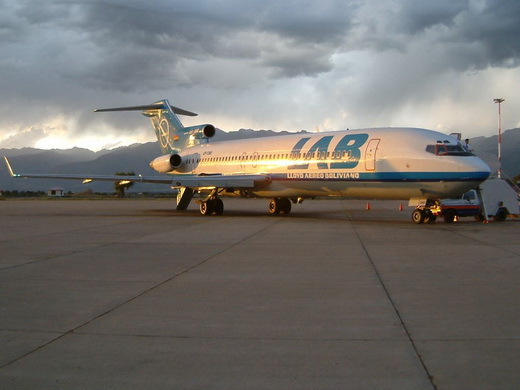

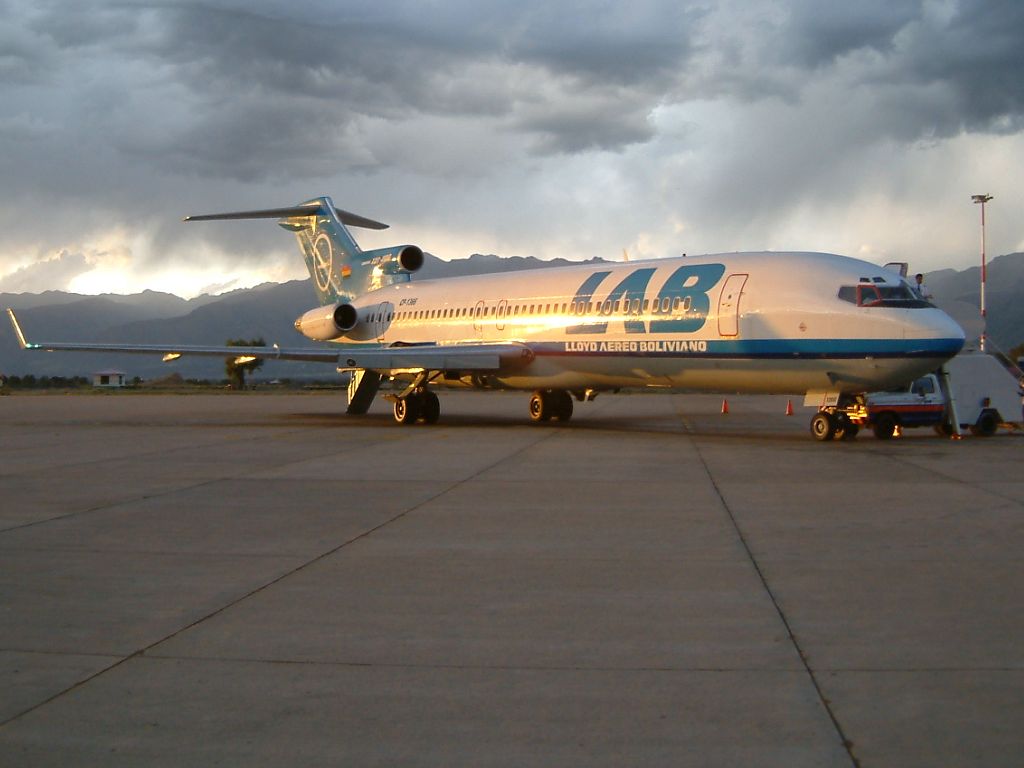

LAB Boeing 727-200 at airport |
| Airlines |
Destinations |
| Aerocon |
Santa Cruz de la Sierra, Trinidad |
| Aerosur |
Cobija, La Paz, Santa Cruz de la Sierra, Sucre, Tarija, Uyuni |
| Boliviana de Aviación |
Buenos Aires-Ezeiza, Santa Cruz de la Sierra, La Paz, Tarija, Sucre, Cobija |
| Amaszonas |
Trinidad |
| Transporte Aéreo Militar |
La Paz, Santa Cruz de la Sierra, Sucre, Tarija, Trinidad |
The above content comes from Wikipedia and is published under free licenses – click here to read more.
| General Info
|
| Country |
Bolivia
|
| ICAO ID |
SLCB
|
| Time |
UTC-4
|
| Latitude |
-17.421058
17° 25' 15.81" S
|
| Longitude |
-66.177114
066° 10' 37.61" W
|
| Elevation |
8360 feet
2548 meters
|
| Type |
Joint (Civil and Military)
|
| Magnetic Variation |
007° W (05/06)
|
| Beacon |
Yes
|
| Operating Agency |
MILITARY - CIVIL JOINT USE AIRPORT
|
| Near City |
Cochabamba
|
| International Clearance Status |
Airport of Entry
|
| Communications
|
| COCHABAMBA TWR |
123.5
|
COCHABAMBA RDO
SR-SS
|
129.9
|
| GND |
121.9
|
| COCHABAMBA APP |
119.3
|
| Runways
|
| ID |
Dimensions |
Surface |
PCN |
ILS
|
| 04/22 |
8692 x 148 feet
2649 x 45 meters |
ASPHALT |
041FBXU |
NO
|
| 14/32 |
12460 x 148 feet
3798 x 45 meters |
ASPHALT |
048FBXT |
YES
|
| Navaids
|
| Type |
ID |
Name |
Channel |
Freq |
Distance From Field |
Bearing From Navaid
|
| VOR-DME |
CBA |
COCHABAMBA |
058X |
112.1 |
At Field |
-
|
| NDB |
R |
COCHABAMBA |
- |
402 |
5.1 NM |
114.1
|
| Supplies/Equipment
|
| Fuel |
Jet A1, without icing nhibitor.
100/130 MIL Spec, low lead, aviation gasoline (BLUE)
|
| Remarks
|
| CAUTION |
192' obst 4429' fr thld Rwy 22.
|
| CSTMS/IMG |
CSTMS, IMG avbl.
|
| FUEL |
(NC-A1,100LL)
|
| LGT |
PAPI Rwy 04 MEHT 53'. PAPI Rwy 14 GS 2.4 MEHT 69'. PAPI Rwy 22 GS 3.1 MEHT 77'. PAPI Rwy 32 GS 3.3 MEHT 78'.
|
| RSTD |
Rwy 04-22 ngt ops not authorized exc Rwy 22 for school of flt instr. Rwy 04 daylt tkof lt turn only. Rwy 22 daylt tkof rgt turn only exc for single eng acft. Acft in excess of 12,500 lb max tkof wt proh Rwy 04-22. PPR for overflt of city.
|
