| Kleine Brogel Air Base |
| IATA: none – ICAO: EBBL |
| Summary |
| Airport type |
Military |
| Operator |
Belgian Air Component |
| Location |
Kleine Brogel, Belgium |
| Elevation AMSL |
200 ft / 61 m |
| Coordinates |
51°10′9″N 5°28′14″E / 51.16917°N 5.47056°E / 51.16917; 5.47056 |
| Runways |
| Direction |
Length |
Surface |
| m |
ft |
| 05L/23R |
3,096 |
10,158 |
Asphalt |
| 05R/23L |
2,400 |
7,874 |
Asphalt |

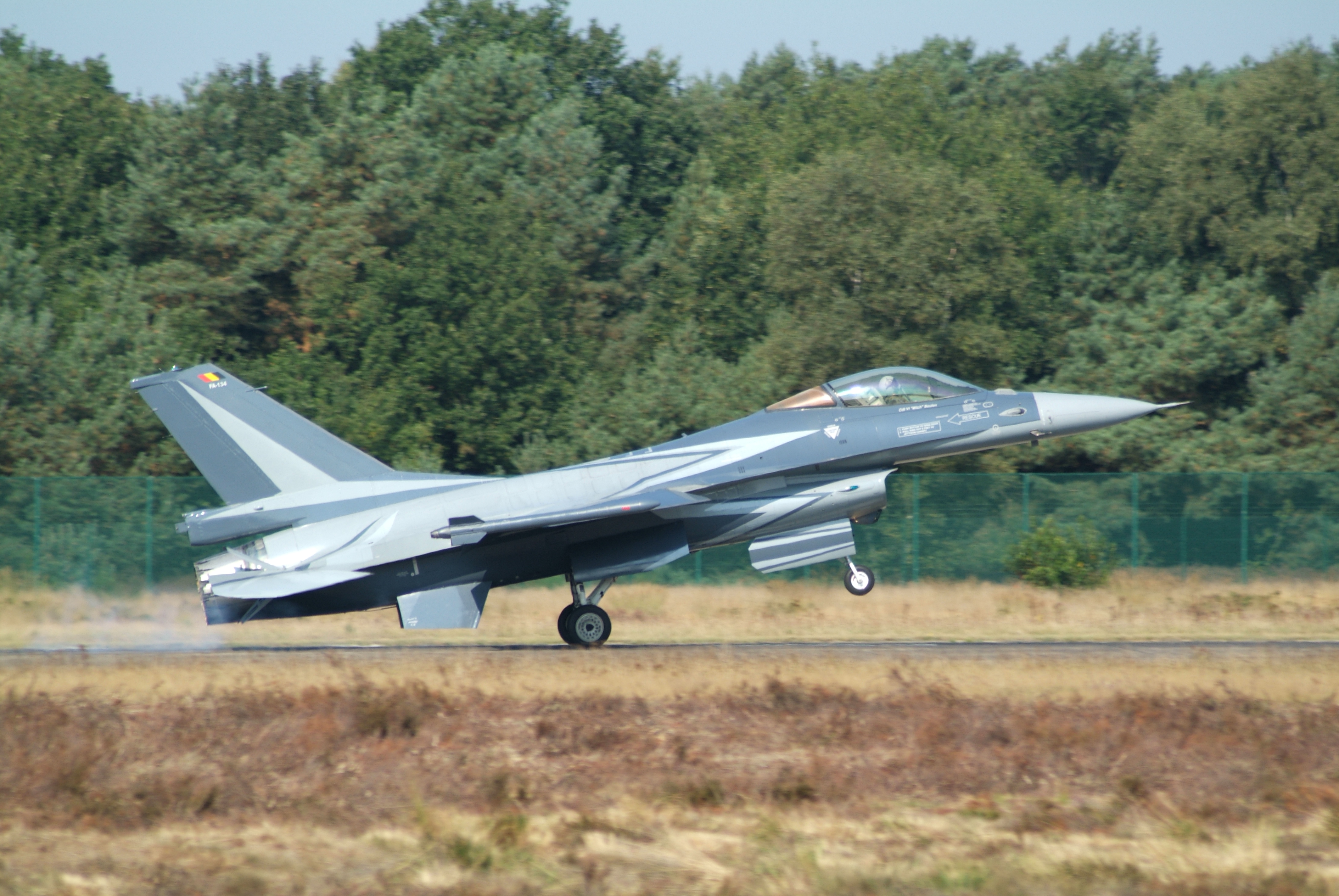

Kleine Brogel Air Base (ICAO: EBBL) is a Belgian Air Component military airfield located in Kleine Brogel, a municipality of Belgium. It is home to the 10th Tactical Wing, operating F-16 Fighting Falcons.
It has been subject to much political controversy because of U.S. nuclear weapons allegedly being stored in the facility.
The above content comes from Wikipedia and is published under free licenses – click here to read more.
| General Info
|
| Country |
Belgium
|
| ICAO ID |
EBBL
|
| Time |
UTC+1(+2DT)
|
| Latitude |
51.168333
51° 10' 06.00" N
|
| Longitude |
5.470000
005° 28' 12.00" E
|
| Elevation |
200 feet
61 meters
|
| Type |
Military
|
| Magnetic Variation |
000° W (05/06)
|
| Beacon |
Yes
|
| Operating Agency |
MILITARY
|
| Operating Hours |
SEE REMARKS FOR OPERATING HOURS OR COMMUNICATIONS FOR POSSIBLE HOURS
|
| International Clearance Status |
Airport of Entry
|
| Daylight Saving Time |
Last Sunday in March to last Sunday in October
|
| Communications
|
TWR
Opr HO.
|
122.1
314.375
243.4
257.8
|
TAXI
Opr HO.
|
122.1
278.925
|
APP
Opr HO.
|
122.5
337.975
362.3
243.4
|
| Runways
|
| ID |
Dimensions |
Surface |
PCN |
ILS
|
| 05R/23L |
7874 x 75 feet
2400 x 23 meters |
PART CONCRETE, PART ASPHALT, OR PART BITUMEN-BOUND MACADAM. |
045FAWT |
NO
|
| 05L/23R |
10158 x 148 feet
3096 x 45 meters |
PART CONCRETE, PART ASPHALT, OR PART BITUMEN-BOUND MACADAM. |
109FAWT |
YES
|
| Navaids
|
| Type |
ID |
Name |
Channel |
Freq |
Distance From Field |
Bearing From Navaid
|
| TACAN |
BBL |
KLEINE BROGEL |
033X |
- |
At Field |
-
|
| NDB |
ONT |
KLEINE BROGEL |
- |
431 |
4.3 NM |
231.3
|
| Supplies/Equipment
|
| Fuel |
JP-4, Wide cut turbine fuel MIL Spec T-5624
|
| Oil |
O-148, MIL L 7808 (Synthetic Base), Turboprop/Turboshaft Engine
O-156, MIL L 23699 (Synthetic Base)Turboprop/Turboshaft Engine
SOAP Spectrometric Oil Analysis Program
|
| Other Fluids |
SP, Single Point Refueling
PRESAIR, Air Compressors rated 3,000PSI or more
LHOX, Low and high pressure oxygen servicing
LOX, Liquid oxygen servicing
OX, Indicates oxygen servicing when type of servicing is unknown
|
| JASU |
DSA 300
28v DC 35 amp 115/200v 30kva 400hz 3 phase 4 wire
|
| Remarks
|
| CAUTION |
Not all twy avbl for use by transport and/or strategic transport acft. Adhere strictly to taxi instr.
|
| FLUID |
De-Ice PRESAIR LHOX LOX
|
| FUEL |
J8, 100LL
|
| JASU |
1(A1) 1( DSA300)
|
| LGT |
ABn coded BL. PAPI Rwy 05 GS 2.5 , PAPI Rwy 23 GS 2.75 . SFL Rwy 05L/23R unrel.
|
| NS ABTMT |
Ltd to one lo apch fr a practice GCA or TACAN apch. A go-around followed by a close in pat rstd to a missed apch with lo fuel.
|
| OIL |
0-148-156-160,SOAP
|
| OPR HOURS |
Opr 0730-1630Z++ Mon-Fri; clsd Sat, Sun and hol.
|
| RSTD |
Acft larger than C-130 rqr 3 working days PPR; 6 working days PPR for acft over load classification nr (LCN) 45, state LCN on req. Practice apch proh.
|
| RWY |
Rpt LDA for Rwy 05L is 7979', rpt LDA for Rwy 23R is 7959.
|
