The Felixstowe F.2 was a British First World War flying boat designed by Lieutenant Commander John Cyril Porte RN of the Seaplane Experimental Station, Felixstowe.

Development

Before the war Porte had worked with American aircraft designer Glenn Curtiss on a flying boat in which they intended to cross the Atlantic. When he became commander of the naval air base at Felixstowe he acquired Curtiss flying boats of the H-4 type, a military version of their earlier "America" flying boat design.

Porte modified an H4 with a new hull with improved hydrodynamic qualities, as the Felixstowe F.1, of which four were built. Porte then designed a similar hull for the larger Curtiss H12 flying boat, the Felixstowe F.2a, which was greatly superior to the original Curtiss boat. This entered production and service as a patrol aircraft, with about 100 being completed by the end of World War I. Another seventy were built and these were followed by two F.2c which were built at Felixstowe

In February 1917, the first prototype of the Felixstowe F.3 was flown. This was larger and heavier then the F.2, giving it greater range and heavier bomb load, but poorer agility. Approximately 100 Felixstowe F.3s were produced before the end of the war.

The Felixstowe F.5 was intended to combine the good qualities of the F.2 and F.3, with the prototype first flying in May 1918. The prototype showed superior qualities to its predecessors but the production version was modified to make extensive use of components from the F.3, in order to ease production, giving lower performance than either the F.2A or F.5.

Operational service

The Felixstowe F.2A was widely used as a patrol aircraft over the North Sea until the end of the war. Its excellent performance and maneuverability made it an effective and popular type, often fighting enemy patrol and fighter aircraft, as well as hunting U-boats and Zeppelins. The larger F.3, which was less popular with its crews than the more maneuverable F.2a, served in the Mediterranean as well as the North Sea.

The F.5 did not enter service until after the end of World War I, but replaced the earlier Felixstowe boats (together with Curtiss flying boats) to serve as the RAF's standard flying boat until being replaced by the Supermarine Southampton in 1925.

Variants

• F.2a: Based on Curtiss H12 with new hull. Powered by two 345 hp Rolls Royce Eagle VIII engines. 4 to 7 machine guns and 460 lb of bombs.
• F.2c: Modified F2a with lighter hull. two built.

Operators

 United Kingdom

• Royal Naval Air Service
• Royal Air Force
  • No. 228 Squadron RAF
  • No. 230 Squadron RAF
  • No. 231 Squadron RAF
  • No. 232 Squadron RAF
  • No. 234 Squadron RAF
  • No. 240 Squadron RAF
  • No. 247 Squadron RAF
  • No. 249 Squadron RAF
  • No. 257 Squadron RAF
  • No. 259 Squadron RAF
  • No. 261 Squadron RAF
  • No. 267 Squadron RAF

 United States

• United States Navy

Specifications (F2a)

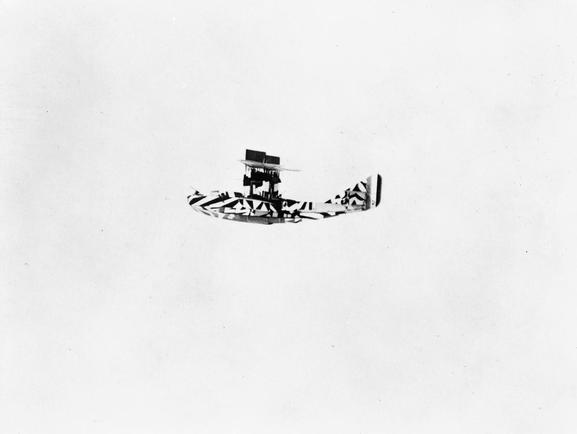

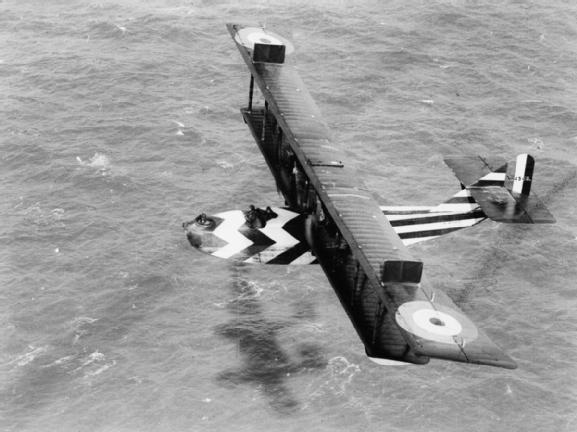

Felixstowe F.2B (N4545) in dazzle scheme during an anti-submarine patrol. The dazzle camouflage adopted aided identification during air combat and on the water in the event of being forced down.

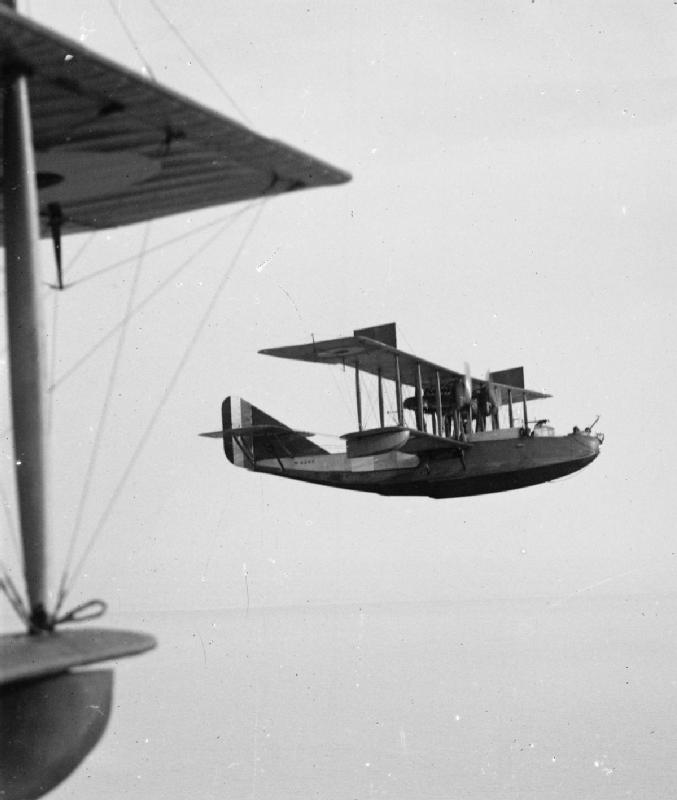

Felixstowe F.2A (N4283), finished in black and white scheme, in flight in March 1918, being flown by Captains R. Leckie and G. E. Livock.

General characteristics

• Crew: 4
• Length: 46 ft 3 in (14.1 m)
• Wingspan: 95 ft 7½ in (29.15 m)
• Height: 17 ft 6 in (5.34 m)
• Wing area: 1,133 ft² (105.3 m²)
• Empty weight: 7,549 lb (3,431 kg)
• Loaded weight: 10,978 lb (4,990 kg)
• Powerplant: 2× Rolls-Royce Eagle VIII V12 piston, 345 hp (257 kW) each

Performance

• Maximum speed: 95½ mph at 2,000 ft (83 knots, 154 km/h)
• Service ceiling: 9,600 ft (2,930 m)
• Wing loading: 9.69 lb/ft² (47.4 kg/m²)
• Power/mass: 0.063 hp/lb (0.10 kW/kg)
• Endurance: 6 hours
• Climb to 2,000 ft (610 m): 3 min 50 s.
• Climb to 10,000 ft (3,050 m): 39 min 30

Armament

• Guns: 4 × .303 in (7.7 mm) Lewis Guns, 1 in nose, 3 amidships
• Bombs: Up to 460 lbs of bombs beneath wings
