Sopwith Pup

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Sopwith_Pup

Sopwith Pup
Role Biplane fighter
Manufacturer Sopwith Aviation Company
Designed by Herbert Smith
First flight February 1916
Introduced October 1916
Primary users Royal Flying Corps
Royal Air Force
Royal Naval Air Service
Produced 1916-1918
Number built 1,770
Variants Alcock Scout
Beardmore W.B.III

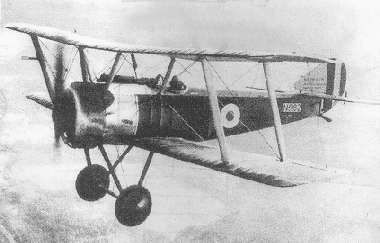

Pup in flight
Pup in flight

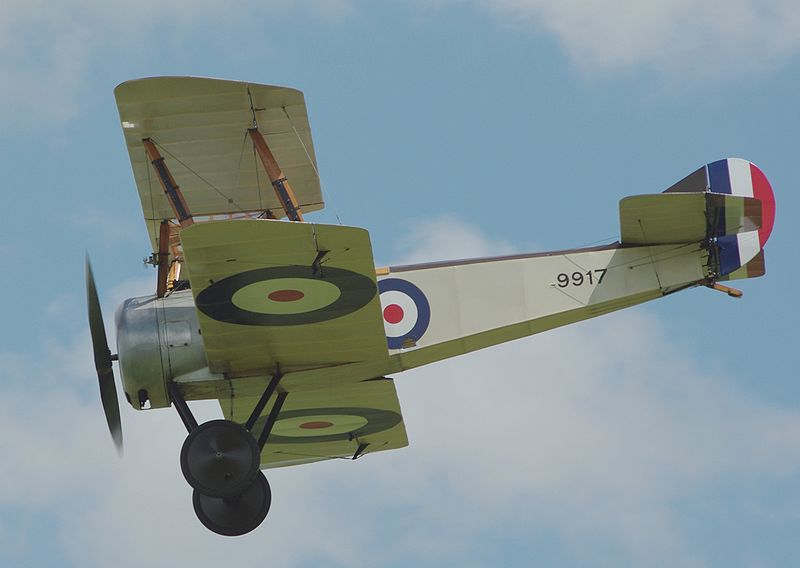

The Shuttleworth Collection's
The Shuttleworth Collection's "Pup" in flight

The Sopwith Pup was a British single seater biplane fighter aircraft used during the First World War. It was manufactured by the Sopwith Aviation Company and was officially named the Sopwith Scout. The "Pup" nickname arose because pilots considered it to be the "pup" of the larger two-seat Sopwith 1½ Strutter. The name never had official status as it was felt to be "undignified", but a precedent was set, and all later Sopwith types apart from the triplane acquired names of mammals or birds (Camel, Dolphin, Snipe etc.). The Pup's docile flying characteristics made it ideal for use in aircraft carrier deck landing and takeoff experiments.

Design and development

The Pup was based on the personal aircraft of the company's test pilot, Harry Hawker. This 1915 design, designated Sopwith SL TBP, was powered by a 50 hp Gnome rotary engine.

In early 1916, Sopwith developed this aircraft into a fighter. The resulting Pup was a single-bay, single-seat biplane with a mainly wooden framework covered in fabric and staggered, equal-span wings. The cross axle type main landing gear supported on V-struts attached to the fuselage lower longeron with a tail skid. Most aircraft were powered by the 80 hp (60 kW) Le Rhone rotary engine, although aircarft used for home defence in 1917 used the more powerful 100 hp (75 kW) Gnome Monosoupape. Armament was a single 0.303 inch (7.7 mm) Vickers machine gun synchronized with the Sopwith-Kauper interrupter.

A total of 1,770 Pups were built by Sopwith (96), Standard Motor Co. (850), Whitehead Aircraft (820), and William Beardmore & Co. (30).

Operational history

The Sopwith Pup was used by both the Royal Flying Corps (RFC) and the Royal Naval Air Service (RNAS). In May 1916, the RNAS received its first Pups for operational trials with "A" Naval Squadron. The first Pups reached the Western Front in October 1916 with No. 8 Squadron RNAS, and proved successful, with the squadron's Pups claiming 20 enemy machines destroyed in operations over the Somme battlefield by the end of the year. The first RFC Squadron to re-equip with the Pup was No. 54 Squadron, which arrived in France in December. The Pup quickly proved its superiority over the early Fokker, Halberstadt and Albatros biplanes. After encountering the Pup in combat, Manfred von Richthofen said, "We saw at once that the enemy airplane was superior to ours."

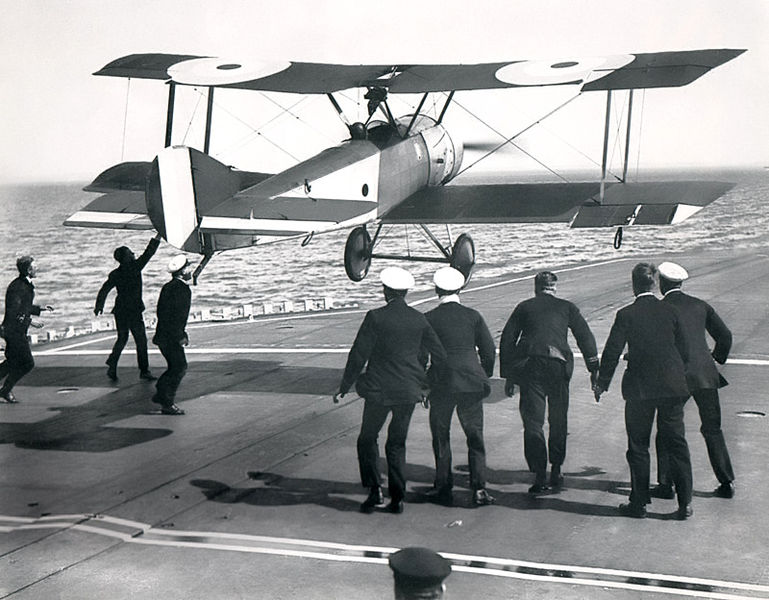

Sqn Cdr E. H. Dunning landing on HMS Furious in a Sopwith Pup
Sqn Cdr E. H. Dunning landing on HMS Furious in a Sopwith Pup

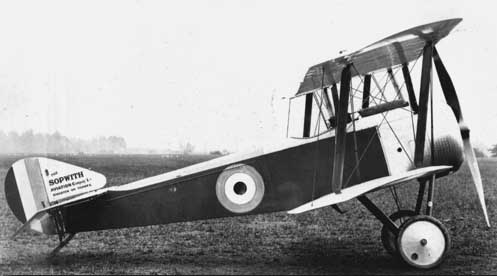

Pup with 100 hp Gnome Monosoupape engine
Pup with 100 hp Gnome Monosoupape engine

The Pup's light weight and generous wing area gave it a good rate of climb. Agility was enhanced by ailerons being fitted on both wings. The Pup had half the horsepower and armament of the German Albatros D.III, but was much more maneuverable, especially over 15,000 ft (4,500m) due to its light wing loading. Ace James McCudden stated that "When it came to maneuvering, the Sopwith (Pup) would turn twice to an Albatros' once ... it was a remarkably fine machine for general all-round flying. It was so extremely light and well surfaced that after a little practice one could almost land it on a tennis court." However, the Pup was also longitudinally unstable. According to one pilot, "It was so light to the touch, if you sneezed, you looped."

At the peak of its operational deployment, the Pup equipped only four RNAS squadrons (3,4,8 and 9), and three RFC units (54, 46 and 66 Squadrons). By spring 1917, the type was already outclassed by the newest German fighters and the RNAS had replaced theirs, first with Sopwith Triplanes, and then Sopwith Camels. The RFC Pup squadrons on the other hand had to soldier on, in spite of increasing casualties, until it was possible to replace the last frontline Pups with Camels, in autumn 1917.

This was far from being the end of the Pup's career as it continued in various second line roles for the remainder of the war.

The raids on London by Gotha bombers in mid-1917 caused far more damage and casualties than the earlier airship raids. The ineffective response by British interceptor units had serious political repercussions. In response No. 66 Squadron was withdrawn to Calais for a short period, and No. 46 was transferred for several weeks to Sutton's Farm airfield near London. Two new Pup squadrons were formed specifically for Home Defence duties, No. 112 in July, and No. 61 in August. Home defence Pups were often fitted with the more powerful 100 hp Gnome Monosoupape to improve their performance. These aircraft were distinguishable by the addition of vents in the cowling face.

Sopwith Pups were also used in many pioneering carrier experiments. On 2 August 1917, a Pup flown by Sqn Cdr Edwin Dunning became the first aircraft to land aboard a moving ship, HMS Furious. Dunning was killed on his third landing when the Pup fell over the side of the ship. The Pup began operations on the carriers in early 1917; the first aircraft were fitted with skid undercarriages in place of the standard landing gear. Landings utilized a system of deck wires to "trap" the aircraft. Later versions reverted to the normal undercarriage. Pups were used as ship-based fighters on three carriers: HMS Campania, Furious and Manxman. A number of other Pups were deployed to cruisers and battleships where they were launched from platforms attached to gun turrets. A Pup flown from a platform on the cruiser HMS Yarmouth shot down the German Zeppelin L 23 off the Danish coast on 21 August 1917.

The U.S. Navy also employed the Sopwith Pup with famed Australian/British test pilot Edgar Percival testing the use of carrier-borne fighters. In 1926, Percival was catapulted in a Pup off the battleship USS Idaho at Guantanamo Bay, Cuba.

The Pup was an excellent advanced trainer, and served as such for the remainder of the war and after - although many "trainer" Pups were in fact reserved by senior officers as their personal runabouts.

Variants

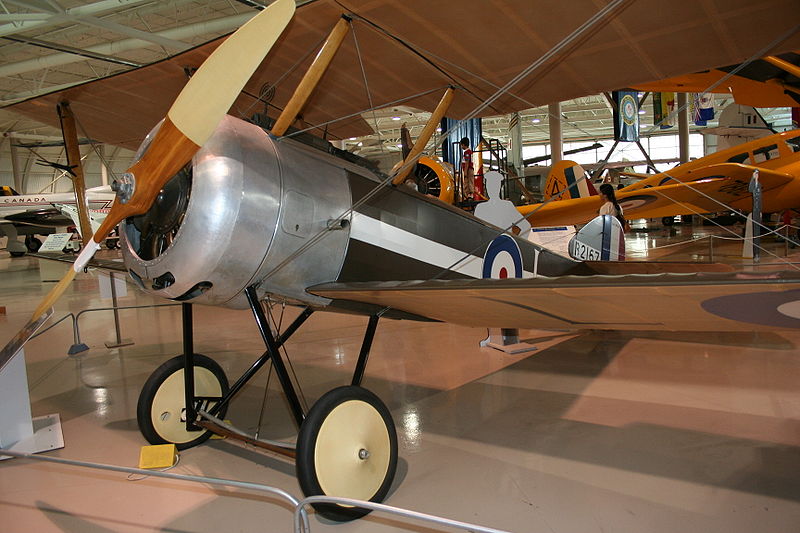

Sopwith Pup replica at the Canadian Warplane Heritage Museum
Sopwith Pup replica at the Canadian Warplane Heritage Museum
Sopwith Admiralty Type 9901
The original Admiralty designation.
Sopwith Pup
Single-seat fighter scout biplane.
Sopwith Dove
Two-seat civilian biplane, only 10 were built.
Alcock Scout
Aircraft built partially from the remains of a crashed Pup.

Operators

 Australia
 Greece
 Japan
 Netherlands
 Russian Empire
 United Kingdom
 United States

Survivors and modern reproductions

Several airworthy and static replicas of Sopwith Pup exist today. One of Sopwith Dove (G-EBKY) was converted to Pup configuration in the 1930s and continues to fly today, with the Shuttleworth Trust.

A notable flying reproduction, built in the late 1960s by the late Richard King, one of the co-founders of Old Rhinebeck Aerodrome along with Cole Palen, still exists at the Owl's Head Museum of Transportation in Rockland, Maine, and is still flown occasionally, with its original vintage First World War Le Rhône 80 hp rotary engine, at special events during their open season.

An original 1917 Standard Motors built Pup B 1807, later registered as G-EAVX is slowly being restored to airworthy condition at RNAS Yeovilton (U.K.). This aircraft was originally fitted with a 100hp Monosoupape engine along with the distinctive 3/4 vented cowling. It was refitted by the embryonic R.A.F. with an 80hp Le Rhone engine in 1918 but retained the 3/4 cowling. It was bought privately at Croydon disposals in 1920 and registered in the U.K. as a private aircraft. It is the sole survivor of the six Sopwith Pups to be given a civilian registration (it is possibly the only surviving original Pup, tbc). The aircraft appeared on 16 July at the 1921 Aerial Derby (Hendon) where it was groundlooped by its' pilot, but only slightly damaged. The aircraft never flew again and was "disposed of" in 1922. In 1973 the current owner discovered the remains of the aircraft in a barn in Dorset (U.K.) and has been rebuilding it since that date. It is hoped that the Pup will be flying again at the end of 2010, and will be repainted in its 1921 Aerial Derby colours.

Specifications (80 hp Le Rhone)

Data from British Naval Aircraft since 1912

General characteristics

  • Crew: one
  • Length: 19 ft 3¾ in (5.89 m)
  • Wingspan: 26 ft 6 in (8.08 m)
  • Height: 9 ft 5 in (2.87 m)
  • Wing area: 254 ft² (23.6 m²)
  • Empty weight: 787 lb (358 kg)
  • Loaded weight: 1,225 lb (557 kg)
  • Powerplant:Le Rhone air-cooled rotary engine, 80 hp (60 kW)

Performance

  • Maximum speed: 97 knots (111½ mph, 180 km/h) at sea level
  • Service ceiling: 17,500 feet (5,600 m)
  • Endurance: 3 hours
  • Climb to 10,000 ft (3,050 m): 14 min
  • Climb to 16,100 ft (4,910 m): 35 min
