Royal Aircraft Factory S.E.5

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Royal_Aircraft_Factory_S.E.5

Royal Aircraft Factory S.E.5
Role Single-seat fighter
Manufacturer various (see text)
Designed by Henry Folland / J. Kenworthy / Major F.W. Goodden
First flight 22 November 1916
Introduced March 1917
Primary users Royal Flying Corps
United States Army Air Corps
Royal Canadian Air Force
Number built 5,205[1]

The Royal Aircraft Factory S.E.5 was a British biplane fighter aircraft of the First World War. Although the first examples reached the Western Front before the Sopwith Camel, and it had a much better overall performance, problems with its Hispano-Suiza engine meant that there was a chronic shortage of S.E.5s until well into 1918 and fewer squadrons were equipped with the type than with the Sopwith fighter. Together with the Camel, the S.E.5 was instrumental in regaining allied air superiority in the summer of 1917 - and maintaining this for the rest of the war - ensuring there was no repetition of "Bloody April" 1917, when losses in the Royal Flying Corps were much heavier than in the German Air Service.

Design and development

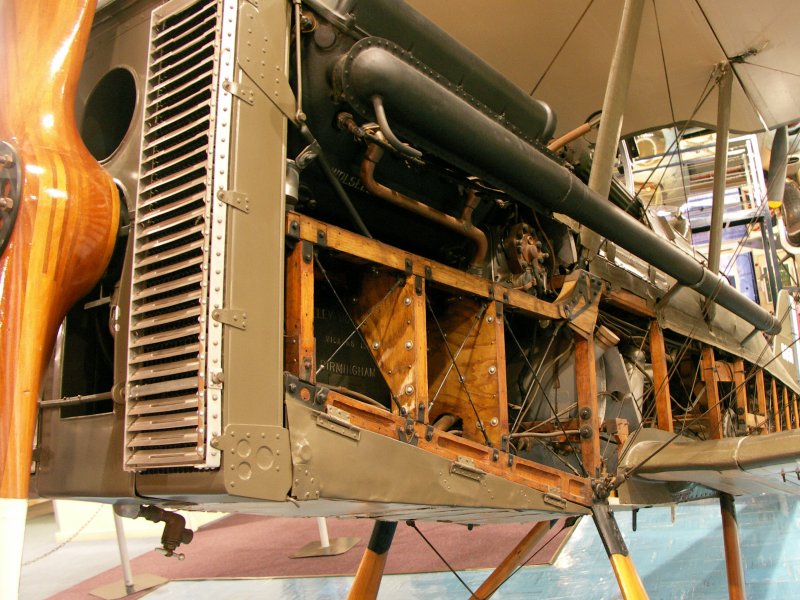

Wood frame construction
Wood frame construction

A squadron of S.E.5a aircraft. The wartime censor has scratched out serial numbers on the negative - but left the much more revealing squadron markings (actually those of No. 32 Squadron RAF)
A squadron of S.E.5a aircraft. The wartime censor has scratched out serial numbers on the negative - but left the much more revealing squadron markings (actually those of No. 32 Squadron RAF)

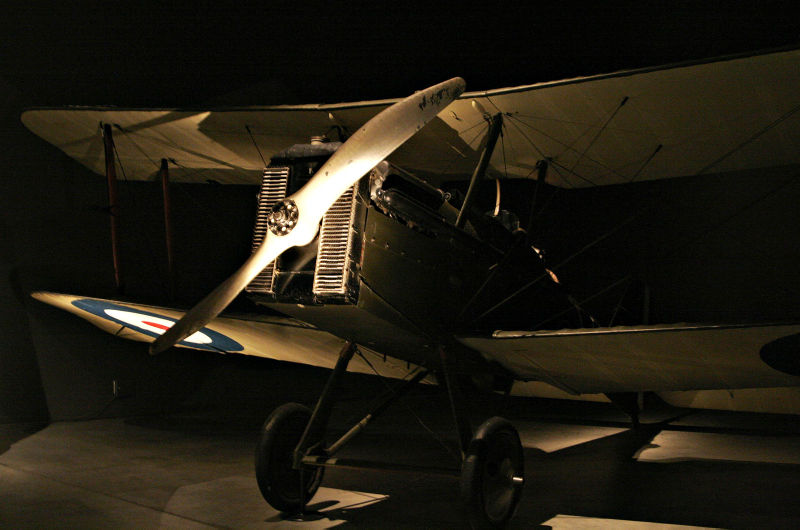

S.E.5a - Australian War Memorial
S.E.5a - Australian War Memorial

The S.E.5 (Scout Experimental 5) was designed by Henry P. Folland, J. Kenworthy and Major F.W. Goodden of the Royal Aircraft Factory, in Farnborough. It was built around the new 150-hp (112 kW) Hispano-Suiza 8a V8 engine which, while it provided excellent performance, was initially under-developed and unreliable. The first of three prototypes flew on 22 November 1916. The first two prototypes were lost in crashes (the first killing one of its designers, Major F.W. Goodden, on 28 January 1917) due to a weakness in their wing design. The third prototype underwent modification before production commenced - the S.E.5 was known in service as an exceptionally strong aircraft which could be dived at very high speed, so these changes were certainly effective.

Like the other significant Royal Aircraft Factory aircraft of the war (B.E.2, F.E.2 and R.E.8) the S.E.5 was inherently stable, making it an excellent gunnery platform, but it was also quite manoeverable. It was one of the fastest aircraft of the war, at 138 mph (222 km/h) equal at least in speed to the SPAD S.XIII, and faster than any standard German type of the period. The S.E.5 was not as effective in a dog fight as the Camel, as it was less agile, but it was easier and safer to fly, particularly for novice pilots.

The S.E.5 had only one synchronised .303-in Vickers machine gun to the Camel's two. However it did have a wing-mounted Lewis gun on a Foster mounting, which enabled the pilot to fire at an enemy aircraft from below, as well as forward. This was much appreciated by the pilots of the first S.E.5 squadrons, as the new "C.C." synchronising gear for the Vickers was unreliable at first. The Vickers gun was mounted on the left side of the fuselage with the breech inside the cockpit. The cockpit was set amidships, making it difficult to see over the long front fuselage, but otherwise visibility was good. Perhaps its greatest advantage over the Camel was its superior performance at altitude - so that (unlike most Allied fighters) it was not outclassed by the Fokker D.VII when that fighter arrived at the front.

S.E.5a

Only 77 original S.E.5 aircraft were built before production settled on the improved S.E.5a. The S.E.5a differed from late production examples of the S.E.5 only in the type of engine installed - a geared 200 hp Hispano-Suiza 8b, often turning a large clockwise-rotation four bladed propeller, replacing the 150 hp model. In total 5,265 S.E.5s were built by six manufacturers: Austin Motors (1,650), Air Navigation and Engineering Company (560), Curtiss (1), Martinsyde (258), the Royal Aircraft Factory (200), Vickers (2,164) and Wolseley Motor Company (431). A few were converted as two-seat trainers and there were plans for Curtiss to build 1,000 S.E.5s in the United States but only one was completed before the end of the war. At first, airframe construction outstripped the very limited supply of French-built Hispano-Suiza engines, and squadrons earmarked to receive the new fighter had to soldier on with Airco DH 5s and Nieuport 24s until early 1918.

The introduction of the 200 hp (149 kW) Wolseley Viper, a high-compression version of the Hispano-Suiza made under licence by the Wolseley Motor Company, resolved the S.E.5a's engine problems, and was adopted as the standard powerplant.

About 38 of the Austin-built S.E.5as were assigned to the American Expeditionary Forces, with the 25th Aero Squadron getting its aircraft-mostly armed only with the fuselage-mounted Vickers gun-at the very end of the war.

S.E.5b

The S.E.5b was a variant of the S.E.5 with a streamlined nose and wings of unequal span and chord. The single example, a converted S.E.5a, first flew in early April 1918. It had a spinner on the propeller and a retractable underslung radiator. The S.E.5b was not a true sesquiplane - as the lower wing had two spars. Its performance was little better than the S.E.5a - the increased drag from the large upper wing seems to have cancelled out any benefit from the better streamlined nose. The S.E.5b was not considered for production - probably it was always intended mainly as a research aeroplane. In January 1919 it was tested with standard S.E.5a wings, and in this form survived as a research aircraft into the early twenties.

Operational history

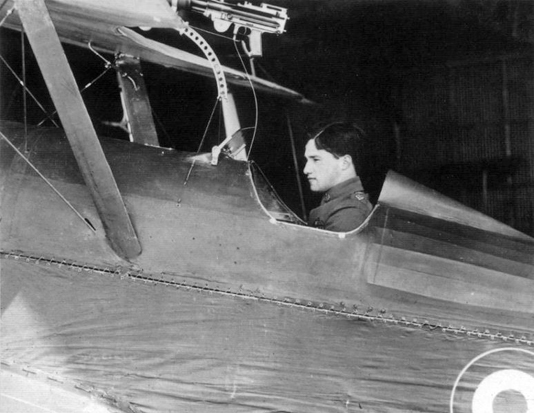

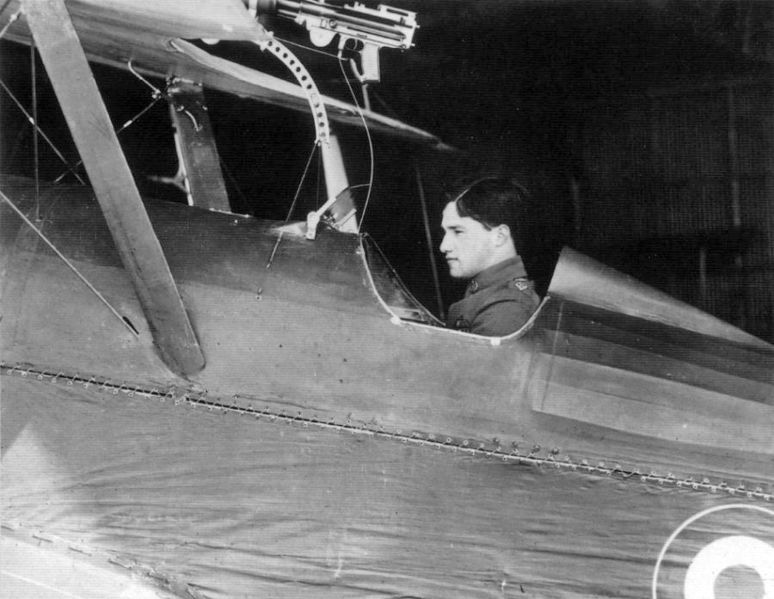

Albert Ball in the cockpit of his S.E.5
Albert Ball in the cockpit of his S.E.5

James McCudden's S.E.5a
James McCudden's S.E.5a

The S.E.5 entered service with No. 56 Squadron RFC in March 1917 although the squadron did not deploy to the Western Front until the following month, among other reasons so that the very large "greenhouse" windscreens, unpopular with pilots, could be replaced with small rectangular screens of conventional design. The squadron flew its first patrol with the S.E.5 on 22 April. While pilots, some of whom were initially disappointed with the S.E.5, quickly came to appreciate its strength and fine flying qualities, it was universally held to be under-powered, and the more powerful S.E.5a began to replace the S.E.5 in June. At this time 56 squadron was still the only unit flying the new fighter; in fact it was the only operational unit to use the initial 150 hp S.E.5 - all other S.E.5 squadrons used the 200 hp S.E.5a from the outset.

In spite of the initial very slow build up of new S.E.5a squadrons, due to a shortage of the type that lasted well into 1918, by the end of the war the type equipped 21 British Empire squadrons as well as two U.S. squadrons. Many of the top Allied aces flew this fighter, including Billy Bishop, Cecil Lewis, Edward Mannock and James McCudden. Legendary British ace Albert Ball was initially disparaging of the S.E.5 but in the end claimed 17 of his 44 victories flying it. McCudden wrote of the S.E.5 "It was very fine to be in a machine that was faster than the Huns, and to know that one could run away just as things got too hot."

Sholto Douglas, who commanded No. 84 Squadron RFC which was initially equipped with the S.E.5a, listed the type's qualities as:

  • Comfortable, with a good all-round view.
  • Retaining its performance and manoeuvrability at high level
  • Steady and quick to gather speed in the dive.
  • Capable of a very fine zoom.
  • Useful in both offence and defence.
  • Strong in design and construction.
  • Possessing a reliable engine.

Variants

S.E.5
First production version. Single-seat fighter biplane, powered by a 150-hp (112-kW) Hispano-Suiza 8a piston engine.
S.E.5a
Improved production version, powered by a 200-hp (149-kW) Hispano-Suiza 8b V-8 or 200-hp (149-kW) Wolseley Viper piston engine.
S.E.5b
Experimental prototype, with semi-sequiplane wings, streamlined nose, and retractable radiator.
Eberhart S.E.5e
S.E.5a modified by American company Eberhart Aeroplane, 180hp Wright-Hispano E engine. 50 modified.

Operators

 Australia
 Canada
 Poland
 South Africa
 United Kingdom
 United States

Survivors

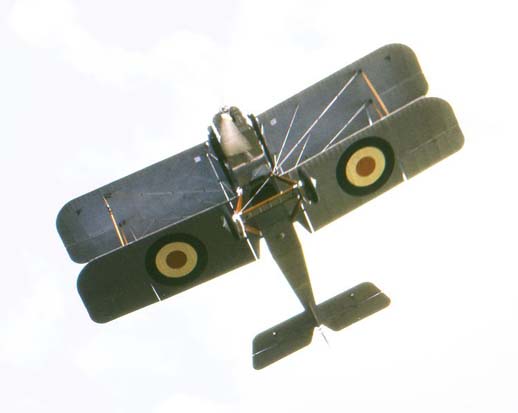

The Shuttleworth Collection's SE5a at Farnborough 1962, then painted as D7000
The Shuttleworth Collection's SE5a at Farnborough 1962, then painted as D7000

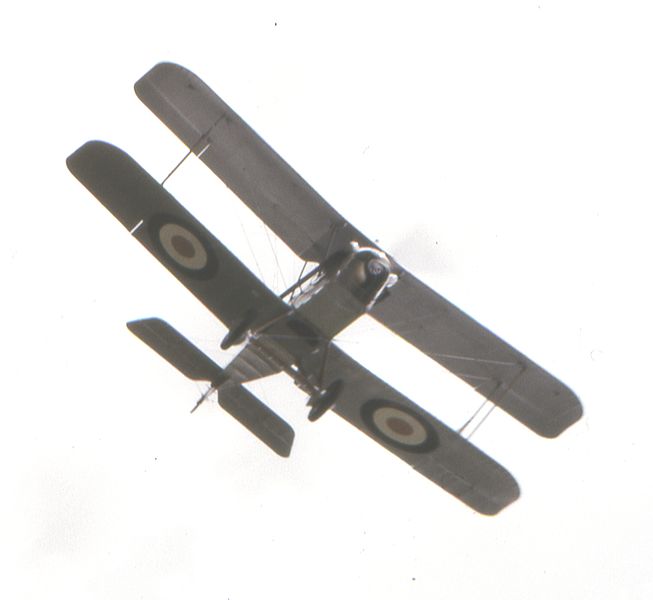

The Shuttleworth Collection's SE5a at Farnborough 1962
The Shuttleworth Collection's SE5a at Farnborough 1962

An original flying S.E.5a may be seen in the Shuttleworth Collection at Old Warden, England, UK. This aircraft was originally serial F904 of No. 84 Squadron RAF, then flew as G-EBIA from September 1923 to February 1932. It was restored and passed to the Shuttleworth Collection. Re-registered as G-EBIA, it was first painted as D7000, then as F904.

Another four original airframes are statically displayed at: the Science Museum, London, UK; Royal Air Force Museum, London, UK; South African National Museum of Military History, Johannesburg, South Africa; and the Australian War Memorial, Canberra, Australia.

Three very faithful reproductions (designated Se.5a-1) were built by The Vintage Aviator Limited in New Zealand, and these fly from Hood Aerodrome, Masterton. Another SE5a project was started in the UK in the 1980s by John Tetley and "Bill" Sneesby. The machine, built using original plans, was transferred to The Memorial Flight, (based at La Ferte Alais, in France) to be completed and flown. Some parts are original, such as the engine, instruments and fuel tank, and the machine is painted in the colours of Lt. H. J. 'Hank' Burden of 56 Squadron as of April 1918.

General characteristics

  • Crew: One
  • Length: 20 ft 11 in (6.38 m)
  • Wingspan: 26 ft 7 in (8.11 m)
  • Height: 9 ft 6 in (2.89 m)
  • Wing area: 444 ft² (22.67 m²)
  • Empty weight: 1,410 lb (639 kg)
  • Loaded weight: 1,935 lb (880 kg)
  • Max takeoff weight: 1,988 lb (902 kg)

Performance

Armament

See also

Comparable aircraft

Pilots of the S.E.5

Bibliography

External links




Text from Wikipedia is available under the Creative Commons Attribution/Share-Alike License; additional terms may apply.


Published - July 2009
