Scaled Composites White Knight

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/White_Knight_(airplane)

White Knight

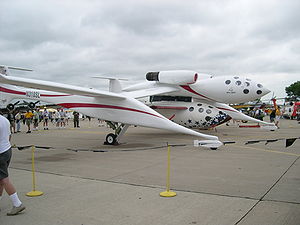

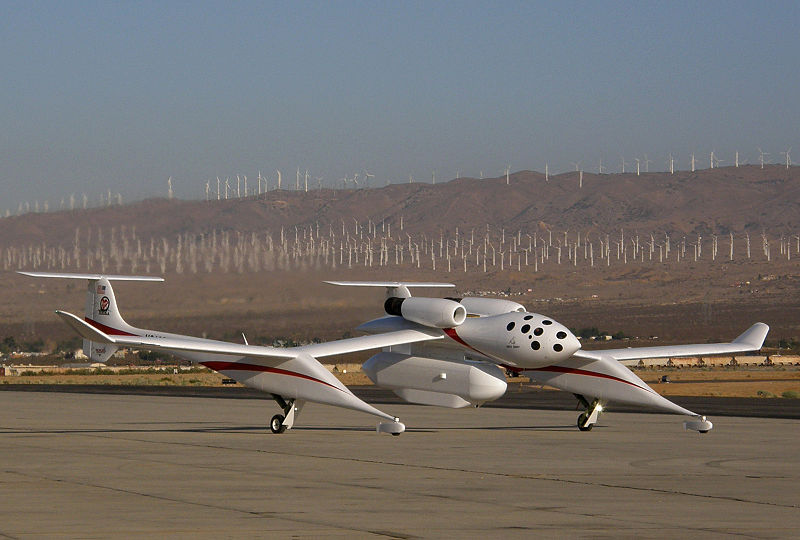

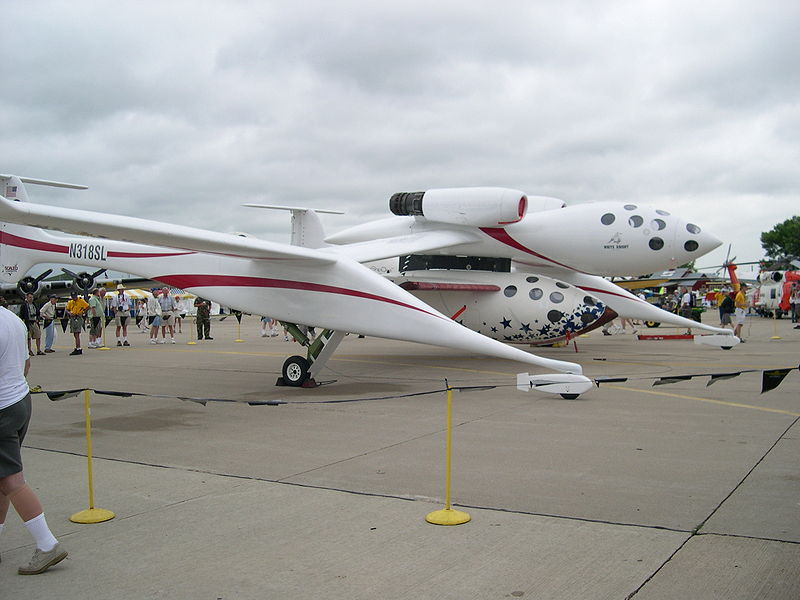

White Knight carrying SpaceShipOne as seen from the right
Role carrier aircraft
Manufacturer Scaled Composites
First flight August 1, 2002

White Knight compared with Scaled Composites Proteus
White Knight compared with Scaled Composites Proteus

The Scaled Composites Model 318 White Knight is a jet-powered carrier aircraft used to launch the SpaceShipOne experimental spacecraft. It was developed by Scaled Composites as part of their Tier One program. The aircraft is subsequently being offered by Scaled on a contract basis as a research testbed, and was also used for drop tests of the Boeing X-37 spaceplane from June 2005 until April 2006.

History

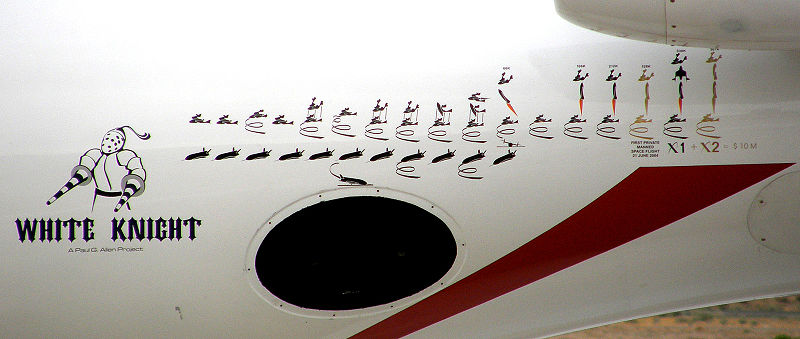

White Knight's missions stickers
White Knight's missions stickers

White Knight carrying a Northrop Grumman radar pod
White Knight carrying a Northrop Grumman radar pod

The Scaled Composites model number for White Knight is 318. White Knight is registered with the Federal Aviation Administration as N318SL.

The White Knight carrier airplane was designed around the twin afterburning J-85 engines, which were selected for their availability and low cost.

White Knight first flew on August 1, 2002. The flight was aborted shortly after takeoff due to a problem with the outboard wing spoilers. These trailing edge spoilers were designed to greatly increase the glide slope so that the White Knight vehicle could act as a flying simulator for training of SpaceShip One pilots. During the first flight, the mechanical over-center torque was insufficient to maintain the spoilers in the closed position. The spoilers deployed into the free stream and began a limit cycle forcing the pilot (Melville) to abort. The spoilers were subsequently disabled completely and the desire for a steep glide slope matching SpaceShip One was abandoned.

White Knight next flew on August 5, 2002, and this time performed well. Development proceeded over the next few months. With White Knight developed and evaluated, on April 18, 2003 White Knight and SpaceShipOne were presented to the media.

Subsequently, White Knight flew as part of the Tier One program that won the Ansari X Prize on 2004 October 4. Afterwards White Knight was used to carry and launch DARPA's experimental X-37 spaceplane for its approach and landing tests in 2005 and 2006.

It was followed up by the White Knight 2 which have a similar but larger design.

SpaceShipOne program

Flights of White Knight are numbered, starting with flight 1 on August 1, 2002. Flights where SpaceShipOne is carried also get one or two appended letters. An appended C indicates that the flight was a captive carry, and L indicates that SpaceShipOne was launched. If the flight actually flown differs in category from the intended flight then two letters are appended, the first giving the intended mission and the second the mission actually performed.

White Knight flights carrying SpaceShipOne
Flight Date Pilot SpaceShipOne flight
24C May 20, 2003 Peter Siebold 01C
29C July 29, 2003 Brian Binnie 02C
30L August 7, 2003 Brian Binnie 03G
31LC August 27, 2003 Brian Binnie 04GC
32L August 27, 2003 Brian Binnie 05G
37L September 23, 2003 Peter Siebold 06G
38L October 17, 2003 Peter Siebold 07G
40L November 14, 2003 Brian Binnie 08G
41L November 19, 2003 Brian Binnie 09G
42L December 4, 2003 Peter Siebold 10G
43L December 17, 2003 Peter Siebold 11P
49L March 11, 2004 Brian Binnie 12G
53L April 8, 2004 Brian Binnie 13P
56L May 13, 2004 Brian Binnie 14P
60L June 21, 2004 Brian Binnie 15P
65L September 29, 2004 Mike Melvill 16P
66L October 4, 2004 Brian Binnie 17P

X-37 test program

White Knight was contracted to perform both captive carry and drop test flights of the DARPA/Boeing X-37. First captive carry flight was on June 21, 2005, and first drop was on April 7, 2006 (the X-37 was subsequently damaged on landing at Edwards AFB). Initially, the flights originated from Mojave, but following the landing incident, the program was moved to Air Force Plant 42 in Palmdale, California, and at least five subsequent flights were made there.

Adaptive Compliant Wing test program

In late 2006, White Knight flew a seven-flight test program of the Adaptive Compliant Wing developed by FlexSys Inc with funding by the Air Force Research Laboratory. A laminar flow test article was mounted vertically under White Knight's centerline pylon for the 20-flight-hour research program that tested the flexible wing's aerodynamic characteristics.

Specifications

The aircraft was a completely new independent design. White Knight and SpaceShip One shared the same forward fuselage outer mold line (OML) to reduce development costs and with the original intent to allow for White Knight to act as a flying simulator for training SpaceShip One pilots.

Data from http://www.scaled.com/projects/tierone/data_sheets/html/white_knight.htm

General characteristics

Performance
