Socata Rallye

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/PZL-110_Koliber

Rallye

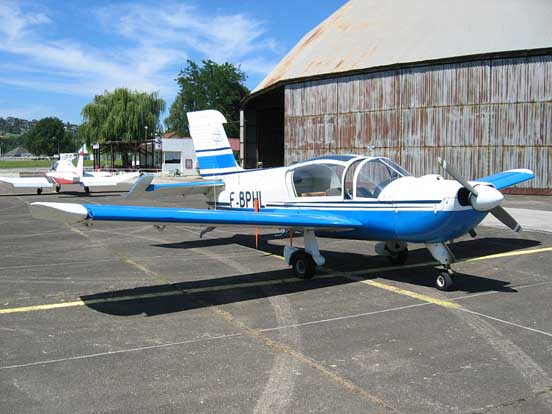

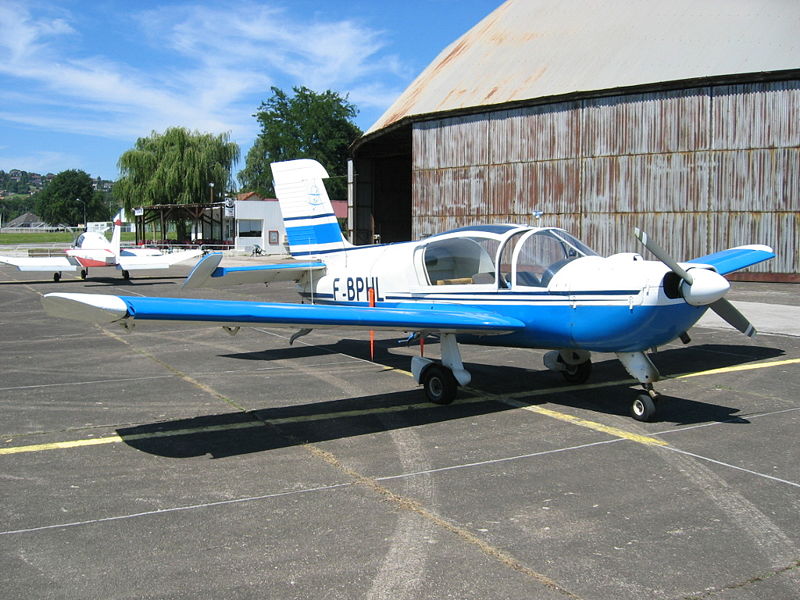

Morane-Saulnier (Socata) Rallye Minerva MS.894A
Role Tourer/trainer aircraft
National origin France
Manufacturer Socata
First flight 10 June 1959
Number built ~3,300 [1]

The EADS Socata Rallye was a light aircraft manufactured in France during the 1960s, originally by Morane-Saulnier as the MS.880. It was eventually replaced in production by the Socata TB series in the 1970s, but continued in production in Poland under licence by PZL as the PZL Koliber.

Design

The Rallye is a single engined, low wing monoplane of all metal construction, fitted with a fixed undercarriage. Power was from one of a range of progressively more powerful air cooled engines, ranging from a 100 hp (75 kW) Continental O-200 engine in the Rallye Club, to a 235 hp (175 kW) Lycoming O-540 in the Rallye 235. It has a bulbous cockpit which houses two people in the basic low powered variants and four in the more powerful aircraft, some of which are designed to be used as glider tugs.

History

In 1958, Morane-Saulnier designed a single engined light aircraft, the MS.880 Rallye Club,in response to a French government competition. The prototype, powered by a 90 hp (67kW) engine, first flew on 10 June 1959. The first versions, the MS.880B and more powerful MS.885, were certified as airworthy on 21 November 1961.

Morane-Saulnier became part of Sud Aviation in 1965, and was renamed Socata in 1966, continuing to build the Rallye in large numbers through the remainder of the 1960s and well into the 1970s. In 1979, Socata renamed the Rallye series, with each model getting an individual, "more Gallic" name. They were gradually replaced in French production by the Socata TB series, the last (of approximately 3,300 ) aircraft built by Socata, an armed R235 Guerrier, being delivered in December 1984.

This was not the end of Rallye production, however, as Socata had sold a license for production of the Rallye 100ST to the Polish State aviation company PZL, the aircraft being produced in its Warsaw factory as the PZL Koliber (Humming Bird). The first PZL built aircraft flew on 18 April 1978, entering production in 1979, with 10 being produced that year.

Variants

French production

MS.880
Original production version. Powered by 100 hp (75 kW) Continental O-200.
MS.881
105 fp (78 kW) Potez engine. 12 built.
MS.883
115 hp (86 kW) Lycoming engine. 77 built.
MS.885 Super Rallye
Two-three seat version. 145 hp (108 kW) Continental O-300 engine. 212 built.
MS.886
150 hp (112 kW) Lycoming engine. Three built.
MS.890 Rallye Commodore
Four seat version. 145 hp (108 kW) Continental engine. Eight built.
MS.892 Rallye Commodore 150
150 hp (112 kW) Lycoming 0-320 engine. Later designated Rallye 150.
MS.893 Rallye Commodore 180
180 hp (134 kW) Lycoming O-360 engine. Later designated Rallye 180. Further redesignated Socata Gaillard or Socata Galérien (glider towing version).
MS.894 Rallye Minerva
220 hp (164 kW) Franklin 6A-350 engine. Later designated Rallye 220. Sold as Waco Minerva in United States.
Rallye 100
Powered by 100 hp (75 kW) Rolls-Royce Continental O-200. Available in two-seat trainer/sport (100-S) stressed for aerobatics , four seat tourer (100-T) or convertable two/four seat version (100-TS).
Rallye 125
Four seat version of 100-T, powered by 125 hp (93 kW) Lycoming O-235.
Rallye 235
Powered by 235 hp (175 kW) Lycoming O-540. Redesignated Socata Gabier.
Socata Galopin
Version of Rallye 100 powered by 110 hp (82 kW) Lycoming O-235. Original designation Ralley 110.
Socata Garnement
Improved version of Rallye 150, with 155 hp (116 kW) Lycoming 0-320.
Socata Gaucho
Tailwheel agricultural aircraft.
R235 Guerrier
Military version of Gabier/Rallye 235.

Polish production

PZL-110 Koliber
Initial licence production version powered by PZL licenced 116 hp (86.5 kW) Franklin 4A-235, based on Rallye 100 ST. Production 32 aircraft.
PZL-110 Koliber 150
150 hp (112 kW) Lycoming O-320 engine.
PZL-110 Koliber 160
160 hp (119 kW) Lycoming O-320 engine.
PZL-111 Koliber 235
235 hp (175 kW) Lycoming O-520 engine.

Military Operators

 Central African Republic
 Djibouti
 Dominican Republic
 El Salvador
 France
 Libya
 Morocco
 Rwanda
 Senegal

Specifications (180 GT)

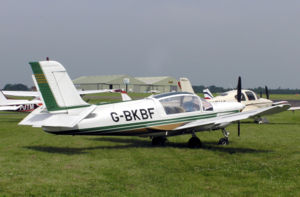

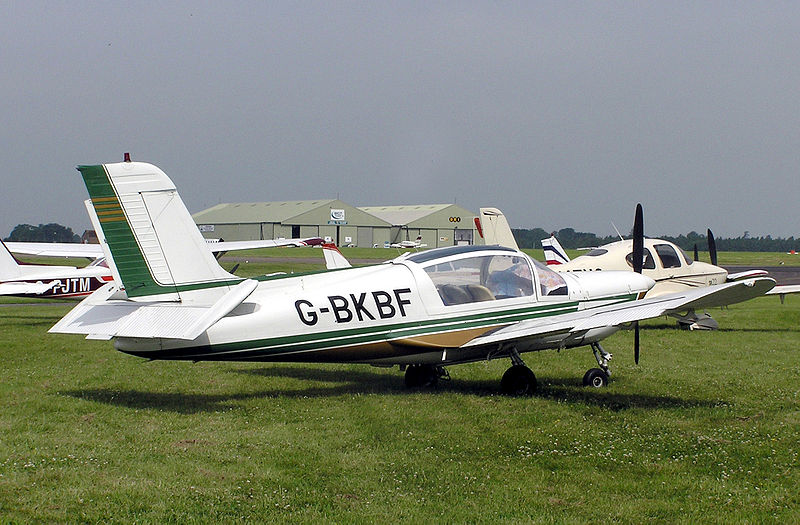

Morane Saulnier Rally 893
Morane Saulnier Rally 893

Data from Jane's All the World Aircraft 1976-77

General characteristics

  • Crew: Four
  • Length: 7.24 m (23 ft 9 in)
  • Wingspan: 9.74 m (31 ft 11 in)
  • Height: 2.80 m (9 ft 2¼ in)
  • Wing area: 12.3 m² (132 ft²)
  • Empty weight: 570 kg (1,257 lb)
  • Max takeoff weight: 1,050 kg (2,315 lb)
  • Powerplant:Lycoming O-360-A3A air cooled flat four piston engine, 134 kW (180 hp)

Performance
