PZL-Mielec M-18 Dromader

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/PZL-Mielec_M-18_Dromader

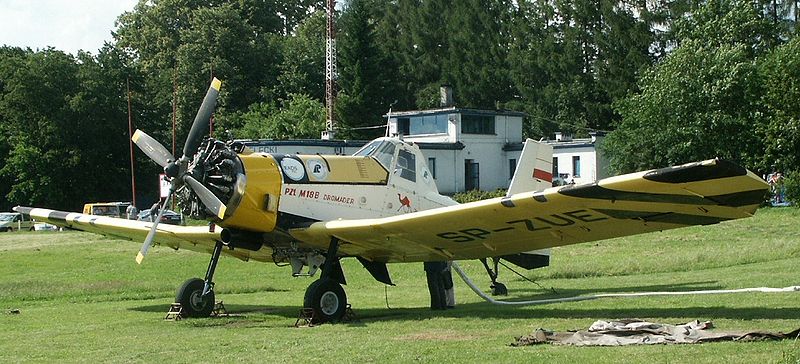

M-18 Dromader
M-18B Dromader used in South Dakota
Role Utility aircraft
Manufacturer PZL-Mielec
First flight 27 August 1976
Number built > 740

The PZL-Mielec M-18 Dromader (Polish: "Dromedary") is a single engine agricultural aircraft that is manufactured by PZL-Mielec in Poland. The aircraft is used mainly as a cropduster or firefighting machine.

Development

PZL-Mielec, then known as WSK-Mielec, began to design the Dromader in the mid 1970s, with help of United States aircraft manufacturer Rockwell International. PZL-Mielec asked for Rockwell's help because of the political situation at the time: operating in an Eastern Bloc country, PZL wanted the aircraft to sell well worldwide, and the company realized that FAA certification would be important in reaching that goal. Rockwell on the other hand wanted to fit Polish high-power radial engines into its agricultural planes. As a result of this cooperation the Rockwell Thrush Commander aircraft was fitted with the PZL-3 engine, and the Polish designers created the higher payload M-18 Dromader by introducing the more powerful ASz-62 engine, making structural changes to the airframe, and increasing dimensions. This co-operation meant that the Dromader shares outer wing panels and part of a fuselage with the Thrush Commander.

The first prototype of the aircraft flew on August 27, 1976. In September 1978, the aircraft was given certification to fly in Poland. Certifications from many countries around the world followed soon.

Many aircraft of the M-18 type and its variations can still be seen around the world. They were sold to 24 countries, 200 are used in the USA.

Most Dromaders are easy to distinguish because of their yellow color. Over 740 had been built by 2006. Currently (2006) models M-18B and M-18BS are offered by PZL-Mielec.


PZL M-18B Dromader as waterbomber
PZL M-18B Dromader as waterbomber

Variants

  • M-18 - original one-seat production version, now available for special orders only.
  • M-18A - two seater available from 1984 onwards. Allows a mechanic or chemical loader to be carried as a passenger to remote fields.
    • M-18AS - two-cockpit trainer version
  • M-18B - refined version of M-18A with increased capacity, flown in 1993.
    • M-18BS - two-cockpit trainer.
  • M-18C - version with more powerful 895 kW (1,200 hp) Kalisz K-9 engine. Flown in 1995 but not produced.
  • M-18/T45 Turbine Dromader - turboprop powered with Pratt & Whitney Canada PT6A-45 engine. First flew in 1985 and was given FAA certification in April 1986.
  • M-21 Dromader Mini - smaller variant (1100 kg of chemicals), flown in 1982, not produced.
  • M-24 Dromader Super - bigger variant (2000 kg of chemicals), flown in 1987, not produced.
  • M-25 Dromader Mikro - smaller variant (500 kg of chemicals), sketch only.

Specifications (M-18B Dromader)

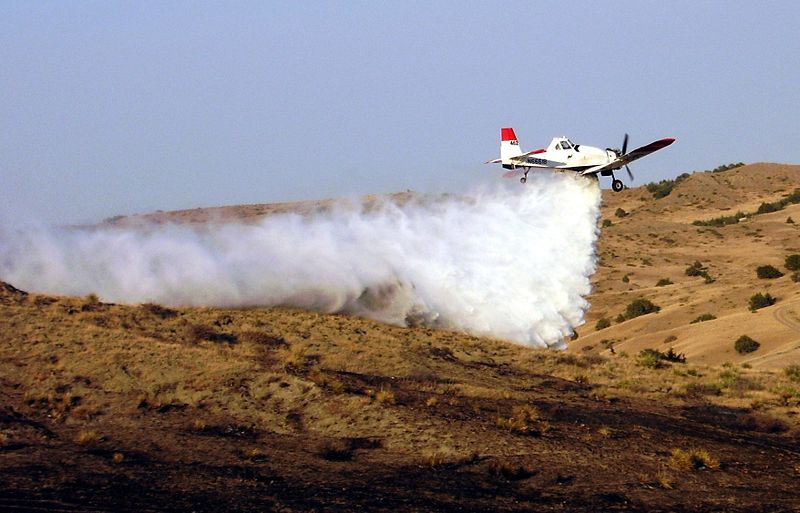

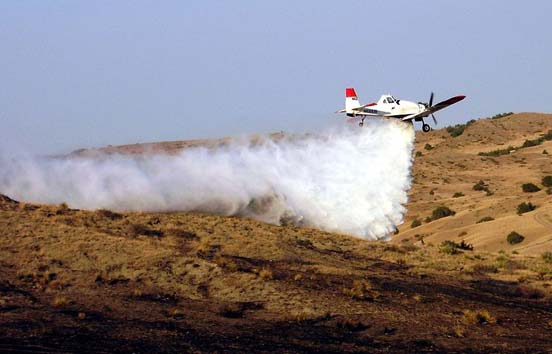

M-18B Dromader dropping water
M-18B Dromader dropping water

Data from {name of first source}

General characteristics

  • Crew: one, pilot
  • Capacity: one passenger, and up to 2,200 l (581 US gallons) or 1,900 kg (4,180 lb) of chemicals
  • Length: 9.47 m (31 ft 1 in)
  • Wingspan: 17.70 m (58 ft 1 in)
  • Height: 3.70 m (12 ft 2 in)
  • Wing area: 40 m² (430 ft²)
  • Empty weight: 2,710 kg (5,975 lb)
  • Max takeoff weight: 5,300 kg (11,700 lb)
  • Powerplant:WSK "PZL-Kalisz" ASz-62IR-M18 piston radial, 745 kW (1,000 hp)

Performance

See also

Related development

Comparable aircraft

External links




Text from Wikipedia is available under the Creative Commons Attribution/Share-Alike License; additional terms may apply.


Published in July 2009.
