MDM MDM-1 Fox

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/MDM-1_Fox

MDM-1 Fox
Role Two-seat sailplane
National origin Poland
Manufacturer Margański & Mysłowski

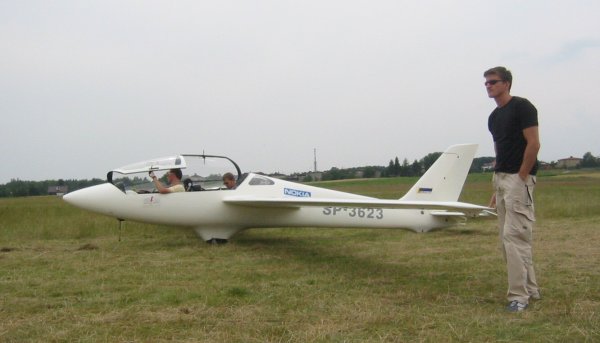

The MDM MDM-1 Fox is a Polish, composite mid-wing two-seater aerobatic glider with fixed undercarriage and conventional tail unit.

This sailplane was first displayed at the World Glider Aerobatic Championships in Venlo, Netherlands, 1993, where Jerzy Makula flew it to win the World Championship. Shortly after the Championships ended, promotional flights were arranged to enable top pilots to fly this aircraft. The Fox has since had several successes at other international competitions.

Specifications

General characteristics

  • Crew: Two
  • Length: 7.38 m (24 ft 3 in)
  • Wingspan: 14.00 m (45 ft 11 in)
  • Wing area: 12.3 m² (133 ft²)
  • Aspect ratio: 15.9
  • Empty weight: 345 kg (759 lb)
  • Gross weight: 525 kg (1,155 lb)

Performance

  • Maximum speed: 293 km/h (183 mph)
  • Stall speed: 84 km/h (53 mph)
  • G limits: +9.0/-6.0 (one occupant), +7.0/-5.0 (two occupants)
  • Rate of sink: 1 m/s (200 ft/min)
