Honda HA-420 HondaJet

By Wikipedia,
the free encyclopedia,

http://en.wikipedia.org/wiki/Honda_HA-420_HondaJet

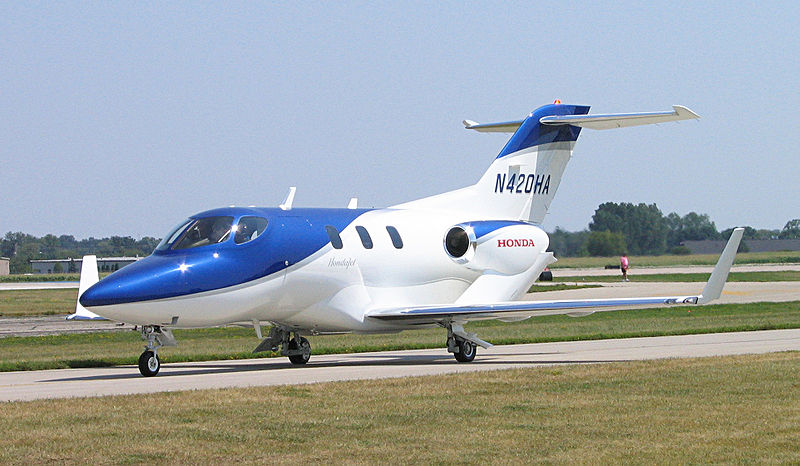

HA-420 HondaJet
Role Business jet
National origin Japan
Manufacturer Honda Aircraft Company[1]
Designed by Michimasa Fujino
First flight 3 December 2003
Introduced 2011 [2]
Status Under development
Number built 2 prototypes
Unit cost US$3.9 million [4]

The Honda HA-420 HondaJet is the first aircraft developed by the Honda Motor Company that will be made available to the general aviation market.

Development

Honda began research into small sized business jets in the late 1980s, using engines from other manufacturers. The Honda MH02, an organic matrix composite prototype, was fabricated and assembled at Mississippi State University's Raspet Flight Research Laboratory in the late 1980s and early 1990s.

The HondaJet made its maiden flight in December 2003 and was debuted to the public at the EAA AirVenture air show in Oshkosh, Wisconsin, in July 2005. On July 25, 2006, Honda returned to Oshkosh to announce it would commercialize the HondaJet, establishing the Honda Aircraft Company to seek both type and production certification of the HondaJet with production to take place in the United States. The company began taking customer orders for HondaJet in the fall of 2006, and estimates deliveries to begin in 2011 at a price of approximately $3.65 million US. The plan is to build 70 jets per year.

In August 2006 Honda and Piper Aircraft announced a partnership to market the HondaJet.

Design

Honda decided to go with an unusual over-the-wing podded engine configuration, a feature developed on the innovative Vereinigte Flugtechnische Werke VFW-614 decades earlier, which allows for more space within the fuselage and reduction of drag at higher speeds. The fuselage itself is made from lightweight composite materials, while the wings are made from structurally reinforced single sheets of aluminum. The use of a single sheet allows for a smoother surface than more conventional methods. Honda claims that the combination of lightweight materials, aerodynamics and the efficient engines gives the HondaJet a 30-35% higher fuel efficiency than similar aircraft.

Honda began developing its own small turbofan engine, the HF118, in 1999. This led to the evolution of the HF120, which was developed with GE Aviation under the GE Honda partnership, and was test-flown on a Cessna Citation and on a modified Boeing 727-100. The engine features a single fan, a two-stage compressor and a two-stage turbine. Further design testing on wing shape and design were done on a T-33 Shooting Star, modified by AVTEL Services, Inc, and flight tested at the Mojave Airport.

The aircraft is equipped with a Garmin G1000 glass cockpit system (i.e. most of the cockpit readouts are presented on flat-panel displays).

Production

The aircraft will be made at Piedmont Triad International Airport, Greensboro, North Carolina, USA. The plant for making the aircraft will be built by the end of 2011.

Honda expects to sell 70 planes per year. [5]

Specifications (HA-420 HondaJet)

Data from {Honda Aircraft Company}

General characteristics

  • Crew: 1-2 crew members
  • Capacity: 5 passengers
  • Length: 41.70 ft (12.71 m)
  • Wingspan: 39.87 ft (12.15 m)
  • Height: 13.21 ft (4.03 m)
  • Useful load: 644lbs ()
  • Max takeoff weight: 4,173 kg (9,200 lb)
  • Powerplant:GE Honda HF120 turbofan engines, 1,880lbf each (Bypass Ratio= 2.9) (8.04kN) each

Performance

Avionics
Garmin G1000 glass cockpit
